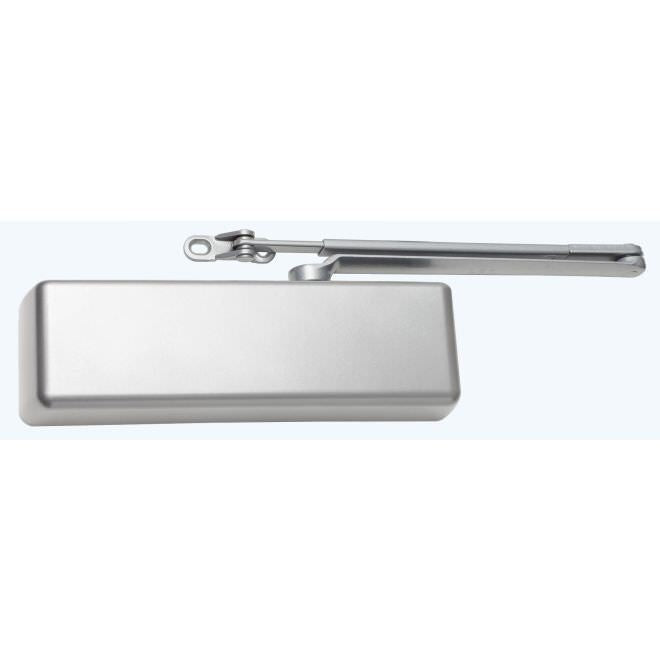

LCN 4031 Regular Arm Door Closer with Thru Bolts
Heavy Duty Universal Regular Door Closer with Thru Bolts 689
Free Shipping Eligible
On orders over $299
Free Shipping Eligible
On orders over $299
Free Shipping Eligible
On orders over $299
LCN 4031 Regular Arm Door Closer with Thru Bolts - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The LCN 4031 regular arm door closer is a complete surface-mounted closer with thru bolts for commercial openings. Choose the finish from the available variants; this listing offers 4031REGAL, 4031REGBRASS and 4031REGDKBRZ.
LCN 4031 configuration and mounting
Use the regular-arm package for pull-side mounting or a suitable top-jamb application, following the manufacturer template. For a package that includes the parallel-arm bracket, choose one of the RW/PA listings linked below.
Model/SKU: 4031REGAL / 4031REGBRASS / 4031REGDKBRZ
Series: LCN 4030
Arm package: REG: regular arm; non-hold-open.
Finish: Select the required finish from the product options.
Spring power: Adjustable sizes 1–4
Handing: Non-handed
Construction: Cast iron cylinder with metal cover
Grade: ANSI/BHMA A156.4 Grade 1
Fasteners: Thru bolts
Installation instructions and related options
Use the LCN 4031 pull-side and parallel-arm installation instructions or top-jamb installation instructions for the intended mounting. See the manufacturer's 4030 Series specifications and resources for application details.
Compare other 4031 packages: 4031RWPADKBRZ RW/PA Door Closer, Dark Bronze; 4031HWPAAL HW/PA Hold-Open Door Closer, Aluminum; 4031RWPAAL RW/PA Door Closer, Aluminum.
Browse LCN surface mounted door closers, LCN replacement parts or all LCN door closers. See the LCN manufacturer warranty.
Do not scale printed instructions to mark drilling locations. Follow the dimensions and mounting requirements shown in the manufacturer's instructions.
-
Weight7.9 lb
-
SKU
-
Brand
-
Function
-
Material
-
Collections
-
Country Of Origin
-
Grade
-
Length
-
Height
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Standard Shipping — Lower 48 States
- Orders $0.01–$99.99: $11.95
- Orders $100.00–$199.99: $13.95
- Orders $200.00–$298.99: $15.95
- Orders $299.00 and above: Free Shipping
In-stock items usually ship within 0–1 business day, with typical transit of 1–5 business days. We do not ship to Alaska or Hawaii. Special-order lead times are shown on the product page.
Returns
- Eligible returnable items may be returned within 60 days.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible returnable items may be returned within 60 days.
- Returnable Special Order items are subject to a 50% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible returnable items may be returned within 60 days.
- Returnable Special Order items are subject to a 50% restocking fee.
- Customers are generally responsible for return shipping.
Product-specific notices shown on the product page and at checkout control over this summary. View the full return policy.
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|
| 4031REGAL | Aluminum | $556.42 USD |
| 4031REGBRASS | Satin Brass | $556.42 USD |
| 4031REGDKBRZ | Dark Bronze | $556.42 USD |
Description
Description
The LCN 4031 regular arm door closer is a complete surface-mounted closer with thru bolts for commercial openings. Choose the finish from the available variants; this listing offers 4031REGAL, 4031REGBRASS and 4031REGDKBRZ.
LCN 4031 configuration and mounting
Use the regular-arm package for pull-side mounting or a suitable top-jamb application, following the manufacturer template. For a package that includes the parallel-arm bracket, choose one of the RW/PA listings linked below.
Model/SKU: 4031REGAL / 4031REGBRASS / 4031REGDKBRZ
Series: LCN 4030
Arm package: REG: regular arm; non-hold-open.
Finish: Select the required finish from the product options.
Spring power: Adjustable sizes 1–4
Handing: Non-handed
Construction: Cast iron cylinder with metal cover
Grade: ANSI/BHMA A156.4 Grade 1
Fasteners: Thru bolts
Installation instructions and related options
Use the LCN 4031 pull-side and parallel-arm installation instructions or top-jamb installation instructions for the intended mounting. See the manufacturer's 4030 Series specifications and resources for application details.
Compare other 4031 packages: 4031RWPADKBRZ RW/PA Door Closer, Dark Bronze; 4031HWPAAL HW/PA Hold-Open Door Closer, Aluminum; 4031RWPAAL RW/PA Door Closer, Aluminum.
Browse LCN surface mounted door closers, LCN replacement parts or all LCN door closers. See the LCN manufacturer warranty.
Do not scale printed instructions to mark drilling locations. Follow the dimensions and mounting requirements shown in the manufacturer's instructions.
Specifications
Specifications
-
Weight7.9 lb
-
SKU
-
Brand
-
Function
-
Material
-
Collections
-
Country Of Origin
-
FinishAluminum, Satin Brass, Dark Bronze
-
Function
-
Material
-
Grade
-
Length
-
Height
-
Width
