Ball Bearing Hinges

How to Choose Ball Bearing Door Hinges

Ball bearing hinges use bearings between the hinge knuckles to reduce friction as the door swings. They are often chosen for heavier doors, frequently used openings, and applications where smoother movement and longer hinge life are important. The bearing design does not replace the need to size the hinge correctly, so door height, width, weight, construction, traffic level, and the number of hinges on the opening should all be considered.

Hinge dimensions need to match the door and frame preparation. Common residential and light-commercial sizes include 3-1/2 inch and 4 inch hinges, while larger architectural openings may use 4-1/2 inch or other sizes. Measure both hinge height and open width, and check leaf thickness and screw-hole locations. A hinge with the same nominal height can still differ in width, gauge, hole pattern, or intended duty.

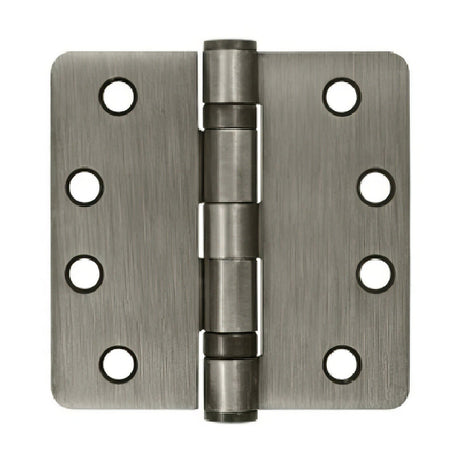

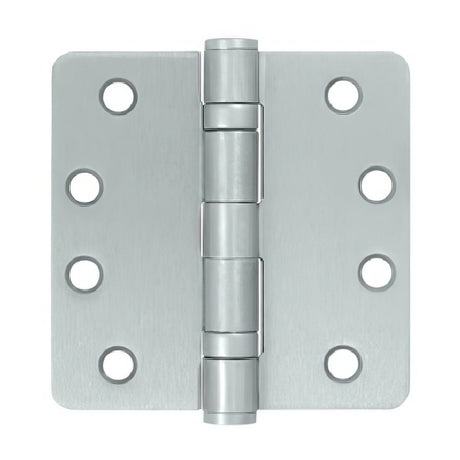

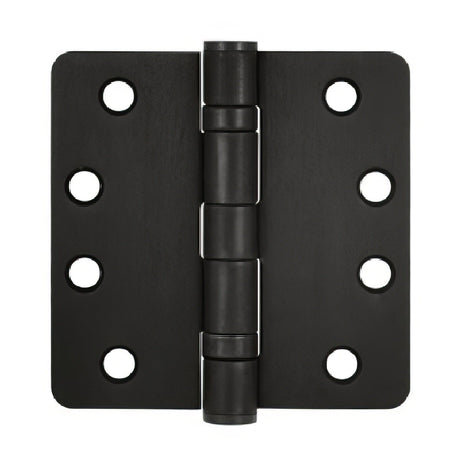

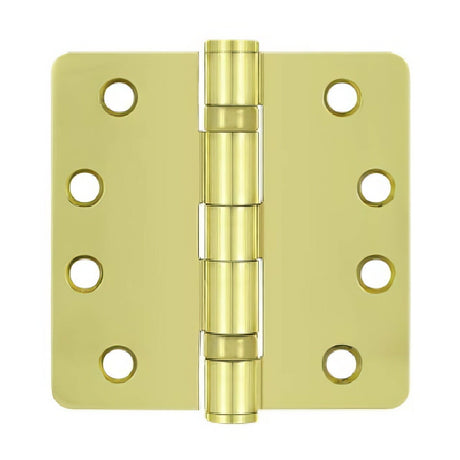

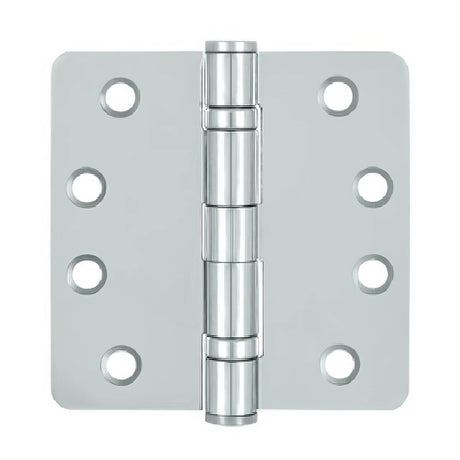

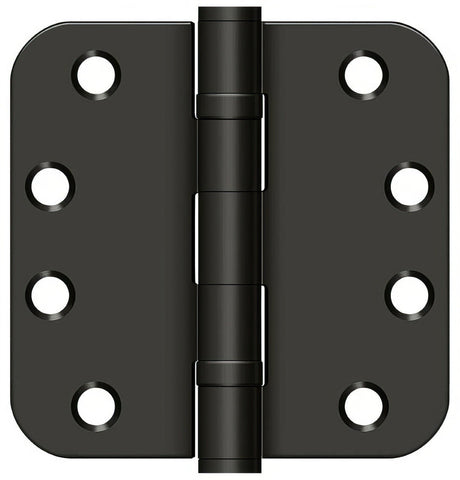

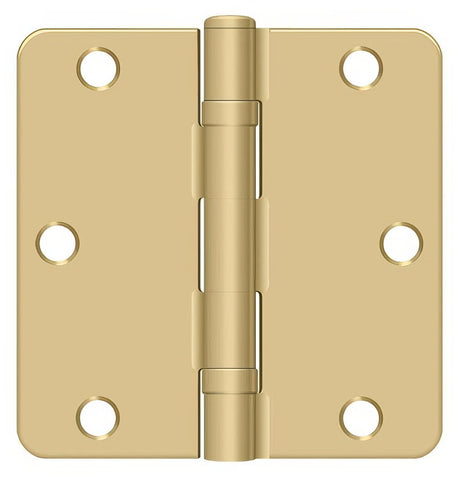

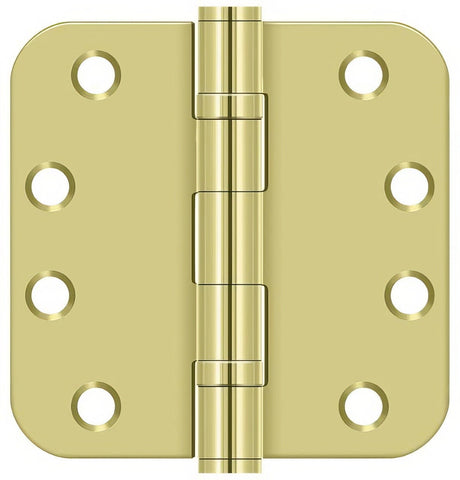

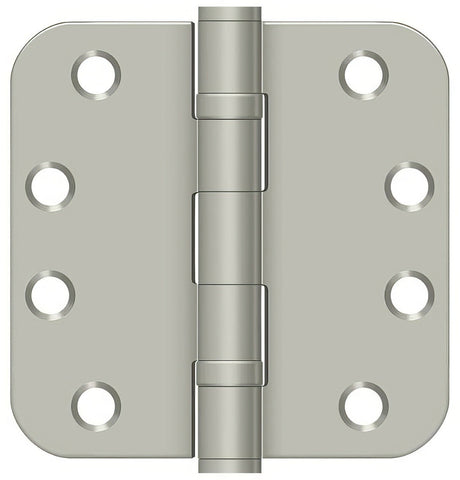

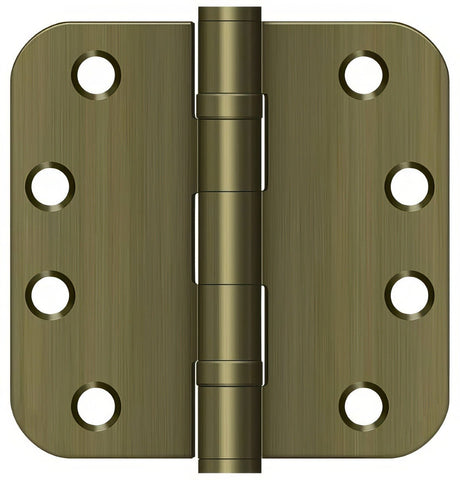

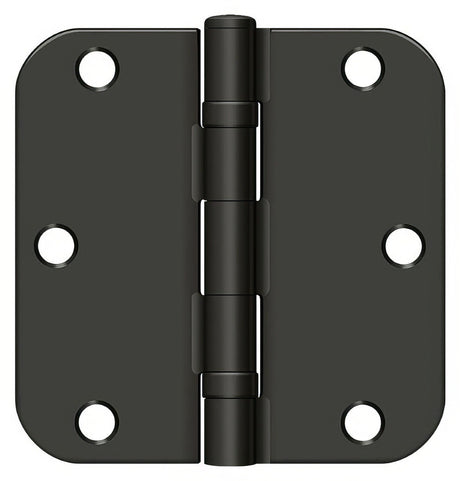

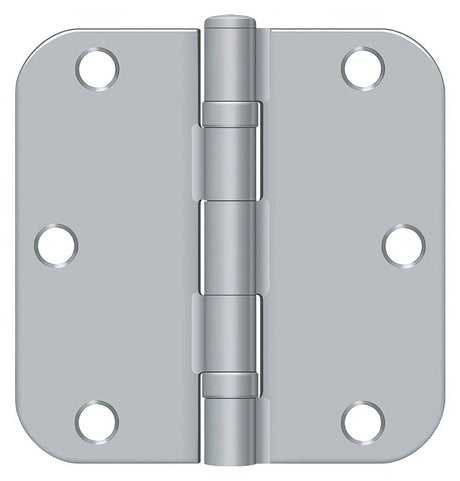

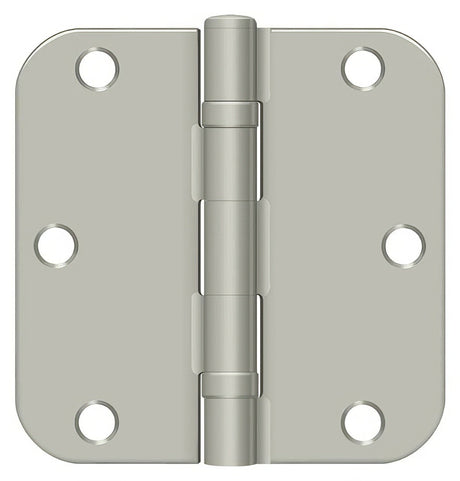

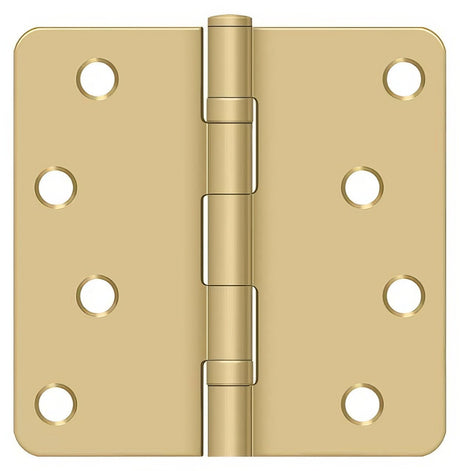

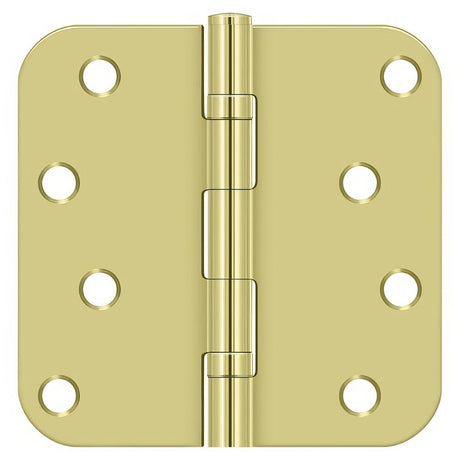

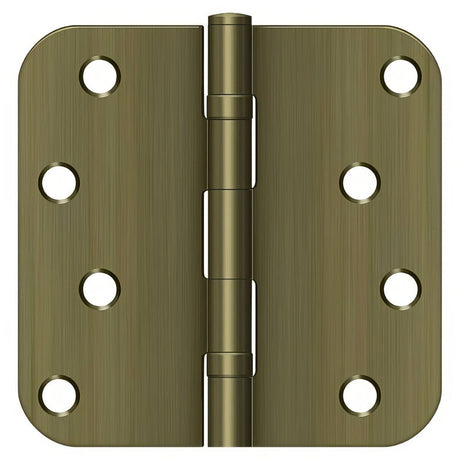

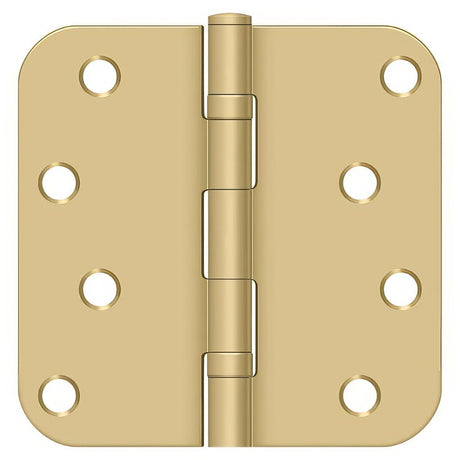

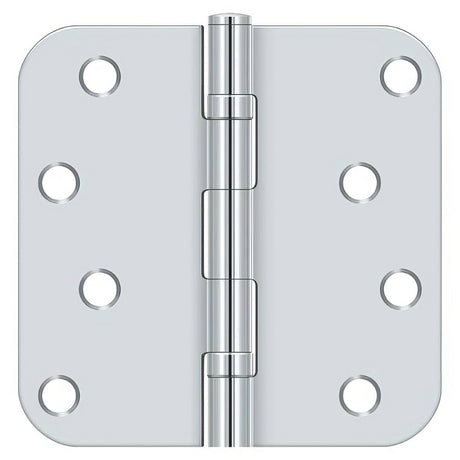

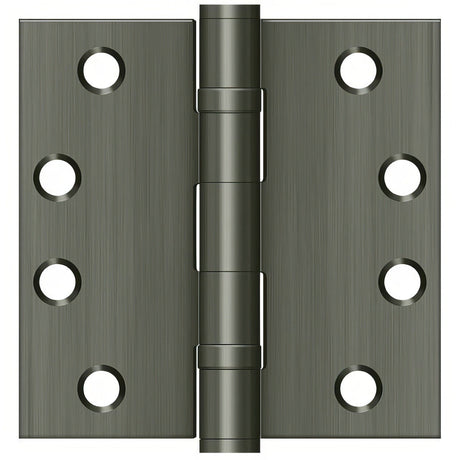

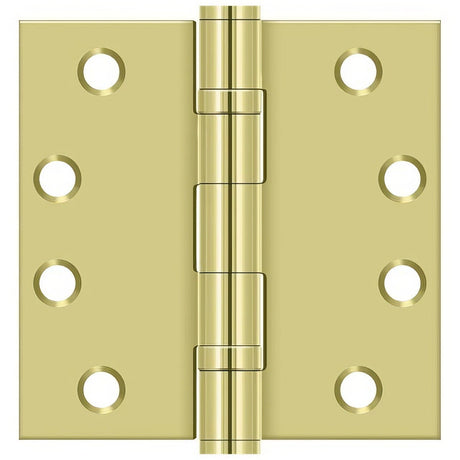

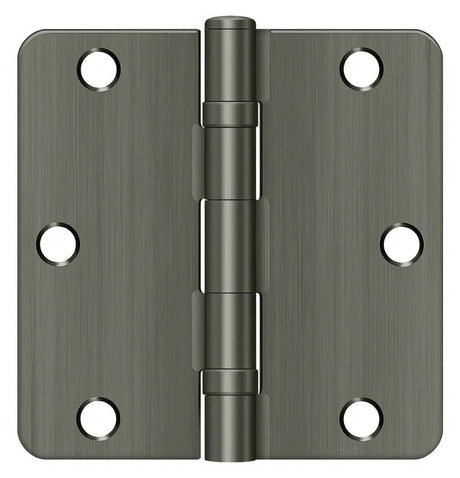

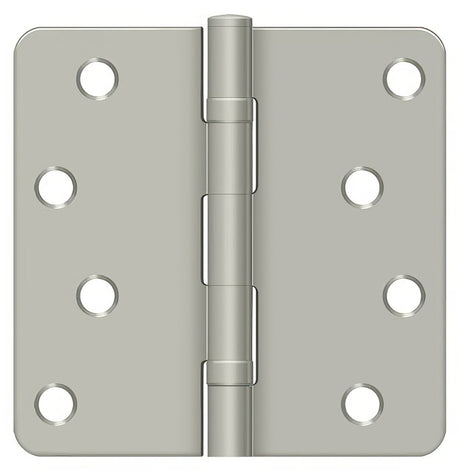

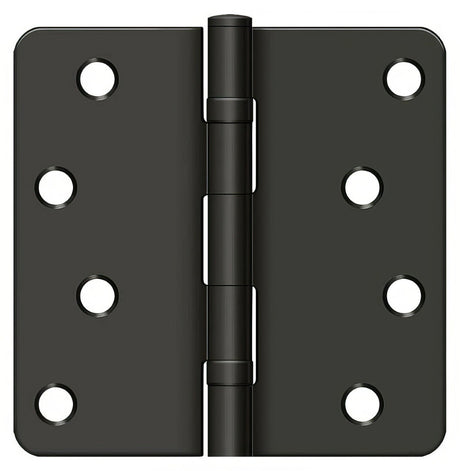

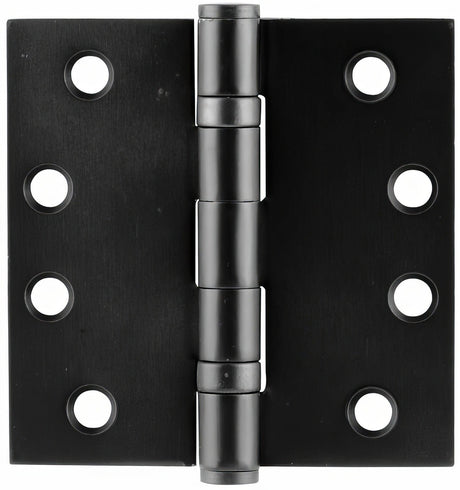

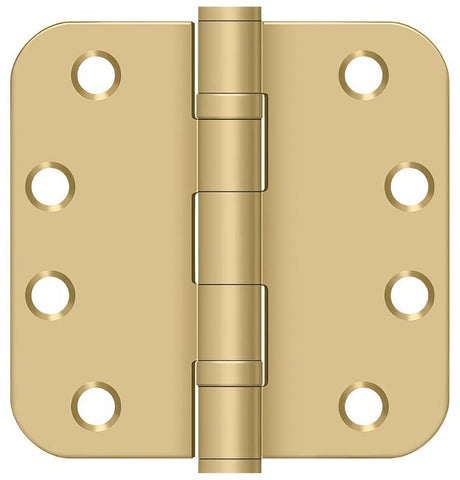

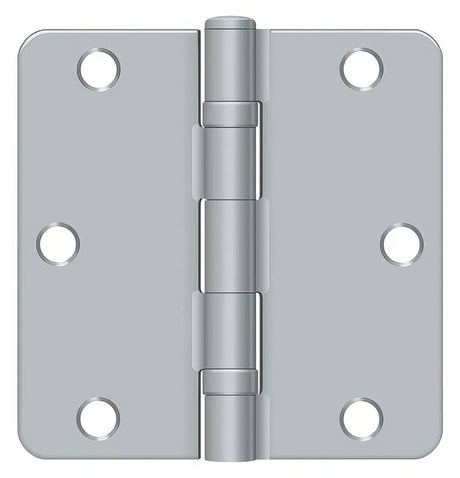

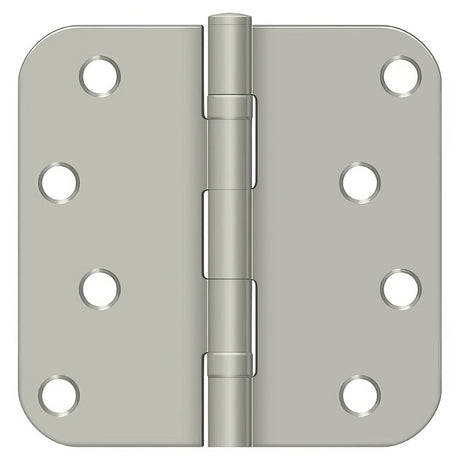

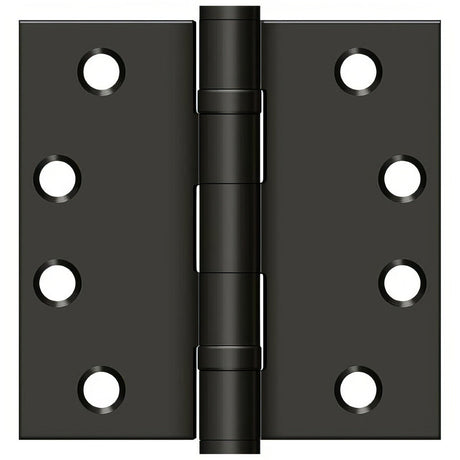

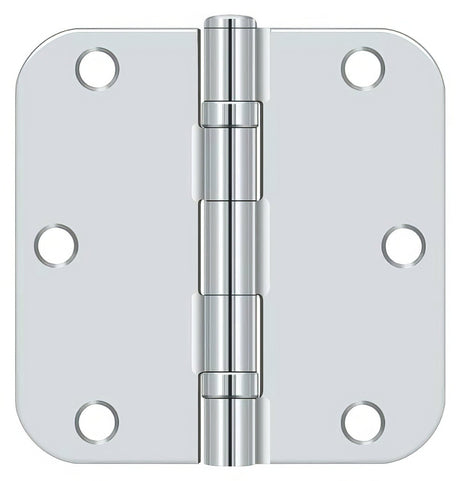

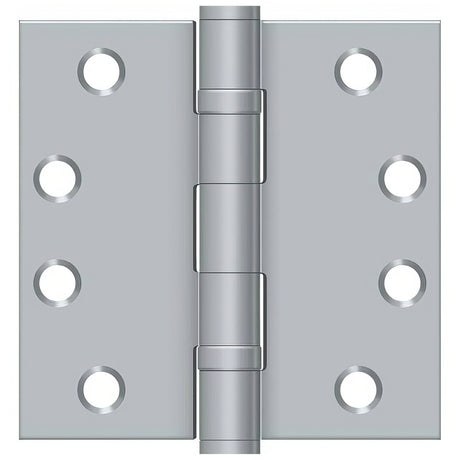

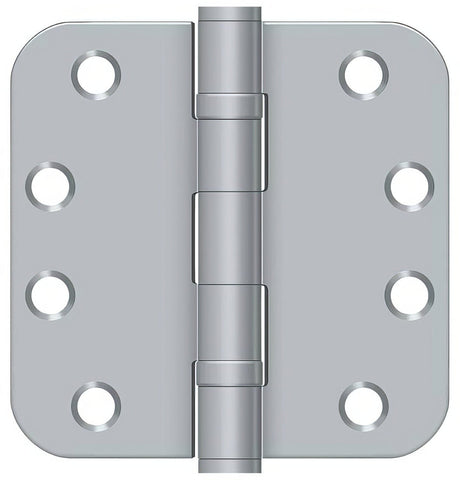

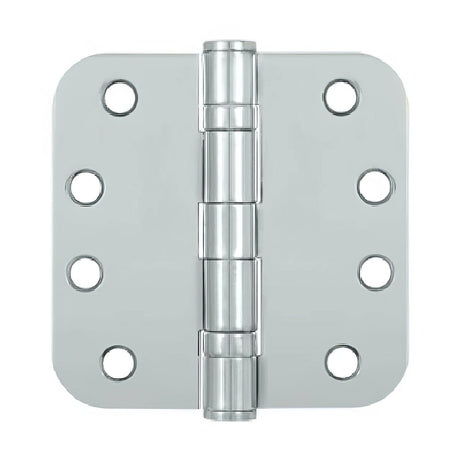

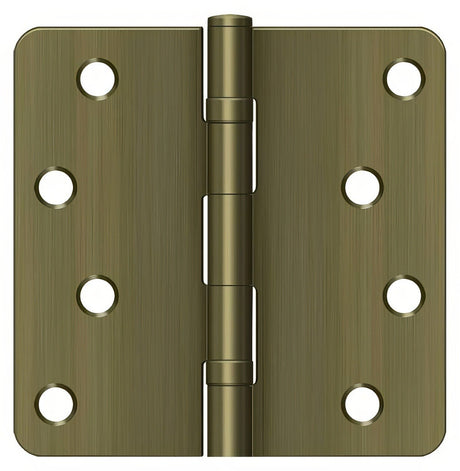

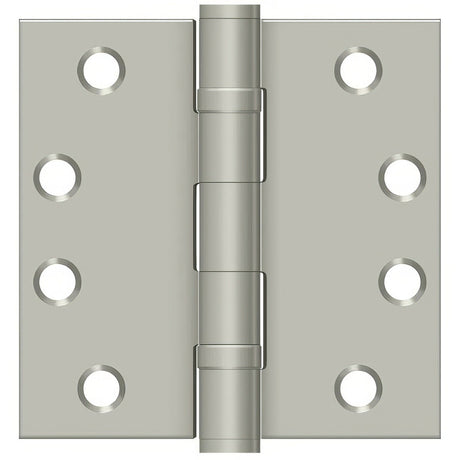

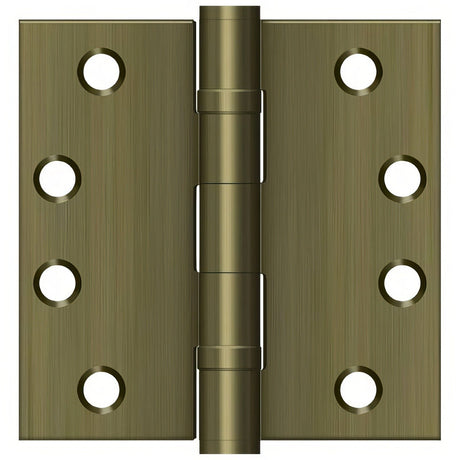

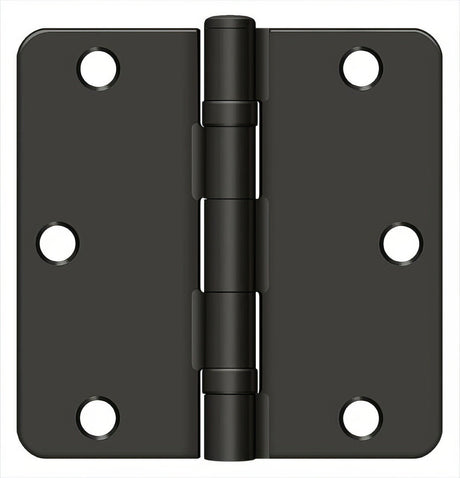

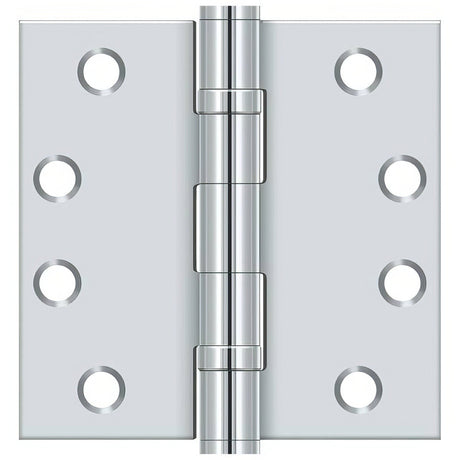

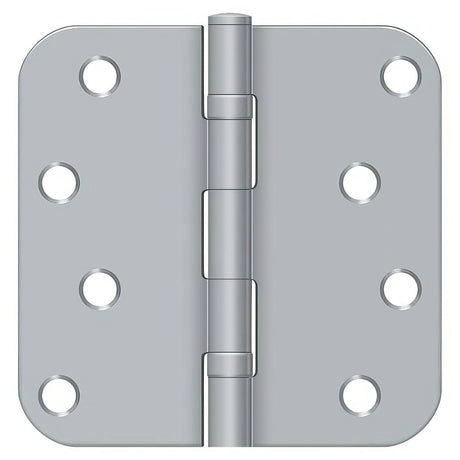

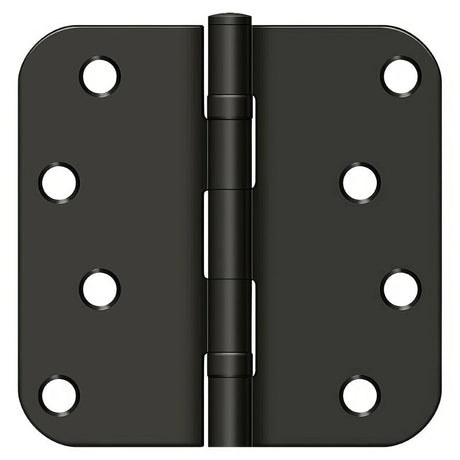

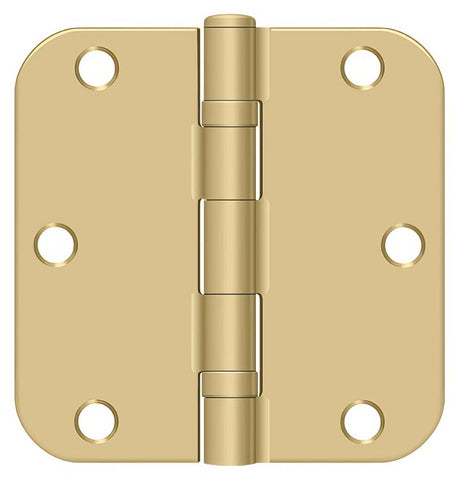

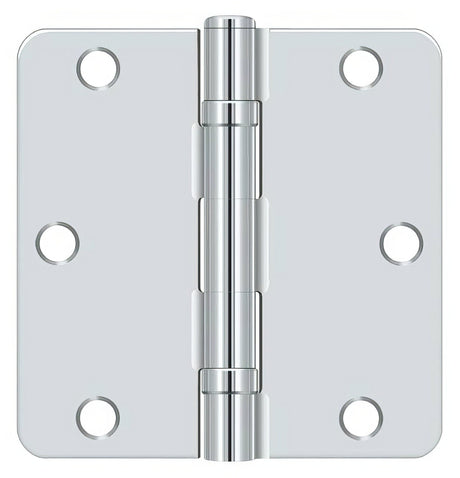

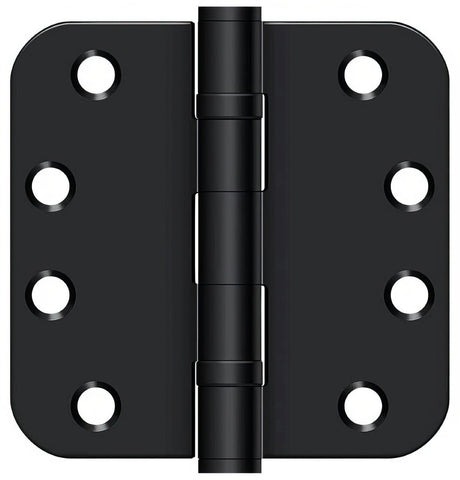

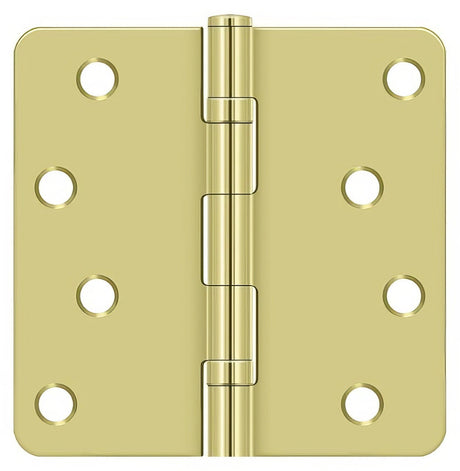

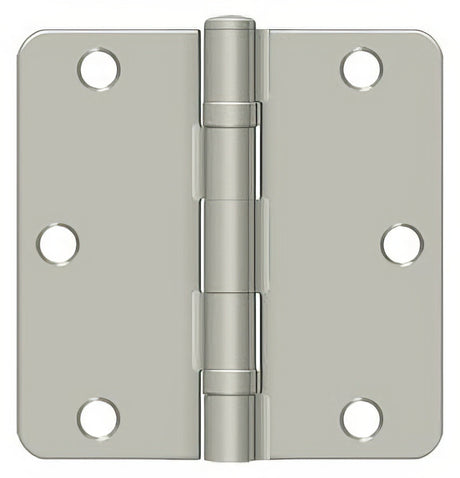

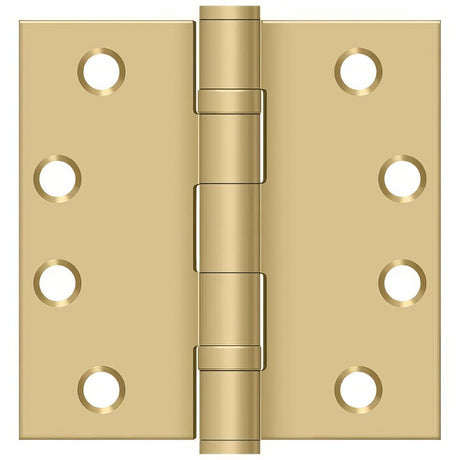

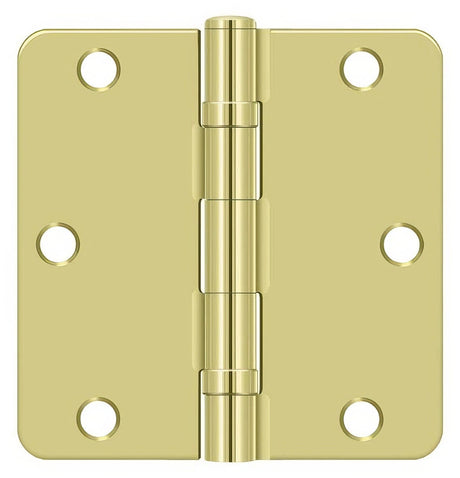

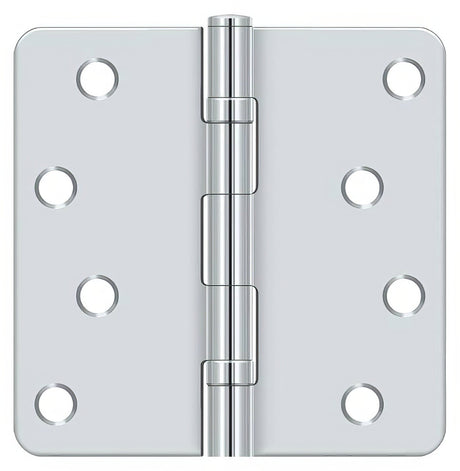

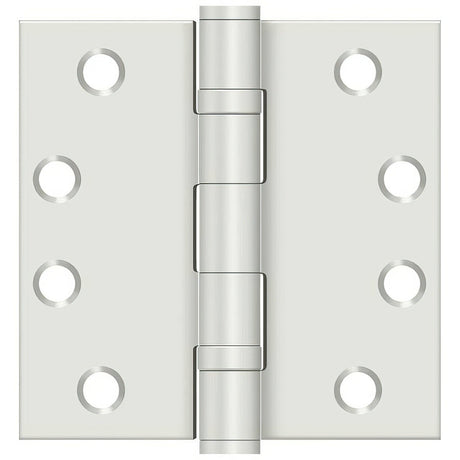

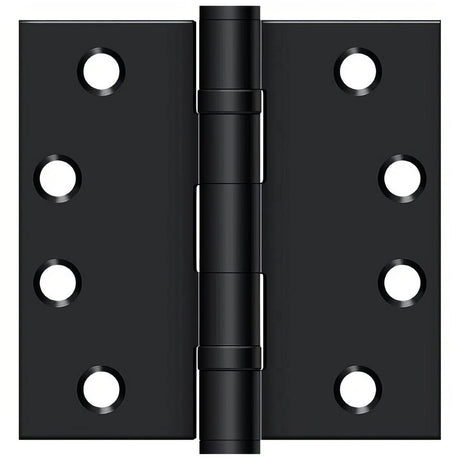

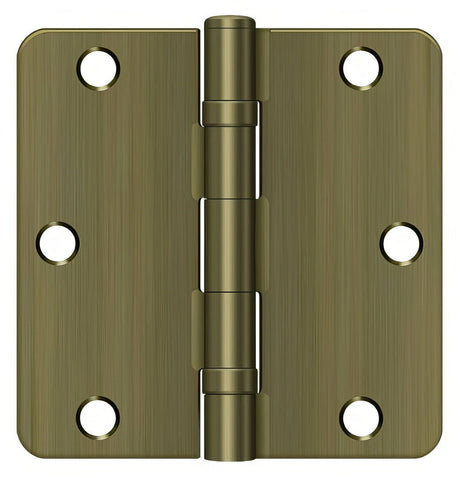

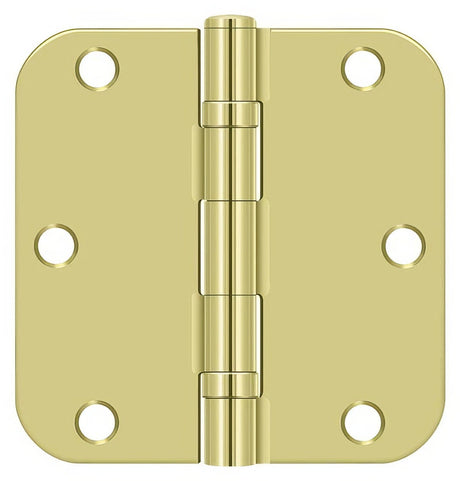

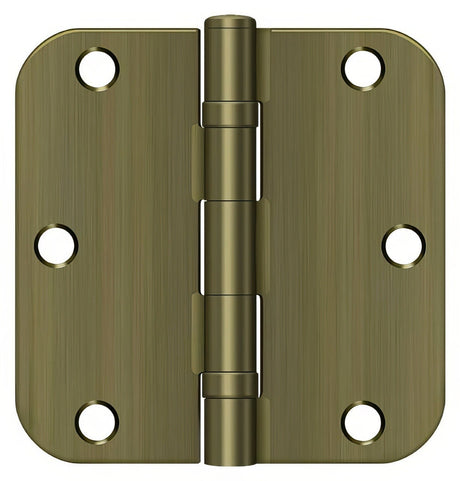

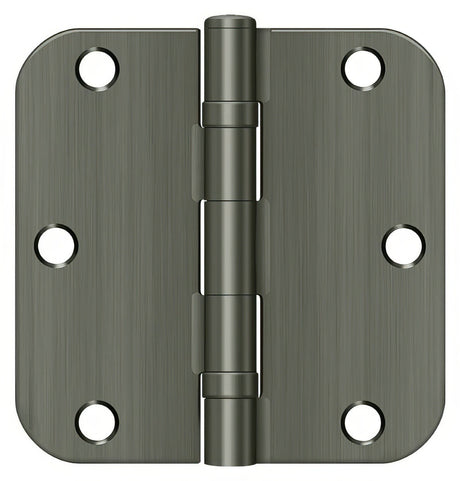

Corner preparation is critical on replacement projects. Square-corner hinges fit square mortises, while radius-corner hinges are made for rounded mortises such as 1/4 inch or 5/8 inch radius preparations. If the replacement corner shape does not match the existing mortise, the hinge may not sit correctly without modifying the door or frame. Measure the installed hinge rather than relying on the door's age or appearance.

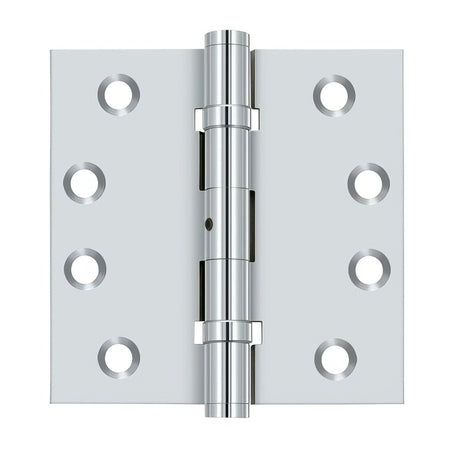

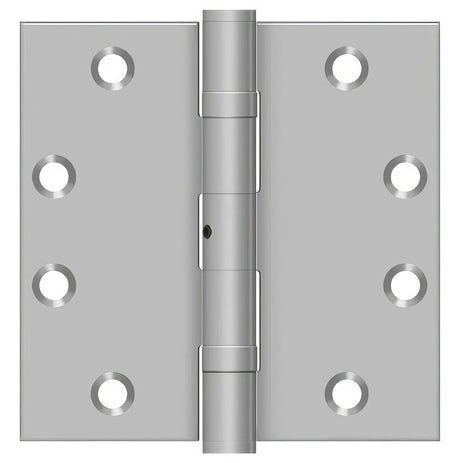

Material, pin configuration, finish, and bearing count can also vary. Security-sensitive outswinging doors may call for non-removable-pin or other security features, while exterior and demanding environments can affect material selection. Finish can be coordinated with the lockset and other visible door hardware, but the mechanical dimensions and performance requirements should be confirmed first.

Commercial and fire-rated openings can have specific hinge requirements for size, quantity, material, bearing type, and listing. A hinge that physically fits an existing mortise is not automatically suitable for every door. Review the hinge specifications and the requirements of the complete opening, especially when replacing hardware on a heavy, high-traffic, exterior, or rated door.
