Ball bearing and plain bearing door hinges may look almost identical when installed, but the way the hinge knuckles move is different. That difference can affect friction, wear, durability, and whether a hinge is appropriate for a heavier or frequently used door.
For many ordinary residential interior doors, a properly sized plain bearing hinge can work very well. Heavier doors, frequently used openings, commercial doors, and doors equipped with a closer commonly call for ball bearing or another approved anti-friction hinge.
The bearing type is only one part of choosing the correct hinge. You also need to match the hinge size, door and frame preparation, corner style, material, leaf thickness, screw pattern, pin configuration, and requirements of the complete opening.
This guide explains the differences and shows what to check before ordering replacement door hinges.

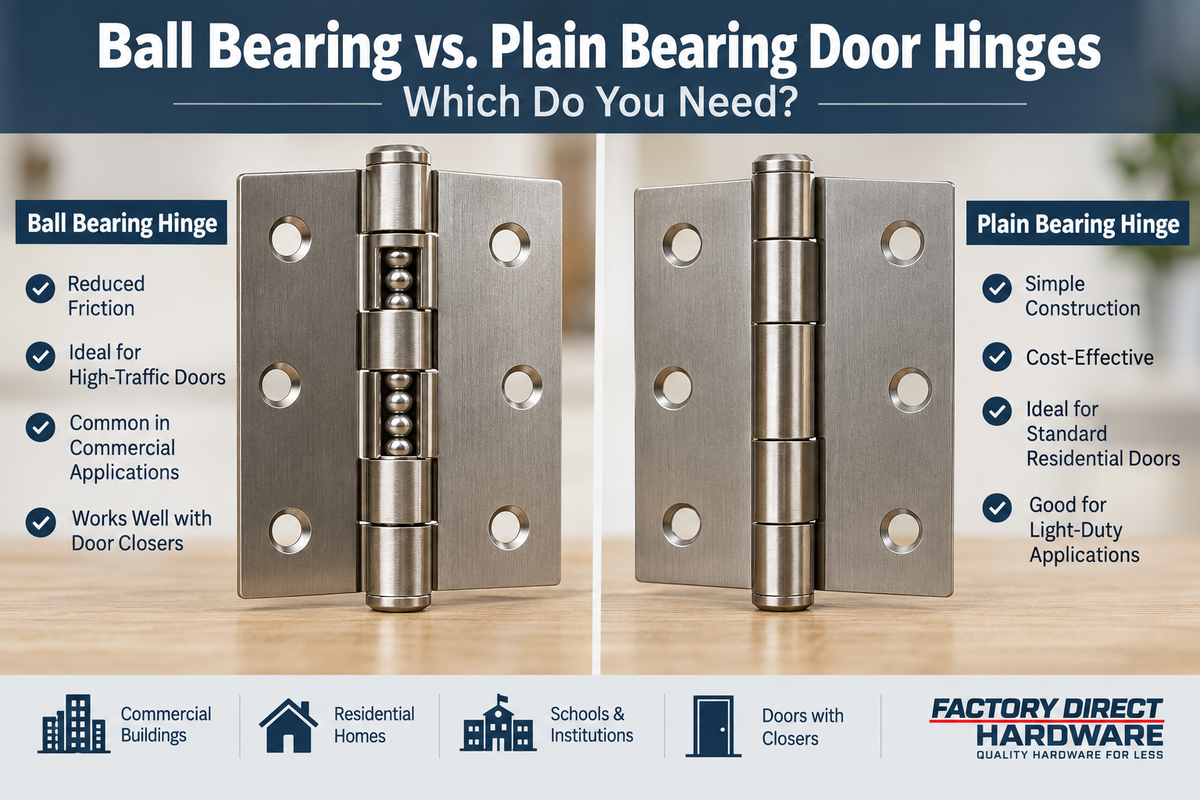

Ball Bearing vs. Plain Bearing Hinges: Quick Answer
A plain bearing hinge allows the hinge knuckles to rotate against one another without separate anti-friction bearing material between the moving surfaces.
A ball bearing hinge incorporates bearing assemblies between portions of the hinge knuckle. These bearings reduce friction as the hinge rotates and can improve performance on demanding openings.
As a general selection principle:
- Plain bearing hinges are commonly used on standard residential and other lighter-duty swinging doors.
- Ball bearing hinges are commonly used on heavier doors, higher-traffic openings, commercial doors, and many doors equipped with hydraulic door closers.
- The manufacturer's specifications for the exact hinge should always take priority over a general rule.
Browse ball bearing hinges and plain bearing hinges to compare the two categories.
What Is a Plain Bearing Door Hinge?
A plain bearing hinge uses a relatively simple knuckle-and-pin arrangement. As the door swings, the hinge knuckles rotate around the hinge pin without separate ball-bearing assemblies carrying the movement.
This design is widely used because it is simple, economical, and appropriate for many standard openings.
Typical applications can include:
- Bedrooms
- Closets
- Bathrooms
- Home offices
- Other relatively light residential doors
- Lower-frequency interior openings when the hinge is properly specified
The important qualification is properly specified. A hinge should not be selected simply because the door is inside a house. Door weight, width, height, material, traffic level, and any additional hardware on the opening still matter.
What Is a Ball Bearing Door Hinge?
A ball bearing hinge contains bearing assemblies that reduce friction between moving hinge components.
On many conventional architectural hinges, the bearing assemblies can be seen as small rings between sections of the hinge barrel. Their job is to help support rotational movement while reducing metal-to-metal friction.
This construction makes ball bearing hinges particularly useful where the opening places greater demands on the hinges.
Common applications include:
- Heavy wood doors
- Hollow metal doors
- Commercial entrances
- Office doors
- Schools and institutional openings
- Frequently operated doors
- Doors equipped with hydraulic door closers
- Other openings where the hinge manufacturer specifies anti-friction bearings
Ball bearing hinges are available in different sizes, materials, gauges, bearing counts, and duty levels. Simply seeing bearings on a hinge does not mean that every ball bearing hinge has the same load capacity or performance rating.
Are Ball Bearing Hinges Better Than Plain Bearing Hinges?
Not automatically.
A better question is: Which hinge is appropriate for the opening?
Installing a commercial-grade ball bearing hinge on every lightweight closet door would usually provide little practical benefit. At the same time, putting a lightweight plain bearing residential hinge on a heavy, frequently cycled commercial door could result in premature wear or poor door operation.
The correct hinge balances the requirements of the opening with the construction and rating of the hinge.
When Should You Use Plain Bearing Hinges?
Plain bearing hinges can be a good choice when the door and application fall within the manufacturer's intended range.
They are commonly appropriate for lighter and moderately used residential openings where there is no requirement for ball bearing or other anti-friction hinges.
When replacing an existing plain bearing hinge that has performed properly, an equivalent hinge with matching dimensions and specifications may be the simplest solution.
Shop Plain Bearing Hinges to compare available sizes, corner preparations, materials, and finishes.
When Should You Use Ball Bearing Hinges?
Ball bearing hinges become more important as door weight, frequency of use, and operating demands increase.
Consider them when:
- The door is unusually heavy
- The opening receives frequent use
- The hinge manufacturer calls for a ball bearing or anti-friction design
- The door has a hydraulic closer
- The opening is commercial or institutional
- The project specification requires a particular hinge grade or bearing type
- The existing opening already uses properly specified ball bearing hinges
Commercial hinge manufacturers commonly offer both standard-weight and heavy-weight ball bearing models. These are not interchangeable purely because their height and width appear similar.
Shop Ball Bearing Door Hinges when the application calls for an anti-friction hinge.
Why Does a Door Closer Affect Hinge Selection?
A hydraulic door closer continually applies forces to the door as it controls opening and closing movement. That can increase the operating demands placed on the hinges compared with an otherwise similar freely swinging door.
For this reason, many commercial hinge manufacturers recommend ball bearing or other approved anti-friction hinges when a door closer is used.
Do not assume that every door closer installation automatically requires exactly the same hinge. The closer, door weight, hinge model, frame, frequency of use, and applicable specifications should be considered together.
If you are selecting the closer as well as the hinges, see our guide on how to choose a door closer.
What About Spring Hinges?
A spring hinge combines the hinge function with spring-assisted closing action. It is therefore different from both an ordinary plain bearing hinge and a standard ball bearing hinge.
Some openings use multiple spring hinges, while others use a combination of spring hinges and another hinge type. Manufacturer instructions can specifically call for ball bearing or anti-friction hinges in these combinations.
Do not replace a spring hinge with a plain bearing hinge or combine hinge types based only on physical size.
Browse Spring Door Hinges when self-closing hinge hardware is required.
How Can You Tell If a Hinge Is Ball Bearing?
Many conventional ball bearing hinges have visible bearing races between sections of the hinge knuckle. They may appear as one or more thin rings around the hinge barrel.
A plain bearing hinge typically has no separate visible bearing races.
However, appearance is not always enough to positively identify a hinge.
The safest identification method is to look for:
- Manufacturer name
- Model or series number
- Stamping on the hinge leaf
- ANSI or other identification markings
- Original project hardware schedule
- Manufacturer documentation
If a model number is available, use it before trying to identify the hinge solely from photographs.
Do Ball Bearing Hinges Have More Bearings on Heavy Doors?
They can.
Commercial hinge families may use different bearing arrangements depending on whether a hinge is standard weight or heavy weight. A heavier-duty hinge may have additional bearing assemblies, greater leaf thickness, different materials, or other construction changes.
This is another reason not to shop by appearance alone.
Two hinges can both be described as “ball bearing” but have very different intended door weights and traffic levels.
How Do You Measure a Replacement Door Hinge?
Bearing type matters, but a new hinge still needs to physically match the door and frame preparation.
Before removing the existing hinge, record as much information as possible.
1. Measure Hinge Height
Measure the hinge leaf from top to bottom, excluding decorative tips on the hinge pin.
2. Measure Hinge Width
Hinge width is generally measured across both leaves with the hinge opened flat.
Do not assume a 4-inch-high hinge is automatically 4 inches wide. Architectural hinges are available in several width combinations.
3. Check Leaf Thickness
The thickness or gauge of the hinge leaf affects both fit and intended duty.
A replacement with significantly different leaf thickness may not sit correctly in the existing mortise.
4. Match the Screw-Hole Pattern
Screw-hole positions vary between hinge families.
If reusing the existing door and frame preparation is important, compare the hole pattern before ordering.
5. Identify the Corner Style
Full-mortise residential hinges commonly use square corners or radiused corners.
A mismatch can require modification of the door and frame mortises.
Square Corner vs. Radius Corner Door Hinges
The shape of the hinge leaf corners is especially important during replacement work.
Square Corner Hinges
Square corner hinges fit mortises with square corners. These preparations are common on many architectural and traditionally mortised openings.
1/4-Inch Radius Hinges
A 1/4-inch radius hinge has moderately rounded leaf corners.
5/8-Inch Radius Hinges
A 5/8-inch radius hinge has a noticeably larger rounded corner.
Do not judge the radius from memory. Compare the existing hinge directly or measure the mortise.
A hinge can have the correct height, width, finish, and bearing type but still be the wrong replacement because its corner preparation does not match.
Does Hinge Material Matter?
Yes. Door hinges are manufactured from materials including steel, stainless steel, brass, and other alloys depending on the product family and application.
Material can affect corrosion resistance, strength, available finishes, and suitability for particular environments.
For an ordinary interior residential opening, material selection may be relatively straightforward. Exterior, coastal, institutional, commercial, and other demanding environments may require more careful specification.
Check the exact hinge manufacturer's material and application information rather than relying on finish color as an indication of the base metal.
What Is a Non-Removable Pin Hinge?
A non-removable pin, commonly abbreviated NRP, is designed so the hinge pin cannot simply be removed in the normal manner while the hinge is installed.
This feature can be useful on certain outswinging doors where the hinge barrel is exposed from the exterior or unsecured side.
NRP is separate from bearing type.
A hinge can be:
- Plain bearing with a removable pin
- Plain bearing with a secured pin configuration
- Ball bearing with a removable pin
- Ball bearing with a non-removable pin
Confirm both specifications when security and hinge performance matter.
Residential vs. Commercial Door Hinges
The distinction between residential and commercial hinges involves more than size.
Commercial openings may have greater door weight, higher cycle frequency, hydraulic closers, fire-door requirements, accessibility considerations, security requirements, or standardized door and frame preparations.
Commercial hinge families may therefore offer:
- Standard-weight and heavy-weight options
- Ball bearing construction
- Different materials
- Non-removable pins
- Security studs
- Special widths
- Different mounting configurations
- Fire-rated models
- Template hole patterns
Browse Commercial Door Hinges for hinges intended for these types of openings.
Can You Use Plain Bearing Hinges on a Fire Door?
Do not determine fire-door hinge suitability solely from the words “plain bearing” or “ball bearing.”
Fire-rated openings are assemblies, and the hinges must meet the requirements of the door, frame, hardware specification, manufacturer listing, and applicable code.
Many commercial fire-door applications use ball bearing or other approved anti-friction hinges, but there can be listed assemblies and specific manufacturer configurations with different requirements.
If the opening is fire rated, identify the door label and existing hardware and verify the permitted hinge specification before making a substitution.
Can You Replace Plain Bearing Hinges With Ball Bearing Hinges?
Often, but only when the replacement hinge matches the opening and is otherwise appropriate.
Before substituting a ball bearing hinge, compare:
- Hinge height
- Open width
- Leaf thickness
- Corner radius or square corners
- Screw-hole pattern
- Material
- Pin configuration
- Mounting type
- Door weight and use
- Manufacturer requirements
- Any required listing or rating
A ball bearing hinge is not automatically a drop-in replacement simply because its outside dimensions match.
Can You Replace Ball Bearing Hinges With Plain Bearing Hinges?
This substitution requires more caution.
If the original opening was specified with ball bearing hinges because of door weight, traffic level, a closer, or a project requirement, moving to a plain bearing hinge may reduce the performance of the opening or conflict with the specification.
When an existing commercial opening uses ball bearing hinges, the safest approach is generally to identify why they were specified before changing the bearing type.
Why Is My Door Sagging?
Worn or undersized hinges can contribute to a sagging door, but they are not the only possible cause.
Also inspect:
- Loose hinge screws
- Stripped screw holes
- Loose frame fasteners
- Damaged hinge leaves
- Worn hinge pins or bearings
- Door or frame movement
- Excessive door weight for the installed hinges
- Missing or incorrect hinges
Replacing the hinges without correcting a loose or damaged frame connection may not solve the underlying problem.
Common Door Hinge Selection Mistakes
Choosing by Finish First
Satin nickel, black, brass, bronze, and chrome finishes affect appearance, but finish should come after the mechanical requirements are established.
Matching Only the Height
A 4-inch hinge is not enough information. Width, gauge, hole pattern, corner style, material, and bearing construction can differ.
Assuming Ball Bearing Means Heavy Duty
Ball bearing hinges are produced in different duty levels. Bearing construction does not eliminate the need to check the hinge's intended application.
Ignoring the Door Closer
A closer can change the demands placed on the hinges. Check the hinge manufacturer's recommendations when a closer is installed.
Ignoring the Existing Mortise
A different corner radius, leaf thickness, or screw pattern can turn an otherwise simple replacement into unnecessary door and frame work.
Assuming All Commercial Hinges Are the Same
Commercial hinges can differ in weight class, bearings, materials, pin configuration, template, mounting style, and listings.
Door Hinge Replacement Checklist
Before ordering replacement hinges, confirm:
- Door height
- Door width
- Approximate door weight and construction
- Residential or commercial application
- Traffic level
- Presence of a door closer
- Existing hinge manufacturer and model when available
- Plain bearing, ball bearing, spring, pivot, or other hinge type
- Hinge height
- Open hinge width
- Leaf thickness
- Square, 1/4-inch radius, or 5/8-inch radius corners
- Screw-hole pattern
- Material
- Removable or non-removable pin requirement
- Mounting type
- Finish
- Any commercial, fire, accessibility, or project-specific requirements
Frequently Asked Questions
Are Ball Bearing Hinges Quieter?
Ball bearing hinges reduce friction in the hinge movement, which can contribute to smoother operation. However, hinge noise can also come from wear, contamination, loose fasteners, alignment problems, or other conditions.
Do Interior Doors Need Ball Bearing Hinges?
Many normal lightweight residential interior doors do not require ball bearing hinges when a properly sized plain bearing hinge is suitable for the application.
Heavier doors and higher-use openings may justify or require a different hinge.
Are Ball Bearing Hinges Worth the Extra Cost?
When the opening benefits from lower friction, greater durability, or the manufacturer specifies them, yes.
For a lightweight, rarely used interior door, the additional capability may not provide a meaningful advantage.
Do Exterior Doors Need Ball Bearing Hinges?
Not merely because they are exterior doors.
Door weight, use, security, material, closer installation, environment, and manufacturer requirements should determine the hinge.
Can I Mix Ball Bearing and Plain Bearing Hinges on One Door?
Do not mix hinge types unless the hinge or door manufacturer permits the configuration for that opening.
Some specialty arrangements, particularly those involving spring hinges, have specific requirements for the companion hinges.
How Many Hinges Does a Door Need?
The required hinge quantity depends on door height, width, weight, material, hinge model, and the requirements of the opening.
Do not rely on one universal hinge-count rule for every door. Check the hinge manufacturer's sizing information and the applicable door specification.
How Do I Know What Hinge I Already Have?
Start with any manufacturer or model markings on the hinge. Then measure its height and open width and record the corner style, hole pattern, leaf thickness, pin configuration, material if known, and whether bearing races are visible.
Photographs of the hinge while it is still installed can also be useful when comparing replacements.
Choosing the Right Door Hinge
The difference between ball bearing and plain bearing hinges is important, but it should not be considered in isolation.
Start with the complete opening. Determine the door size, weight, material, traffic level, closer requirements, existing preparation, and any commercial or rated-opening requirements. Then select the bearing type, hinge dimensions, material, pin configuration, and finish that fit those conditions.
For many lighter residential doors, a correctly sized plain bearing hinge is an appropriate solution. For heavier, frequently used, closer-equipped, and many commercial openings, ball bearing or another approved anti-friction hinge is commonly the better choice.
Browse Factory Direct Hardware's Door Hinges, Ball Bearing Hinges, Plain Bearing Hinges, and Commercial Door Hinges to compare available options.
For additional hardware terminology, visit the Hardware Glossary, or browse the Factory Direct Hardware Learning Center for more selection and measurement guides.
