Overlay Cabinet Hinges

Overlay Cabinet Hinges for Face-Frame and Frameless Cabinets

Overlay cabinet hinges are designed for cabinet doors that extend over the cabinet frame or cabinet box rather than sitting flush inside the opening. The amount of the cabinet edge or face frame covered by the closed door is the overlay. Overlay configurations are used with both face-frame and frameless cabinetry, with hinge geometry and mounting formats based on the relationship between the door and cabinet structure. The broader cabinet hinges collection includes overlay, inset, concealed, demountable, wrap, and other cabinet-hinge configurations.

Full overlay hinges position the cabinet door to cover most or all of the available cabinet edge associated with the opening. Partial overlay hinges leave a greater portion of the face frame or cabinet edge exposed. In European-style concealed hinge systems, half-overlay configurations are also used where adjacent doors share a cabinet partition. Variable overlay hinges accommodate a range of overlay positions according to the hinge design, while fixed-overlay hinges are identified by a specific overlay dimension.

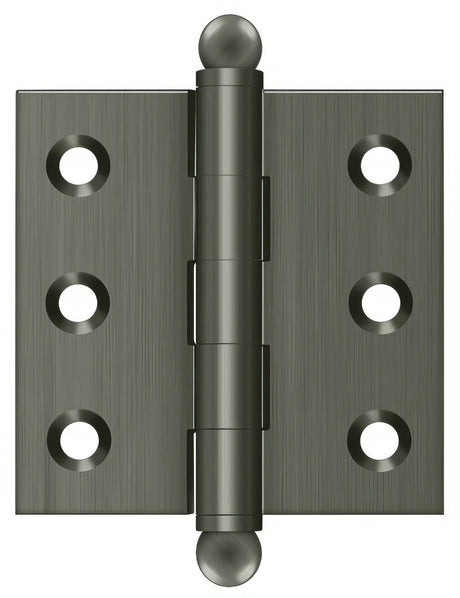

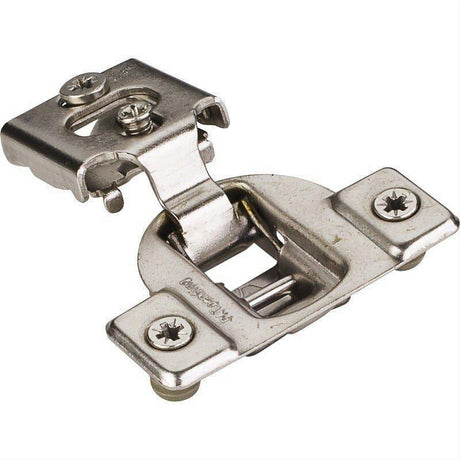

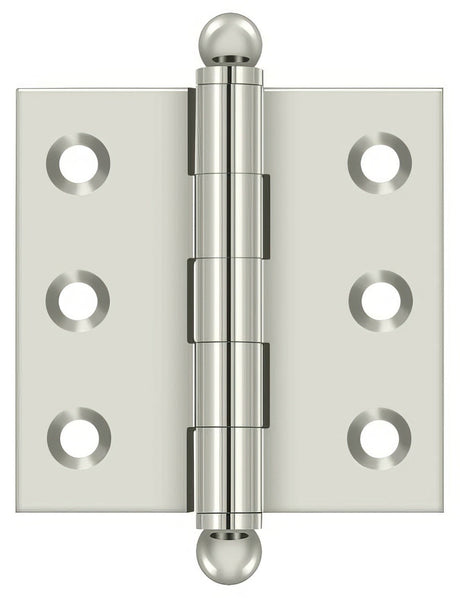

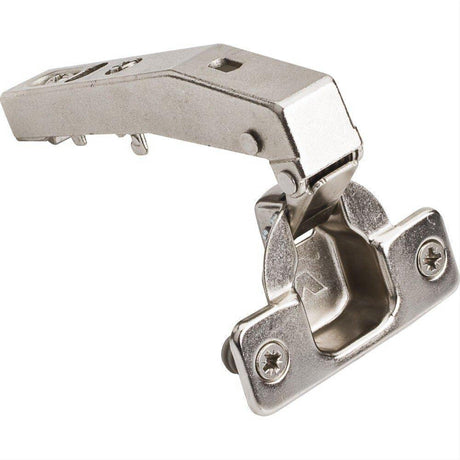

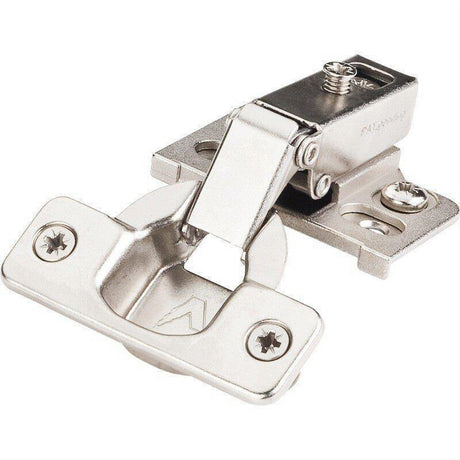

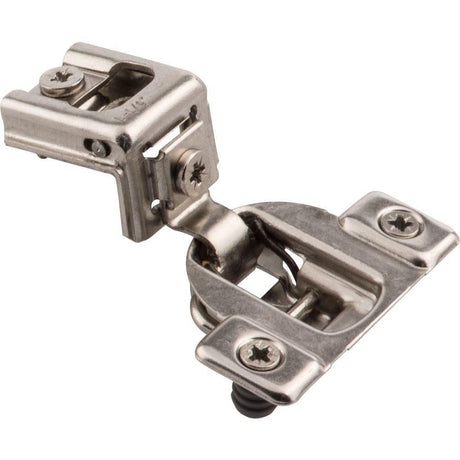

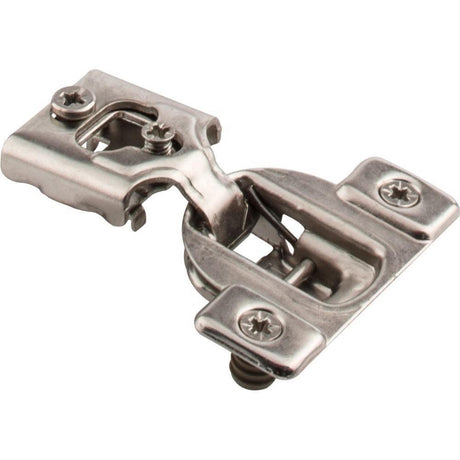

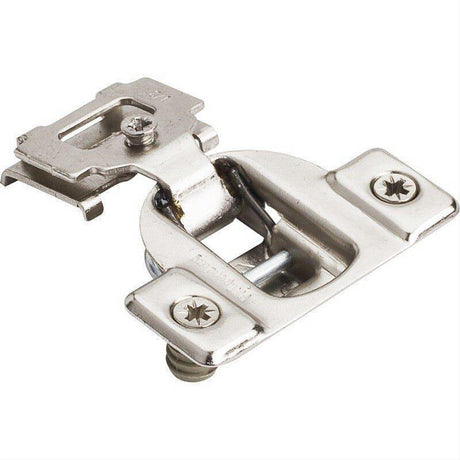

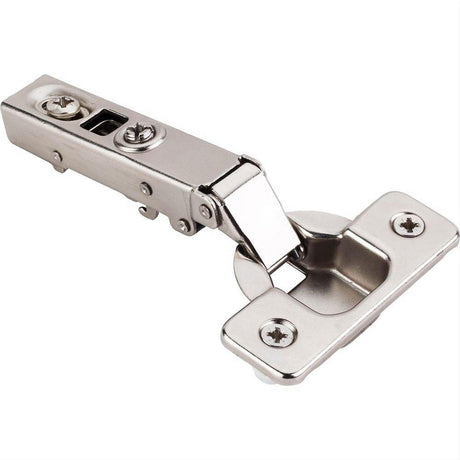

Concealed overlay hinges place most of the hinge mechanism out of view when the cabinet door is closed. These designs may combine a hinge cup or compact hinge body with an arm, mounting plate, dowels, screws, or related mounting components. European cabinet hinges include many concealed cup-style configurations used with overlay cabinet doors.

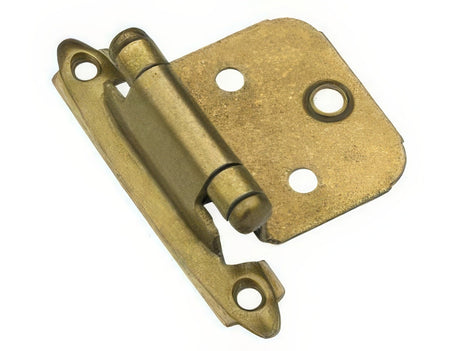

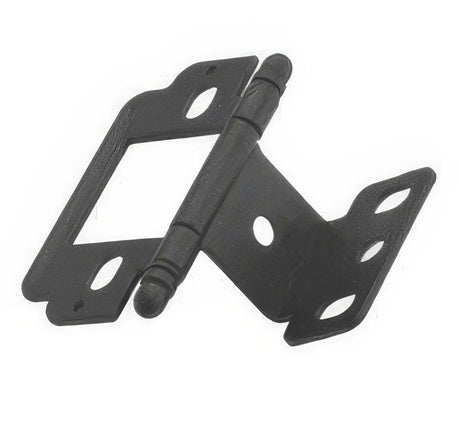

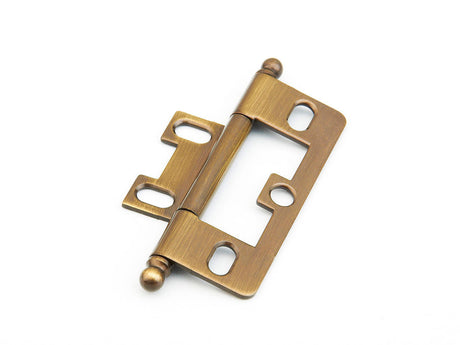

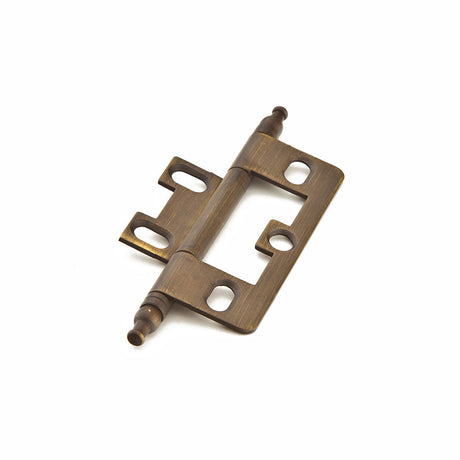

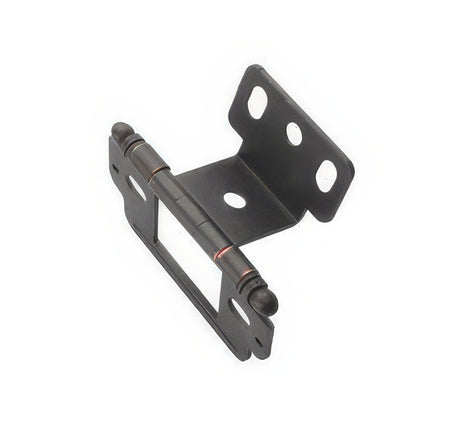

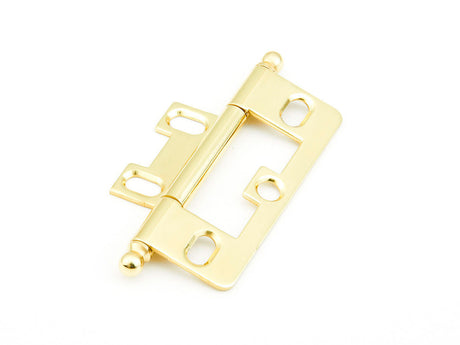

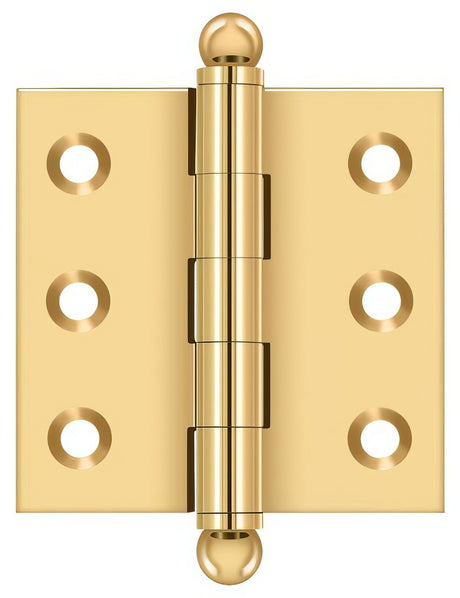

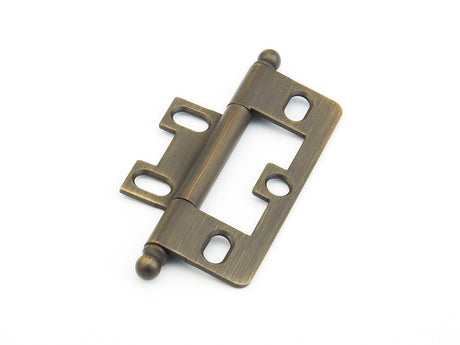

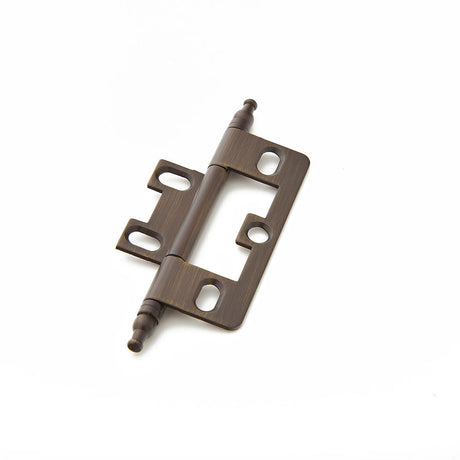

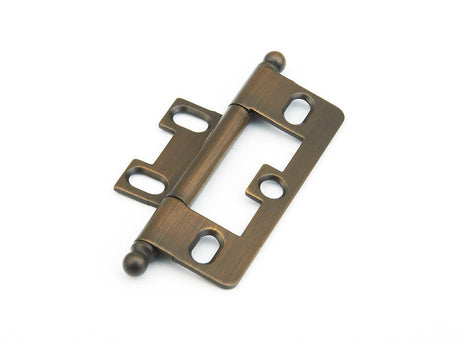

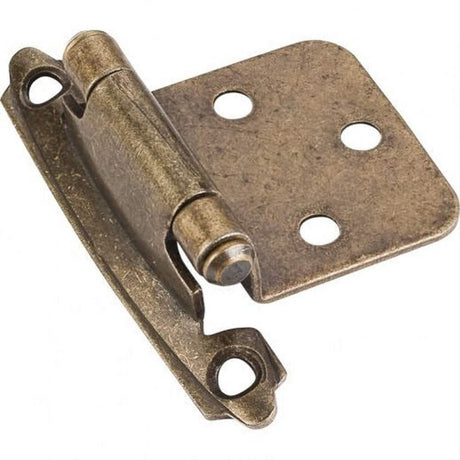

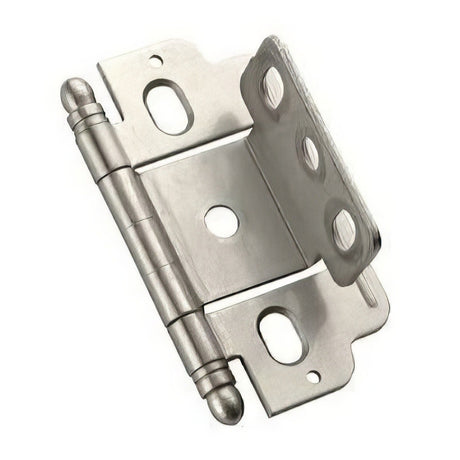

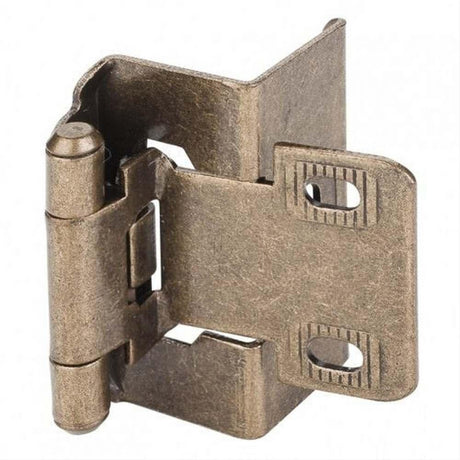

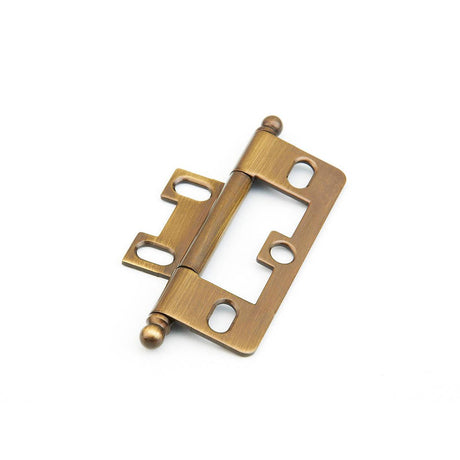

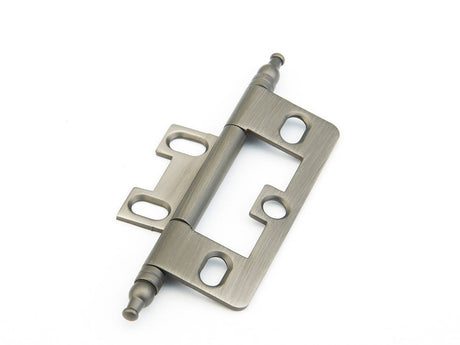

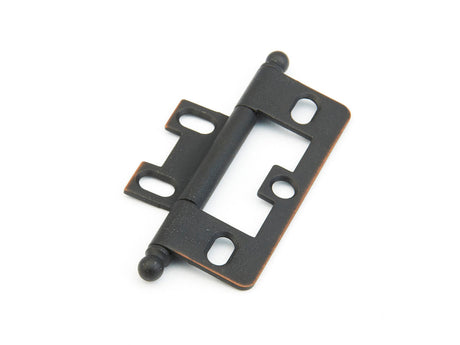

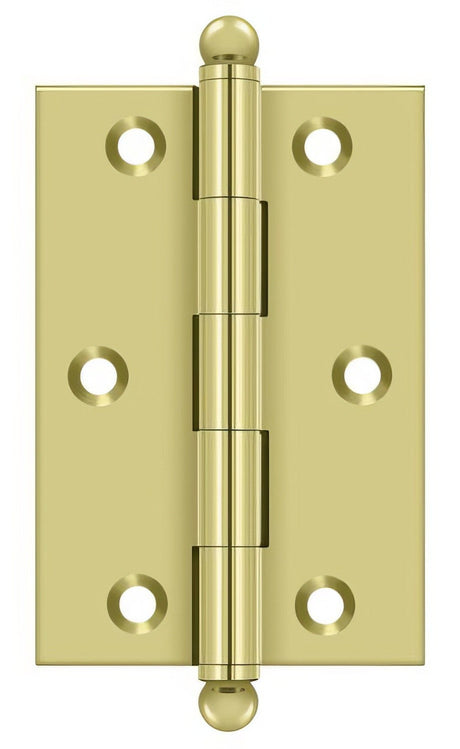

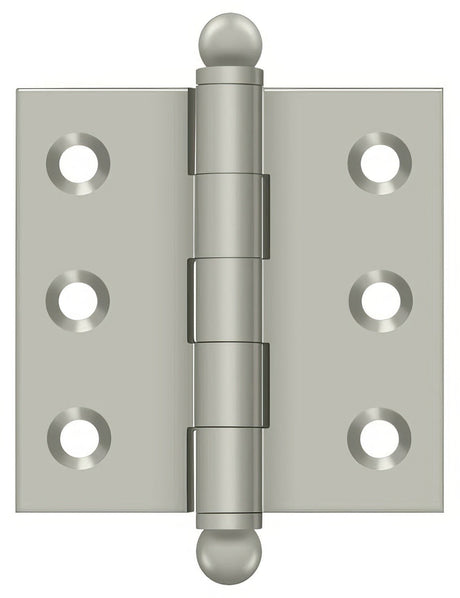

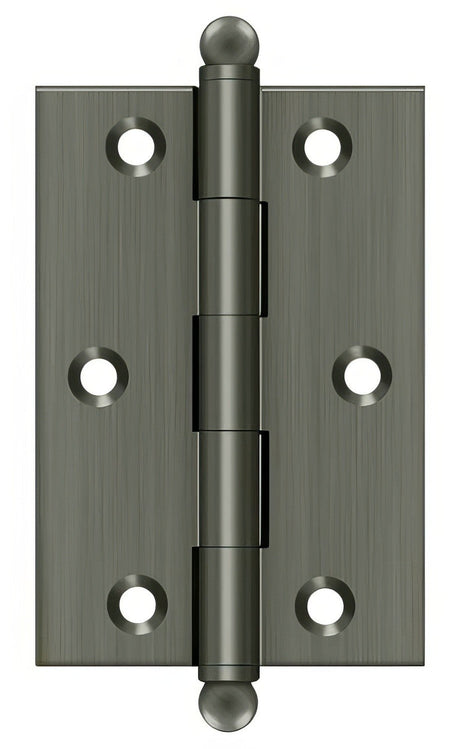

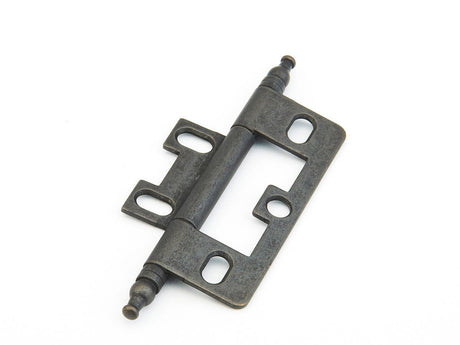

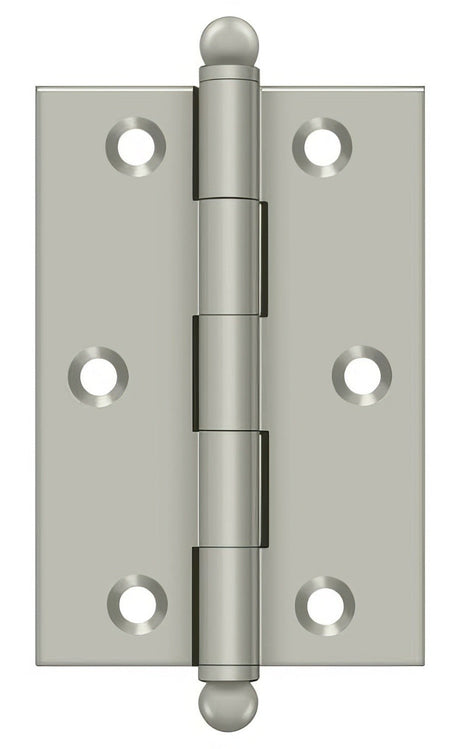

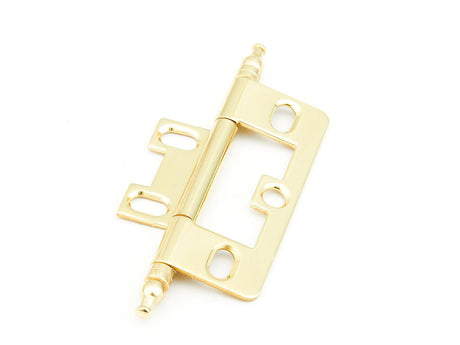

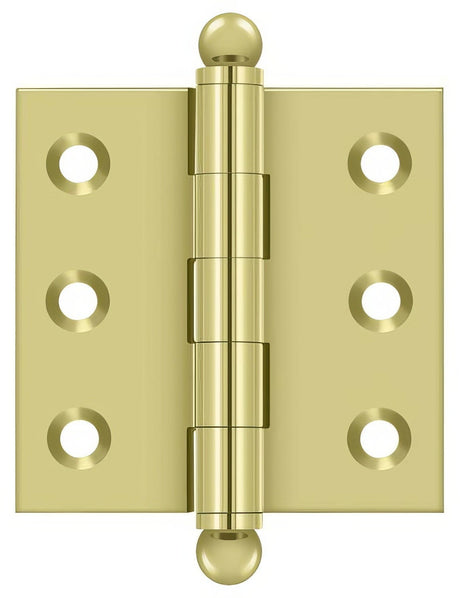

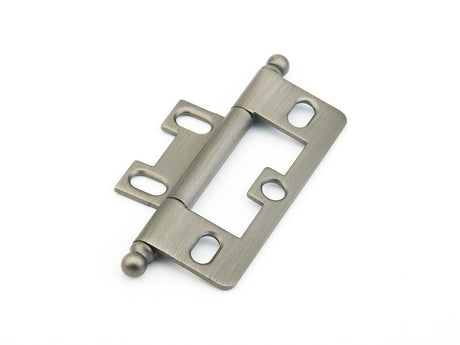

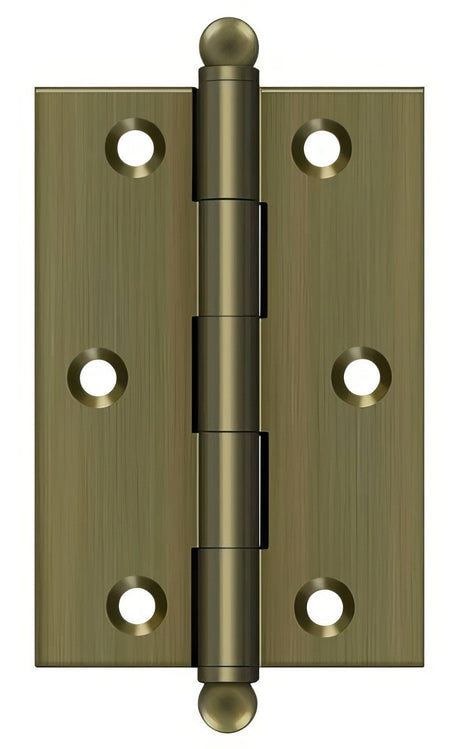

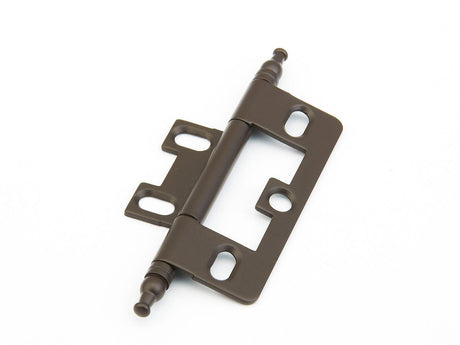

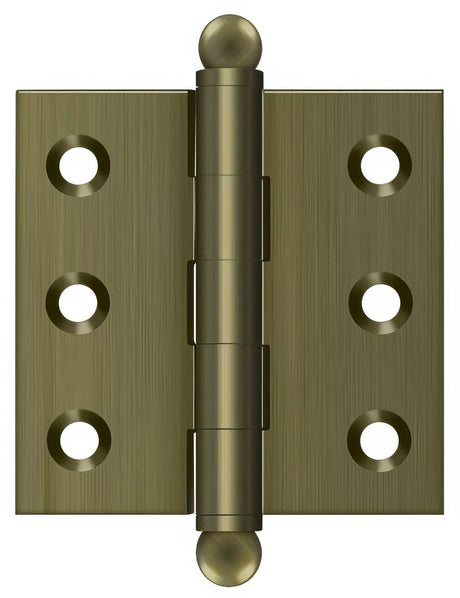

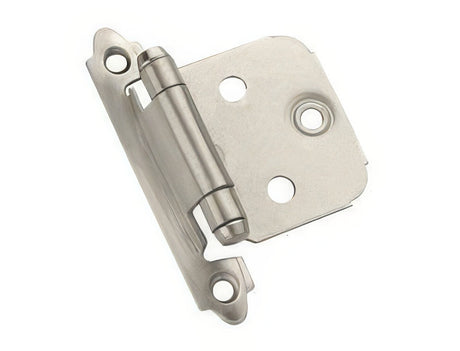

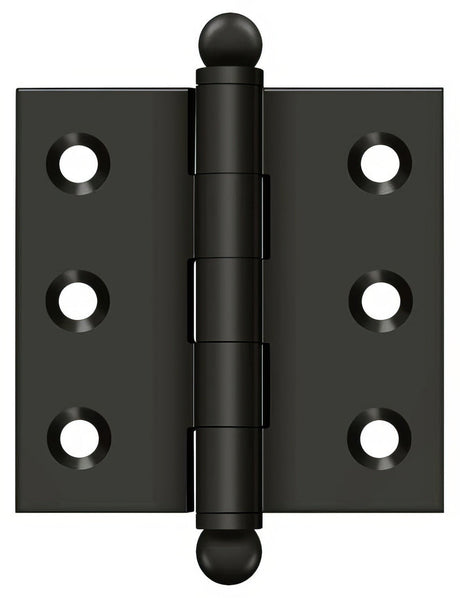

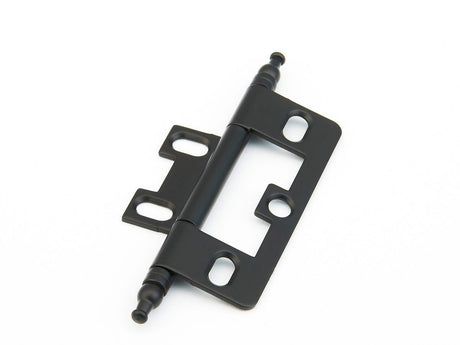

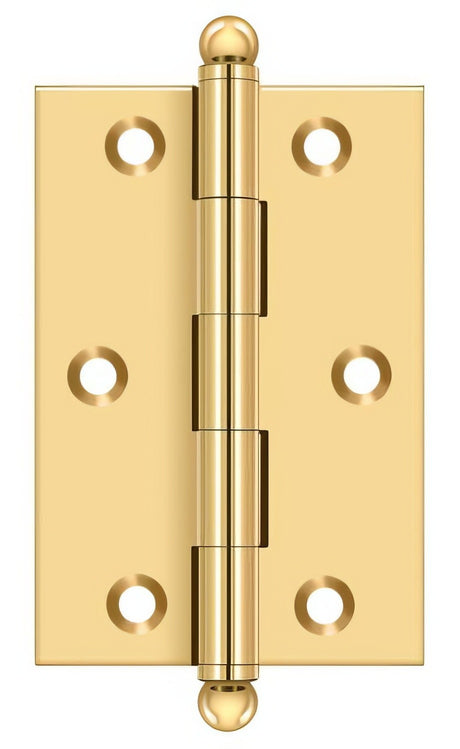

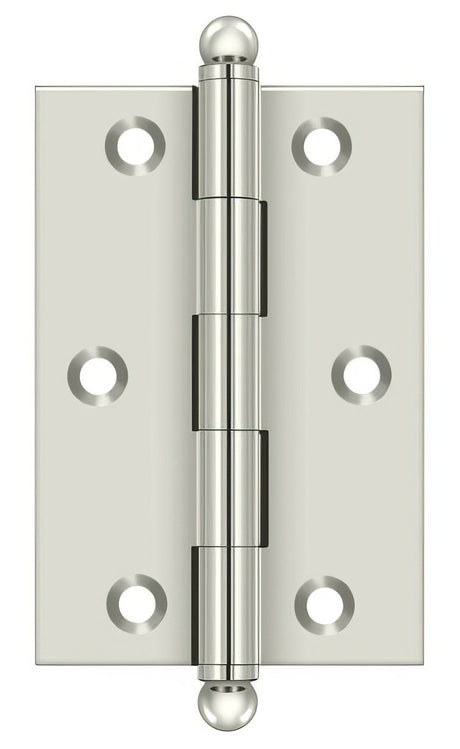

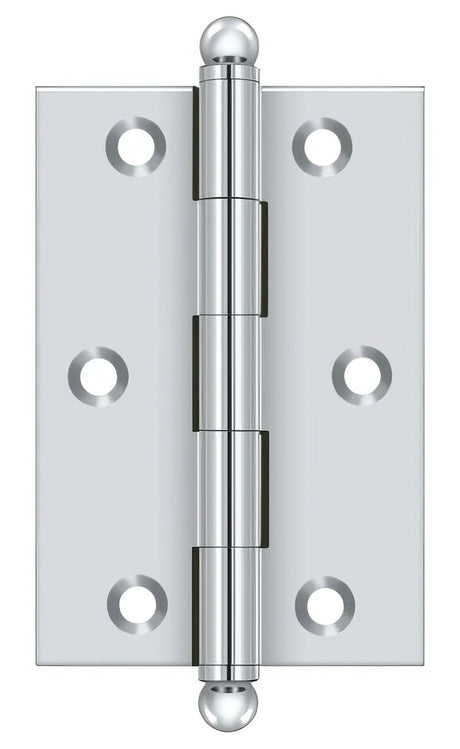

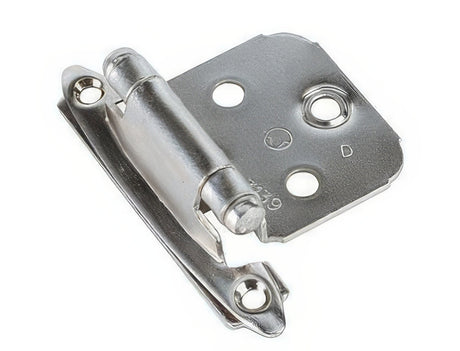

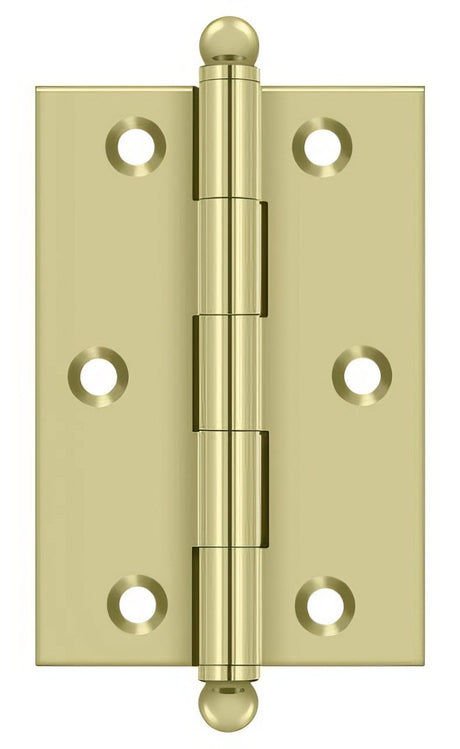

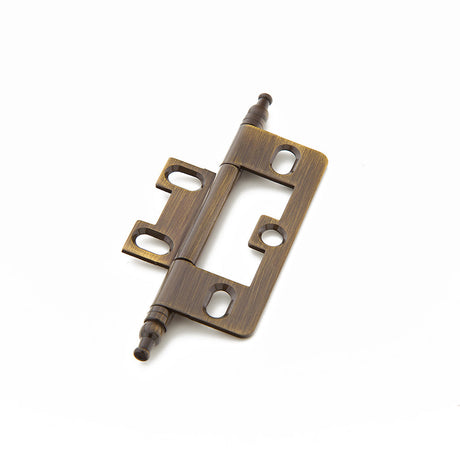

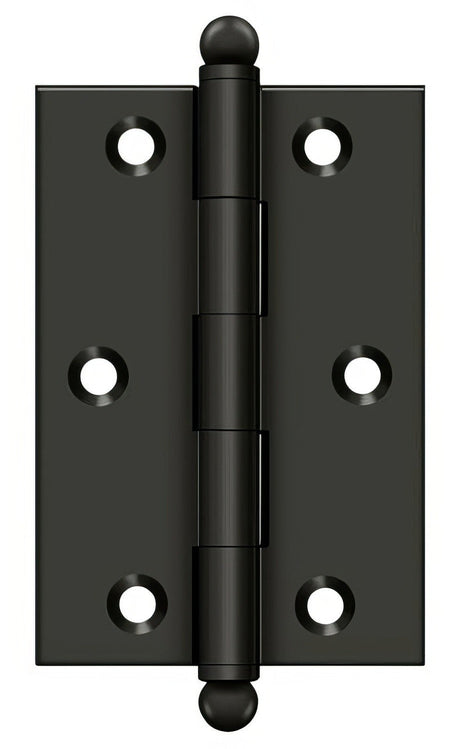

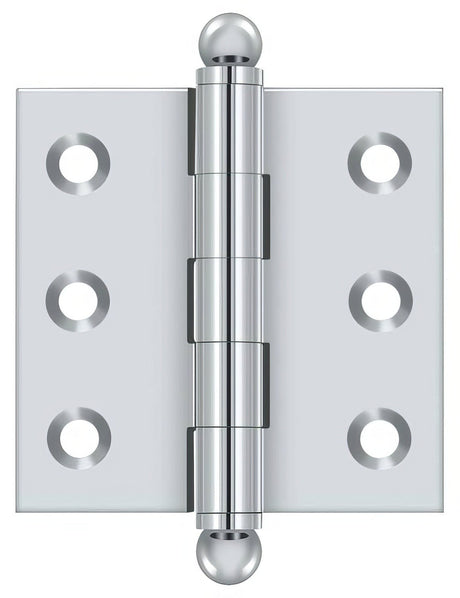

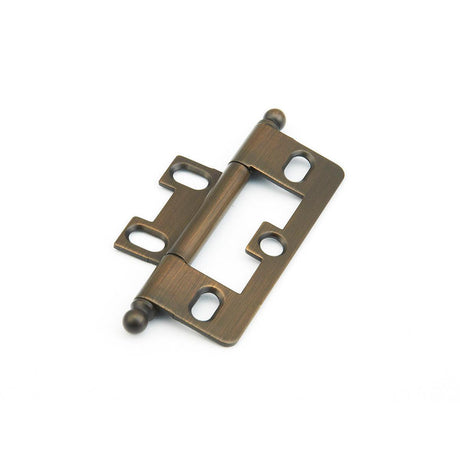

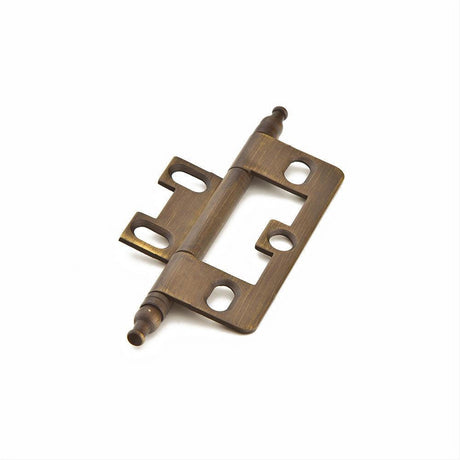

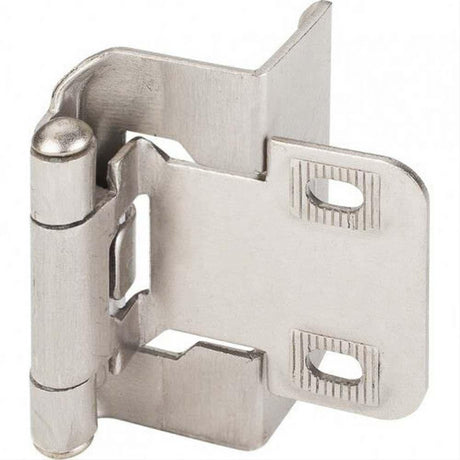

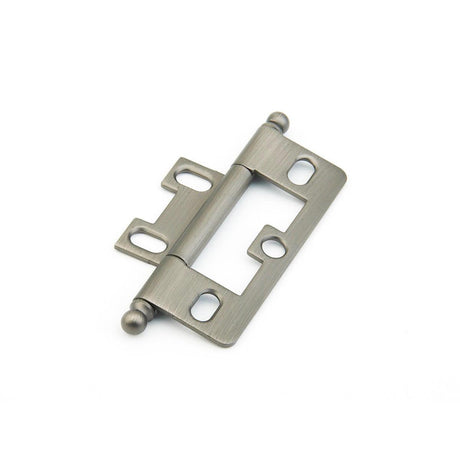

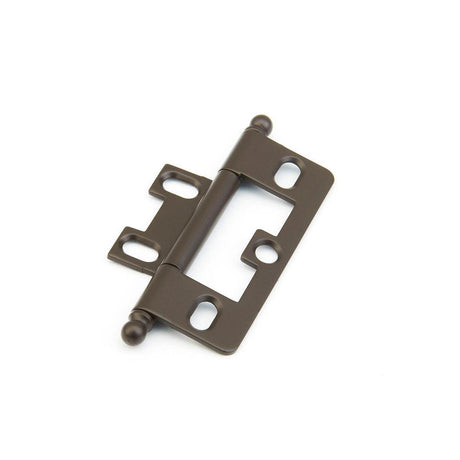

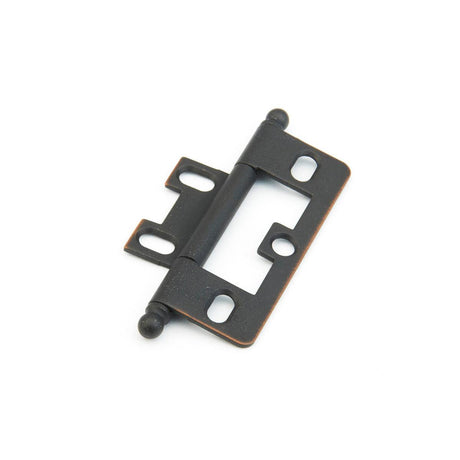

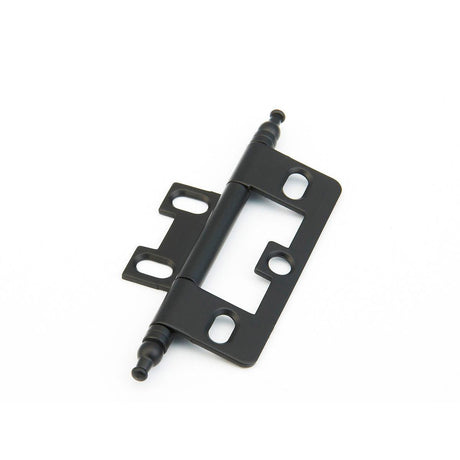

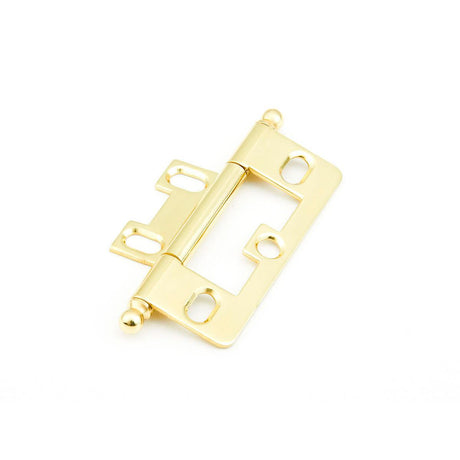

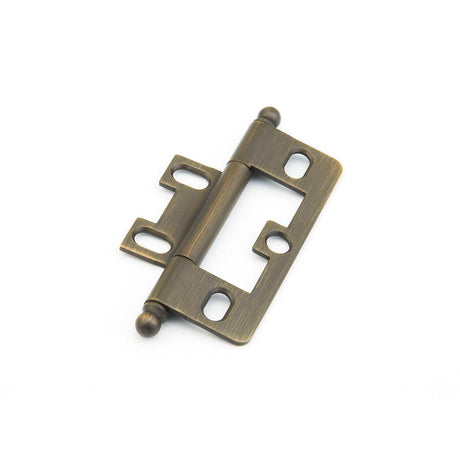

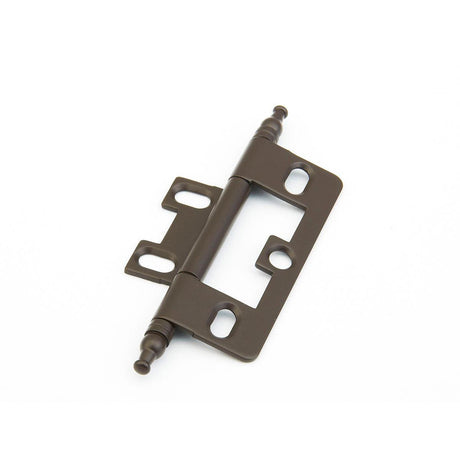

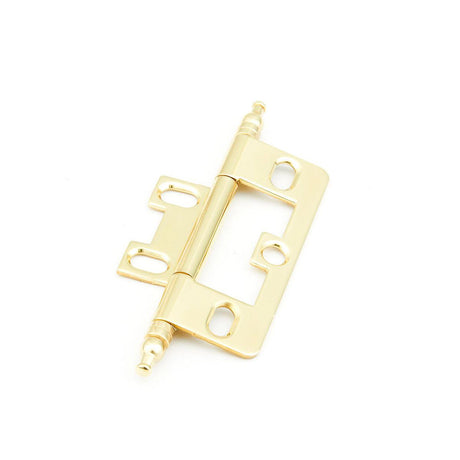

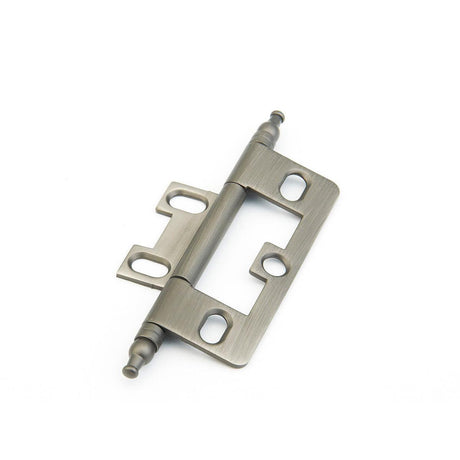

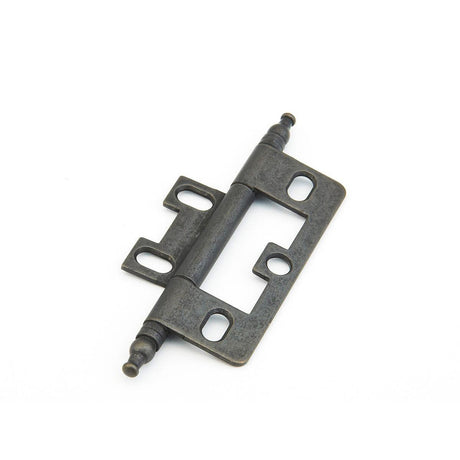

Other overlay hinge designs include partial-wrap and full-wrap hinges, demountable hinges, face-mount hinges, compact face-frame hinges, and traditional exposed or semi-concealed configurations. The mounting relationship differs among face-frame and frameless cabinets, as well as among hinges designed for specific overlay dimensions and door arrangements.

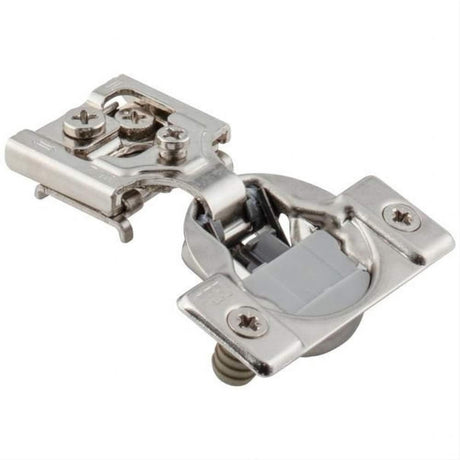

Closing action also varies across overlay cabinet hinges. Self-closing hinges use the hinge mechanism to draw the door toward the closed position, while soft-close hinges slow the final portion of the closing movement. Additional differences include opening angle, hinge visibility, adjustment method, mounting-plate configuration, screw or dowel mounting, door thickness compatibility, and cabinet-frame application.

Overlay and inset describe different cabinet-door relationships. An overlay door rests in front of and covers part of the cabinet frame or box when closed, while an inset door sits within the cabinet opening. Inset cabinet hinges are designed around that inset relationship. Overlay cabinet hinge families span traditional decorative hardware, compact concealed systems, wrap hinges, demountable hinges, and modern soft-close configurations for kitchens, bathrooms, furniture, built-ins, and storage cabinetry.
