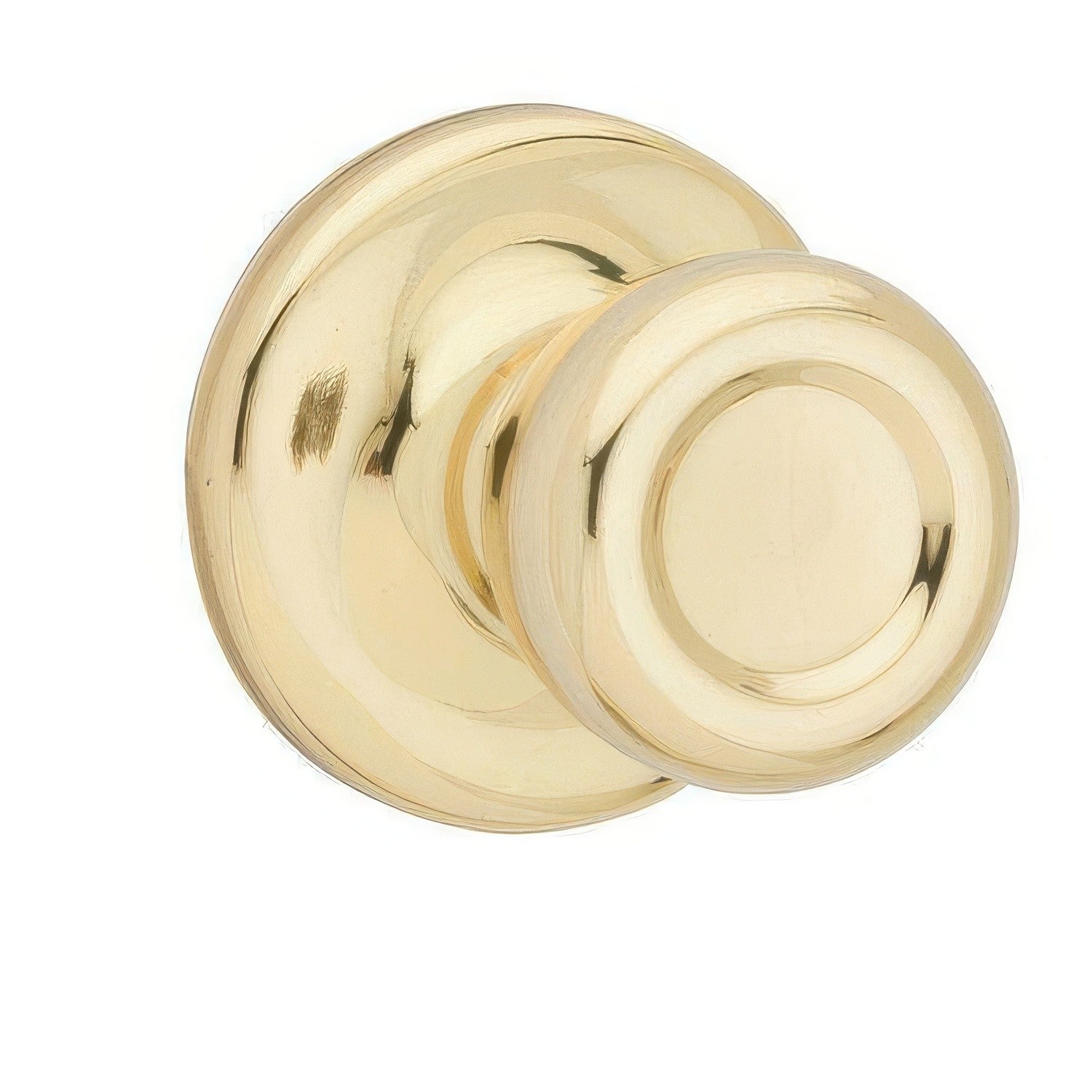

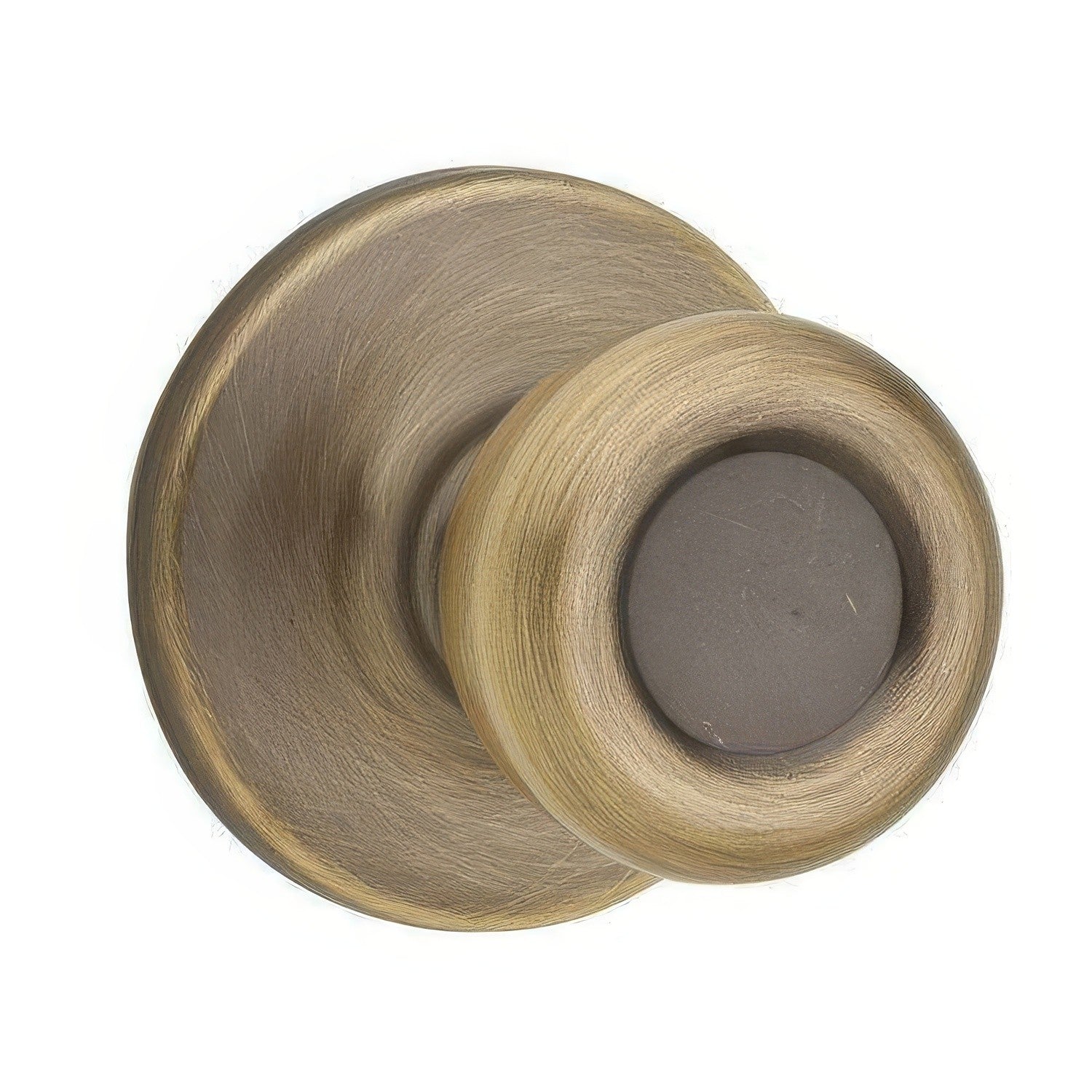

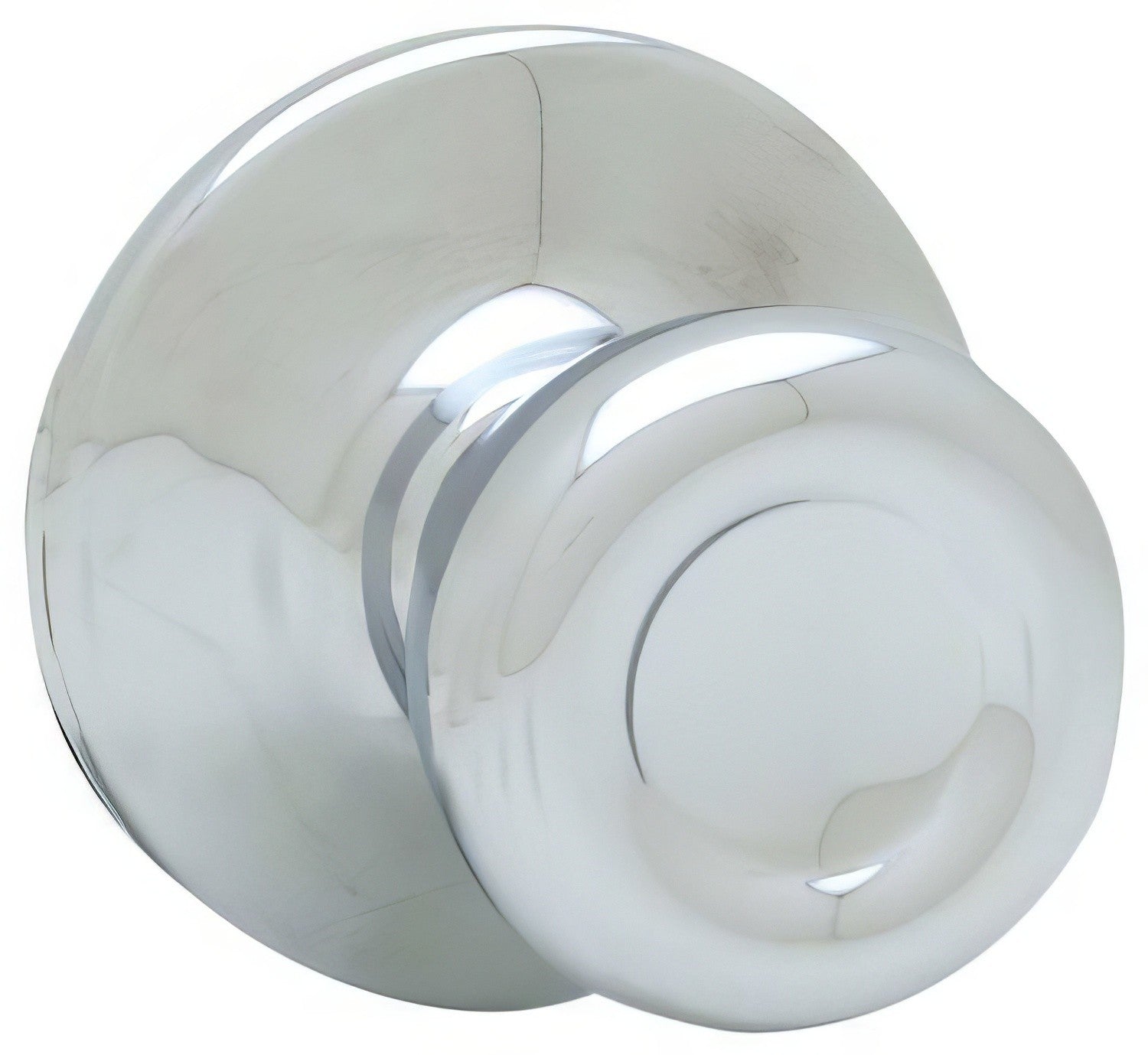

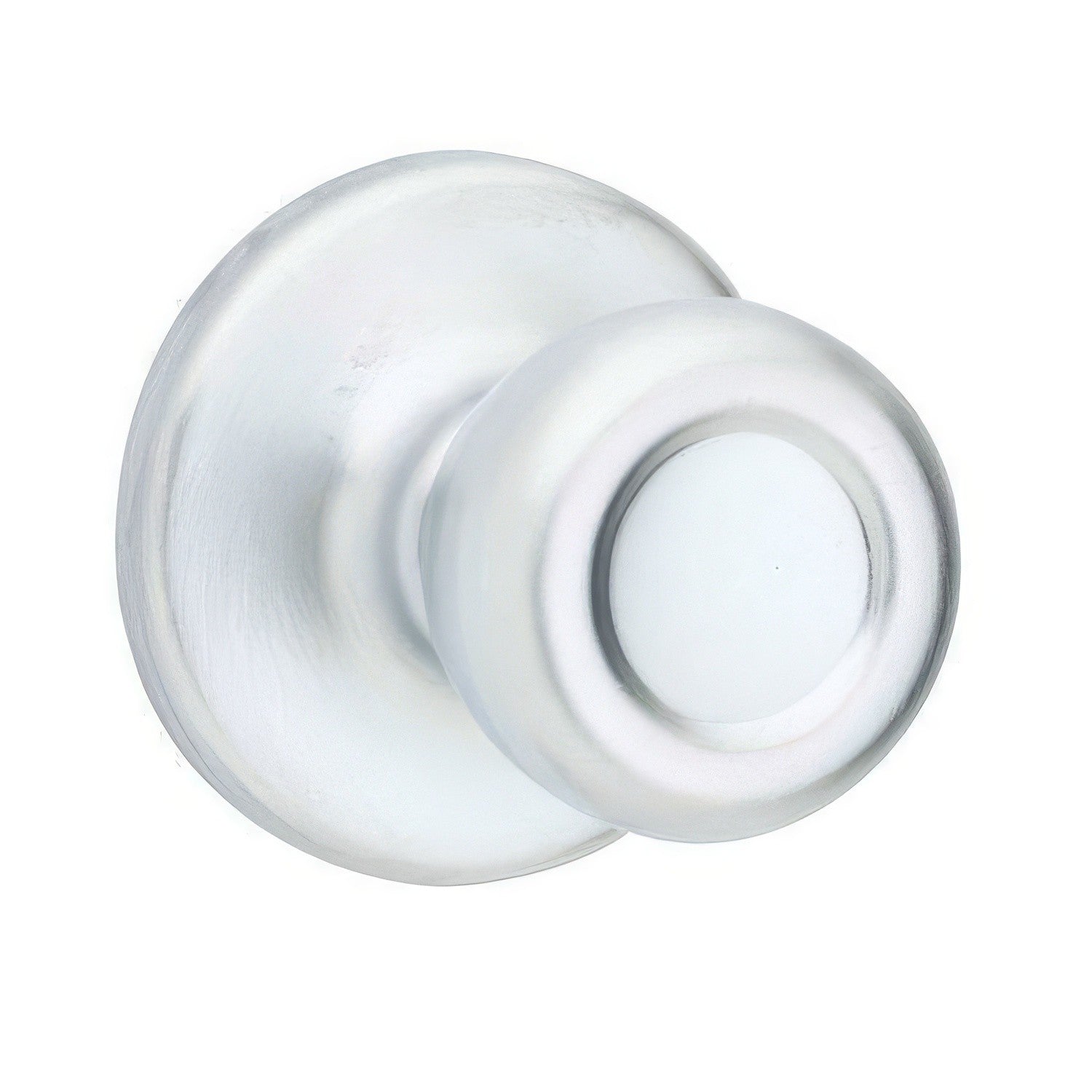

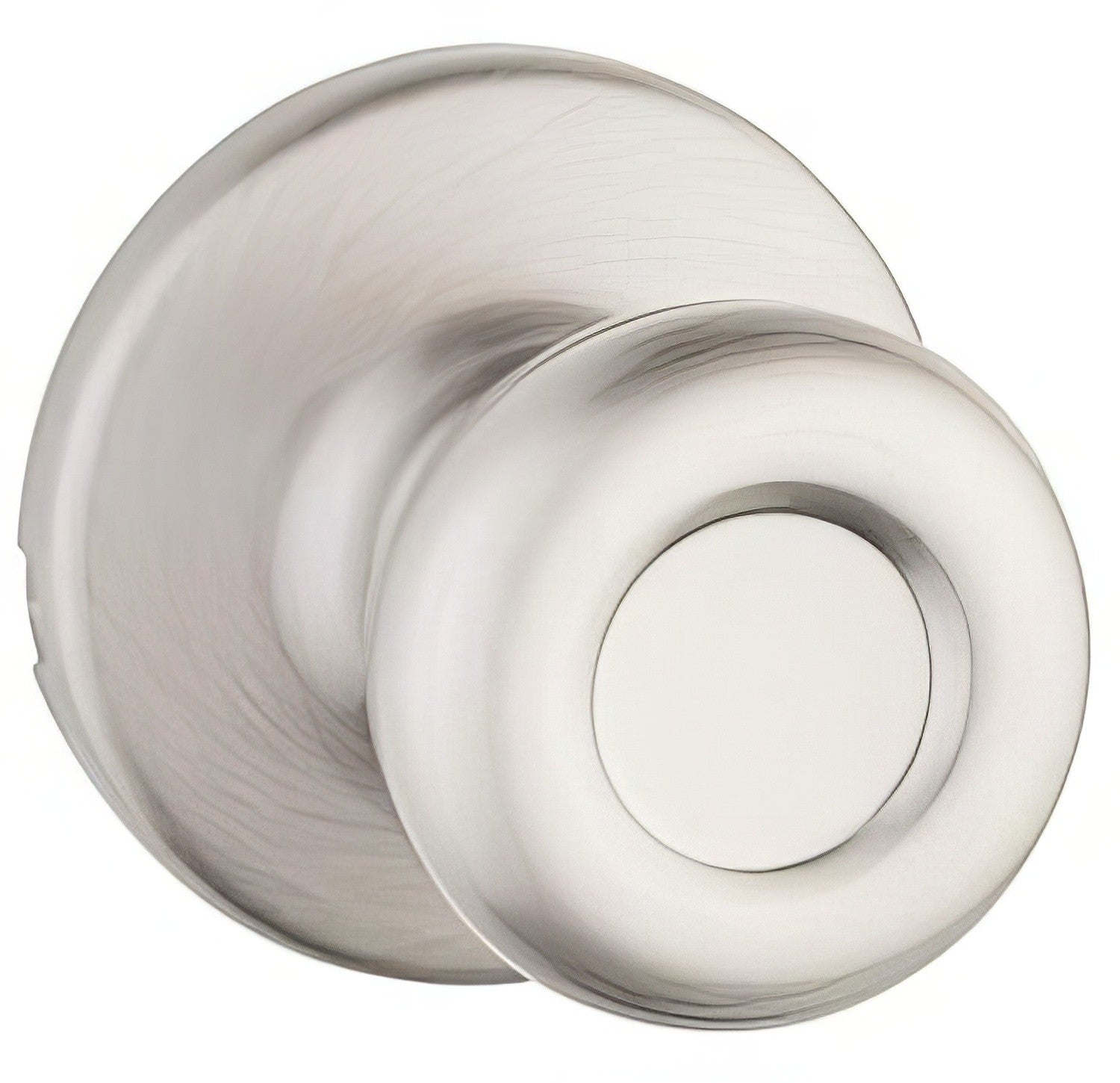

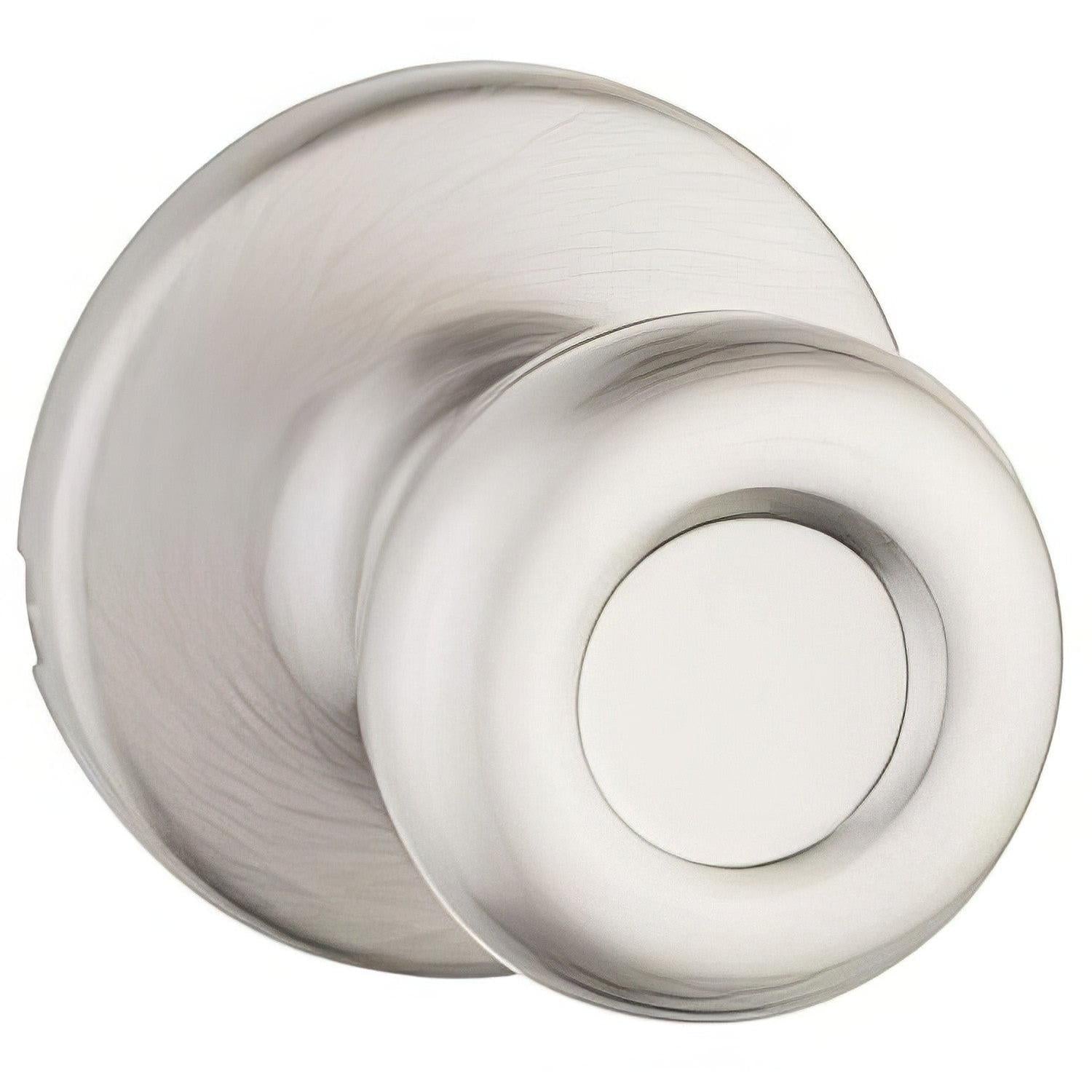

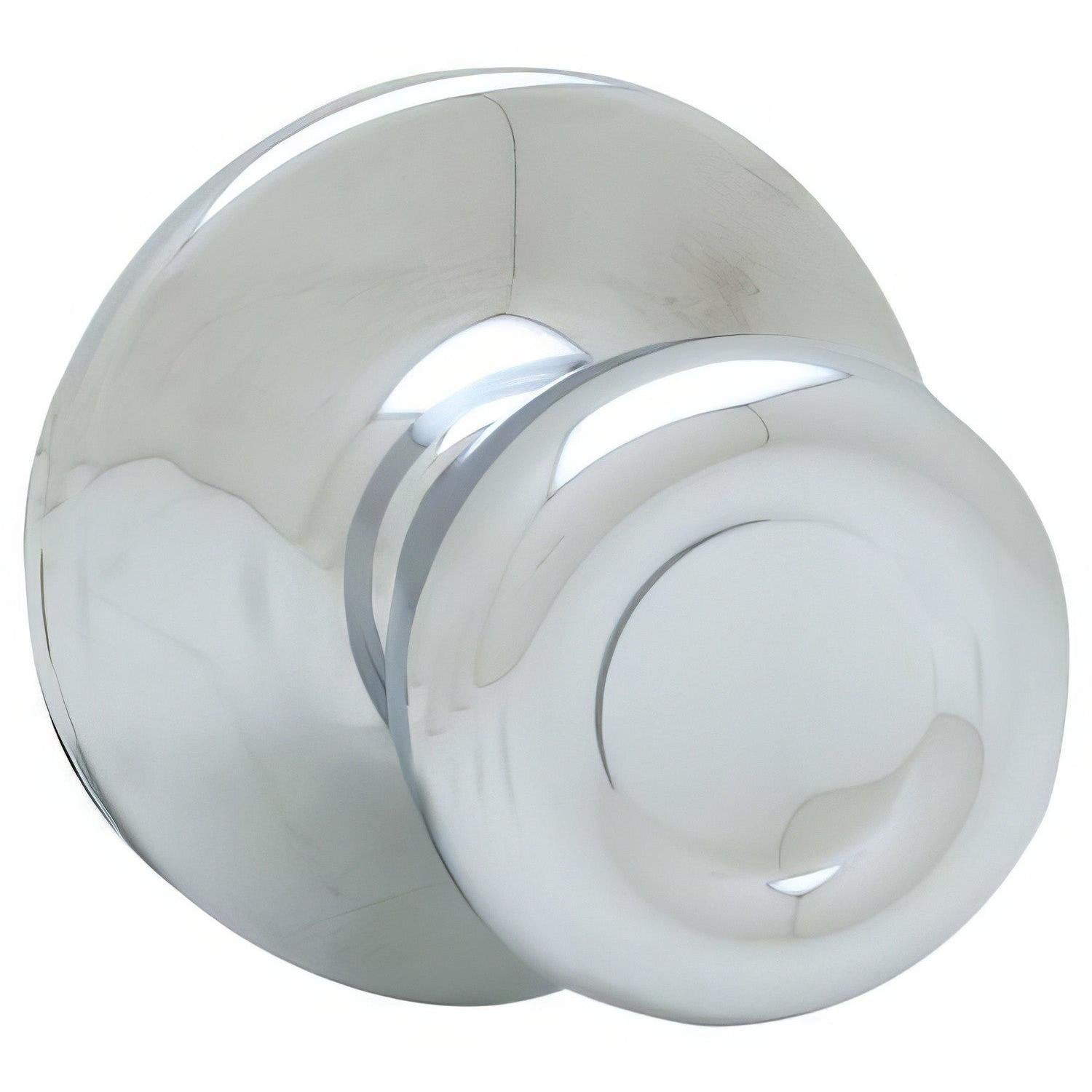

Kwikset 200T Tylo Passage Door Knob

The Kwikset 200T Tylo is a passage door knob for a hall, closet, pantry, or connecting-room door where locking is not required.

Non-locking latch operation from both sides. Confirm door thickness, backset, bore preparation, latch faceplate, strike, and handing before ordering.

Product Details

• Manufacturer part number: 200T
• Collection: Tylo
• Function: Passage Door Knob
• Application: A hall, closet, pantry, or connecting-room door where locking is not required
• Operation: Non-locking latch operation from both sides
• Included configuration: Interior and exterior knob trim with operating latch hardware; confirm the exact faceplate and strike configuration in the current product documents
• Material: Zinc
• Style: Traditional / Classic
• Shape: Round / Flat
• Handing: Reversible
• Projection: 2-1/2″
• Rose diameter: 2.63″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ to 2-3/4″
• Bore hole: 2-1/8″
• ANSI/BHMA grade: Grade 3
• ANSI standard: A156.2

Compatibility: Confirm the door thickness, bore preparation, backset, handing, latch faceplate, strike, and package contents for the exact model before ordering.
