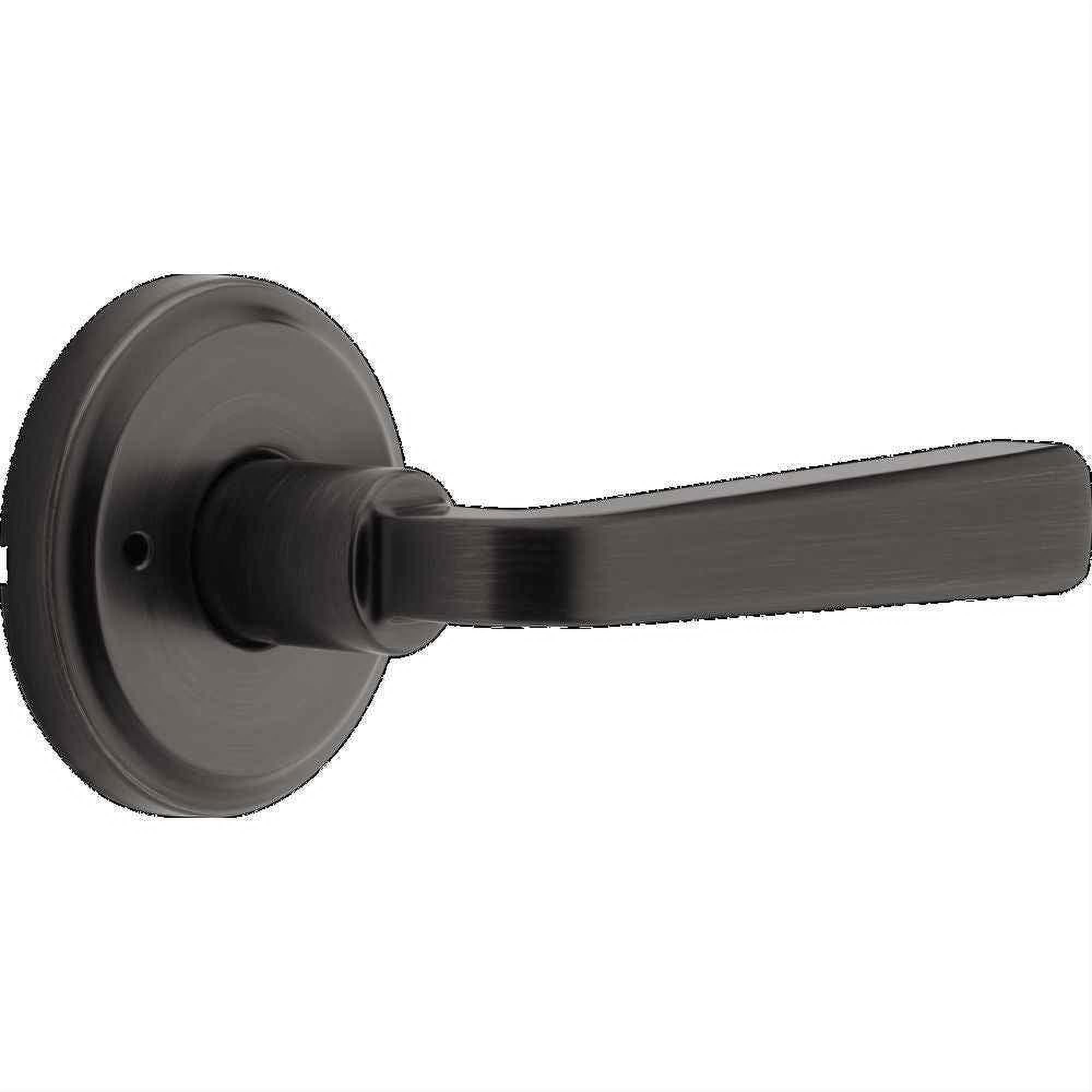

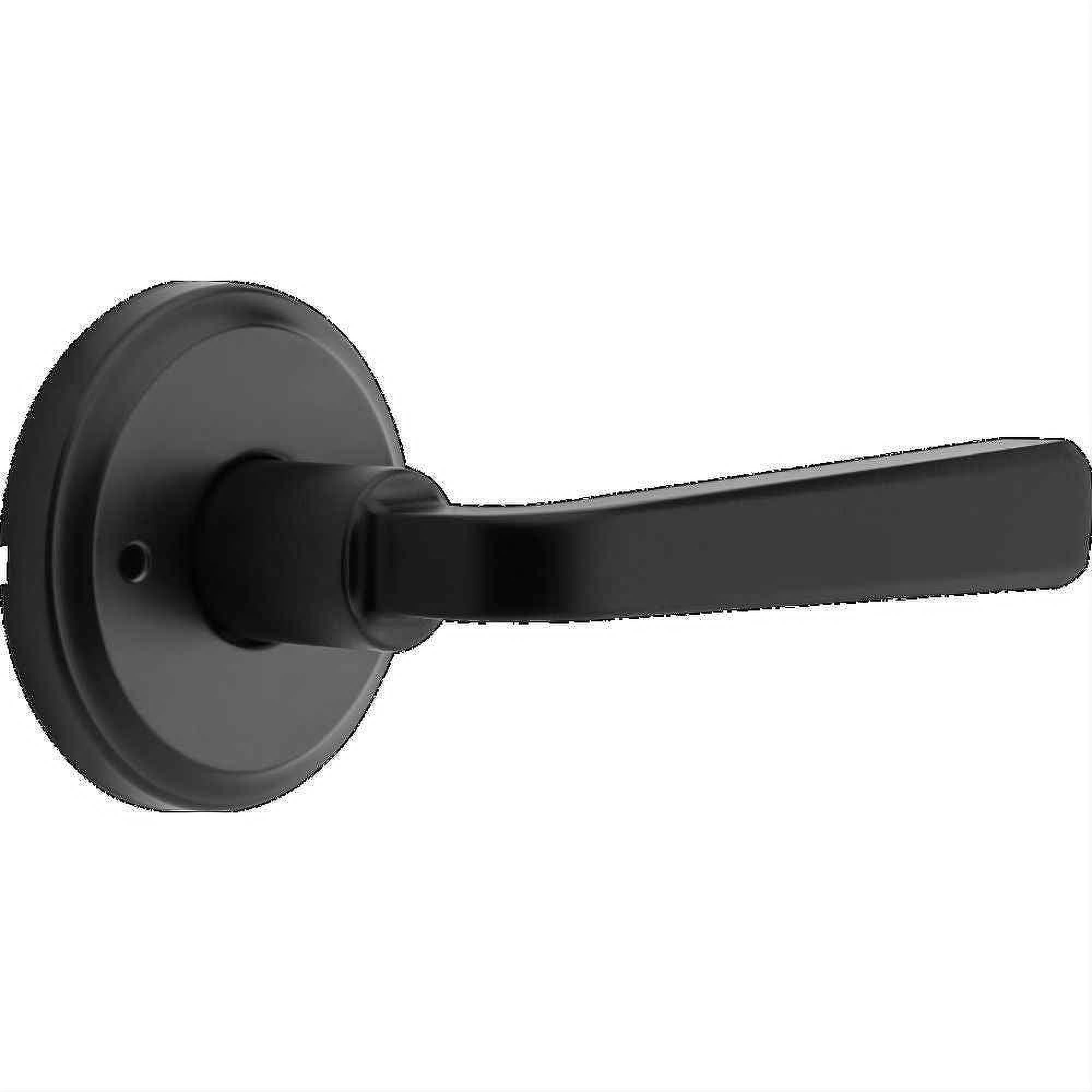

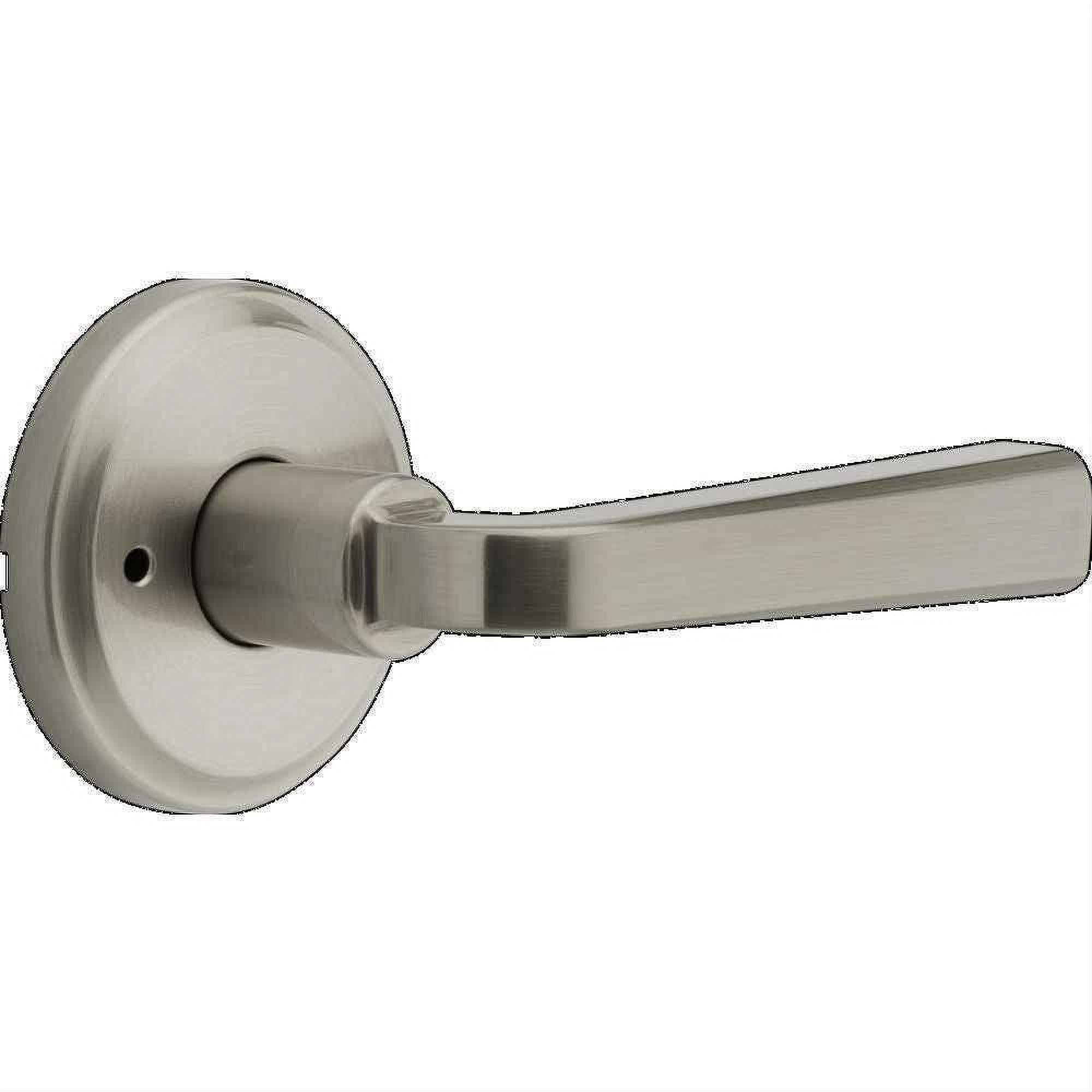

Kwikset 730TDL Trafford Lever Privacy Door Lock and RCS Strike

The Kwikset 730TDL-11P Trafford lever is a privacy lockset for an interior door where temporary locking is needed. The inside privacy control locks the door, while the exterior side provides an emergency-release provision.

Use it on a bedroom, bathroom or similar interior room. The latch operates from both sides when unlocked, and the outside emergency release allows authorized access when necessary.

Product Details

• Manufacturer part number: 730TDL-11P
• Model family: 730TDL
• Collection: Trafford
• Product type: Privacy Door Lever
• Handle design: Trafford Lever
• Application: Interior bedroom, bathroom or other privacy door
• Operation: Interior Privacy Lock with Exterior Emergency Release
• Included configuration: Interior and exterior handles with privacy latch hardware; verify the current product documents for the exact emergency tool, faceplate and strike configuration.
• Rose shape: Round
• Series: Signature Series
• Material: Zinc
• Handing: Reversible
• Lever Length: 4-5/32″
• Projection: 2-19/32″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Strike: Round Corner Full Lip Strike
• ANSI/BHMA grade: Grade 2
• Warranty: Limited Lifetime Mechanical and Finish Warranty

Compatibility: Confirm 2-3/8″ or 2-3/4″ backset, 2-1/8″ cross bore, handing and the required latch faceplate and strike before ordering. Use this privacy door lever only where its documented locking operation matches the door application.
