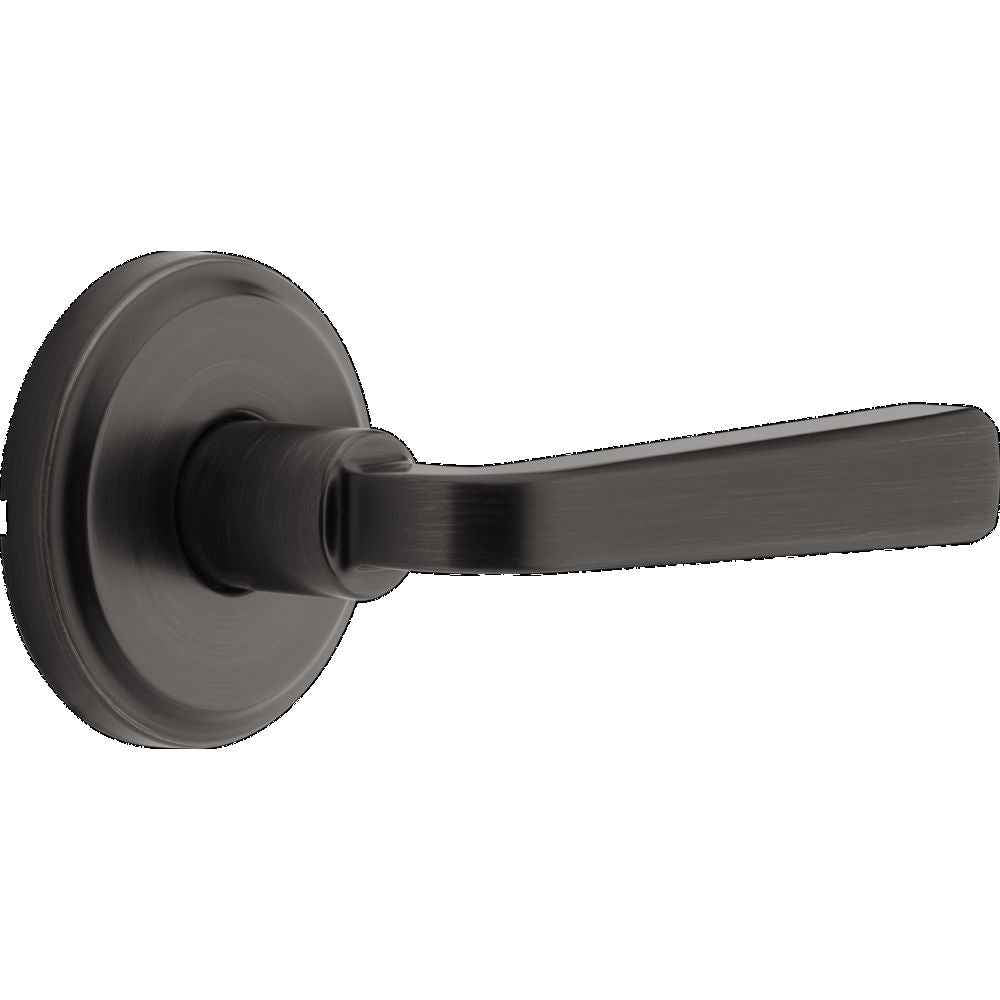

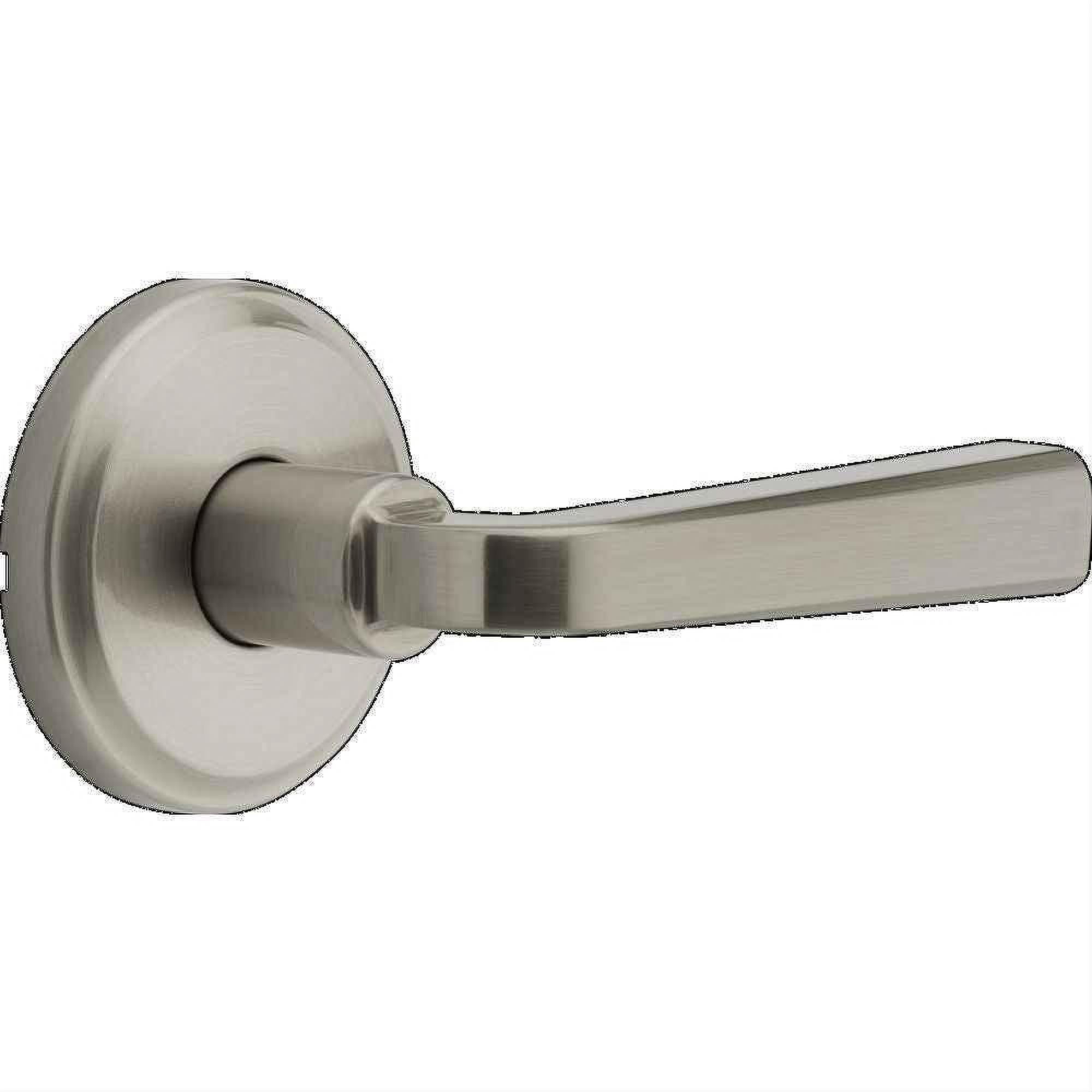

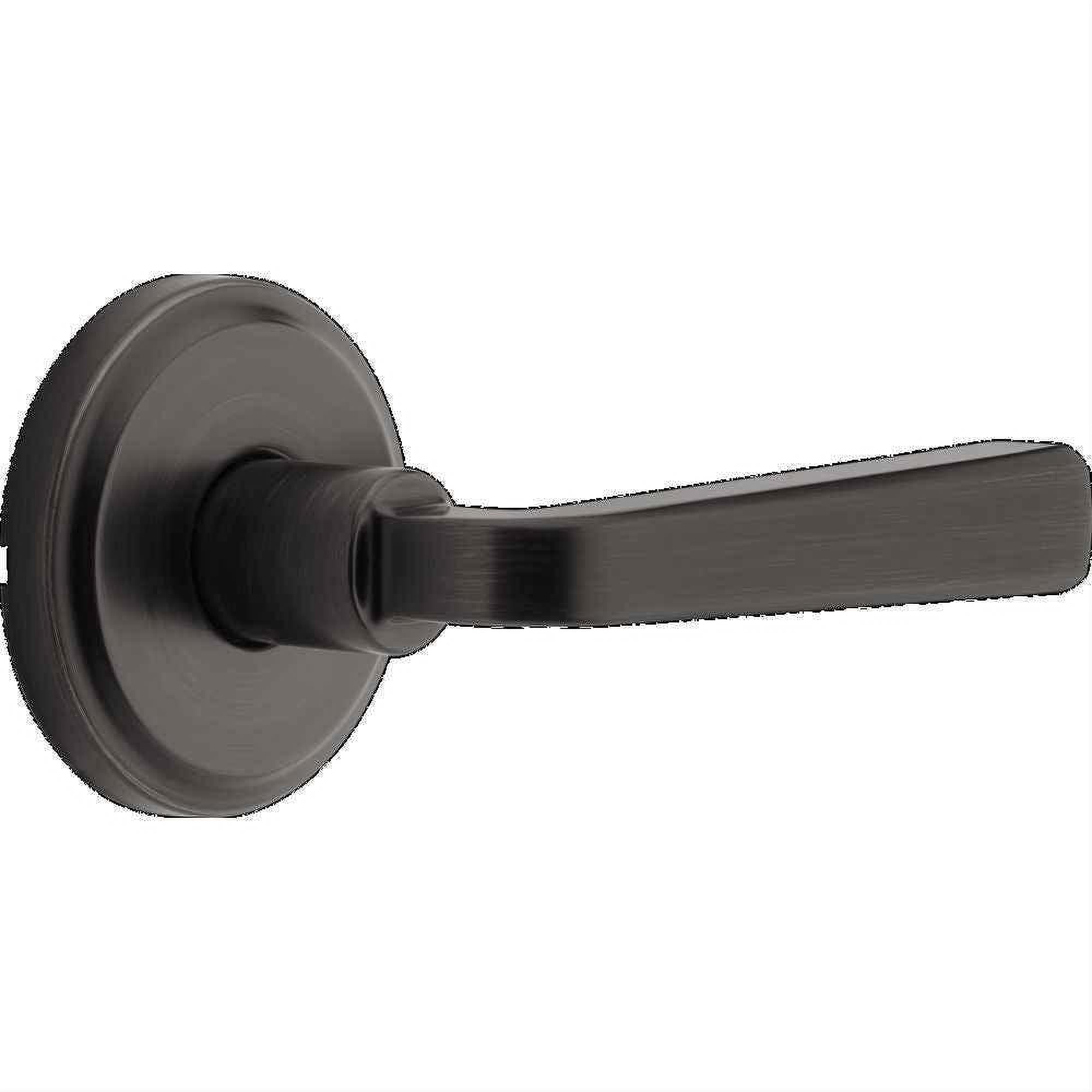

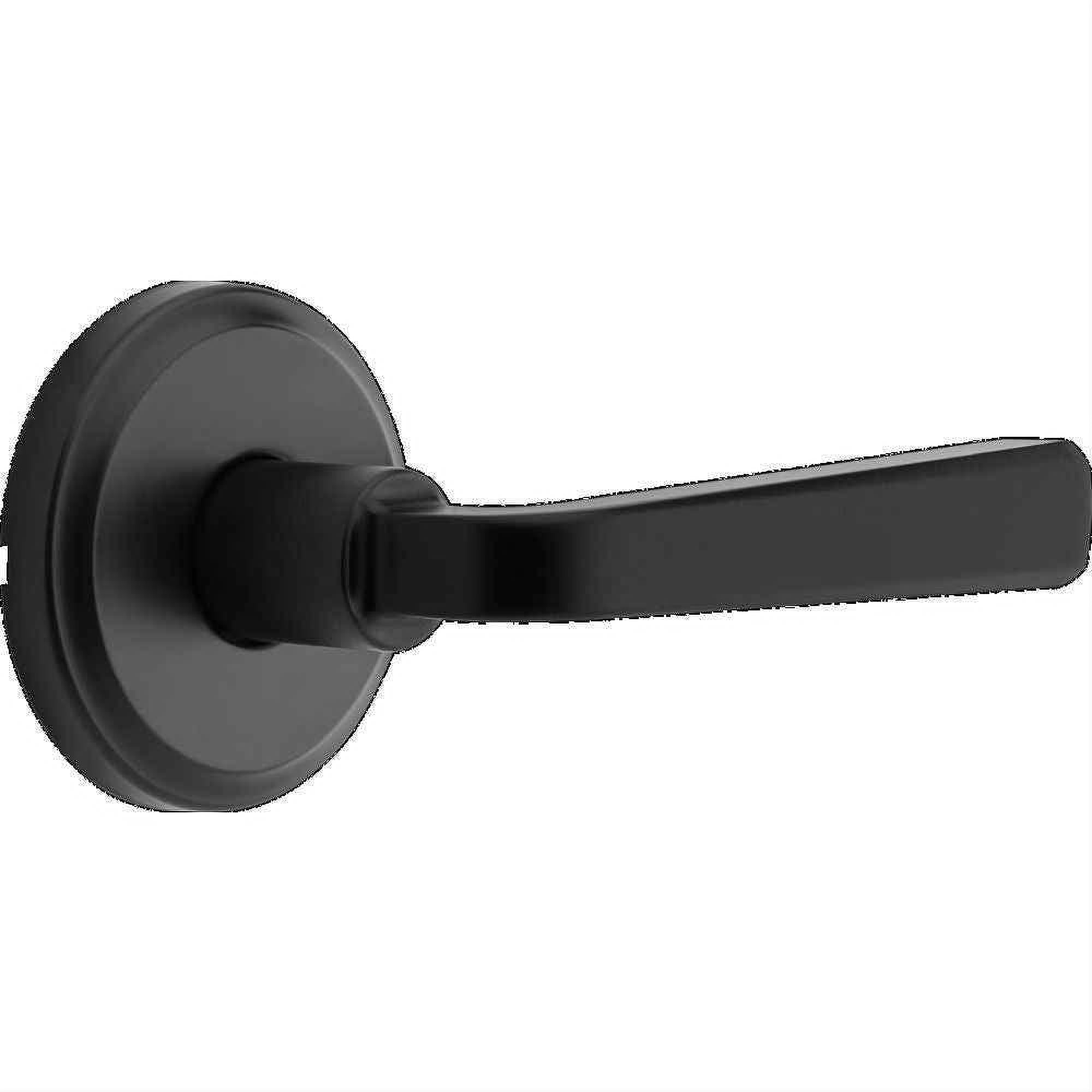

Kwikset 720TDL Trafford Lever Passage Door Lock and RCS Strike

The Kwikset 720TDL-11P Trafford lever is a non-locking passage set for interior doors where privacy is not required. Turning either handle retracts the latch so the door can be opened from both sides.

Use it on hall, closet, pantry or connecting-room doors that need an operating latch without a locking function. This is an active two-sided lockset, not a one-sided dummy pull.

Product Details

• Manufacturer part number: 720TDL-11P
• Model family: 720TDL
• Collection: Trafford
• Product type: Passage Door Lever
• Handle design: Trafford Lever
• Application: Interior hall, closet, pantry or connecting-room door
• Operation: Non-Locking Passage; Operates From Both Sides
• Included configuration: Operating interior and exterior handles with latch hardware; verify the current product documents for the exact faceplate and strike configuration.
• Rose shape: Round
• Series: Signature Series
• Material: Zinc
• Handing: Reversible
• Lever Length: 4-5/32″
• Projection: 2-19/32″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Strike: Round Corner Full Lip Strike
• ANSI/BHMA grade: Grade 2
• Warranty: Limited Lifetime Mechanical and Finish Warranty

Compatibility: Confirm 2-3/8″ or 2-3/4″ backset, 2-1/8″ cross bore, handing and the required latch faceplate and strike before ordering. Use this passage door lever only where its documented locking operation matches the door application.
