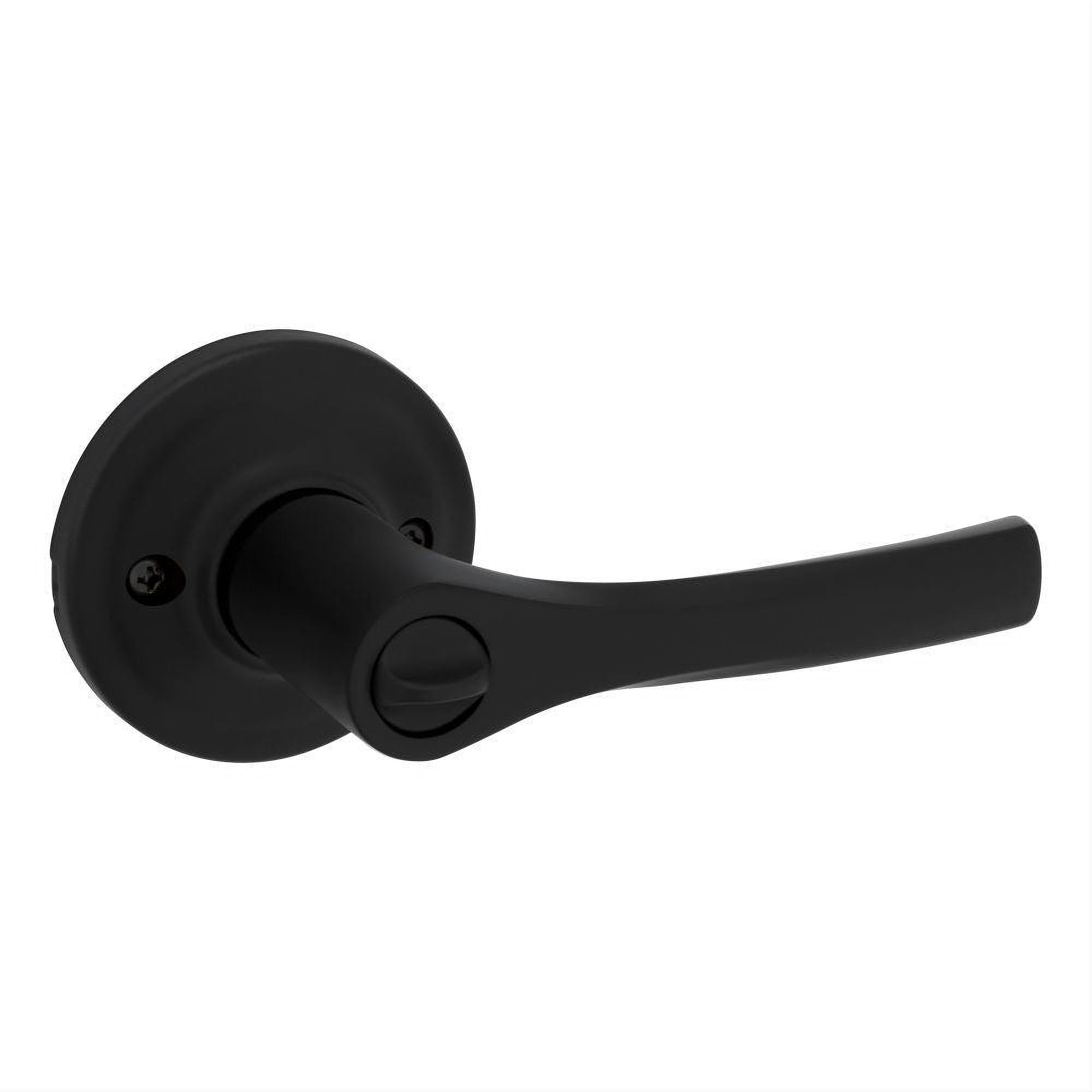

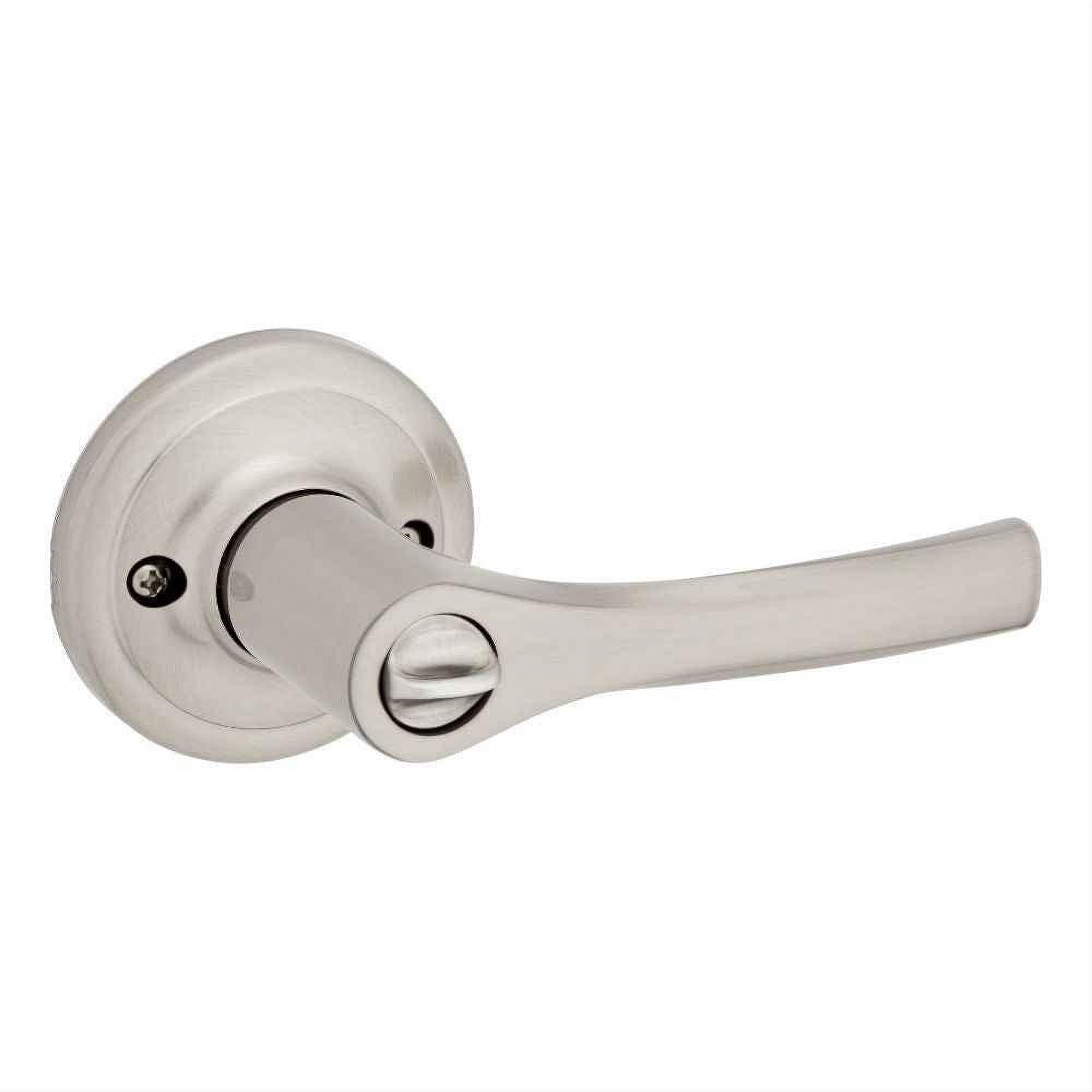

Kwikset 300HYL Henley Lever Privacy Door Lock and RCS Strike

The Kwikset 300HYL Henley is a privacy door lever with the matching Henley rose, featuring a Henley lever design.

The interior privacy control locks the lever for bedroom or bathroom use, and the exterior side can be released with the appropriate privacy-release tool. When unlocked, the latch retracts from either side.

Product Details

• Model: 300HYL
• Design: Henley Lever
• Function: Privacy Door Lever
• Rose: Henley Rose
• Series: Kwikset Security Series
• Material: Zinc
• Handing: Reversible handing
• Dimensions: 4-3/32″ Lever Length, 2-9/16″ Projection, 2-5/8″ Rose
• ANSI/BHMA grade: Grade 3
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Strike: Round Corner Full Lip Strike
• Application: Bedroom and bathroom doors requiring interior privacy
• Included configuration: Adjustable latch and round-corner strike identified by the current product configuration
• Warranty: Limited Lifetime Mechanical and Finish Warranty

Compatibility: Confirm the henley rose, door thickness, 2-3/8″ or 2-3/4″ backset, cross-bore preparation, and privacy function before ordering.
