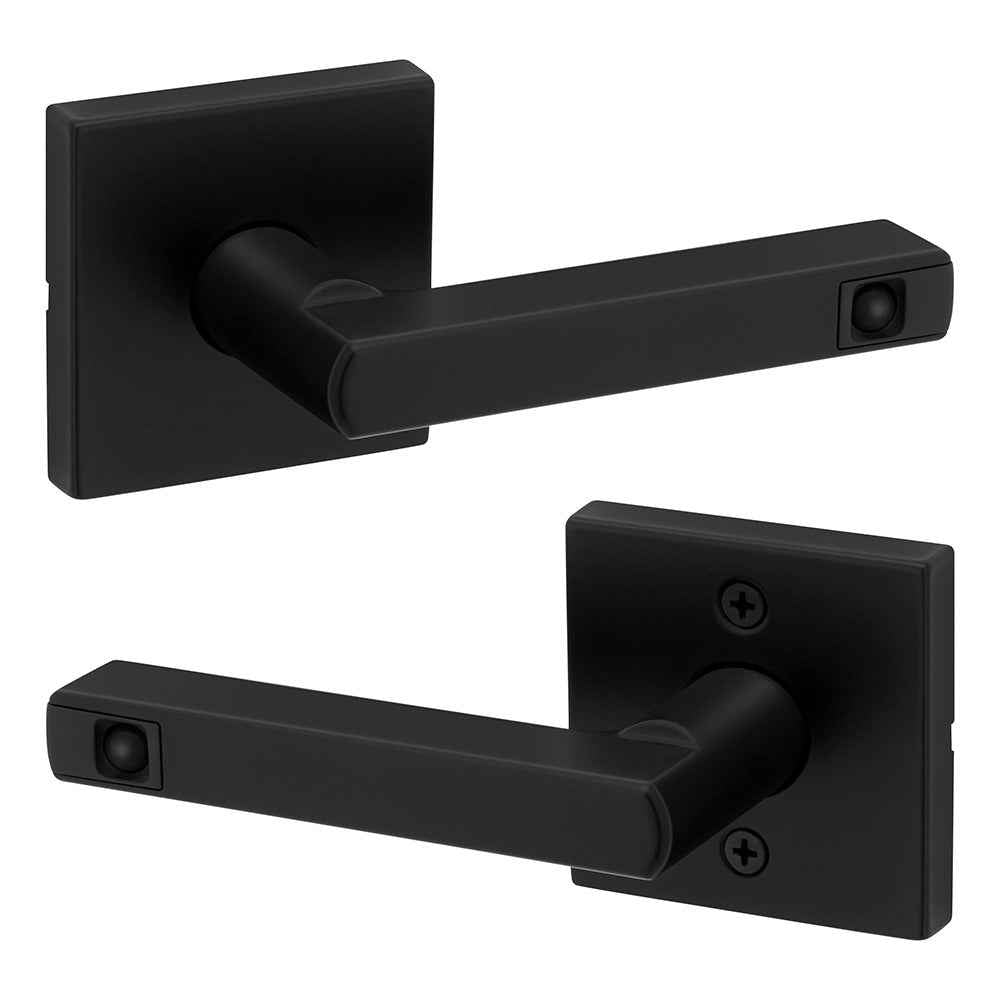

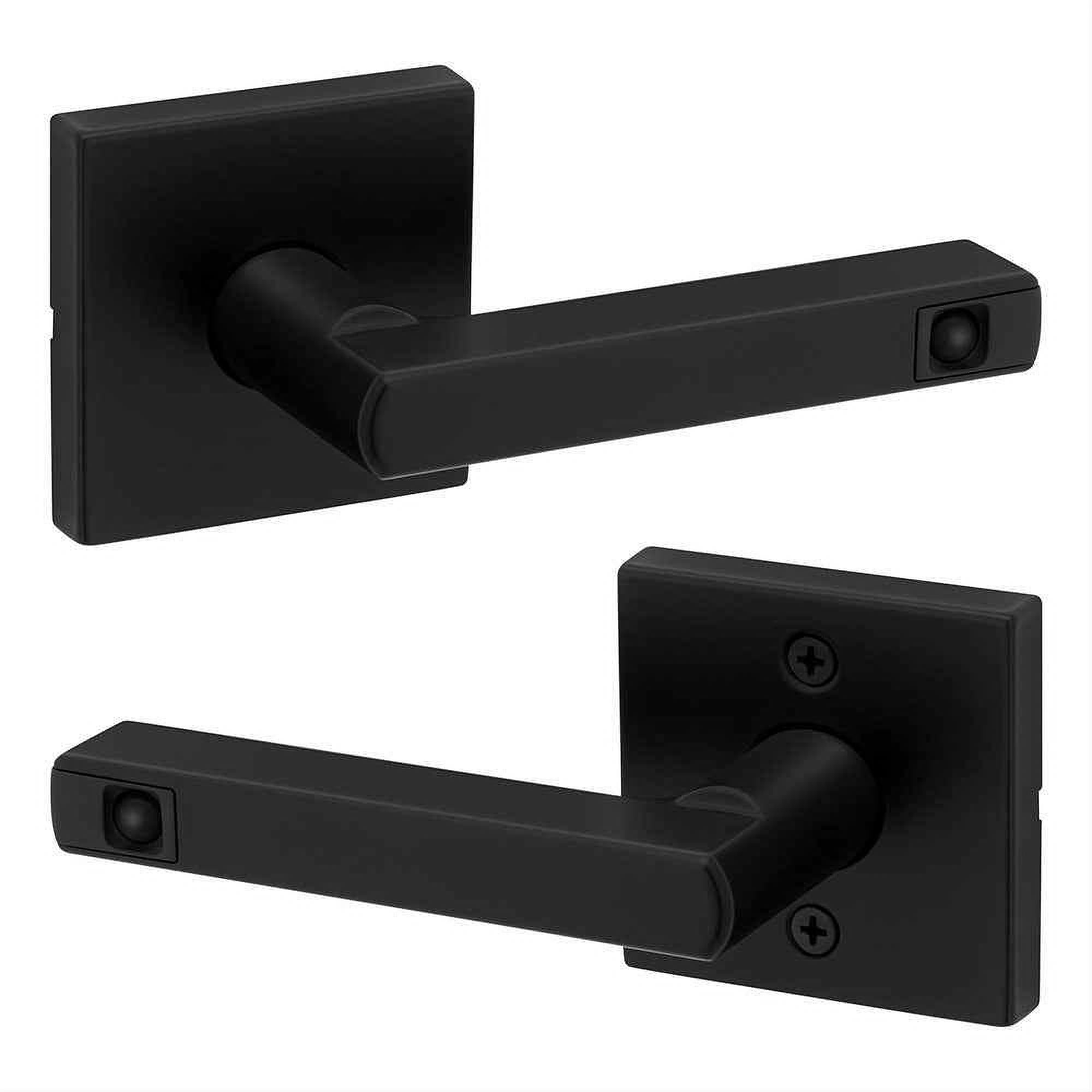

Kwikset 720HFLSQTLED-514 Halifax LED Light Lever with Square Rose Passage Door Lock with Light and Motion Sensor and RCS Strike

The Kwikset 720HFLSQTLED-514 Halifax LED lever combines non-locking passage operation with motion-activated handle illumination.

Kwikset states that the 4000K LED activates when motion is detected within 10 feet in dark conditions and turns off after seven seconds without motion.

Product Details

• Manufacturer part number: 720HFLSQTLED-514
• Model: 720HFLSQTLED
• Collection: Halifax
• Product type: LED Passage Door Lever
• Application: Hall, closet or other non-locking interior door where illuminated handle location is useful
• Operation: Non-locking passage operation with motion-activated LED illumination
• Included configuration: Passage lever set, adjustable latch, round-corner strike, installation hardware and AAA battery
• Rose shape: Square
• Material: Zinc
• Handing: Reversible
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Strike: Round Corner Full Lip Strike

Compatibility: Confirm a 1-3/8″ to 1-3/4″ door, adjustable 2-3/8″ or 2-3/4″ backset and required bore preparation. The LED feature uses the included replaceable AAA battery.

Manufacturer Product Information

Kwikset Halifax Feature Product Information

Additional Kwikset Information

View Kwikset Manufacturer Warranty

Shop All Kwikset Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
