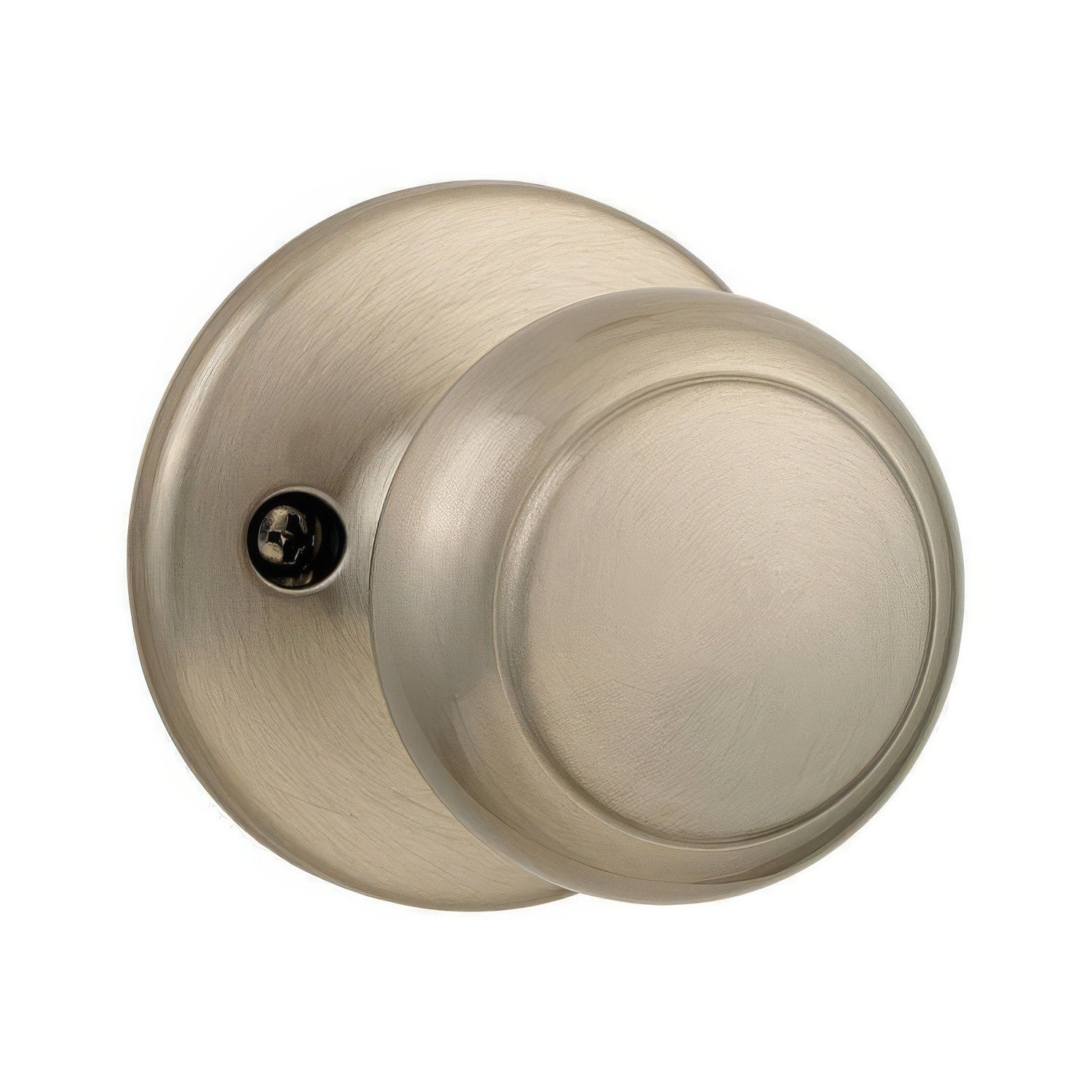

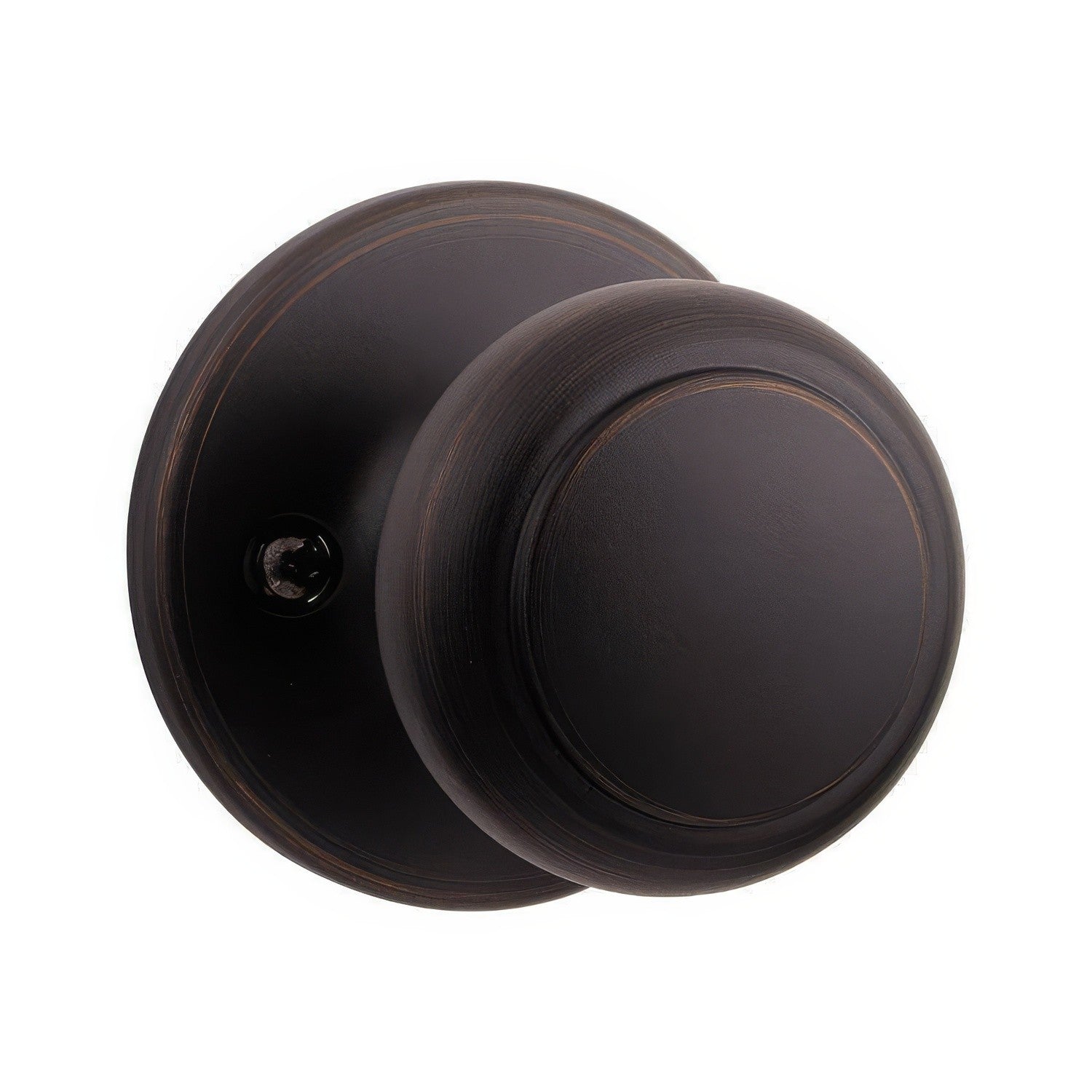

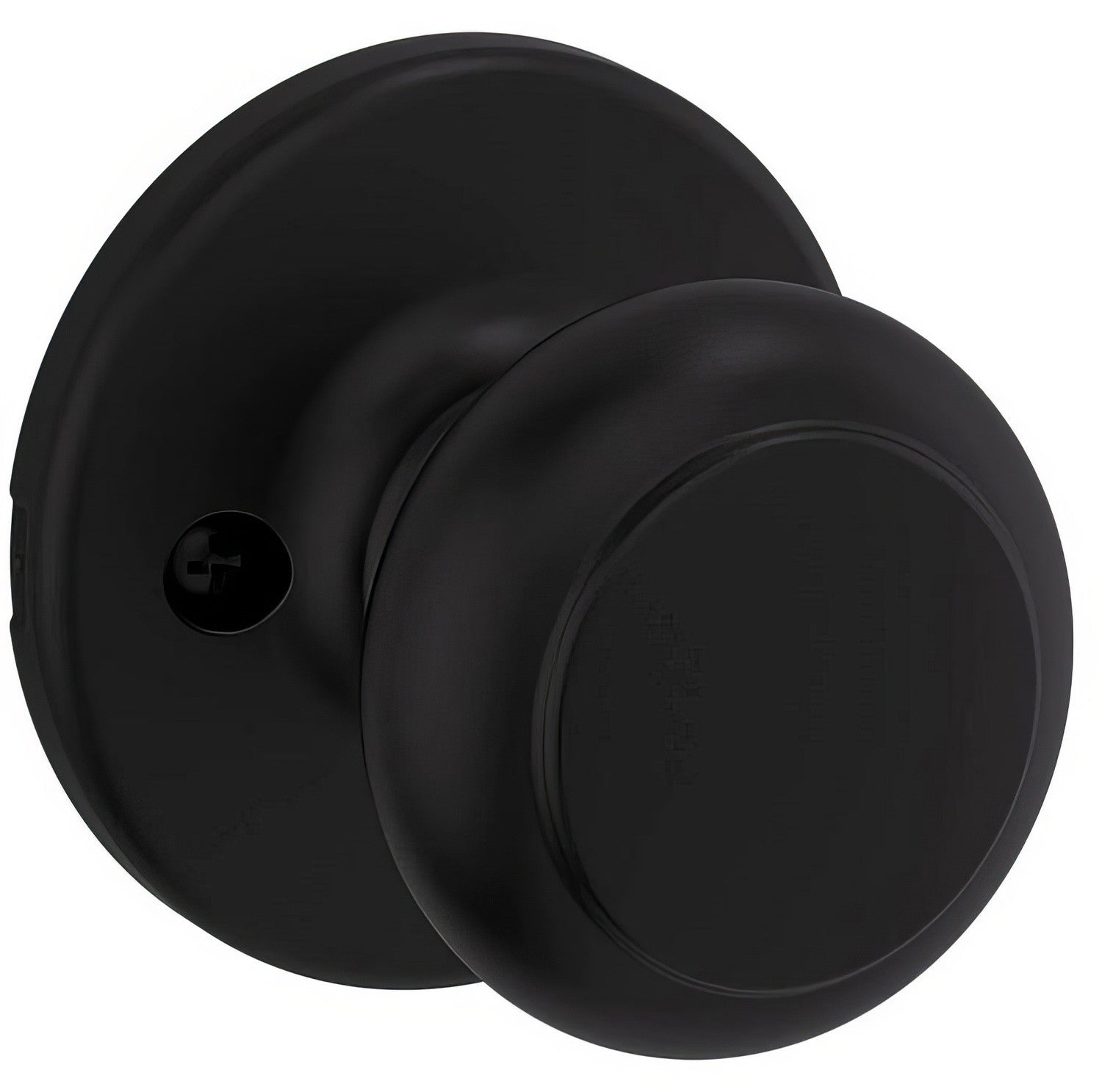

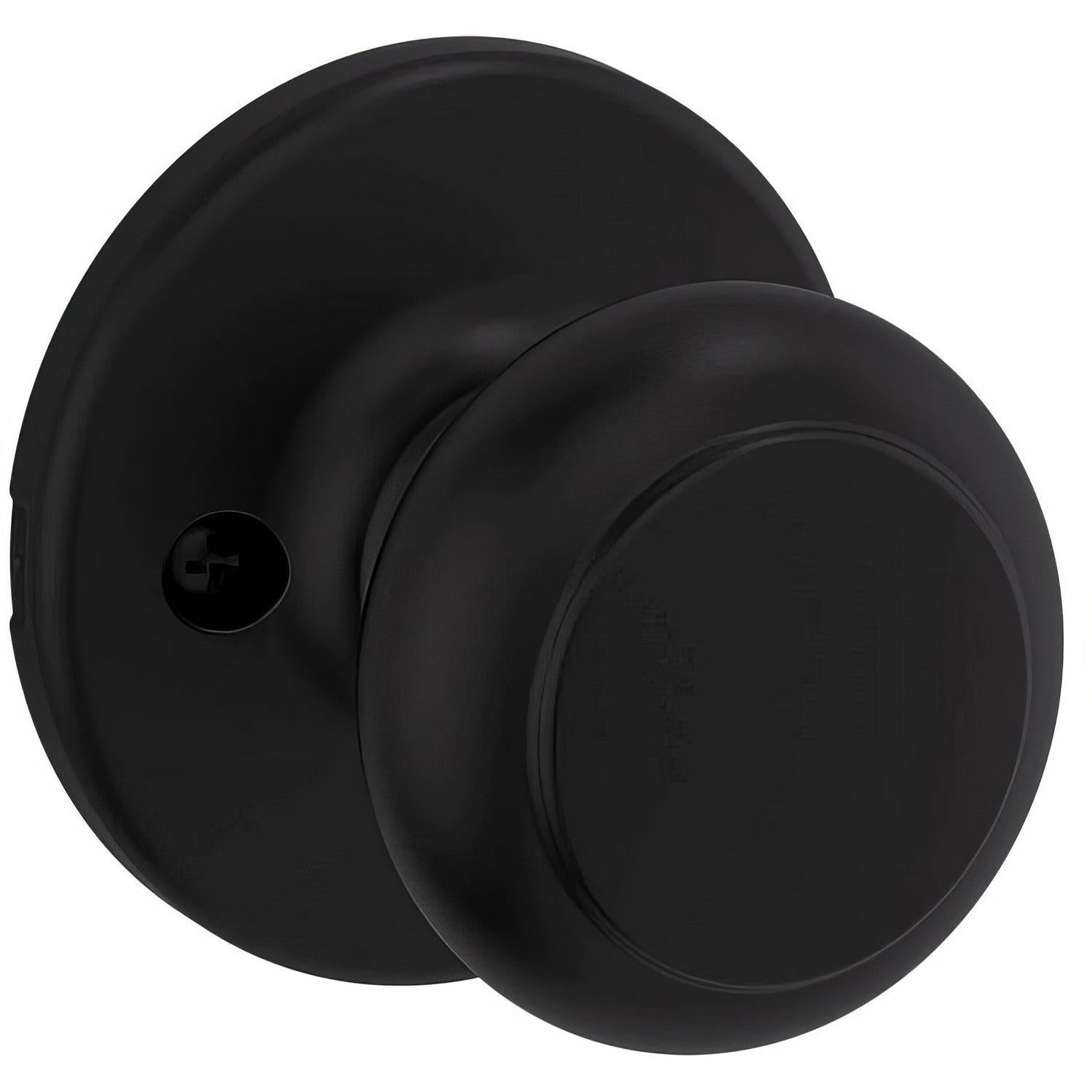

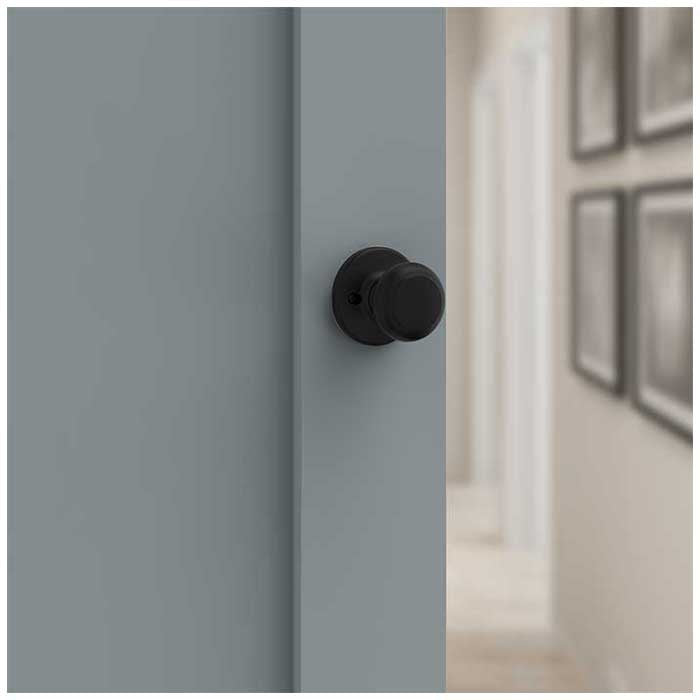

Kwikset 488CV Cove Single Dummy Door Knob

The Kwikset 488CV Cove is a single dummy door knob for an inactive door, closet door, or one-sided push-pull application.

One-sided non-turning pull with no latch or locking function. Confirm the mounting side, handing, and surface preparation before ordering.

Product Details

• Manufacturer part number: 488CV
• Collection: Cove
• Function: Single Dummy Door Knob
• Application: An inactive door, closet door, or one-sided push-pull application
• Operation: One-sided non-turning pull with no latch or locking function
• Included configuration: One-sided knob trim; operating latch and strike are not included
• Material: Zinc
• Style: Traditional / Classic
• Shape: Round / Flat
• Handing: Reversible
• Projection: 2-1/2″
• Rose diameter: 2.63″
• ANSI/BHMA grade: Grade 3
• ANSI standard: A156.2

Compatibility: Confirm the mounting side and surface preparation. This trim does not replace an operating passage, privacy, or keyed lockset.

Product Documents

Kwikset 488CV Cove Dummy Knob Installation Guide

Kwikset 488CV Cove Dummy Knob Specification Document

Additional Kwikset Information

View Kwikset Manufacturer Warranty

Shop All Kwikset Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
