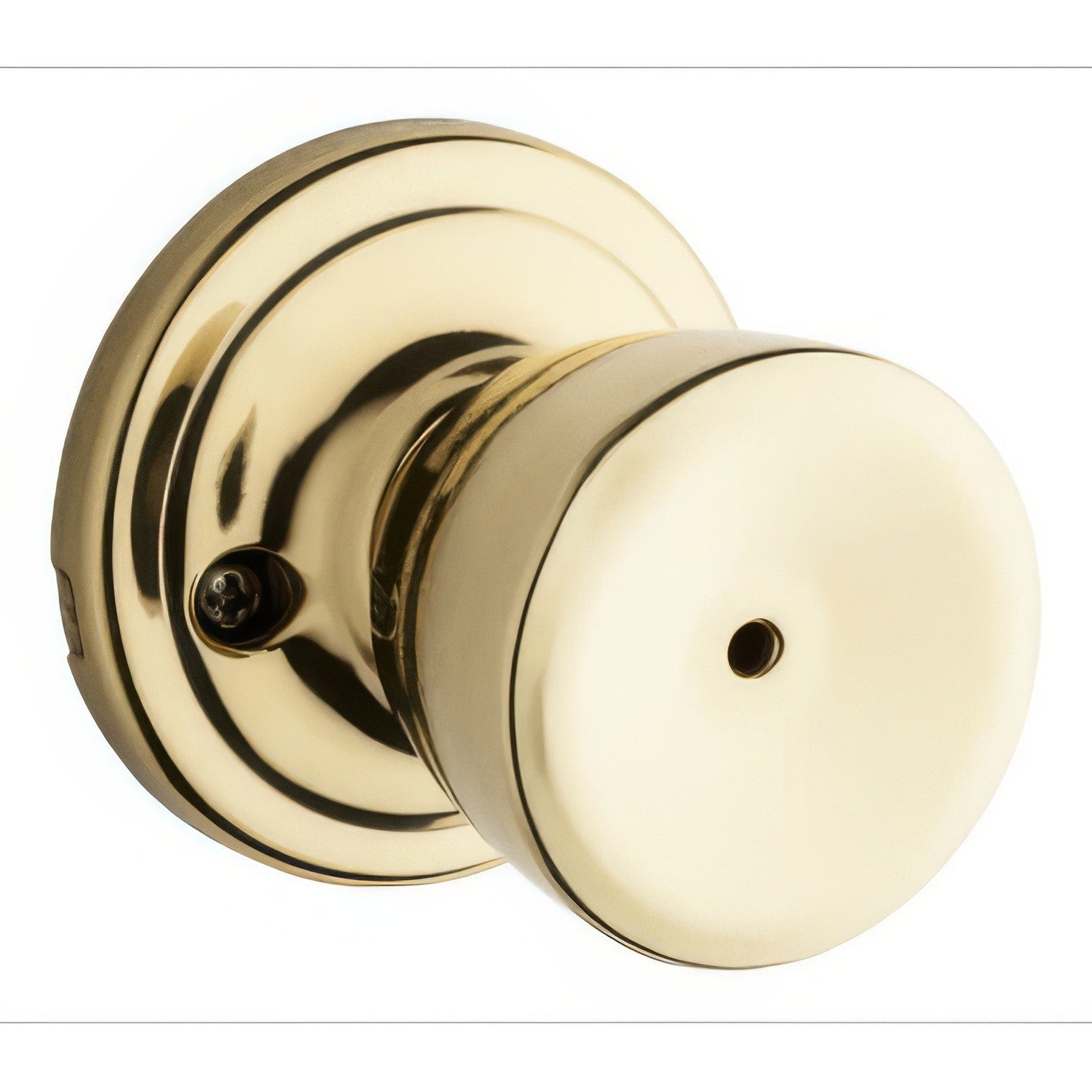

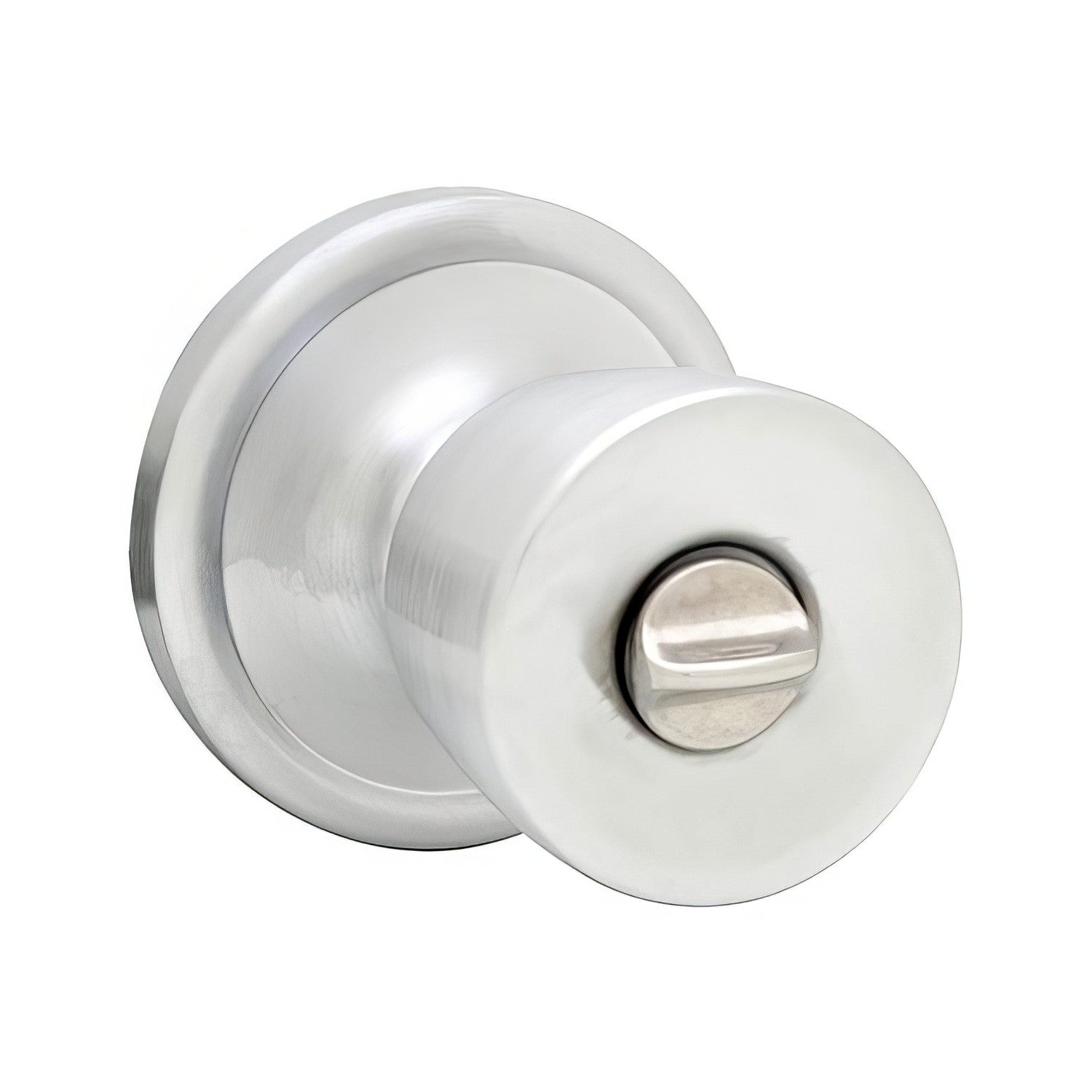

Kwikset 730A Abbey Privacy Door Knob

The Kwikset 730A-5GC Abbey knob is a privacy lockset for an interior door where temporary locking is needed. The inside privacy control locks the door, while the exterior side provides an emergency-release provision.

Use it on a bedroom, bathroom or similar interior room. The latch operates from both sides when unlocked, and the outside emergency release allows authorized access when necessary.

Product Details

• Manufacturer part number: 730A-5GC
• Model family: 730A
• Collection: Abbey
• Product type: Privacy Door Knob
• Handle design: Abbey Knob
• Application: Interior bedroom, bathroom or other privacy door
• Operation: Interior Privacy Lock with Exterior Emergency Release
• Included configuration: Interior and exterior handles with privacy latch hardware; verify the current product documents for the exact emergency tool, faceplate and strike configuration.
• Material: Zinc
• Handing: Reversible
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• ANSI/BHMA grade: Grade 2
• Warranty: Limited Lifetime Mechanical and Finish Warranty

Compatibility: Confirm 1-3/8″ to 1-3/4″ door thickness, 2-3/8″ or 2-3/4″ backset, 2-1/8″ cross bore, handing and the required latch faceplate and strike before ordering. Use this privacy door knob only where its documented locking operation matches the door application.

Product Documents

Kwikset 730A Abbey Privacy Door Knob Installation Guide

Kwikset 730A Abbey Privacy Door Knob Specification Document
