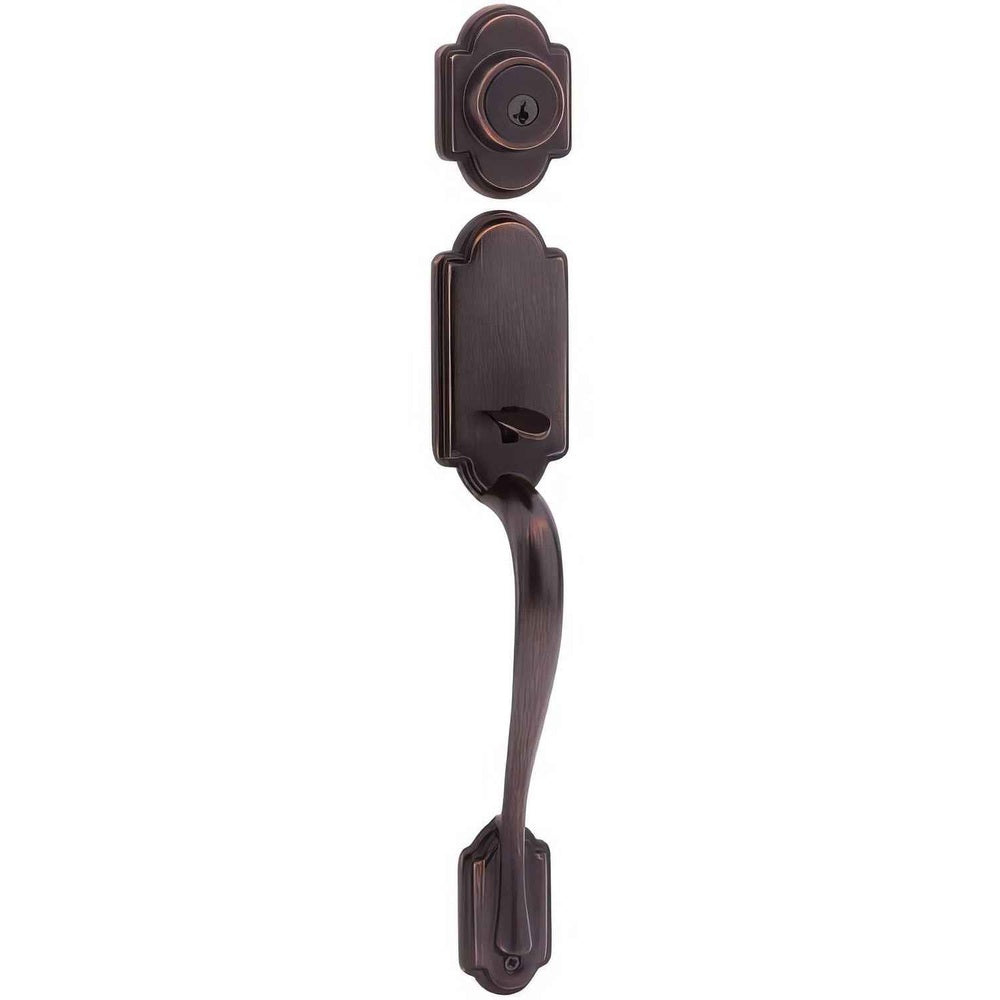

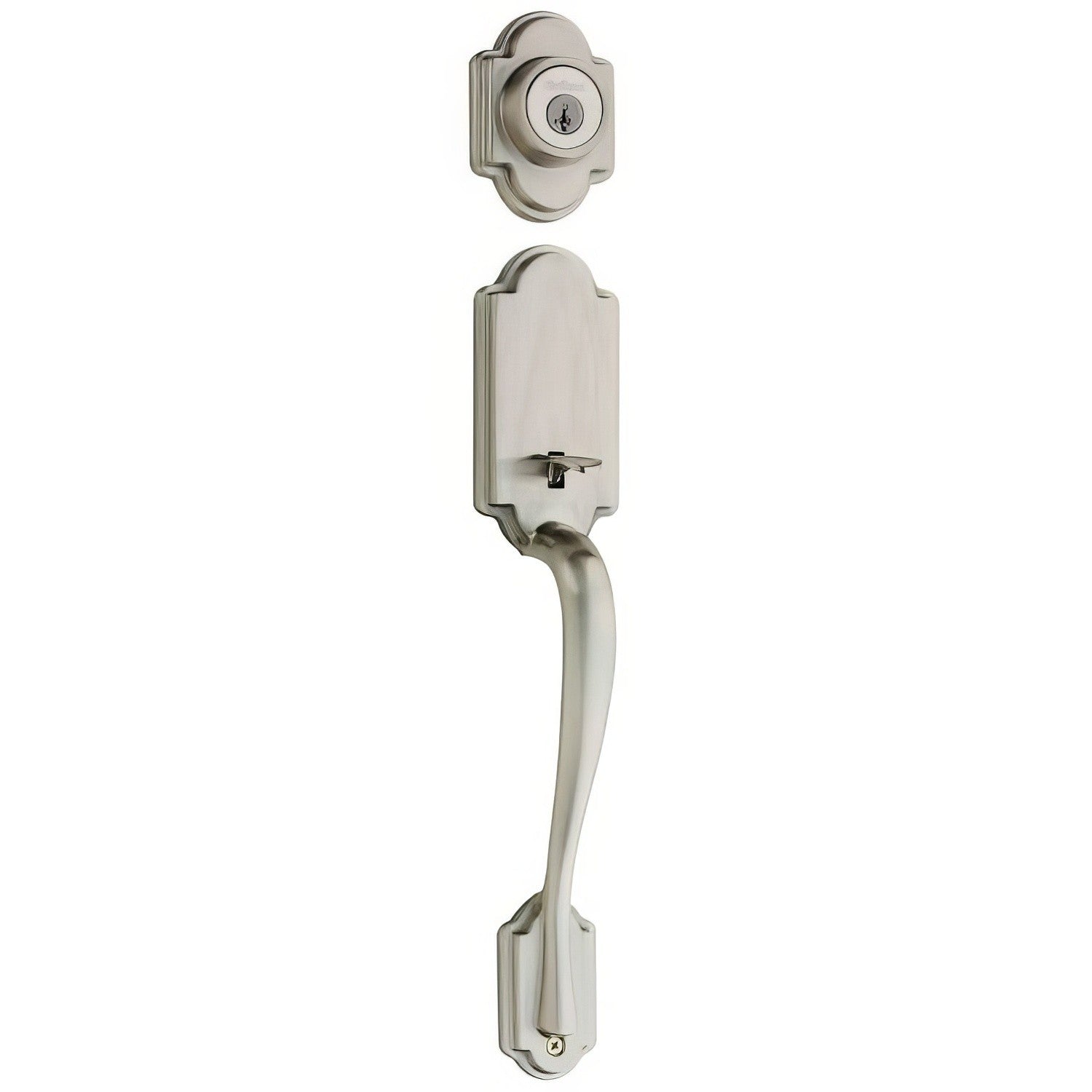

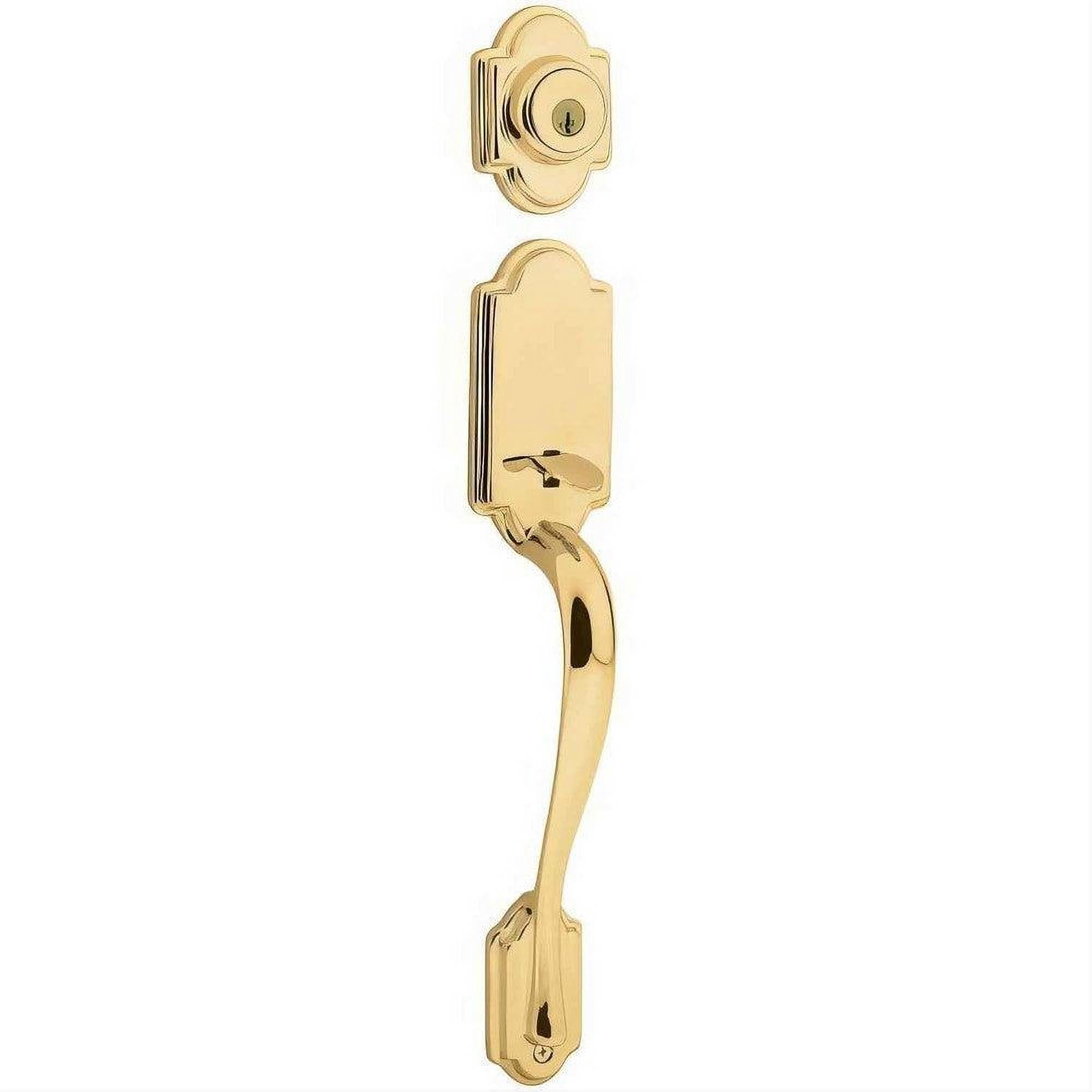

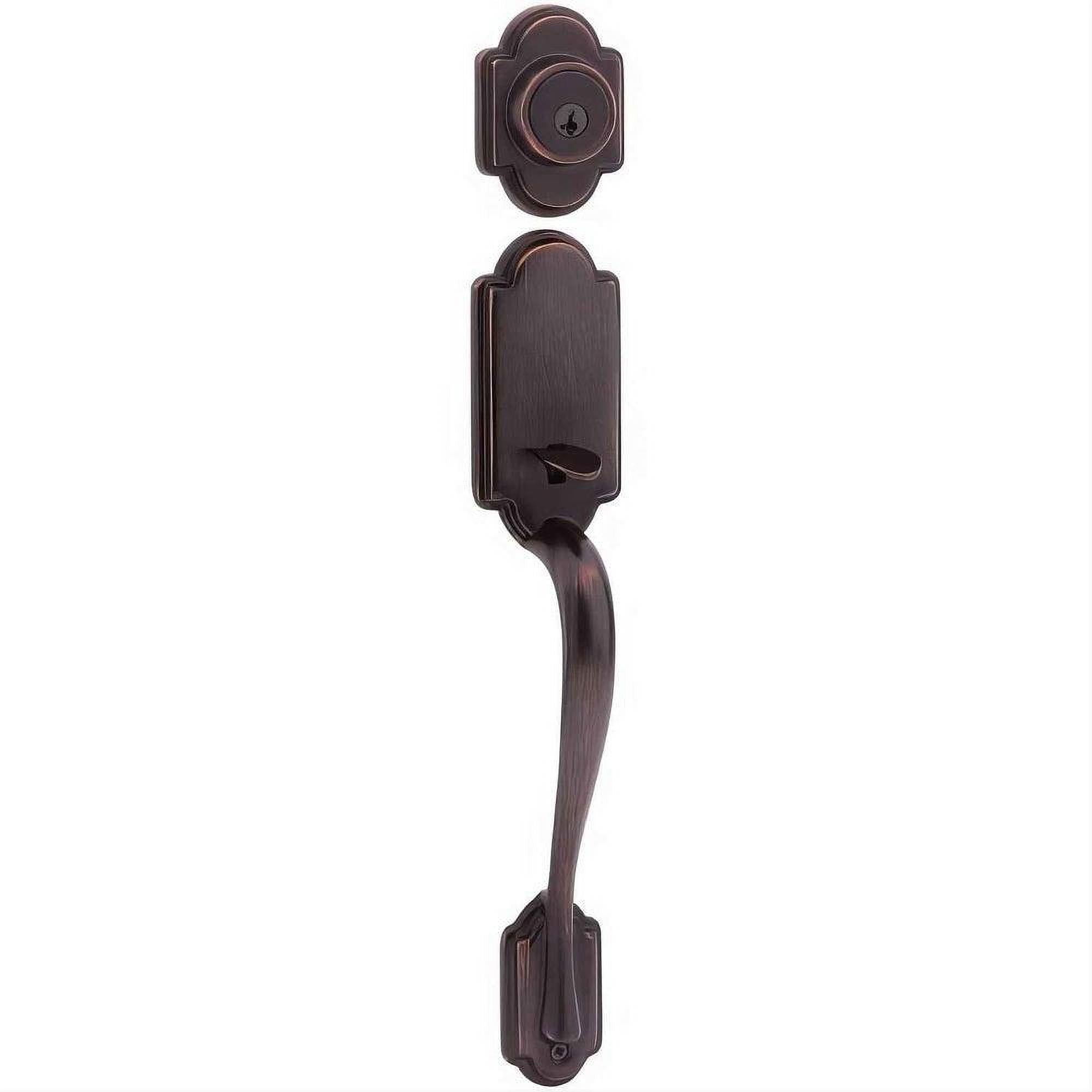

Kwikset 800AN-LIP-S Arlington Single Cylinder Handleset
Arlington Single Cylinder SmartKey Handleset
Kwikset 800AN-LIP-S Arlington Single Cylinder Handleset - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 800AN-LIP-S Arlington is a single cylinder exterior handleset designed for exterior entry door requiring the outside portion of a kwikset single-cylinder handleset.
Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch. Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately.
Product Details
- Manufacturer part number: 800AN-LIP-S
- Collection: Arlington
- Function: Single Cylinder Exterior Handleset
- Application: Exterior entry door requiring the outside portion of a Kwikset single-cylinder handleset
- Operation: Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch
- Package scope: Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately
- Keying technology: Kwikset SmartKey
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Door thickness: 1-3/4″
- Bore preparation: 2-1/8″
- Edge bore: 1″
- Center to center: 5-1/2″
- Published grade: A156.5
- Material: Zinc
- Style: Transitional
Compatibility: Pair with the compatible Kwikset interior pack and matching latch, strike, door thickness and preparation. Confirm the exact model, handing, door thickness and preparation before ordering.
Product Documents
Kwikset Arlington 800ANLIP-S Installation Guide
Kwikset Arlington 800ANLIP-S Specification Sheet
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight3.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
CylinderSmart Key 5 Pin
-
Collections
-
Free ShippingYes
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Latch TypeRound Corner, Square Corner, Drive-In Latch
-
Door Thickness1-3/4"
-
Edge Bore
-
Lock Function
-
Style
-
Latch Faceplate
-
Panic Proof
-
Center To Center
-
Projection
-
Mount Type
-
Height
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|
| 800ANLIP-L03S.STRKP | Lifetime Brass | $189.38 USD |
| 800ANLIP-15S.STRKP | Satin Nickel | $189.38 USD |
| 800ANLIP-11PS.STRKP | Venetian Bronze | $195.01 USD |
Description
Description
The Kwikset 800AN-LIP-S Arlington is a single cylinder exterior handleset designed for exterior entry door requiring the outside portion of a kwikset single-cylinder handleset.
Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch. Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately.
Product Details
- Manufacturer part number: 800AN-LIP-S
- Collection: Arlington
- Function: Single Cylinder Exterior Handleset
- Application: Exterior entry door requiring the outside portion of a Kwikset single-cylinder handleset
- Operation: Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch
- Package scope: Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately
- Keying technology: Kwikset SmartKey
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Door thickness: 1-3/4″
- Bore preparation: 2-1/8″
- Edge bore: 1″
- Center to center: 5-1/2″
- Published grade: A156.5
- Material: Zinc
- Style: Transitional
Compatibility: Pair with the compatible Kwikset interior pack and matching latch, strike, door thickness and preparation. Confirm the exact model, handing, door thickness and preparation before ordering.
Product Documents
Kwikset Arlington 800ANLIP-S Installation Guide
Kwikset Arlington 800ANLIP-S Specification Sheet
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight3.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
CylinderSmart Key 5 Pin
-
Collections
-
FinishAntique Brass, Lifetime Brass, Satin Nickel, Venetian Bronze
-
FinishAntique Brass, Lifetime Brass, Satin Nickel, Venetian Bronze
-
Free ShippingYes
-
Function
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Latch typeRound Corner, Square Corner, Drive-In Latch
-
Material
-
Door Thinkness1-3/4"
-
Edge Bore
-
Lock Function
-
Style
-
Latch Faceplate
-
Panic Proof
-
Center To Center
-
Projection
-
Mount Type
-
Height
