Kwikset 782-S UL Listed Single Cylinder Deadbolt

UL Listed Single Cylinder SmartKey Deadbolt

$56.51 USD $99.40
Shipping calculated at checkout.
Select Finish:
Select Keying Option
Select Latch Type
Keying Option

The Kwikset 782-S fire-rated single cylinder deadbolt is designed for exterior entry doors requiring keyed deadbolt security.

A key operates the exterior cylinder and an interior thumbturn operates the deadbolt from inside. The verified keying configuration is smartkey security.

Product Details

  • Manufacturer part number: 782-S
  • Function: Fire-Rated Single Cylinder Deadbolt
  • Application: Exterior entry doors requiring keyed deadbolt security
  • Operation: A key operates the exterior cylinder and an interior thumbturn operates the deadbolt from inside
  • Keying: SmartKey Security
  • Series: Signature Series
  • Backset: 2-3/8″ or 2-3/4″
  • Door thickness: 1-3/8″ to 1-3/4″
  • Latch type: Round Corner, Square Corner, Drive-In Latch
  • Published certification / grade: Grade 2 / A156.5

Included and configuration: Single-cylinder deadbolt assembly with exterior cylinder and interior thumbturn; latch, strike and keys follow the selected SKU.

Compatibility: Confirm door preparation, backset, thickness, latch, strike, keyway and exact SKU requirements before ordering.

Product Documents

Kwikset 782-S Installation Guide

Kwikset 782-S Specification Document

Kwikset SmartKey Installation Guide

Additional Kwikset Information

View Kwikset Manufacturer Warranty

Shop All Kwikset Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Available in 3 Finish

This product is listed under the following manufacturer numbers.

SKU Finish Price

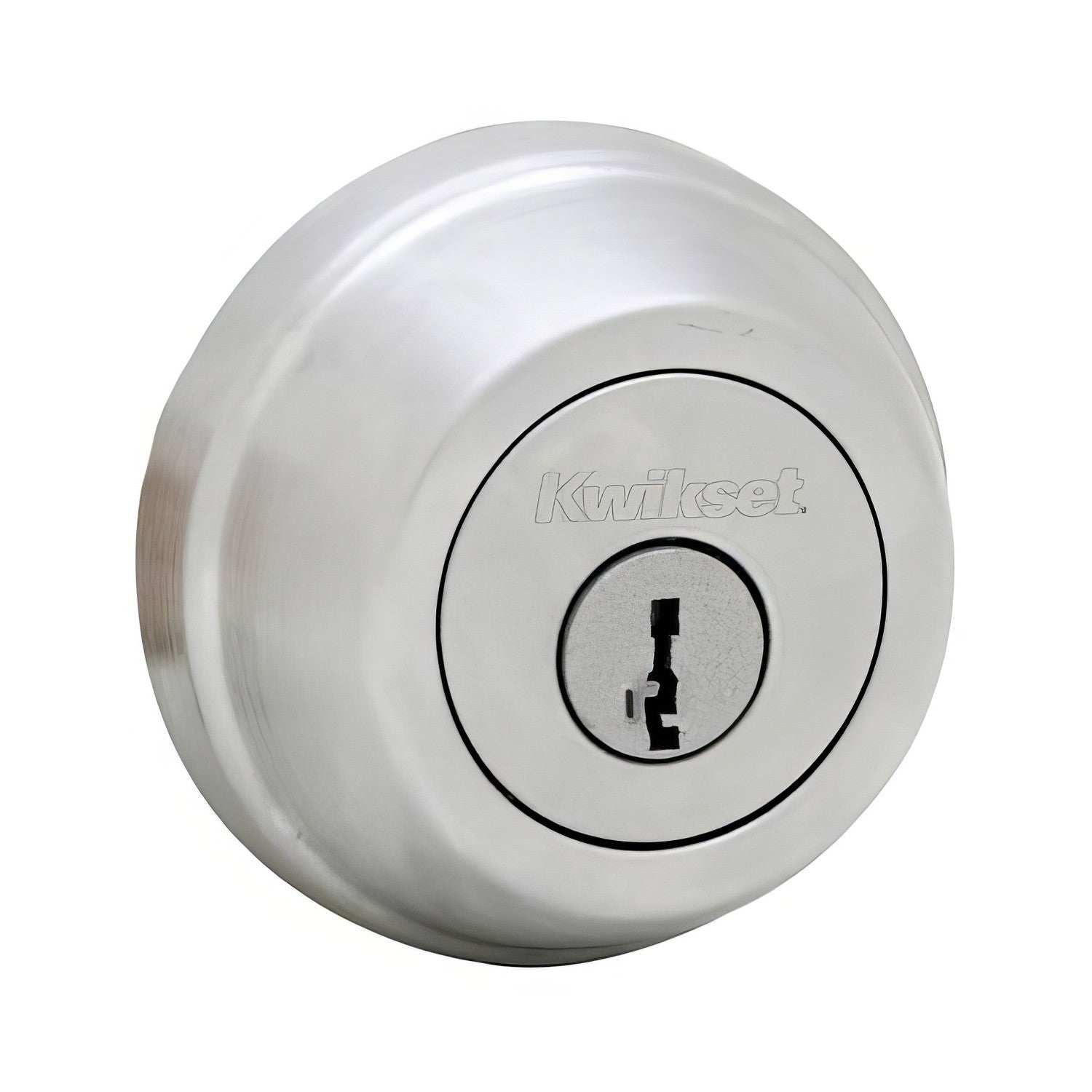

782-26DS.DS Satin Chrome $56.51 USD

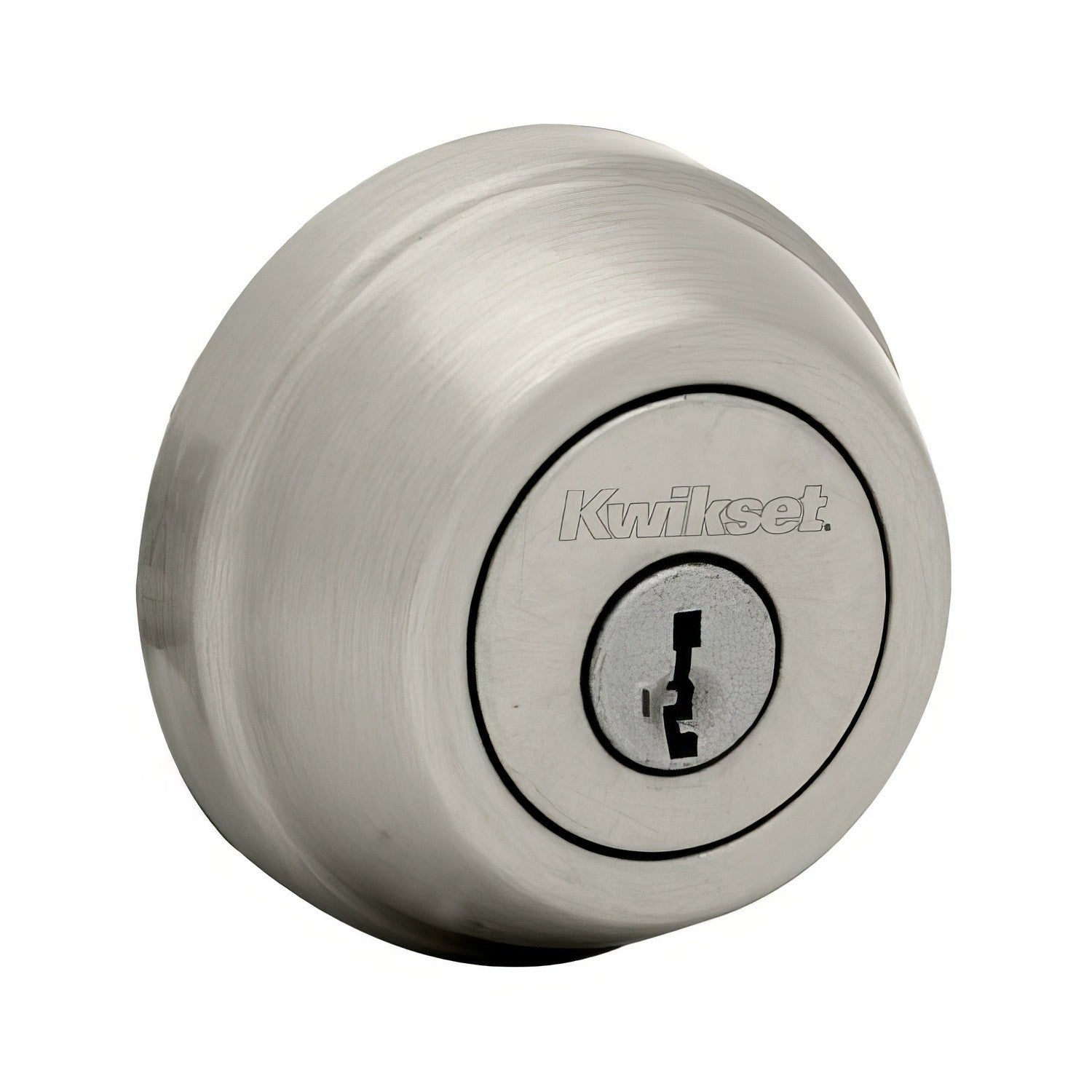

782-15S.DS Satin Nickel $56.51 USD

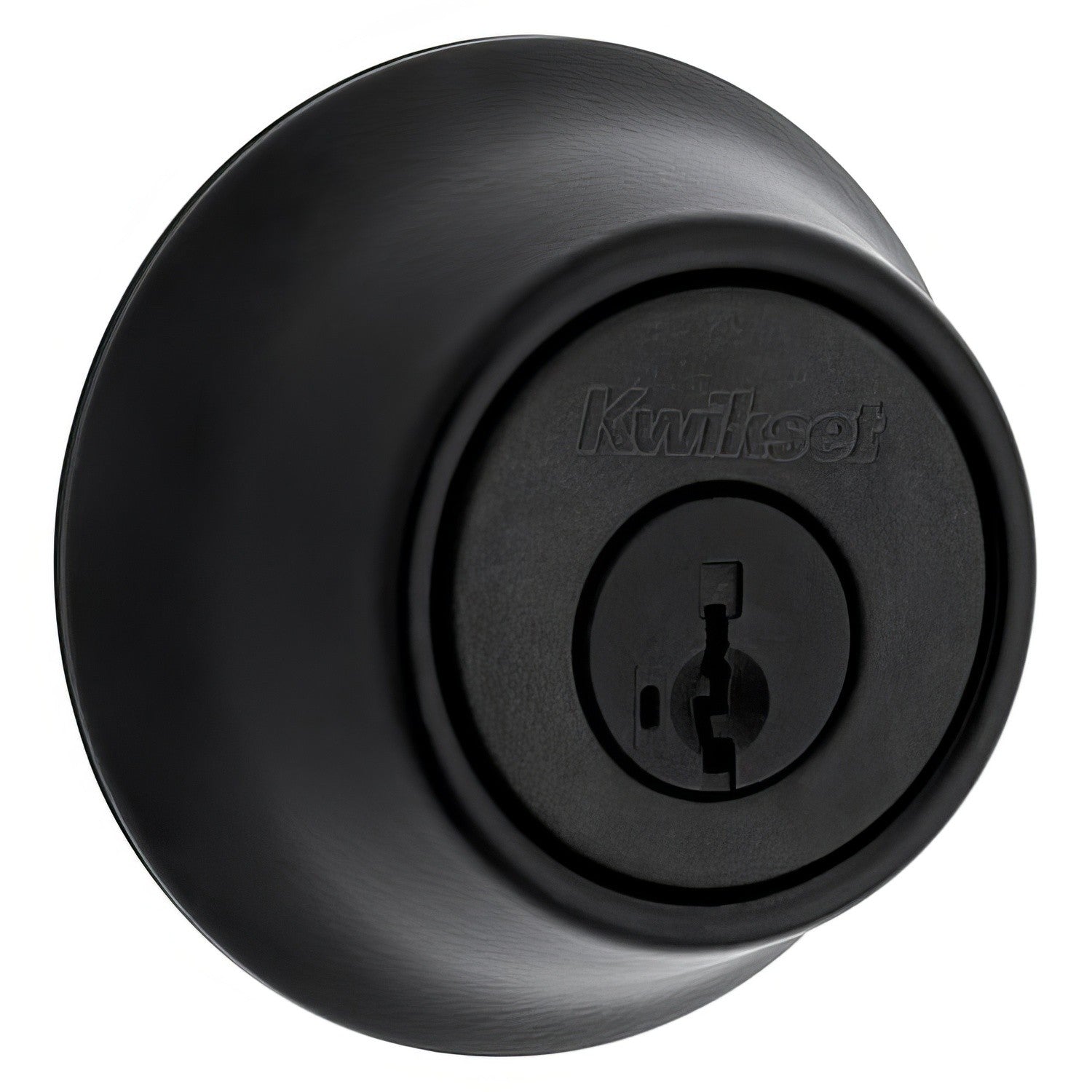

782-514S.DS Matte Black $59.01 USD

Description

The Kwikset 782-S fire-rated single cylinder deadbolt is designed for exterior entry doors requiring keyed deadbolt security.

A key operates the exterior cylinder and an interior thumbturn operates the deadbolt from inside. The verified keying configuration is smartkey security.

Product Details

  • Manufacturer part number: 782-S
  • Function: Fire-Rated Single Cylinder Deadbolt
  • Application: Exterior entry doors requiring keyed deadbolt security
  • Operation: A key operates the exterior cylinder and an interior thumbturn operates the deadbolt from inside
  • Keying: SmartKey Security
  • Series: Signature Series
  • Backset: 2-3/8″ or 2-3/4″
  • Door thickness: 1-3/8″ to 1-3/4″
  • Latch type: Round Corner, Square Corner, Drive-In Latch
  • Published certification / grade: Grade 2 / A156.5

Included and configuration: Single-cylinder deadbolt assembly with exterior cylinder and interior thumbturn; latch, strike and keys follow the selected SKU.

Compatibility: Confirm door preparation, backset, thickness, latch, strike, keyway and exact SKU requirements before ordering.

Product Documents

Kwikset 782-S Installation Guide

Kwikset 782-S Specification Document

Kwikset SmartKey Installation Guide

Additional Kwikset Information

View Kwikset Manufacturer Warranty

Shop All Kwikset Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Specifications
  • Weight
    1.5 lb
  • SKU
    Kwikset-782-S
  • Brand
    Kwikset
  • Function
    Single Cylinder
  • Material
    Zinc
  • Product Class
    Residential
  • ANSI Rating
    A156.5
  • Backset
    Adjustable 2-3/8" or 2-3/4"
  • BHMA Certification
    Grade 2
  • Bore Hole
    2-1/8"
  • Cylinder
    Smart Key 5 Pin
  • Finish
    Satin Chrome, Satin Nickel, Matte Black
  • Finish
    Satin Chrome, Satin Nickel, Matte Black
  • Free Shipping
    Yes
  • Function
    Single Cylinder
  • Handing
    Left Hand, Right Hand, Reversible
  • Keying Option
    I can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
  • Latch type
    Round Corner, Square Corner, Drive-In Latch
  • Material
    Zinc
  • Door Thinkness
    1-3/8" / 1-3/4" 1-3/8" to 1-3/4" 1-7/8" to 2-1/4"
  • Edge Bore
    1"
  • Latch Faceplate
    Round Corner, Square Corner, Drive-In
  • Panic Proof
    No
  • Diameter
    2-5/8"
  • Projection
    2-5/32"
  • Height
    2.63"
