Kwikset 740TNL-S Tustin Keyed Entry Lever
Tustin Keyed Entry Lever with SmartKey
Kwikset 740TNL-S Tustin Keyed Entry Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 740TNL-S Tustin is a keyed-entry door lever for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This lever uses a SmartKey Security cylinder. SmartKey Security lets the owner re-key the cylinder to a compatible Kwikset KW1 key without removing the lock from the door. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 740TNL-S
- Design: Tustin Lever
- Function: Keyed Entry Door Lever
- Material: Zinc
- Cylinder: SmartKey Security cylinder
- ANSI/BHMA grade: Grade 2
- ANSI standard: A156.2
- ADA compliant: Yes
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Projection: 2-19/32″
- Lever Length: 4.22″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Contemporary / Modern
- Shape: Wave
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door lever, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and SmartKey cylinder before ordering.
Product Documents
Kwikset 740TNL-S Tustin Keyed Lever Installation Guide
Kwikset 740TNL-S Tustin Keyed Lever Specification Document
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
CylinderSmartKey 5 Pin
-
Collections
-
Free ShippingYes
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Door Thickness1-3/8" / 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Panic Proof
-
Projection
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 6 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

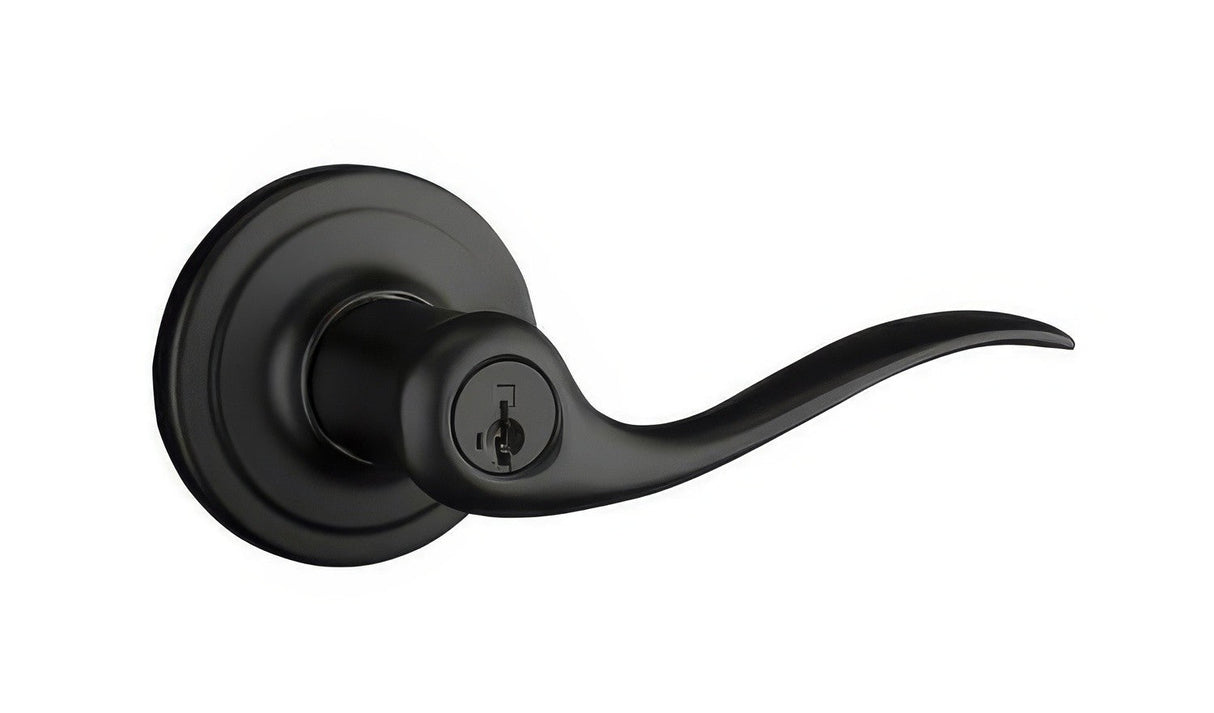

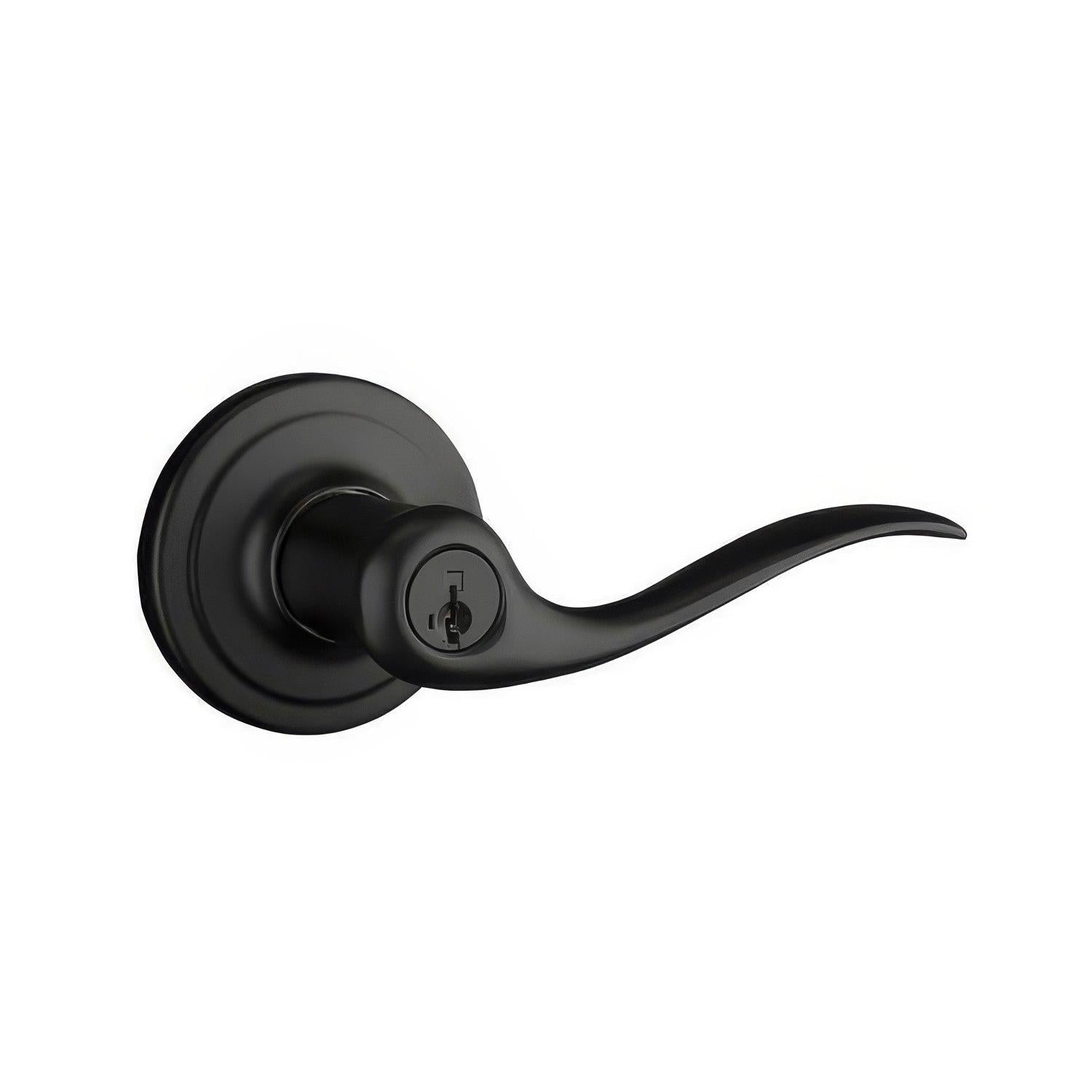

| 740TNL-514S | Matte Black | $65.38 USD |
| 740TNL-3S | Bright Brass | $58.90 USD |
| 740TNL-26S | Bright Chrome | $62.77 USD |

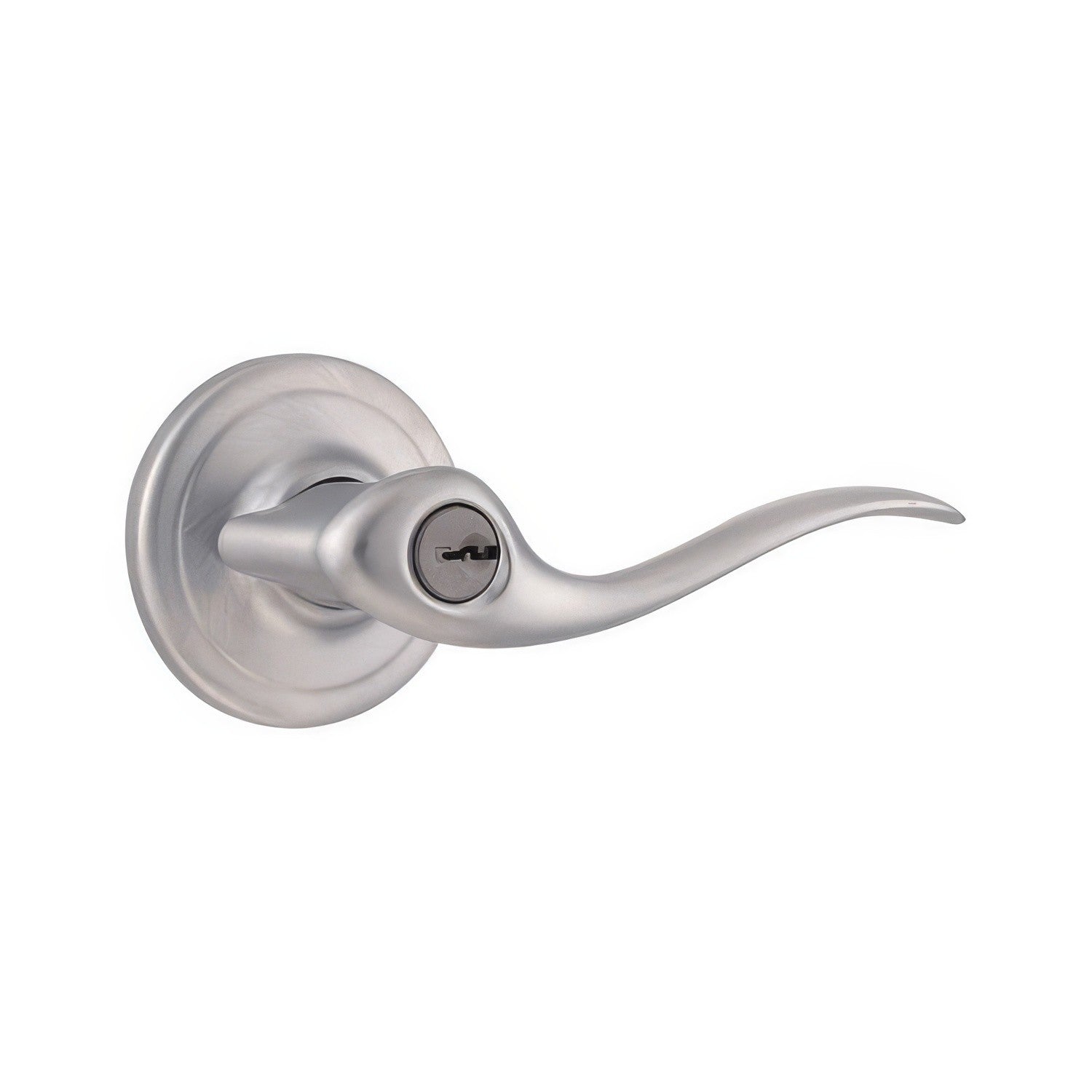

| 740TNL-26DS | Satin Chrome | $62.77 USD |

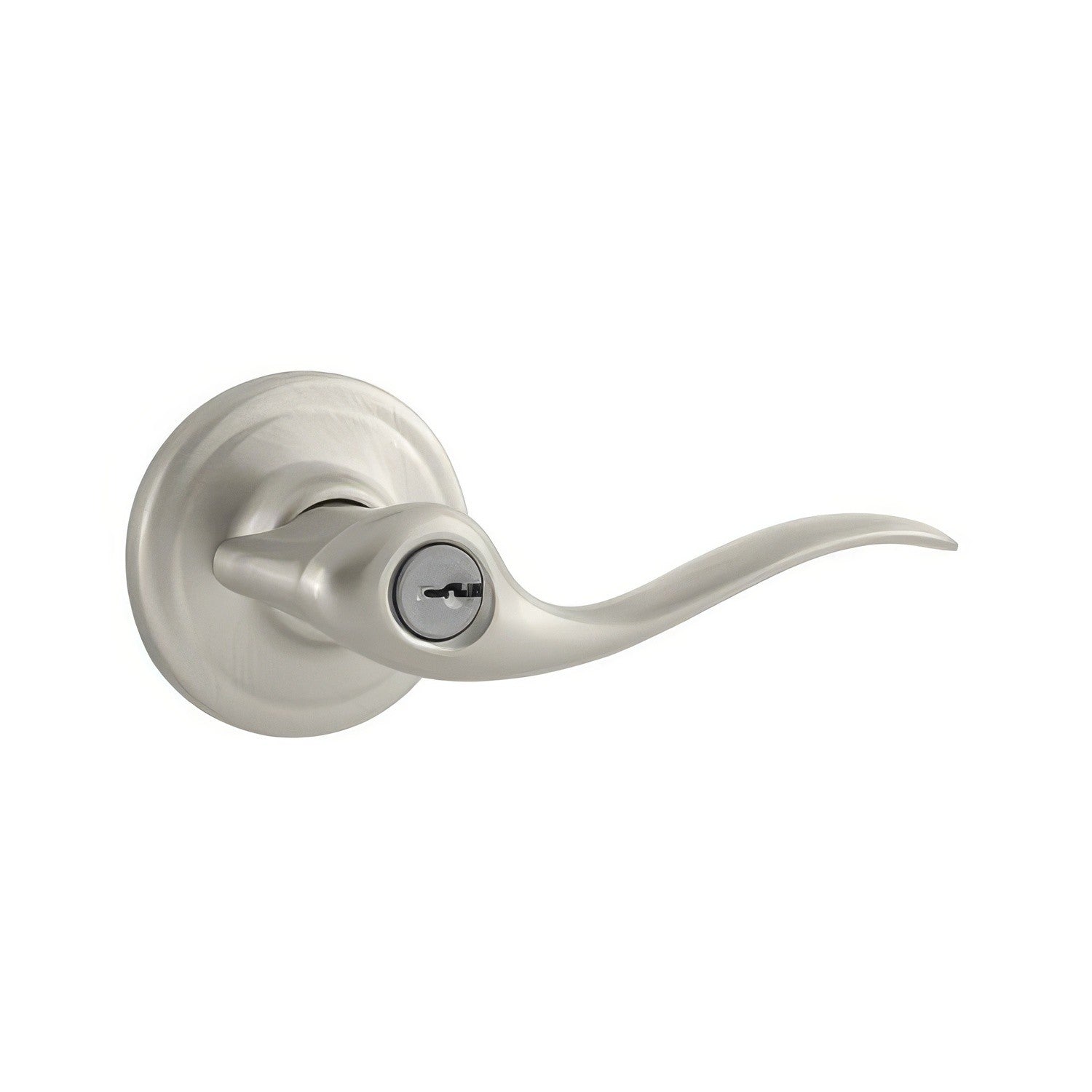

| 740TNL-15S | Satin Nickel | $62.77 USD |

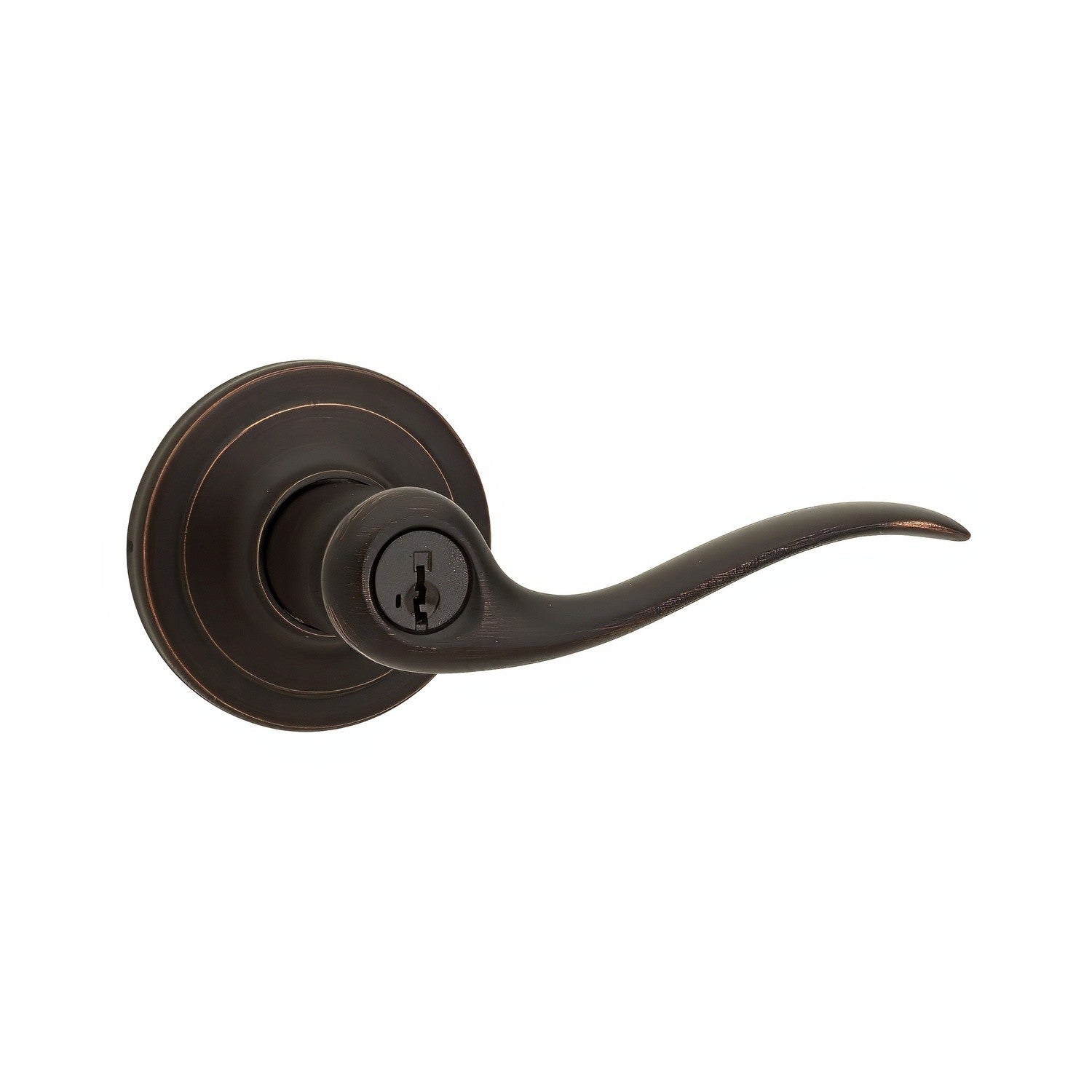

| 740TNL-11PS | Venetian Bronze | $65.38 USD |
Description
Description
The Kwikset 740TNL-S Tustin is a keyed-entry door lever for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This lever uses a SmartKey Security cylinder. SmartKey Security lets the owner re-key the cylinder to a compatible Kwikset KW1 key without removing the lock from the door. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 740TNL-S
- Design: Tustin Lever
- Function: Keyed Entry Door Lever
- Material: Zinc
- Cylinder: SmartKey Security cylinder
- ANSI/BHMA grade: Grade 2
- ANSI standard: A156.2
- ADA compliant: Yes
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Projection: 2-19/32″
- Lever Length: 4.22″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Contemporary / Modern
- Shape: Wave
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door lever, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and SmartKey cylinder before ordering.
Product Documents
Kwikset 740TNL-S Tustin Keyed Lever Installation Guide
Kwikset 740TNL-S Tustin Keyed Lever Specification Document
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
CylinderSmartKey 5 Pin
-
Collections
-
FinishMatte Black, Bright Brass, Bright Chrome, Satin Chrome, Satin Nickel, Venetian Bronze
-
FinishMatte Black, Bright Brass, Bright Chrome, Satin Chrome, Satin Nickel, Venetian Bronze
-
Free ShippingYes
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Material
-
Door Thinkness1-3/8" / 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Panic Proof
-
Projection
