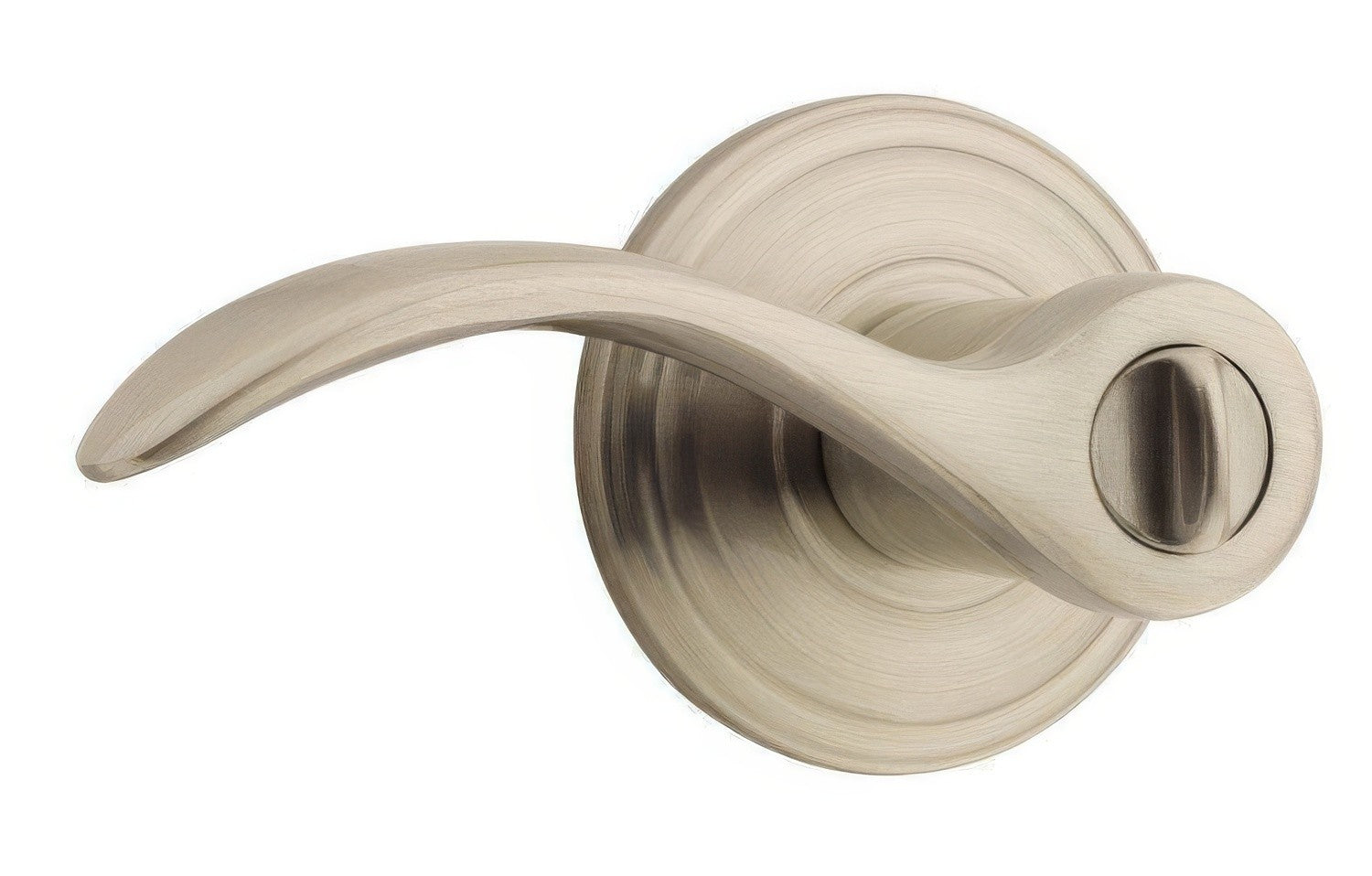

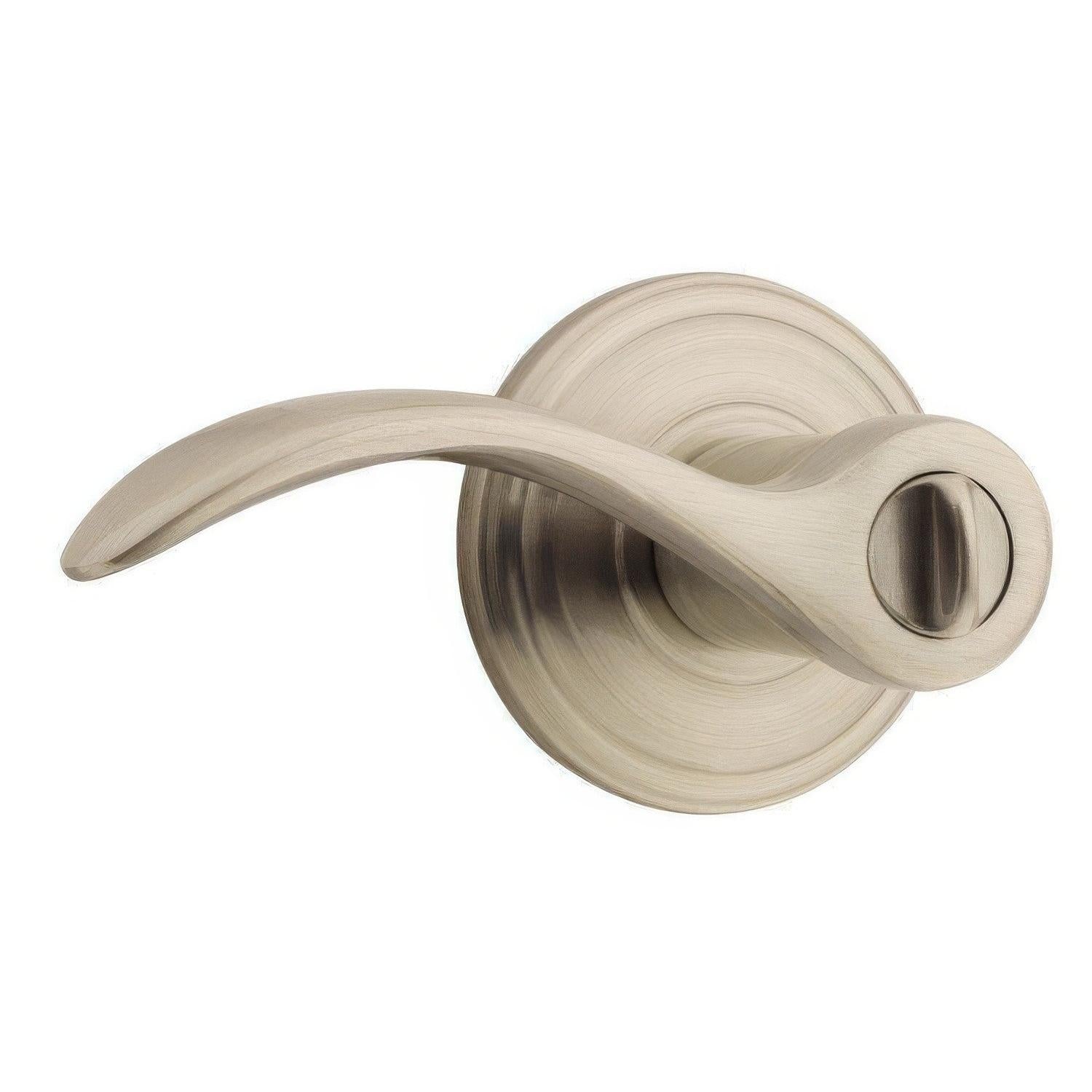

Kwikset 730PML Pembroke Privacy Door Leverset
Pembroke Privacy Door Leverset
Kwikset 730PML Pembroke Privacy Door Leverset - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 730PML-3 Pembroke lever is a privacy lockset for an interior door where temporary locking is needed. The inside privacy control locks the door, while the exterior side provides an emergency-release provision.
Use it on a bedroom, bathroom or similar interior room. The latch operates from both sides when unlocked, and the outside emergency release allows authorized access when necessary.
Product Details
- Manufacturer part number: 730PML-3
- Model family: 730PML
- Collection: Pembroke
- Product type: Privacy Door Lever
- Handle design: Pembroke Lever
- Application: Interior bedroom, bathroom or other privacy door
- Operation: Interior Privacy Lock with Exterior Emergency Release
- Included configuration: Interior and exterior handles with privacy latch hardware; verify the current product documents for the exact emergency tool, faceplate and strike configuration.
- Material: Zinc
- Handing: Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- ANSI/BHMA grade: Grade 2
- Warranty: Limited Lifetime Mechanical and Finish Warranty
Compatibility: Confirm 1-3/8″ to 1-3/4″ door thickness, 2-3/8″ or 2-3/4″ backset, 2-1/8″ cross bore, handing and the required latch faceplate and strike before ordering. Use this privacy door lever only where its documented locking operation matches the door application.
Product Documents
Kwikset Pembroke 730PML Privacy Lever Installation Guide
Kwikset Pembroke 730PML Privacy Lever Specifications
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
Collections
-
Free ShippingYes
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Door Thickness1-3/8", 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 1 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|
| 730PML-15 | Satin Nickel | $42.47 USD |
Description
Description
The Kwikset 730PML-3 Pembroke lever is a privacy lockset for an interior door where temporary locking is needed. The inside privacy control locks the door, while the exterior side provides an emergency-release provision.
Use it on a bedroom, bathroom or similar interior room. The latch operates from both sides when unlocked, and the outside emergency release allows authorized access when necessary.
Product Details
- Manufacturer part number: 730PML-3
- Model family: 730PML
- Collection: Pembroke
- Product type: Privacy Door Lever
- Handle design: Pembroke Lever
- Application: Interior bedroom, bathroom or other privacy door
- Operation: Interior Privacy Lock with Exterior Emergency Release
- Included configuration: Interior and exterior handles with privacy latch hardware; verify the current product documents for the exact emergency tool, faceplate and strike configuration.
- Material: Zinc
- Handing: Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- ANSI/BHMA grade: Grade 2
- Warranty: Limited Lifetime Mechanical and Finish Warranty
Compatibility: Confirm 1-3/8″ to 1-3/4″ door thickness, 2-3/8″ or 2-3/4″ backset, 2-1/8″ cross bore, handing and the required latch faceplate and strike before ordering. Use this privacy door lever only where its documented locking operation matches the door application.
Product Documents
Kwikset Pembroke 730PML Privacy Lever Installation Guide
Kwikset Pembroke 730PML Privacy Lever Specifications
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
Collections
-
FinishPolished Brass, Matte Black, Antique Nickel, Polished Chrome, Rustic Bronze, Rustic Pewter, Satin Nickel, Venetian Bronze
-
FinishPolished Brass, Iron Black, Antique Nickel, Polished Chrome, Rustic Bronze, Rustic Pewter, Satin Nickel, Venetian Bronze
-
Free ShippingYes
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Material
-
Door Thinkness1-3/8", 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
