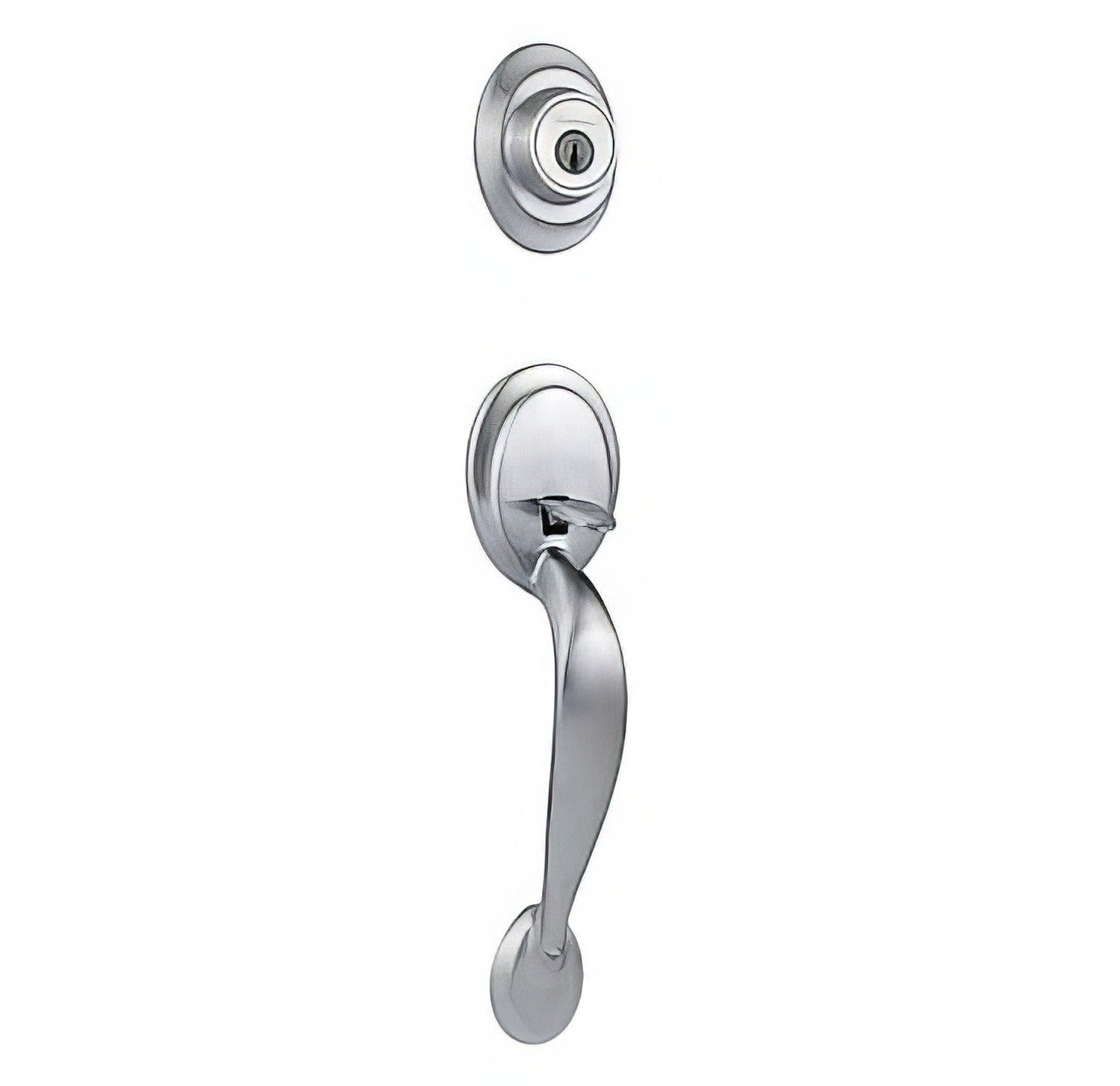

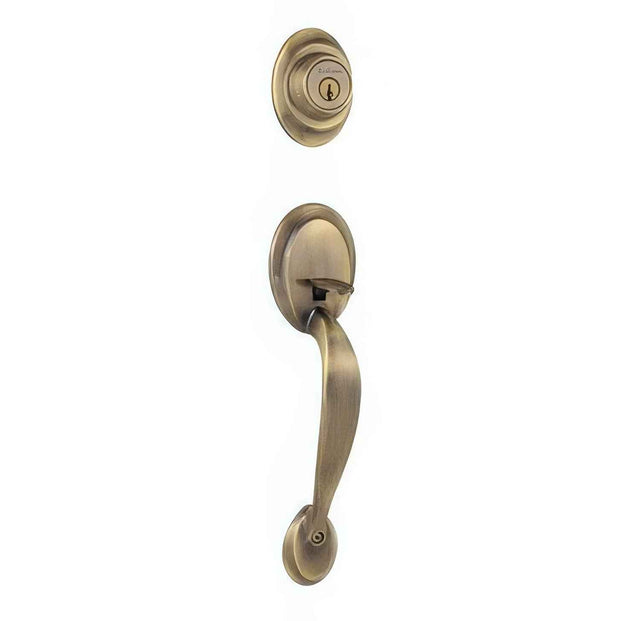

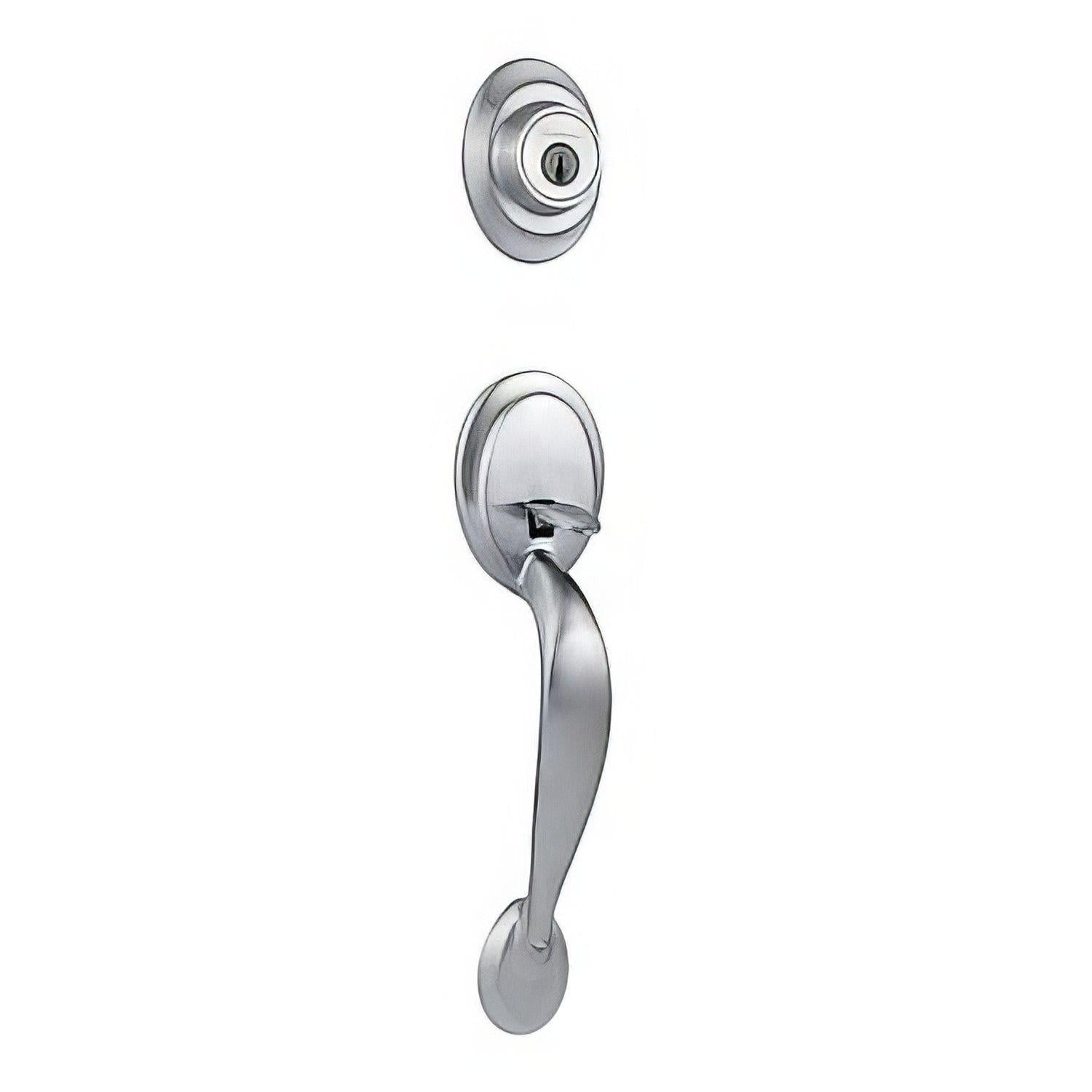

Kwikset 687DA-LIP-S Dakota Single Cylinder Handleset
Dakota Single Cylinder SmartKey Handleset
Kwikset 687DA-LIP-S Dakota Single Cylinder Handleset - is backordered and will ship as soon as it is back in stock.
The Kwikset 687DA-LIP-S Dakota is a single cylinder exterior handleset designed for exterior entry door requiring the outside portion of a kwikset single-cylinder handleset.
Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch. Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately.
Product Details
- Manufacturer part number: 687DA-LIP-S
- Collection: Dakota
- Function: Single Cylinder Exterior Handleset
- Application: Exterior entry door requiring the outside portion of a Kwikset single-cylinder handleset
- Operation: Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch
- Package scope: Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately
- Keying technology: Kwikset SmartKey
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Door thickness: 1-3/4″ / 2-1/4″
- Edge bore: 1″
- Center to center: 5-1/2″
- Material: Zinc
- Style: Traditional/Classic
Compatibility: Pair with the compatible Kwikset interior pack and matching latch, strike, door thickness and preparation. Confirm the exact model, handing, door thickness and preparation before ordering.
Satin chrome model update: Kwikset 687DALIP-26DS.DS was superseded by 687DALIP-26DS.STRKP. View the current Dakota satin chrome exterior handleset and confirm the new latch and strike-pack components before ordering.
Product Documents
Kwikset Dakota 687DALIP-S Installation Guide
Kwikset Dakota 687DALIP-S Specification Sheet
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight3.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
CylinderSmart Key 5 Pin
-
Collections
-
Free ShippingYes
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Latch TypeRound Corner, Square Corner, Drive-In Latch
-
Door Thickness1-3/4" / 2-1/4"
-
Edge Bore
-
Lock Function
-
Style
-
Latch Faceplate
-
Lock Style
-
Center To Center
-
Mount Type
-
Height
