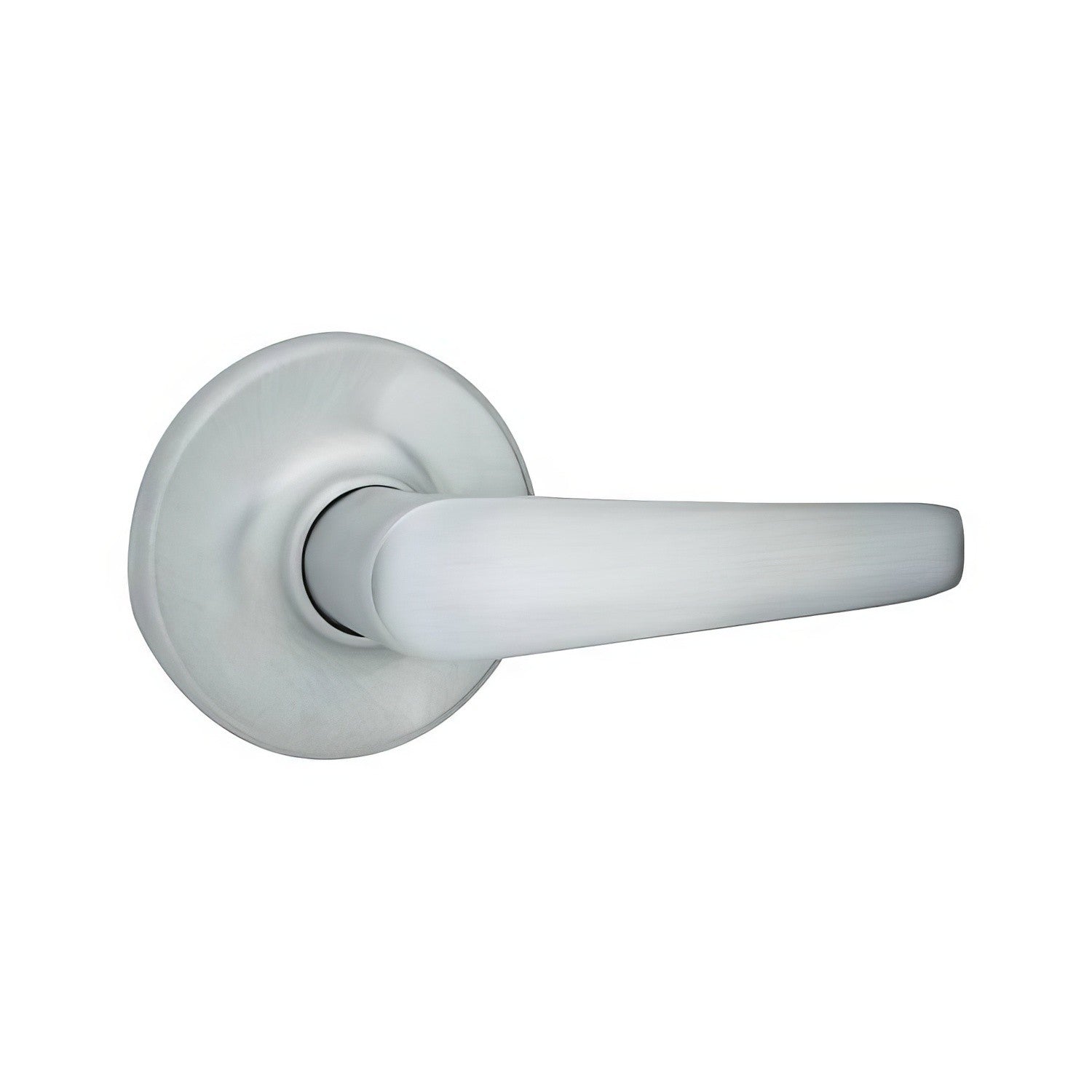

Kwikset 420DL Delta UL Rated Passage Door Lever

The Kwikset 420DL Delta is a UL-listed passage door lever for a hall, closet, pantry, or connecting-room door where locking is not required. The current product data identifies this configuration as UL listed.

Non-locking latch operation from both sides. Confirm door thickness, backset, bore preparation, latch faceplate, strike, and handing before ordering.

Product Details

• Manufacturer part number: 420DL
• Collection: Delta
• Function: UL-Listed Passage Door Lever
• Application: A hall, closet, pantry, or connecting-room door where locking is not required
• Operation: Non-locking latch operation from both sides
• Included configuration: Interior and exterior lever trim with operating latch hardware; confirm the exact faceplate and strike configuration in the current product documents
• Material: Zinc
• Style: Transitional
• Shape: Flat - Straight
• Handing: Reversible
• Projection: 1-7/8″
• Lever length: 3.63″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ to 2-3/4″
• Bore hole: 2-1/8″
• Edge bore: 1″
• ANSI/BHMA grade: Grade 3
• ADA compliant: Yes
• UL listed: Yes

Compatibility: Confirm the door thickness, bore preparation, backset, handing, latch faceplate, strike, and package contents for the exact model before ordering.
