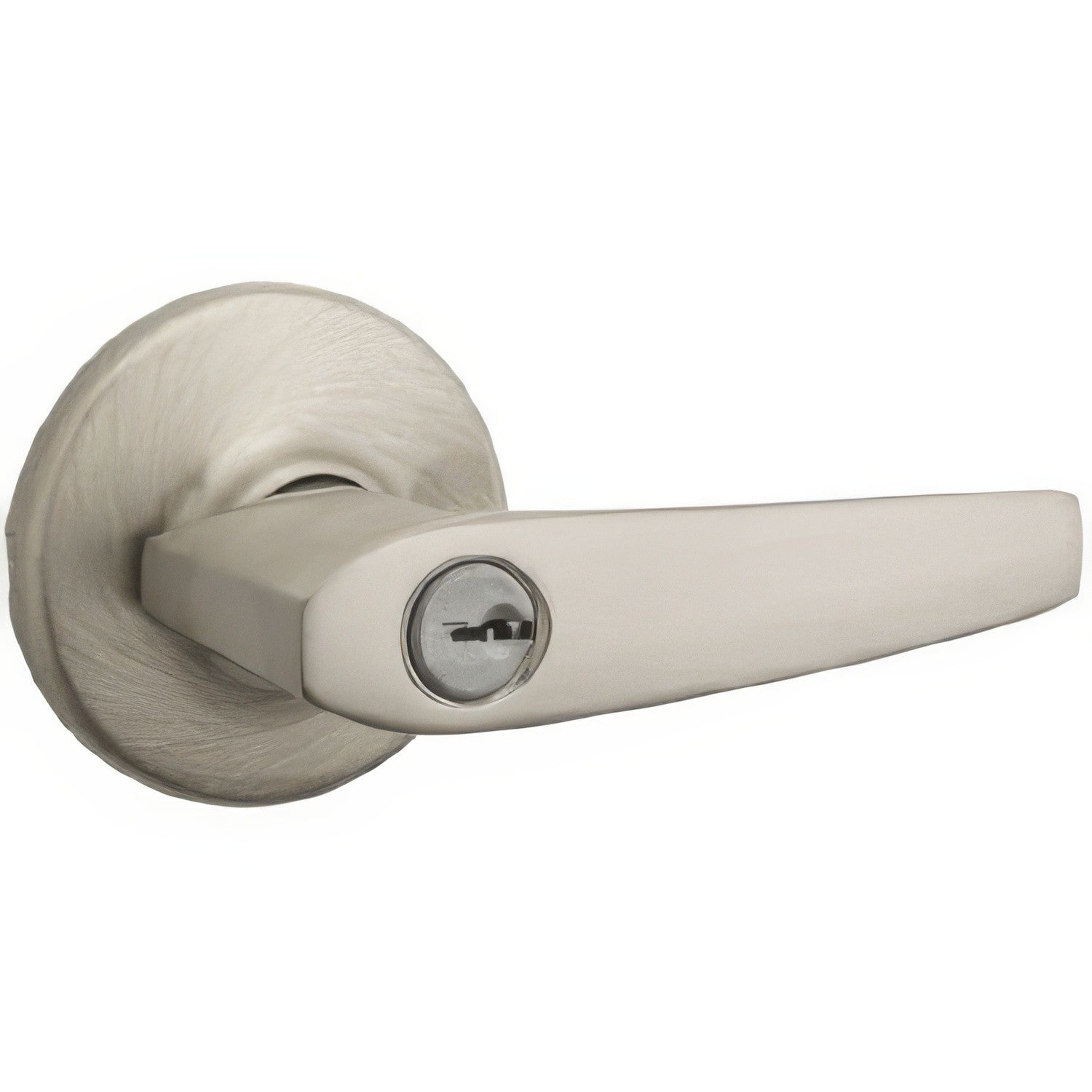

Kwikset 405DL Delta Keyed Entry Lever
Delta Keyed Entry Lever
Kwikset 405DL Delta Keyed Entry Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 405DL Delta is a keyed-entry door lever for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This lever uses a 5-pin pin-and-tumbler cylinder. The conventional 5-pin pin-and-tumbler cylinder supports normal keyed operation and professional keying services. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 405DL
- Design: Delta Lever
- Function: Keyed Entry Door Lever
- Material: Zinc
- Cylinder: 5-pin pin-and-tumbler cylinder
- ANSI/BHMA grade: Grade 3
- ADA compliant: Yes
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Lever Length: 3.63″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Transitional
- Shape: Flat / Straight
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door lever, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and pin-and-tumbler cylinder before ordering.
Product Documents
Kwikset 405DL Delta Keyed Lever Installation Guide
Kwikset 405DL Delta Keyed Lever Specification Document
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
Cylinder5 Pin
-
Collections
-
Free ShippingYes
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Door Thickness1-3/8" / 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

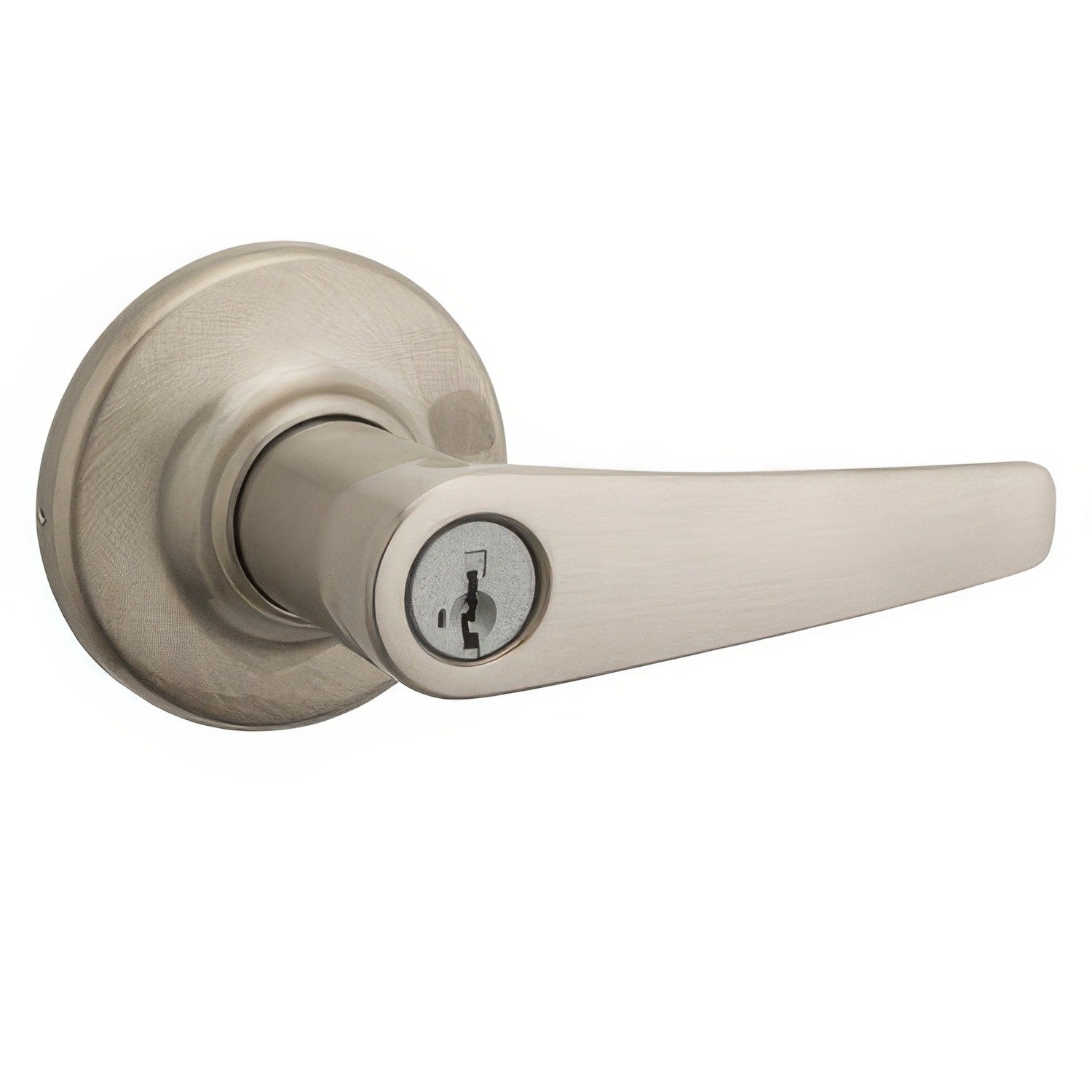

| 405DL-26D | Satin Chrome | $43.38 USD |

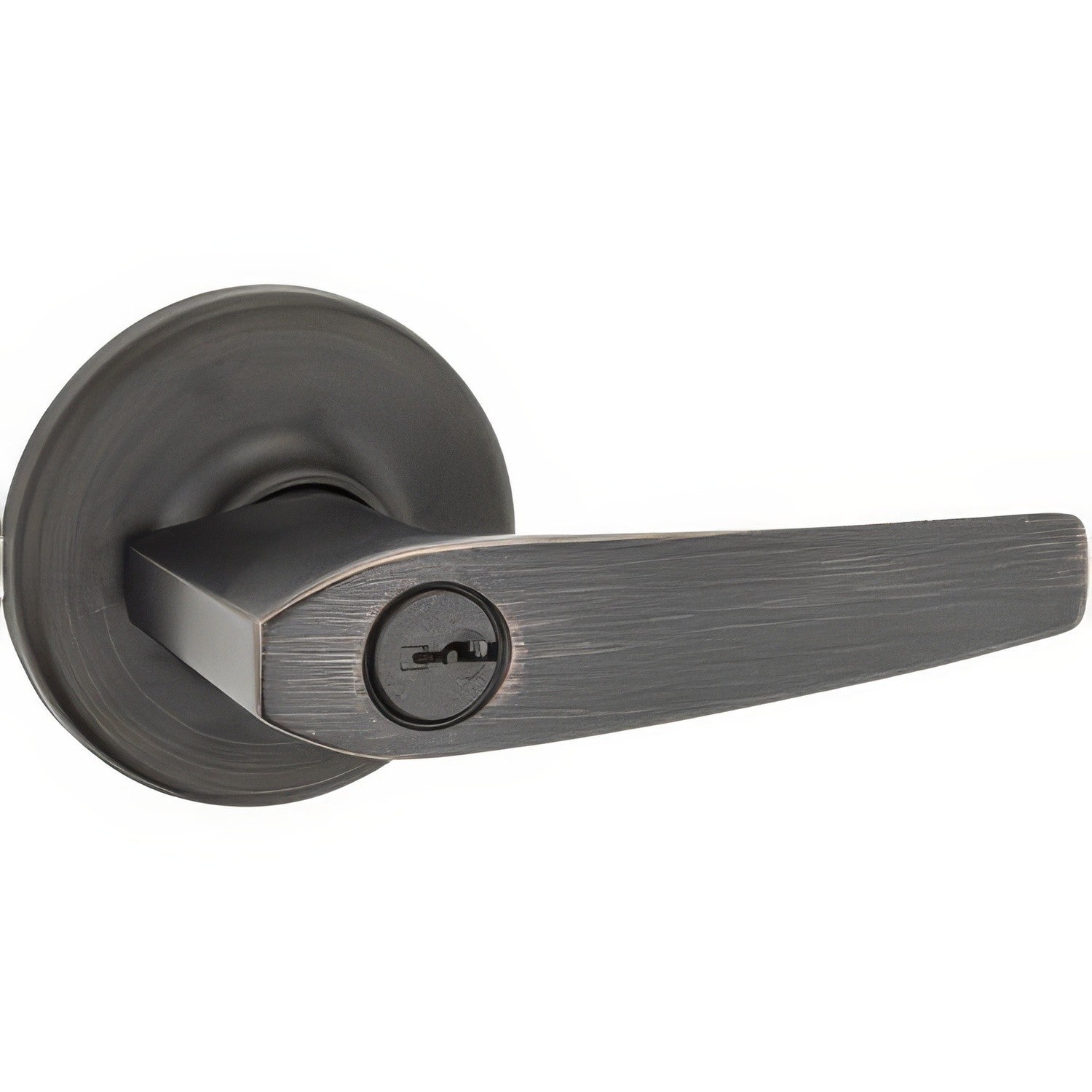

| 405DL-11P | Venetian Bronze | $48.95 USD |

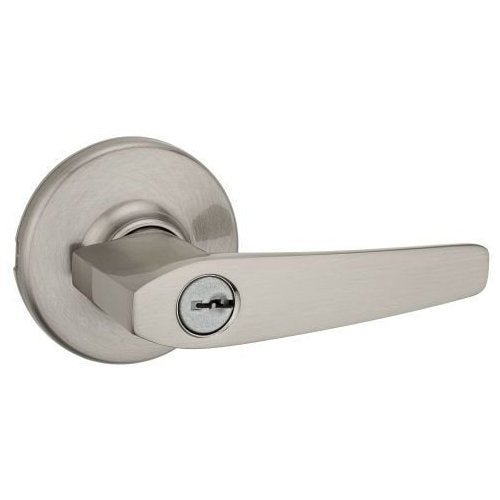

| 405DL-15 | Satin Nickel | $46.22 USD |
Description
Description
The Kwikset 405DL Delta is a keyed-entry door lever for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This lever uses a 5-pin pin-and-tumbler cylinder. The conventional 5-pin pin-and-tumbler cylinder supports normal keyed operation and professional keying services. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 405DL
- Design: Delta Lever
- Function: Keyed Entry Door Lever
- Material: Zinc
- Cylinder: 5-pin pin-and-tumbler cylinder
- ANSI/BHMA grade: Grade 3
- ADA compliant: Yes
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Lever Length: 3.63″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Transitional
- Shape: Flat / Straight
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door lever, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and pin-and-tumbler cylinder before ordering.
Product Documents
Kwikset 405DL Delta Keyed Lever Installation Guide
Kwikset 405DL Delta Keyed Lever Specification Document
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
Cylinder5 Pin
-
Collections
-
FinishSatin Chrome, Polished Chrome, Polished Brass, Antique Nickel, Antique Brass, Venetian Bronze, Satin Nickel
-
FinishSatin Chrome, Polished Chrome, Polished Brass, Antique Nickel, Antique Brass, Venetian Bronze, Satin Nickel
-
Free ShippingYes
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Material
-
Door Thinkness1-3/8" / 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
