Kwikset 405BL Balboa Keyed Entry Lever
Balboa Keyed Entry Lever
Kwikset 405BL Balboa Keyed Entry Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 405BL Balboa is a keyed-entry door lever for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This lever uses a 5-pin pin-and-tumbler cylinder. The conventional 5-pin pin-and-tumbler cylinder supports normal keyed operation and professional keying services. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 405BL
- Design: Balboa Lever
- Function: Keyed Entry Door Lever
- Material: Zinc
- Cylinder: 5-pin pin-and-tumbler cylinder
- ANSI/BHMA grade: Grade 3
- ADA compliant: Yes
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Transitional
- Shape: Flat / Wave
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door lever, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and pin-and-tumbler cylinder before ordering.
Product Documents
Kwikset 405BL Balboa Keyed Lever Installation Guide
Kwikset 405BL Balboa Keyed Lever Specification Document
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
Cylinder5 Pin
-
Collections
-
Free ShippingYes
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Door Thickness1-3/8", 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Panic Proof
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 4 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

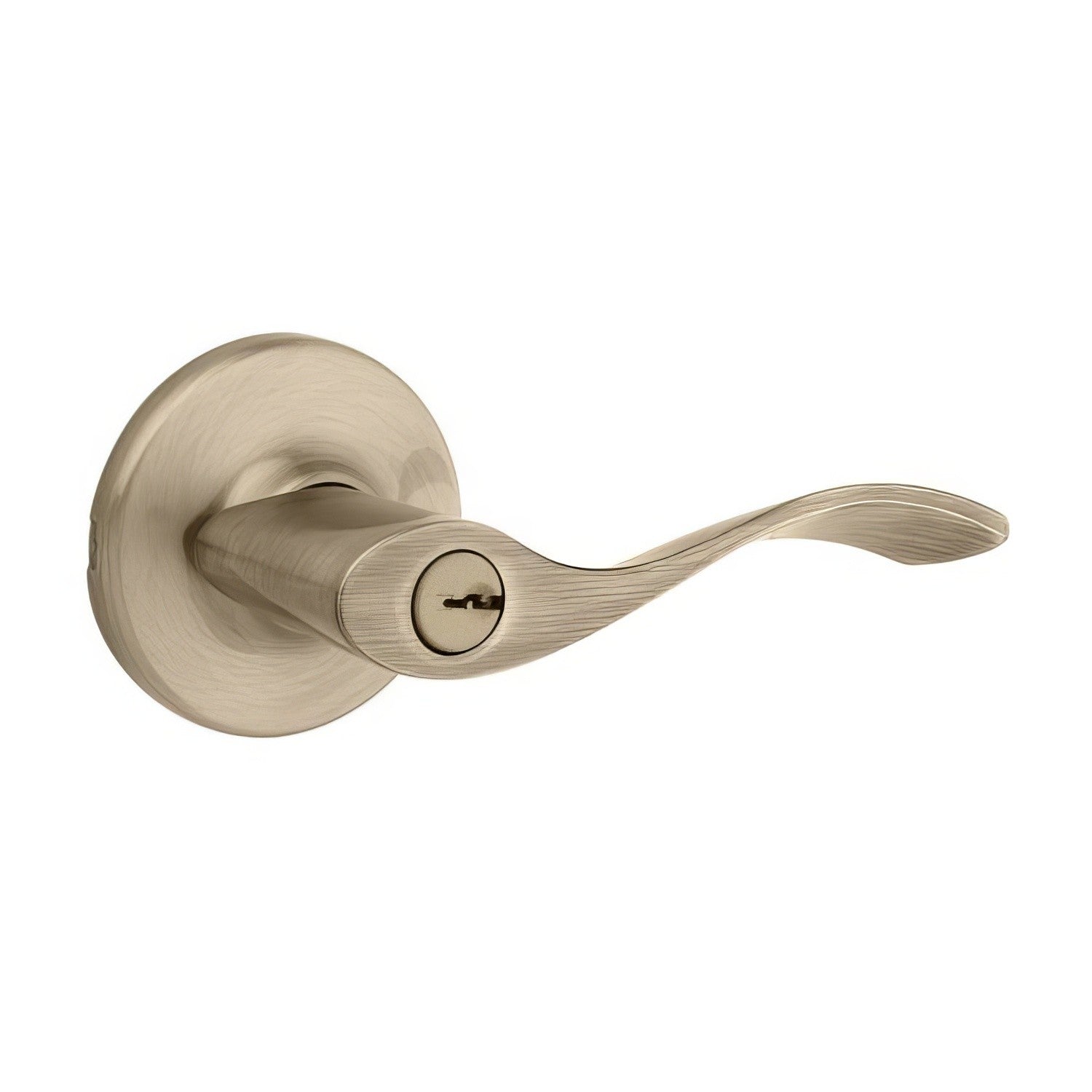

| 405BL-5 | Antique Brass | $43.38 USD |

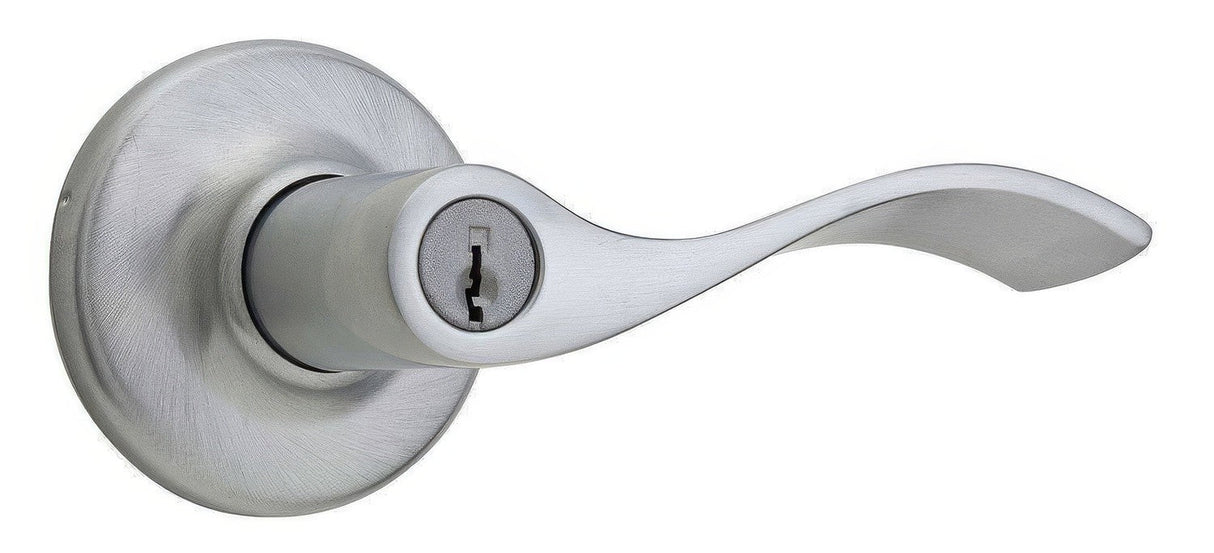

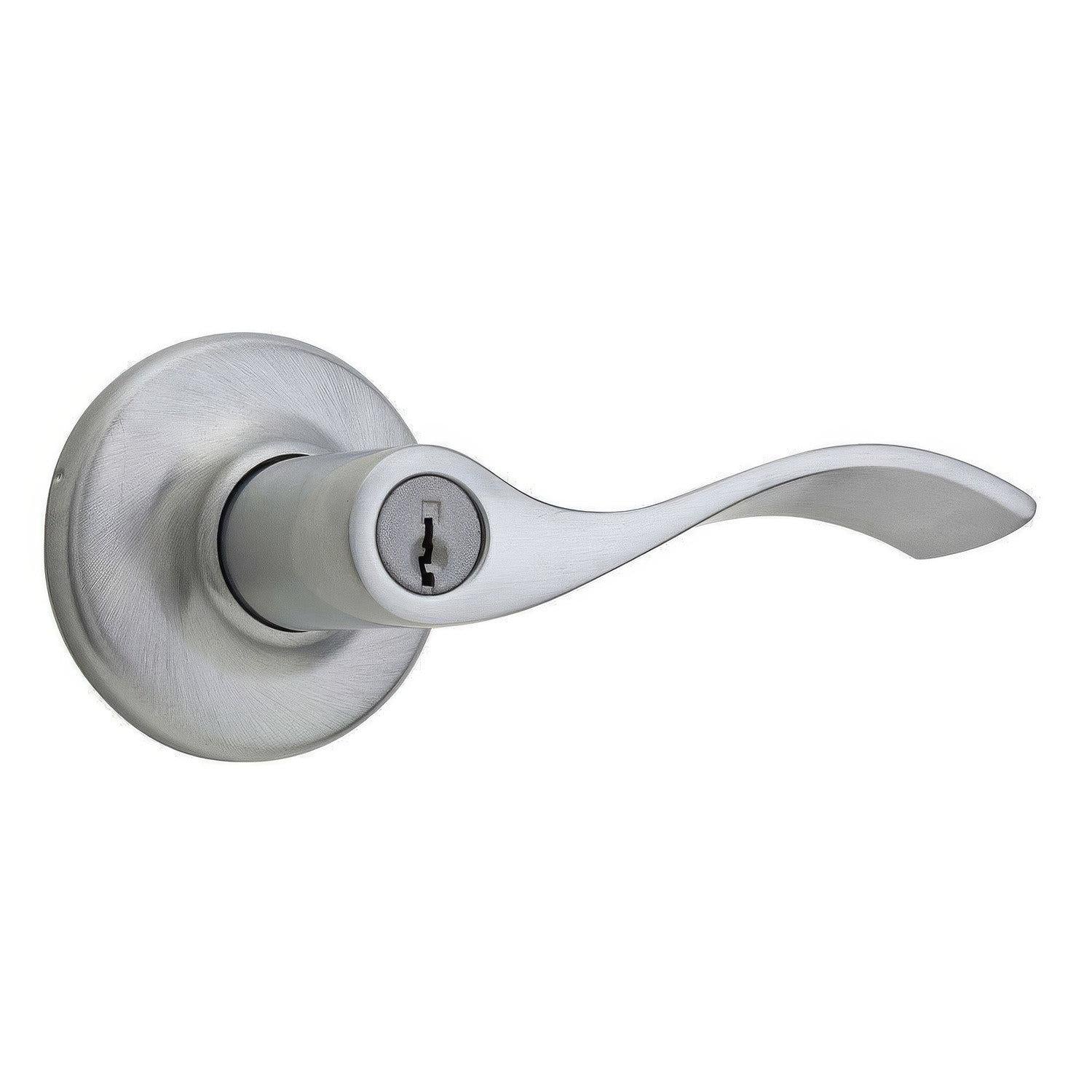

| 405BL-26D | Satin Chrome | $43.38 USD |

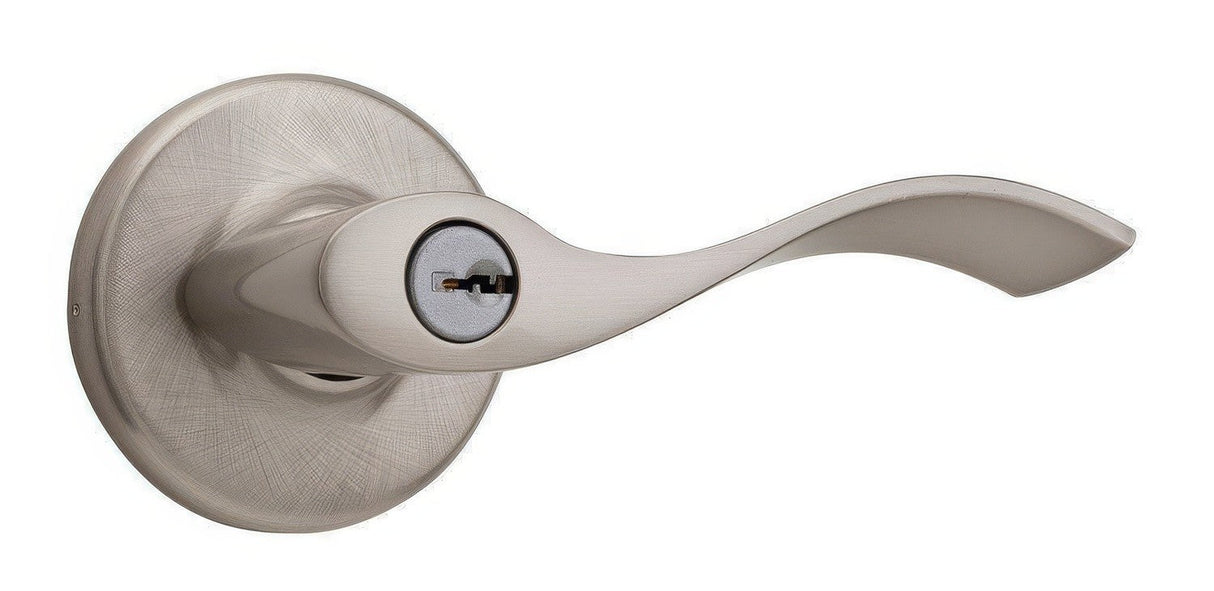

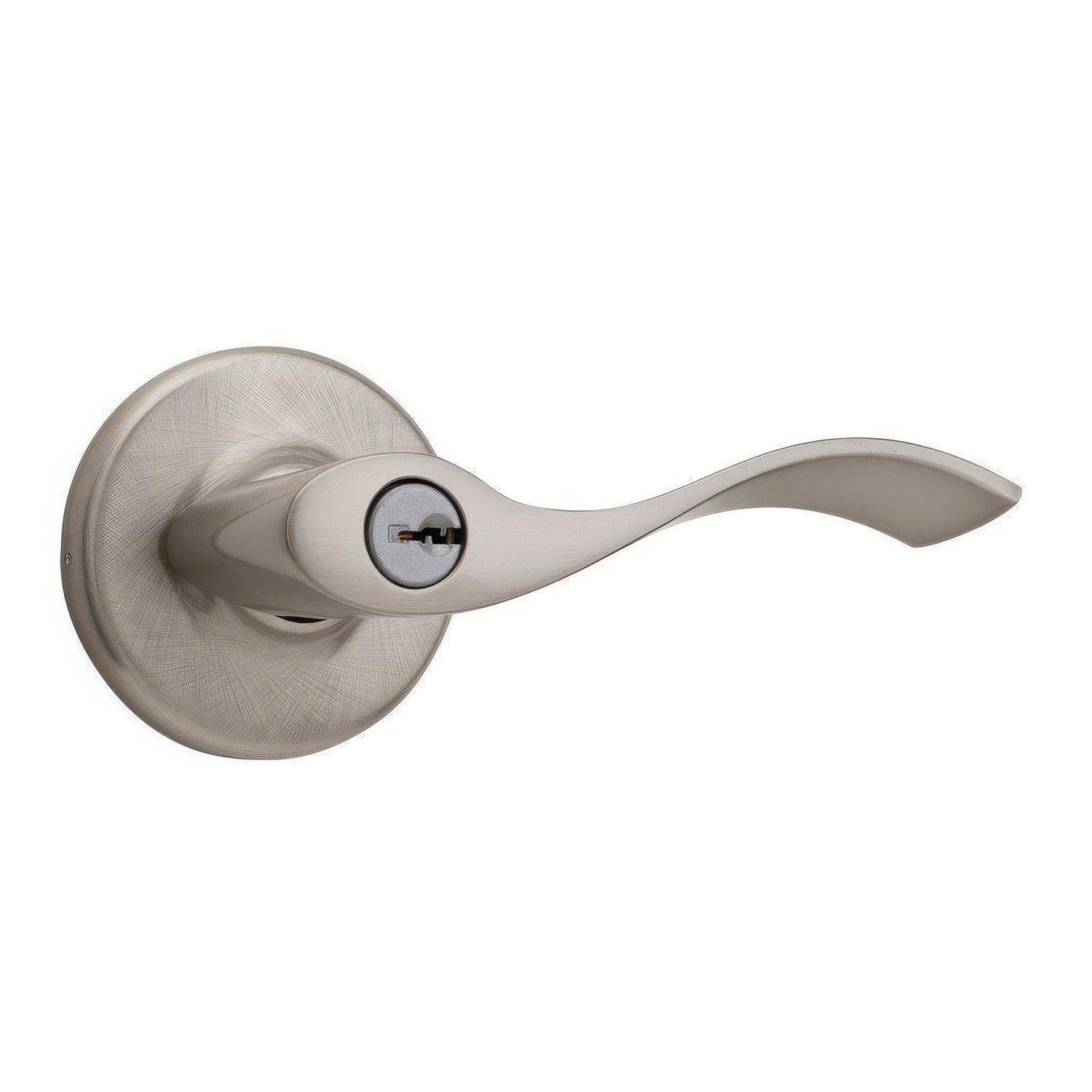

| 405BL-15 | Satin Nickel | $49.63 USD |

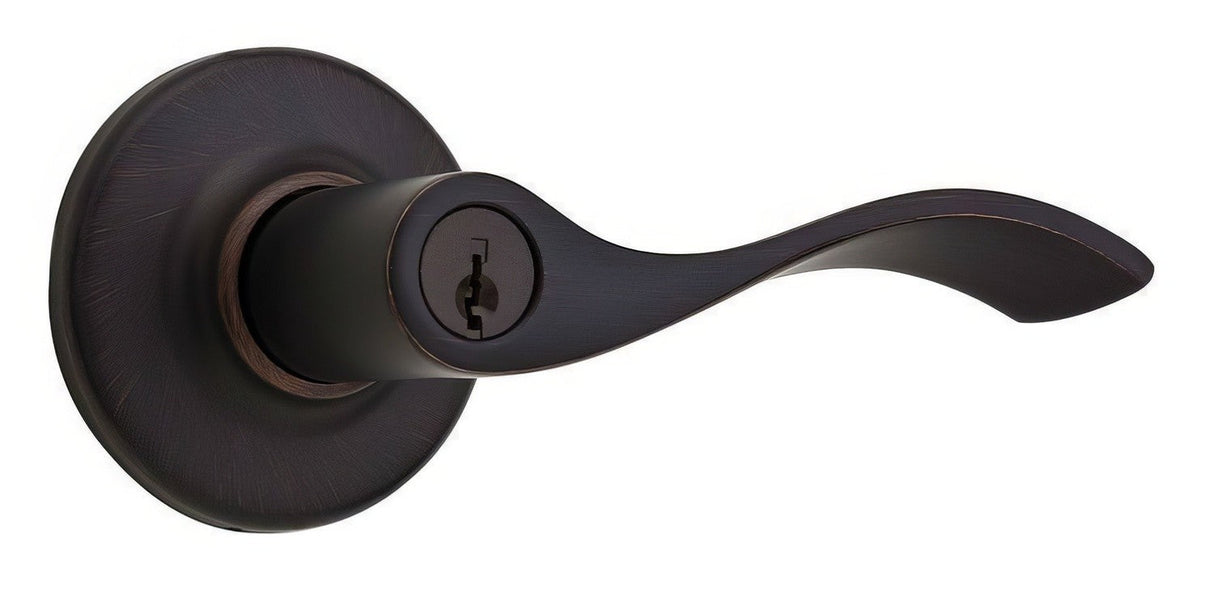

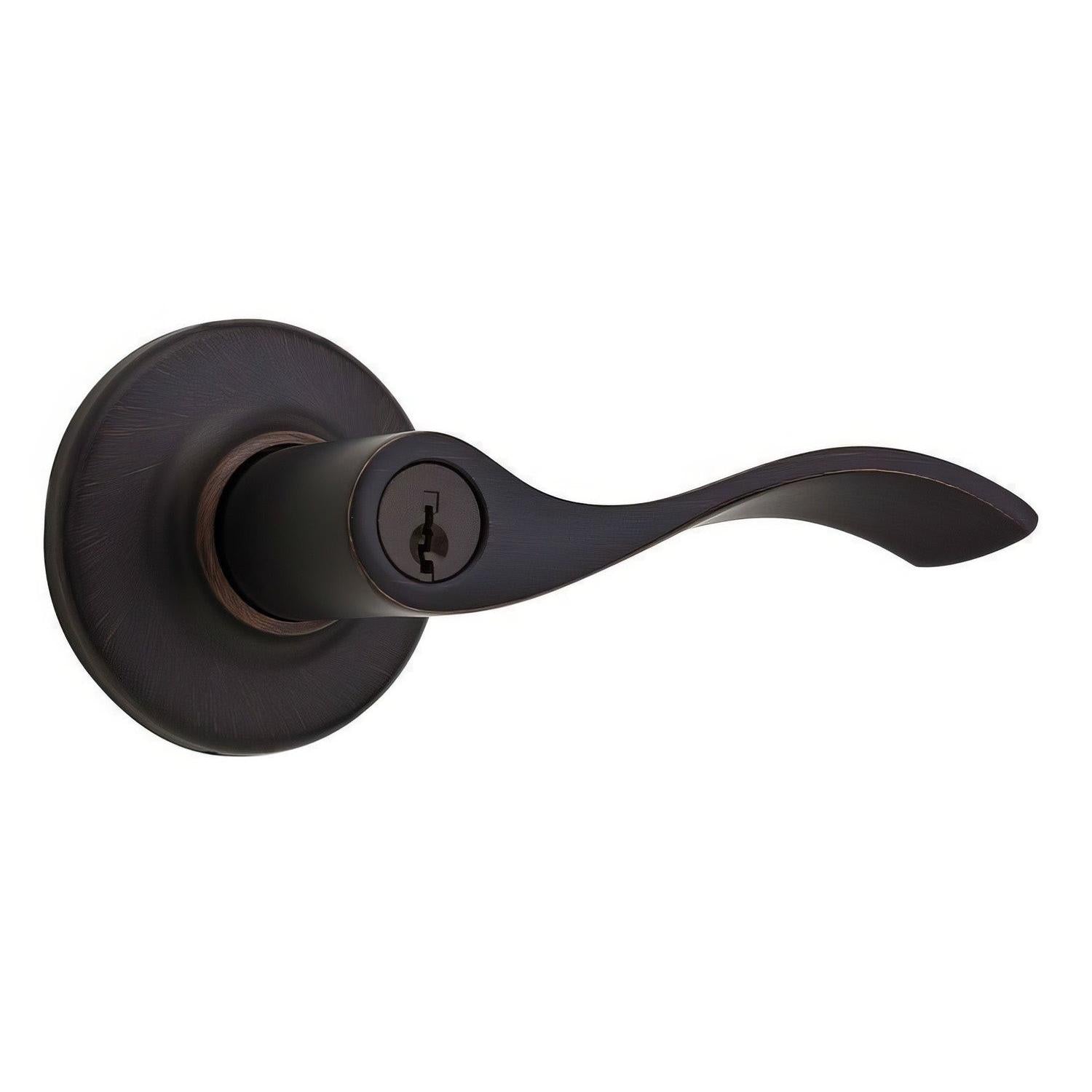

| 405BL-11P | Venetian Bronze | $48.21 USD |
Description
Description
The Kwikset 405BL Balboa is a keyed-entry door lever for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This lever uses a 5-pin pin-and-tumbler cylinder. The conventional 5-pin pin-and-tumbler cylinder supports normal keyed operation and professional keying services. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 405BL
- Design: Balboa Lever
- Function: Keyed Entry Door Lever
- Material: Zinc
- Cylinder: 5-pin pin-and-tumbler cylinder
- ANSI/BHMA grade: Grade 3
- ADA compliant: Yes
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Transitional
- Shape: Flat / Wave
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door lever, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and pin-and-tumbler cylinder before ordering.
Product Documents
Kwikset 405BL Balboa Keyed Lever Installation Guide
Kwikset 405BL Balboa Keyed Lever Specification Document
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Bore Hole
-
Cylinder5 Pin
-
Collections
-
FinishAntique Brass, Polished Brass, Satin Chrome, Satin Nickel, Venetian Bronze, Polished Chrome
-
FinishAntique Brass, Polished Brass, Satin Chrome, Satin Nickel, Venetian Bronze, Polished Chrome
-
Free ShippingYes
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Material
-
Door Thinkness1-3/8", 1-3/4" 1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Panic Proof
