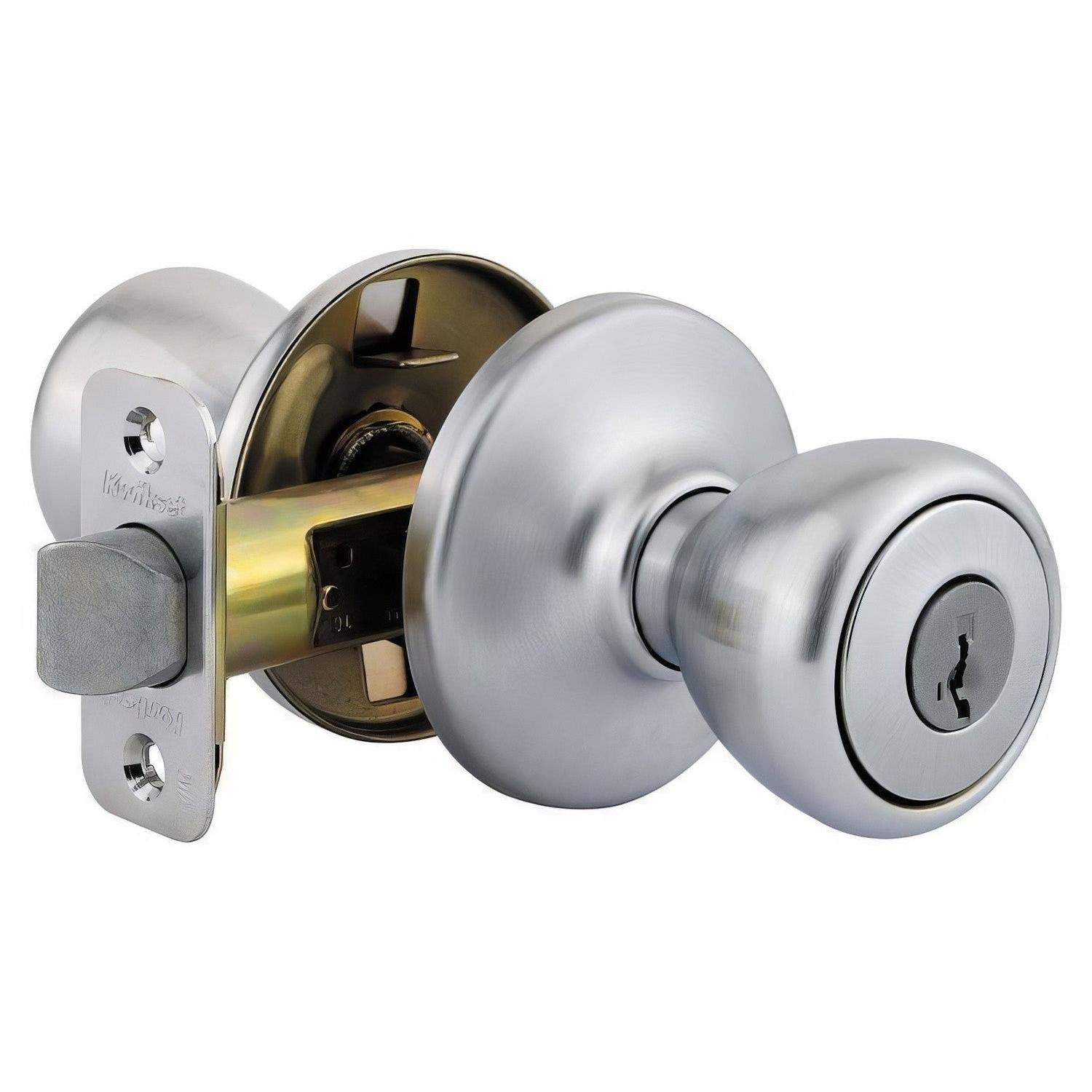

Kwikset 400T-S Tylo Single Cylinder Keyed Entry Knob
Tylo Single Cylinder Keyed Entry Knob with SmartKey
Kwikset 400T-S Tylo Single Cylinder Keyed Entry Knob - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 400T-S Tylo is a keyed-entry door knob for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This knob uses a SmartKey Security cylinder. SmartKey Security lets the owner re-key the cylinder to a compatible Kwikset KW1 key without removing the lock from the door. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 400T-S
- Design: Tylo Knob
- Function: Keyed Entry Door Knob
- Material: Zinc
- Cylinder: SmartKey Security cylinder
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Projection: 2-1/2″
- Diameter: 1-7/8″
- Width: 1-7/8″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Traditional / Classic
- Shape: Ball Knob
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door knob, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and SmartKey cylinder before ordering.
Product Documents
Kwikset 400T-S Tylo Keyed Knob Installation Guide
Kwikset 400T-S Tylo Keyed Knob Specification Document
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
Bore Hole
-
CylinderSmartKey 5 Pin
-
Collections
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Door Thickness1-3/8", 1-3/4", 1-/8" to 1-3/4"
-
Edge Bore
-
Rose Diameter
-
Shape
-
Style
-
Latch Faceplate
-
Diameter
-
Projection
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 5 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

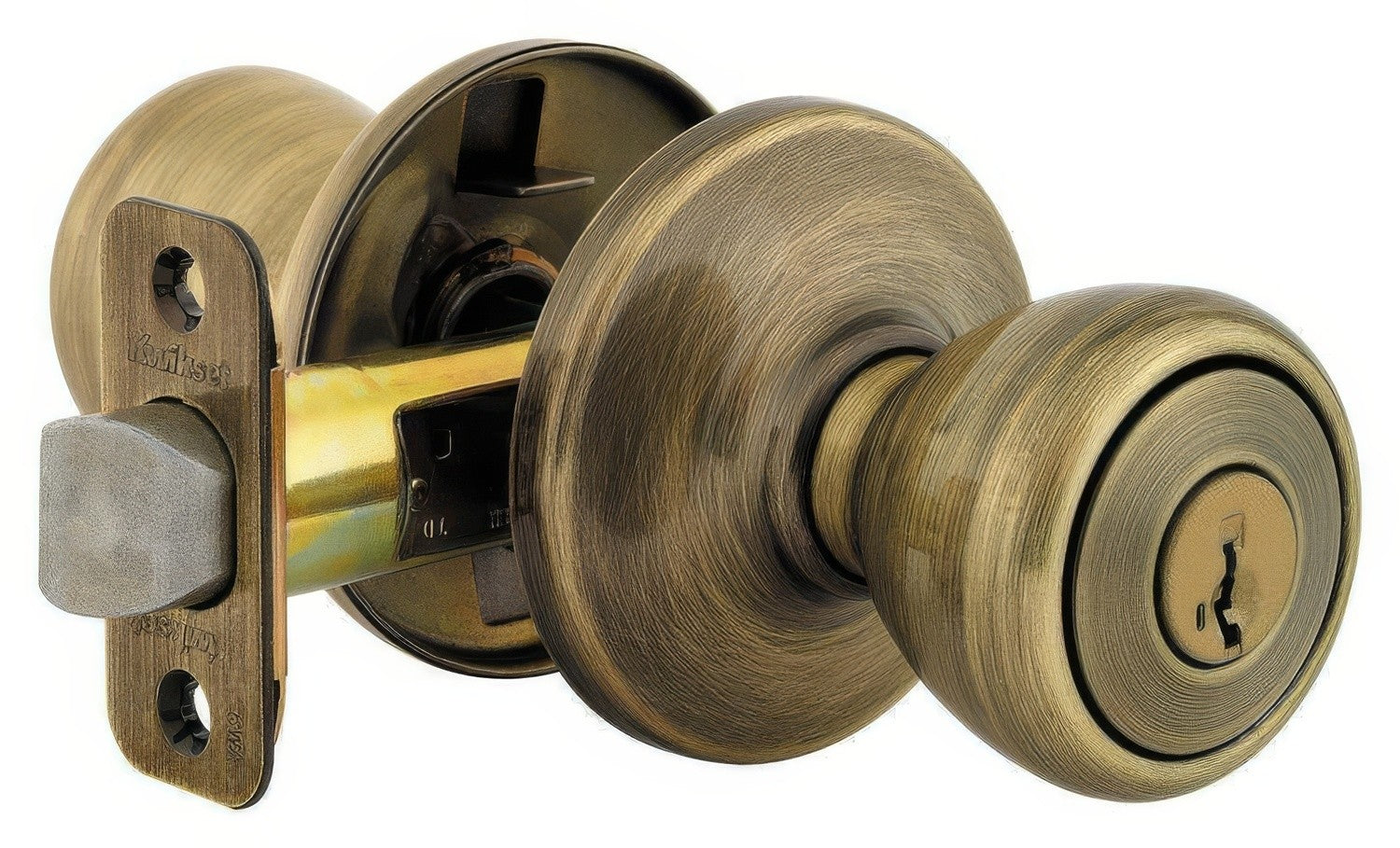

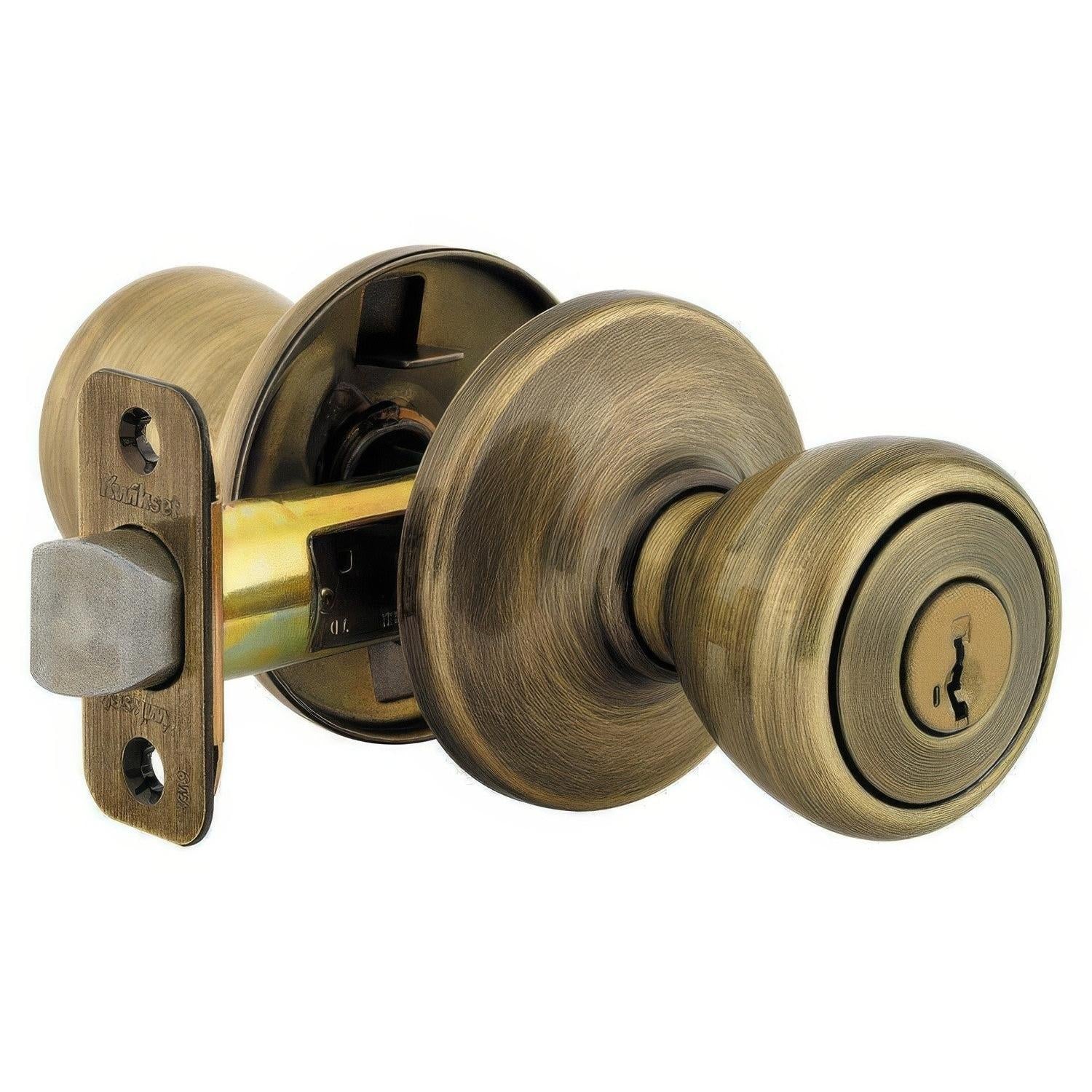

| 400T-5S | Antique Brass | $26.61 USD |

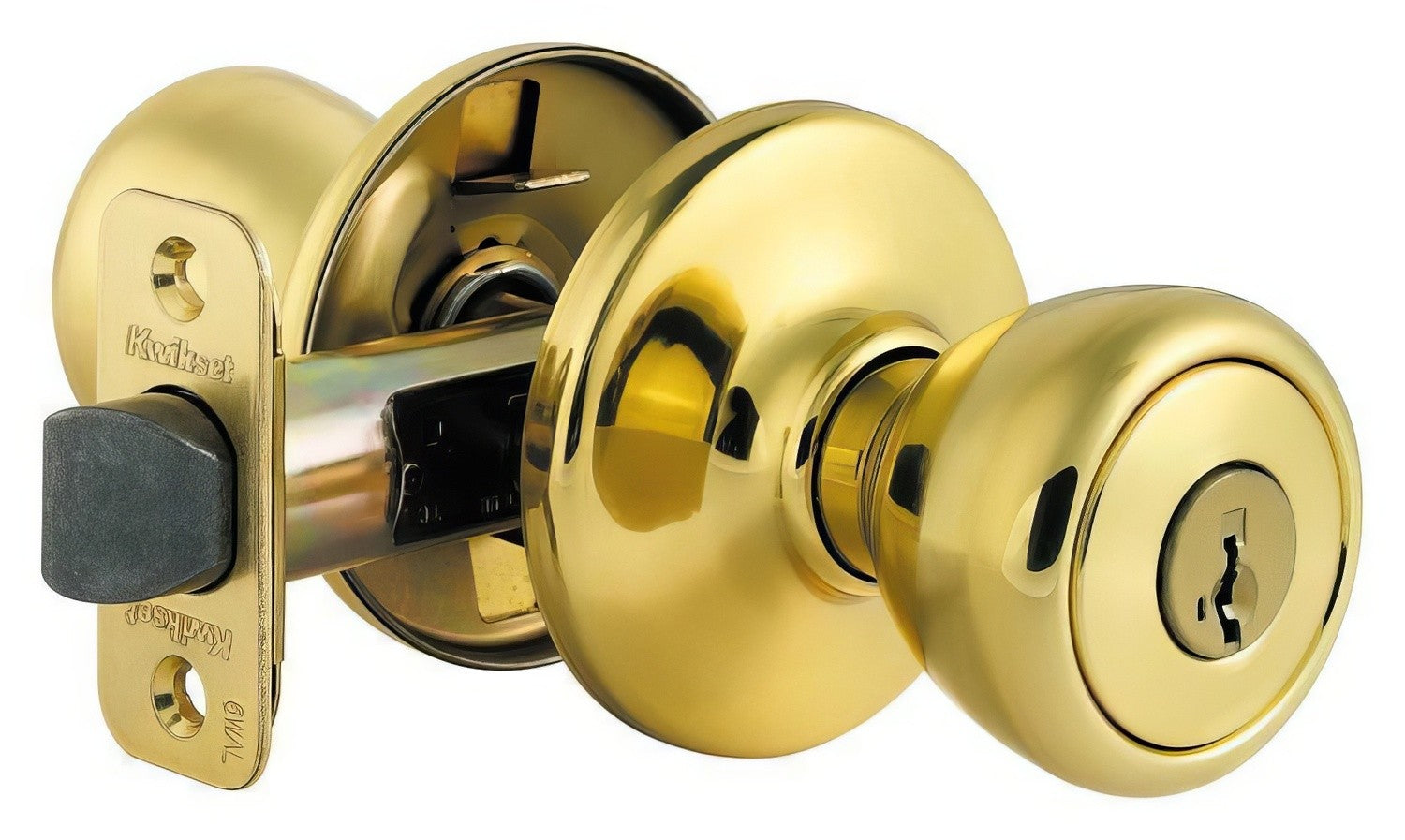

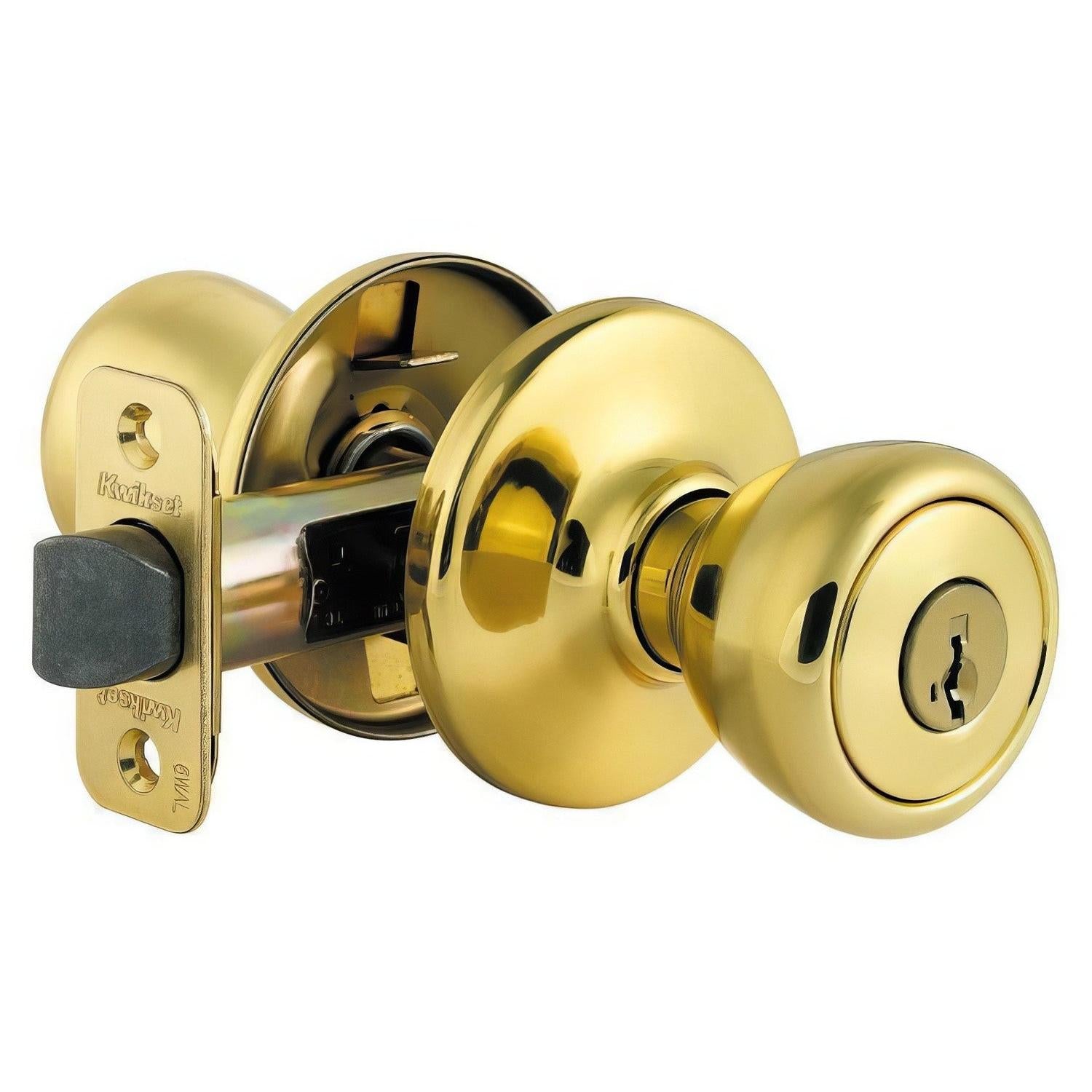

| 400T-3S | Bright Brass | $26.61 USD |

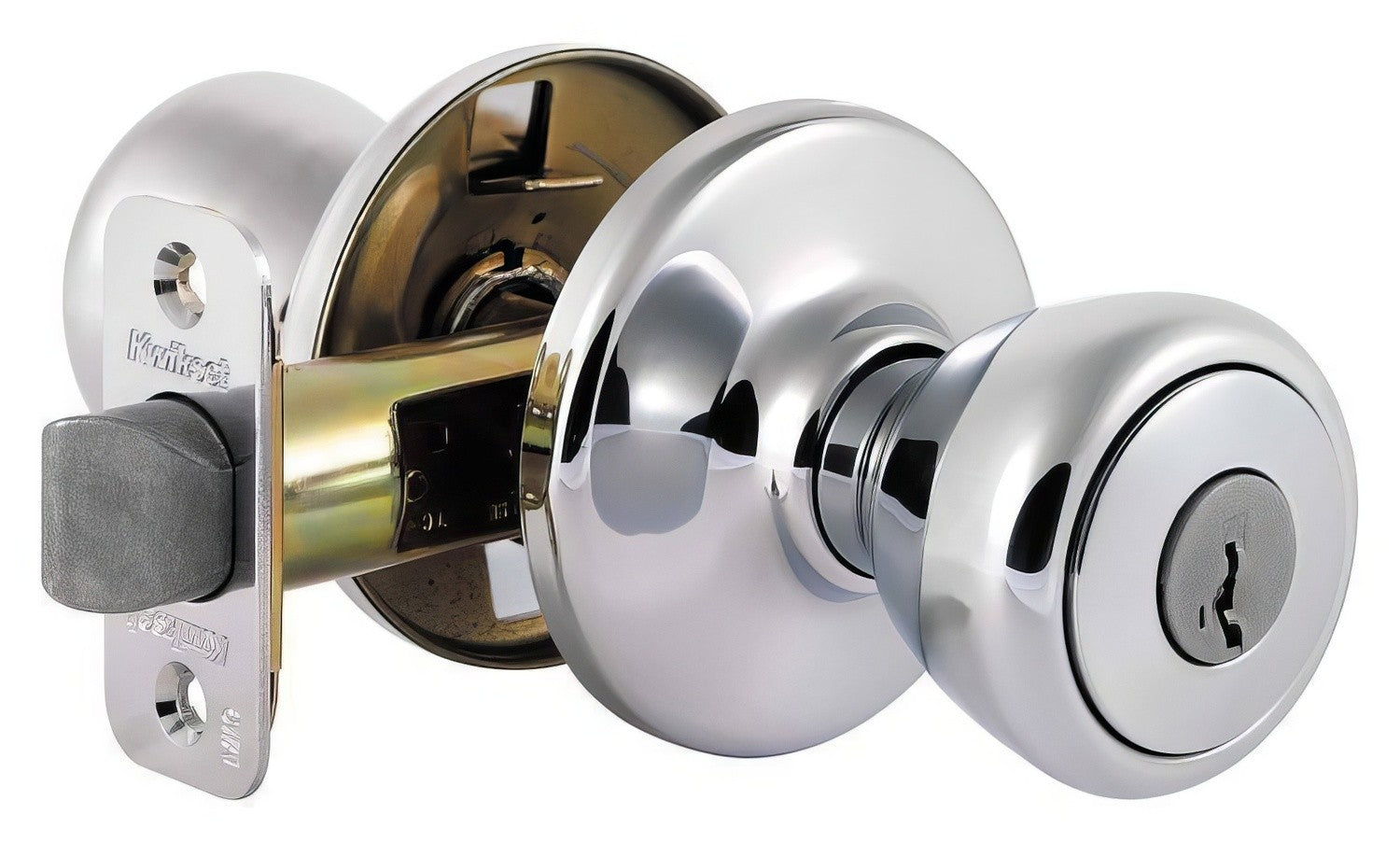

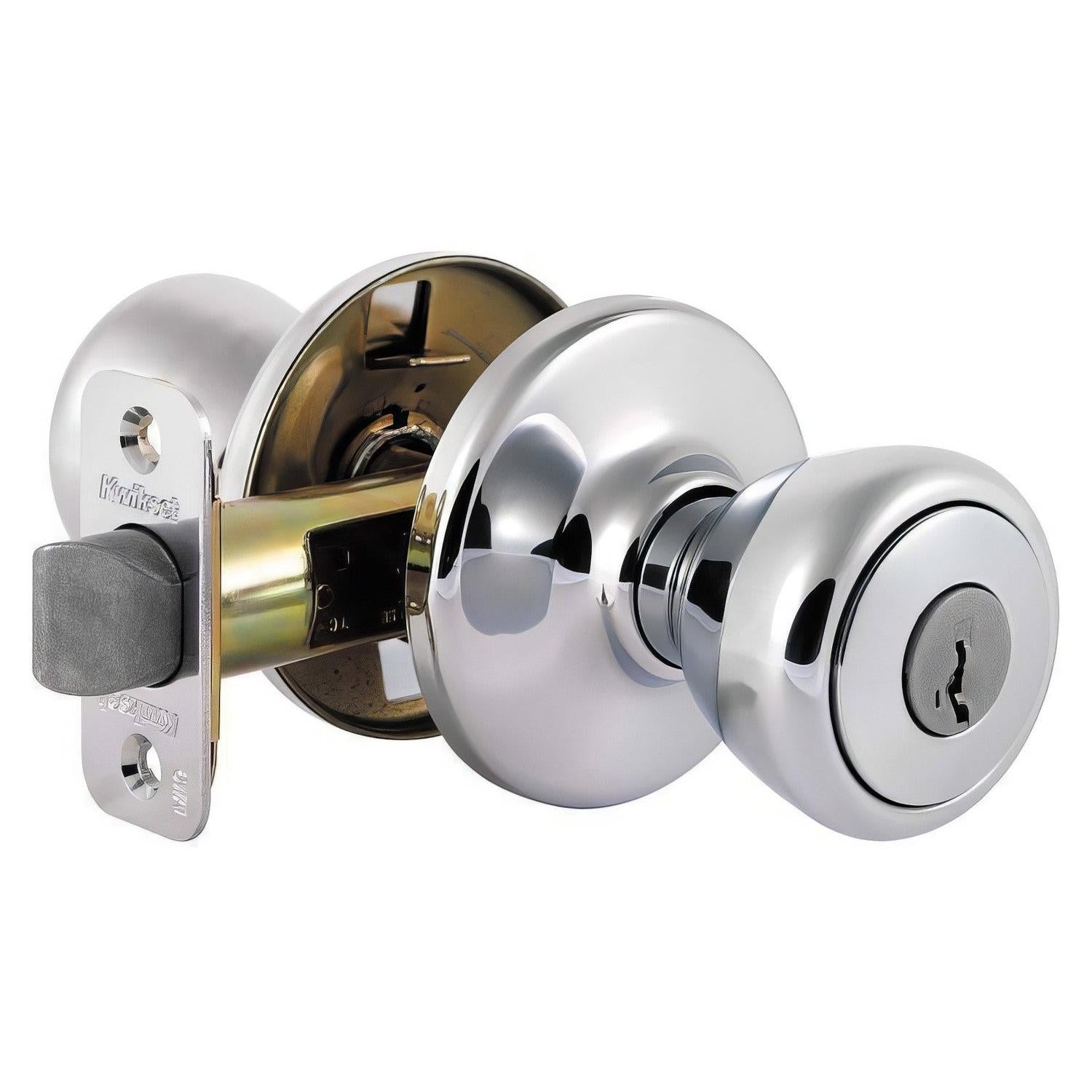

| 400T-26S | Bright Chrome | $28.65 USD |

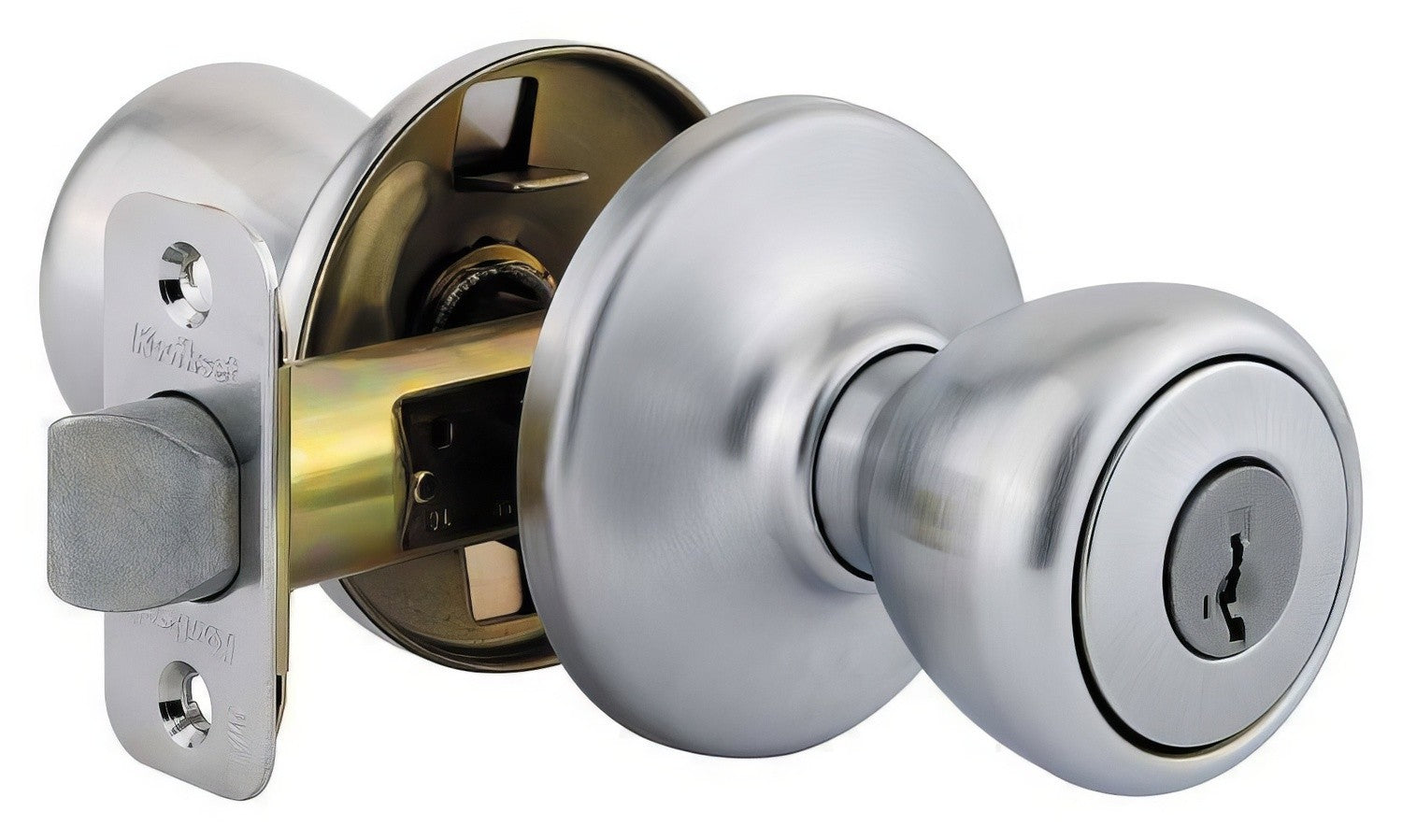

| 400T-26DS | Satin Chrome | $26.61 USD |

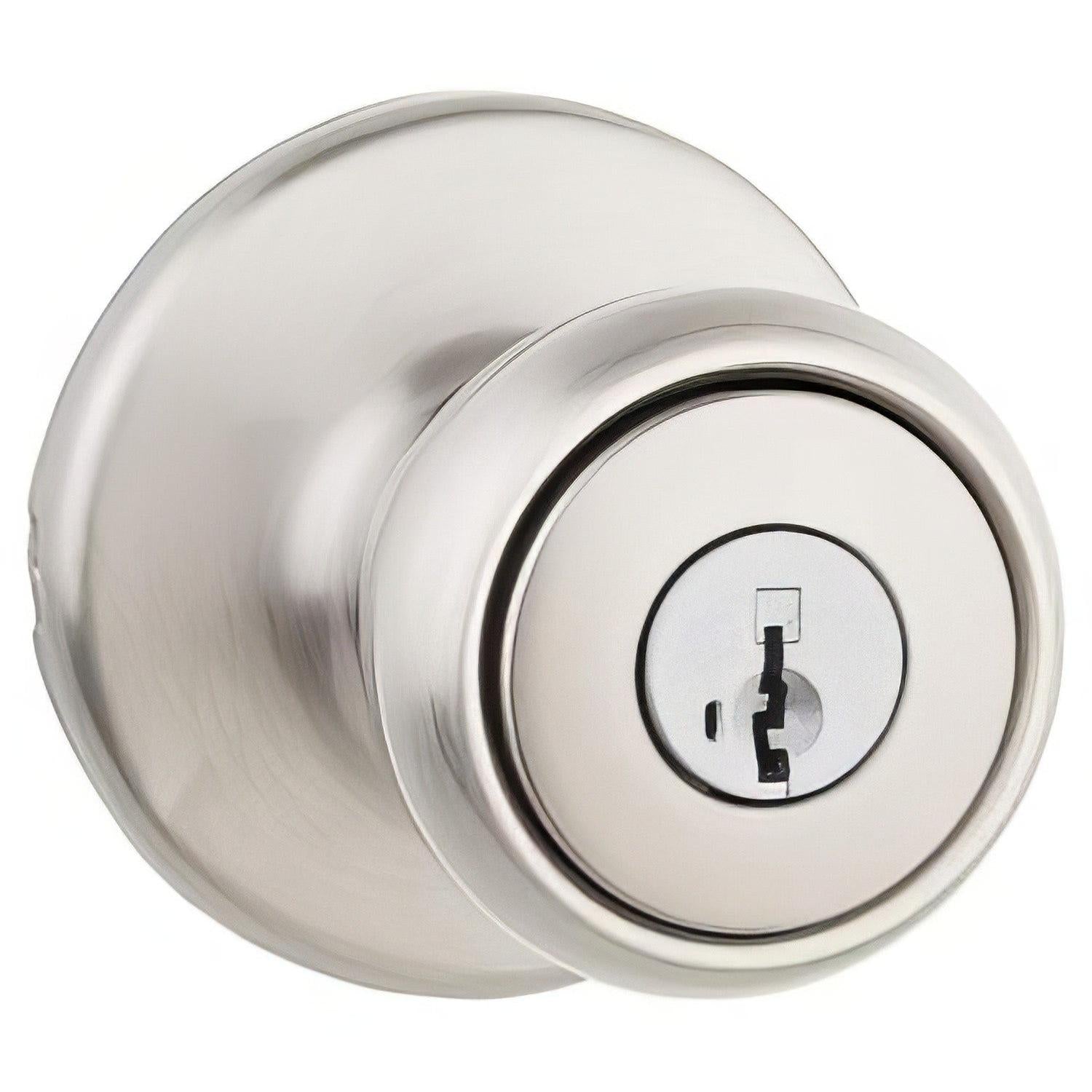

| 400T-15S | Satin Nickel | $28.65 USD |
Description
Description
The Kwikset 400T-S Tylo is a keyed-entry door knob for exterior or secured interior doors. A key operates the exterior side, while the interior turn piece locks and unlocks the door from inside.
This knob uses a SmartKey Security cylinder. SmartKey Security lets the owner re-key the cylinder to a compatible Kwikset KW1 key without removing the lock from the door. The adjustable latch accommodates common 2-3/8″ and 2-3/4″ backsets, and the trim is intended for standard residential door preparation.
The lockset includes the keyed exterior trim, interior turn-piece trim, and the latch/strike hardware identified by the selected product configuration. Use the linked installation and specification documents to confirm the exact faceplate, strike, and keying configuration supplied with the selected variant.
Product Details
- Model: 400T-S
- Design: Tylo Knob
- Function: Keyed Entry Door Knob
- Material: Zinc
- Cylinder: SmartKey Security cylinder
- Handing: Left, Right, Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Bore hole: 2-1/8″
- Edge bore: 1″
- Projection: 2-1/2″
- Diameter: 1-7/8″
- Width: 1-7/8″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Style: Traditional / Classic
- Shape: Ball Knob
- Application: Exterior or secured interior doors requiring keyed access
Compatibility: Confirm the keyed entry door knob, 1-3/8″ to 1-3/4″, 2-1/8″ cross-bore preparation where applicable, adjustable 2-3/8″ or 2-3/4″ backset, and SmartKey cylinder before ordering.
Product Documents
Kwikset 400T-S Tylo Keyed Knob Installation Guide
Kwikset 400T-S Tylo Keyed Knob Specification Document
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
Bore Hole
-
CylinderSmartKey 5 Pin
-
Collections
-
FinishAntique Brass, Bright Brass, Bright Chrome, Satin Chrome, Satin Nickel
-
FinishAntique Brass, Bright Brass, Bright Chrome, Satin Chrome, Satin Nickel
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Material
-
Door Thinkness1-3/8", 1-3/4", 1-/8" to 1-3/4"
-
Edge Bore
-
Rose Diameter
-
Shape
-
Style
-
Latch Faceplate
-
Diameter
-
Projection
-
Width
