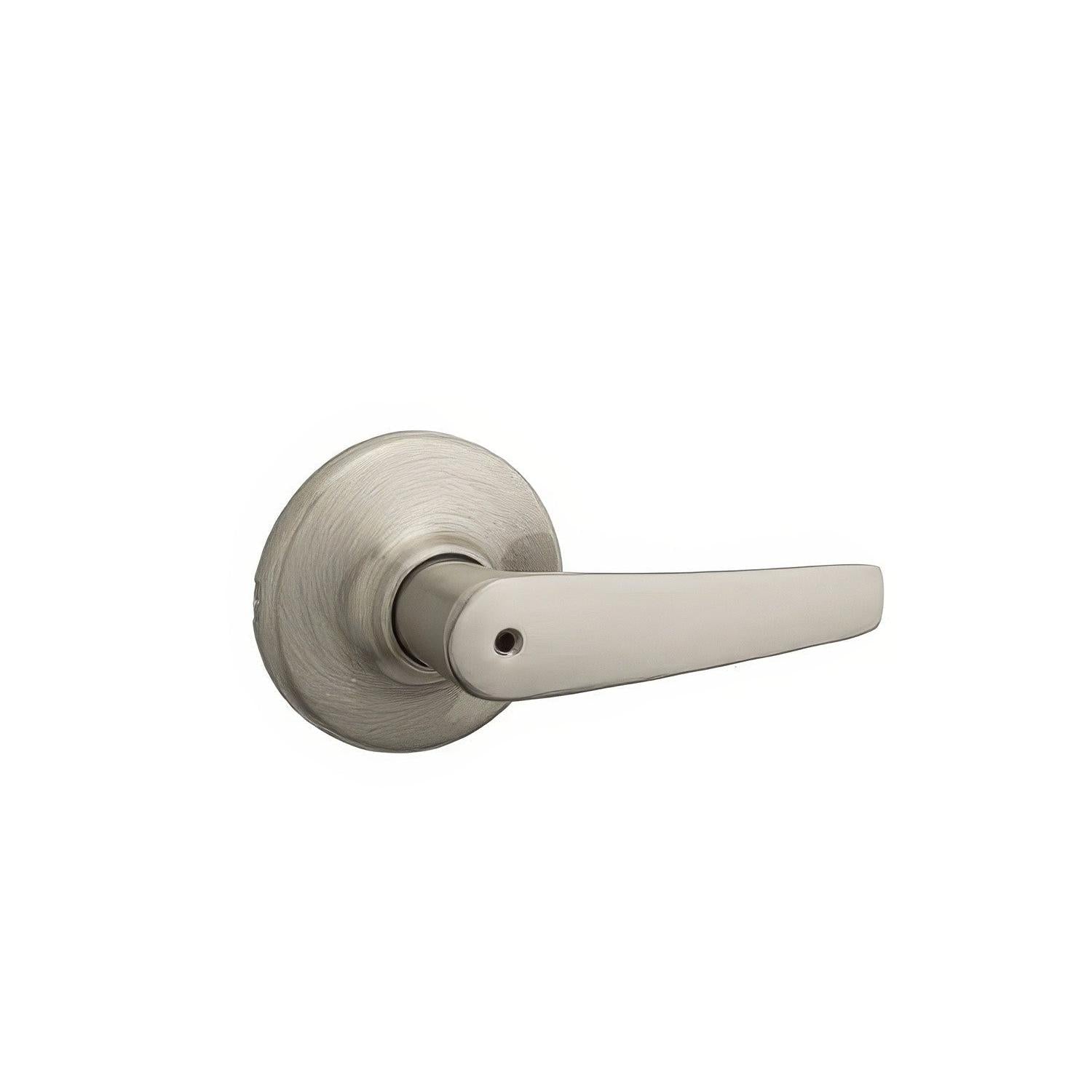

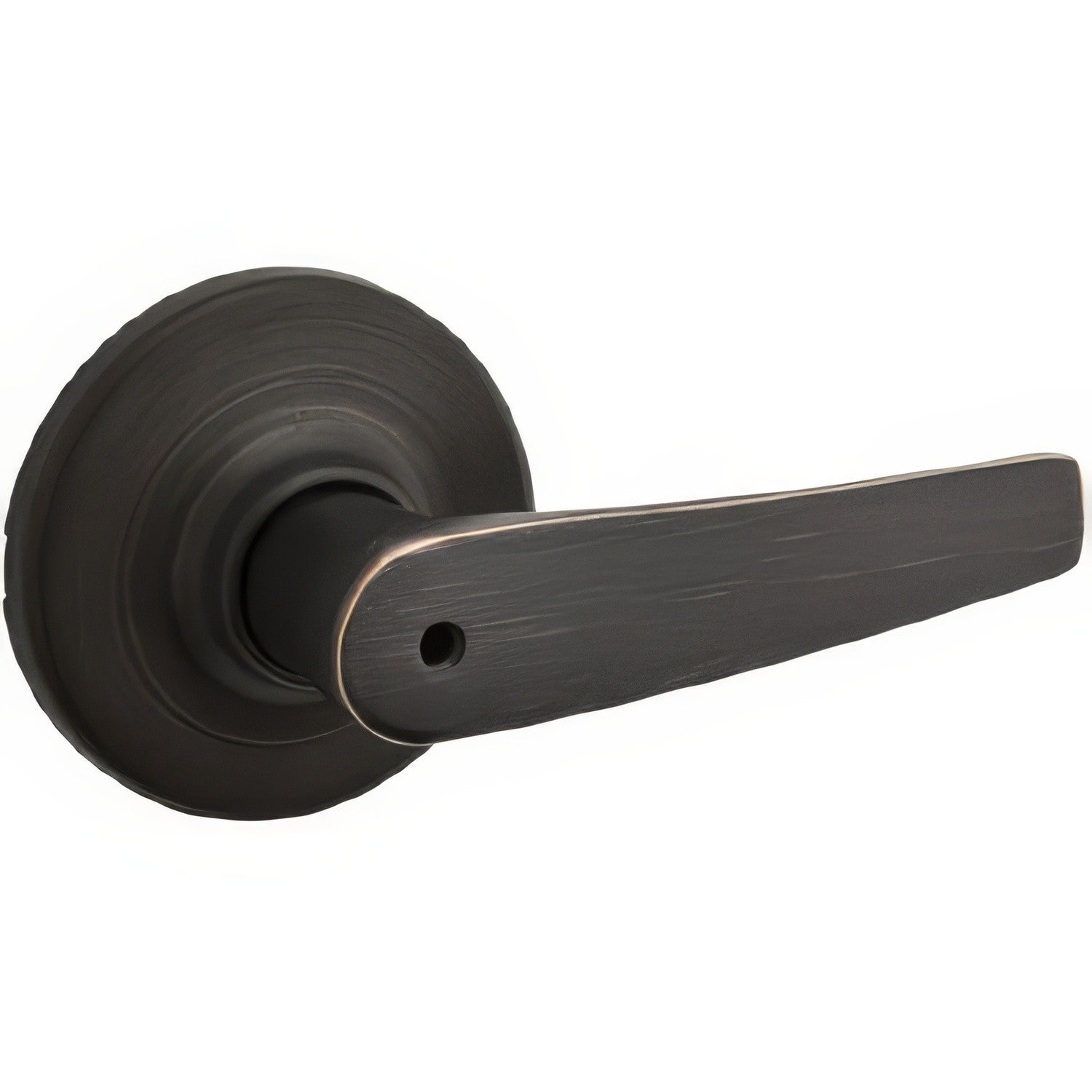

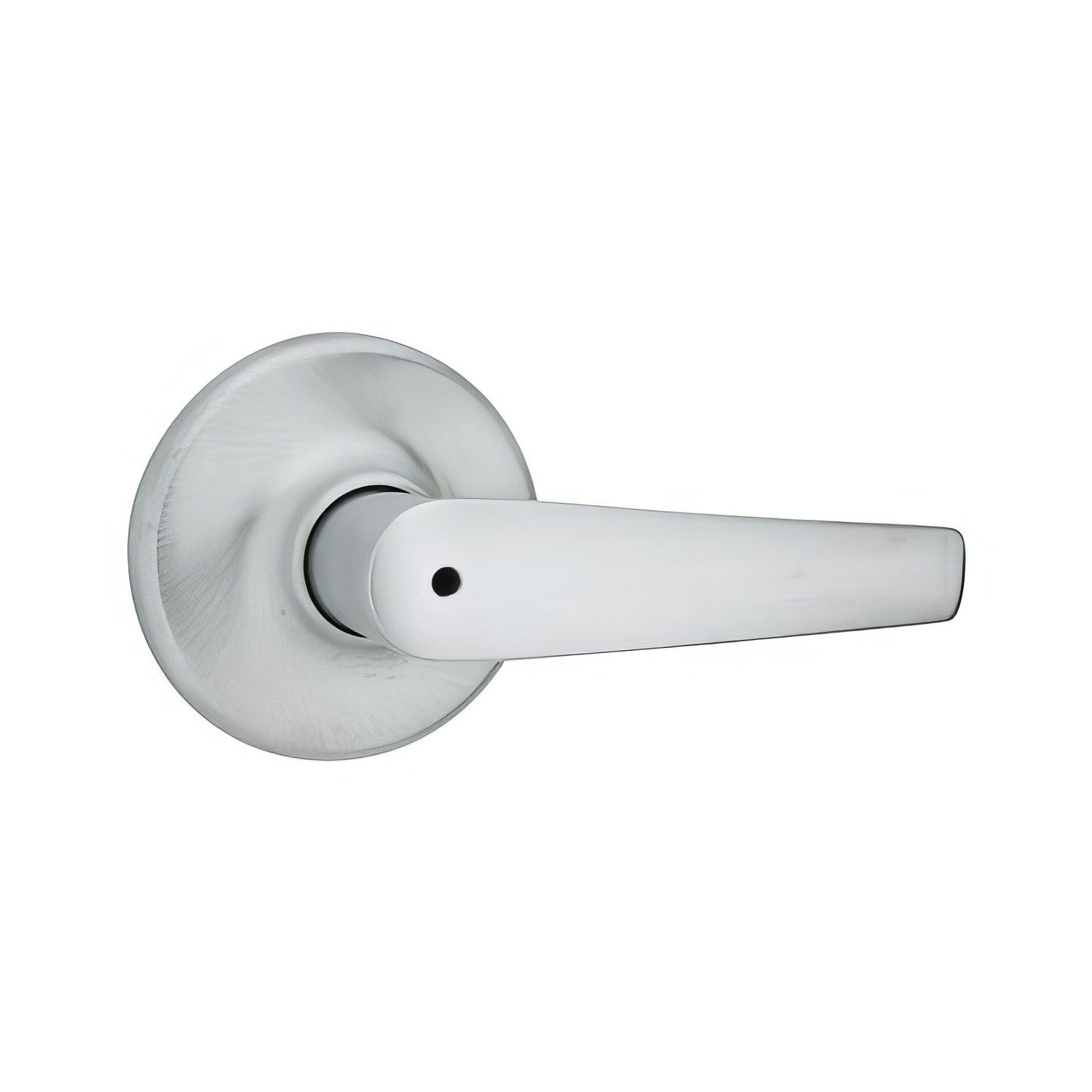

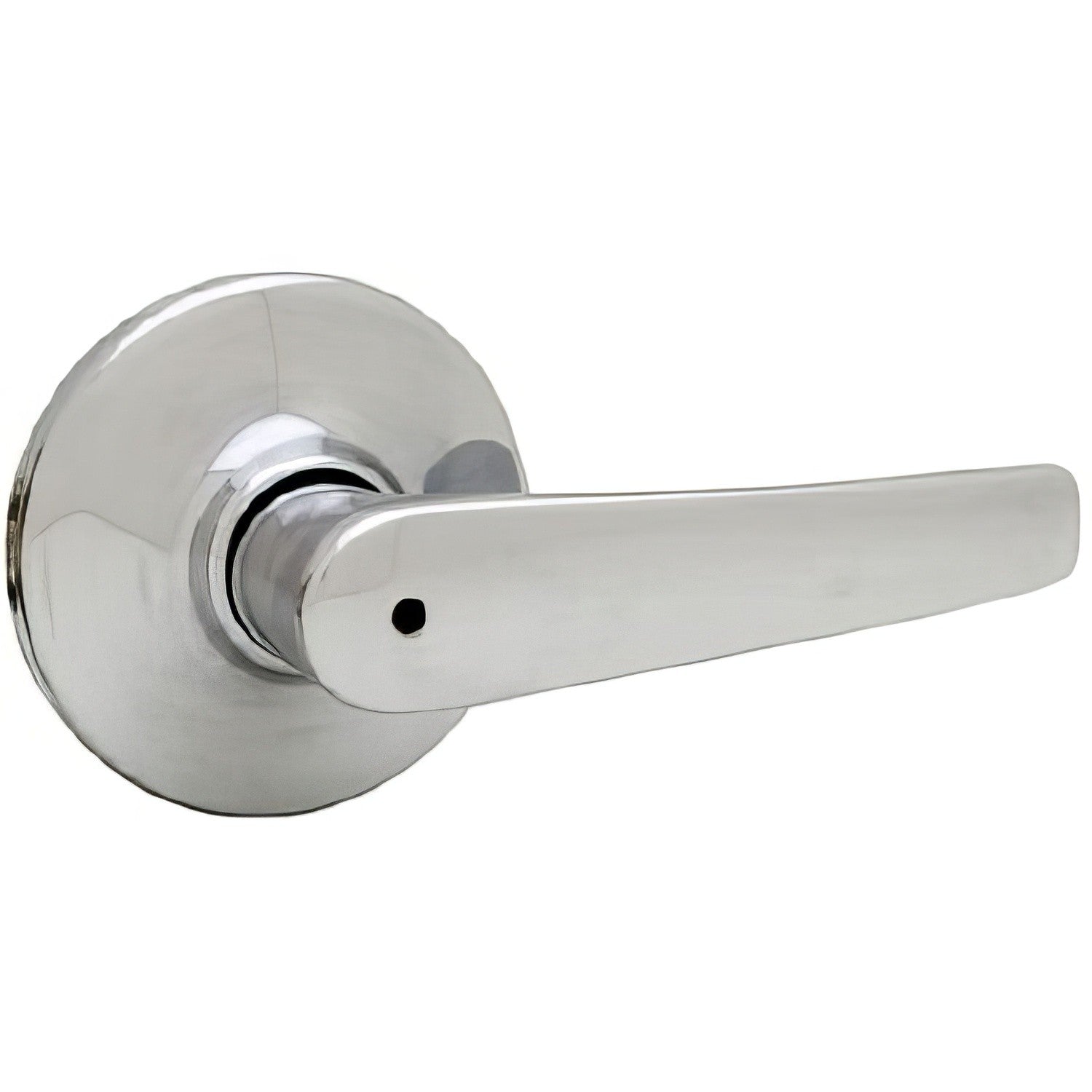

Kwikset 300DL Delta Maximum Series Privacy Door Lever

The Kwikset 300DL Delta is a privacy door lever for a bedroom, bathroom, or other interior door requiring temporary privacy. Configuration details include Maximum Series.

Interior privacy locking with outside emergency release. Confirm door thickness, backset, bore preparation, latch faceplate, strike, and handing before ordering.

Product Details

• Manufacturer part number: 300DL
• Collection: Delta
• Function: Privacy Door Lever
• Application: A bedroom, bathroom, or other interior door requiring temporary privacy
• Operation: Interior privacy locking with outside emergency release
• Included configuration: Interior and exterior lever trim with operating latch hardware; confirm the exact faceplate and strike configuration in the current product documents
• Material: Zinc
• Style: Transitional
• Shape: Flat - Straight
• Handing: Reversible
• Projection: 1-7/8″
• Lever length: 3.63″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ to 2-3/4″
• Bore hole: 2-1/8″
• Edge bore: 1″
• ANSI/BHMA grade: Grade 3
• ADA compliant: Yes

Compatibility: Confirm the door thickness, bore preparation, backset, handing, latch faceplate, strike, and package contents for the exact model before ordering.

Product Documents

Kwikset Delta 300DL Privacy Lever Installation Guide

Kwikset Delta 300DL Privacy Lever Specifications

Additional Kwikset Information

View Kwikset Manufacturer Warranty

Shop All Kwikset Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
