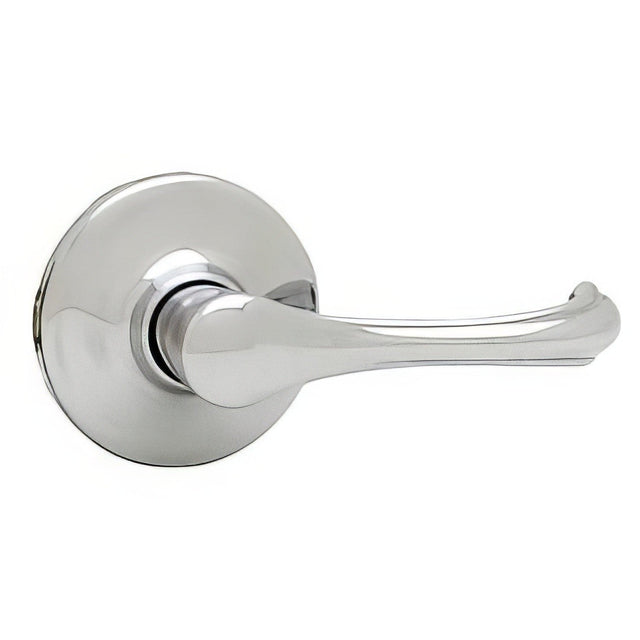

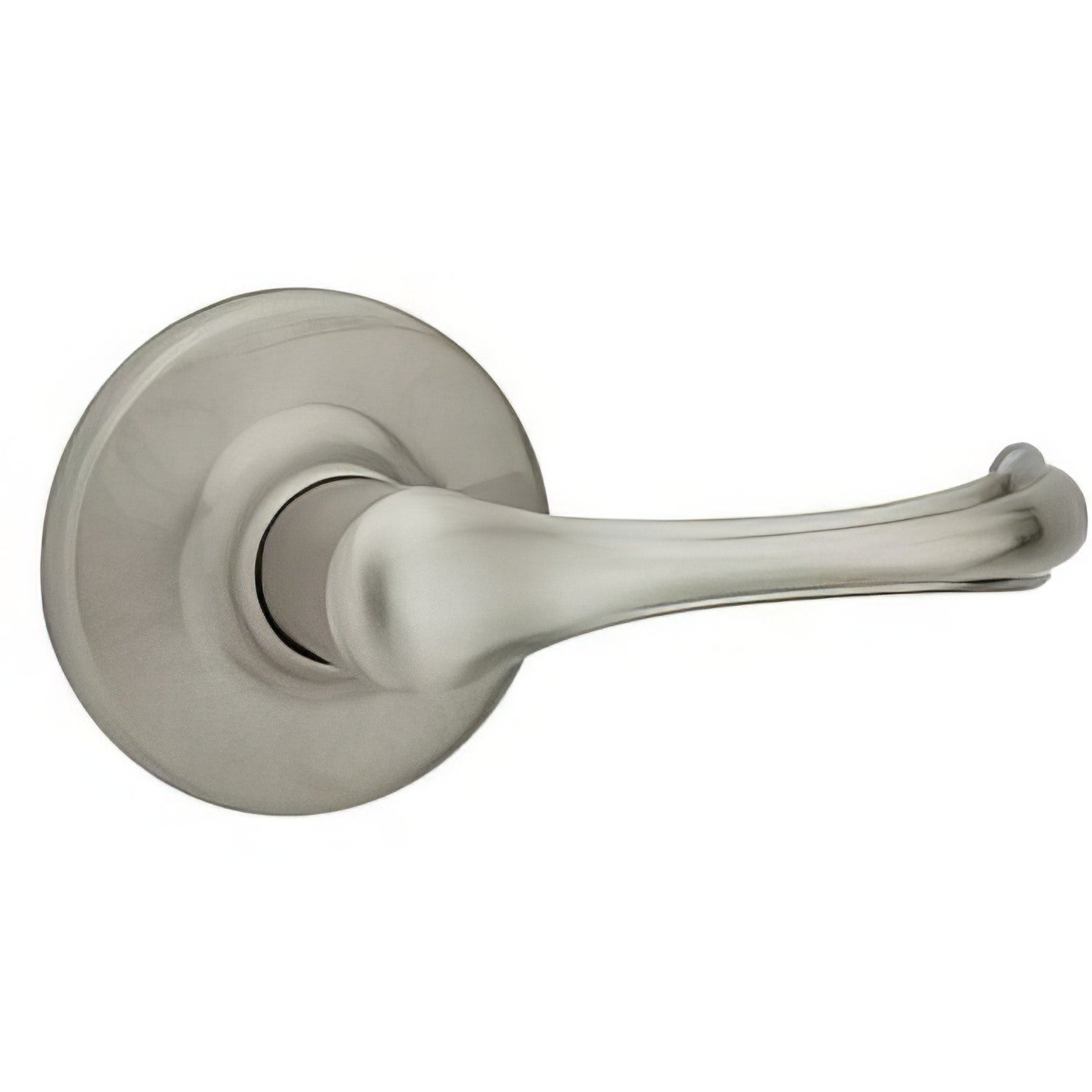

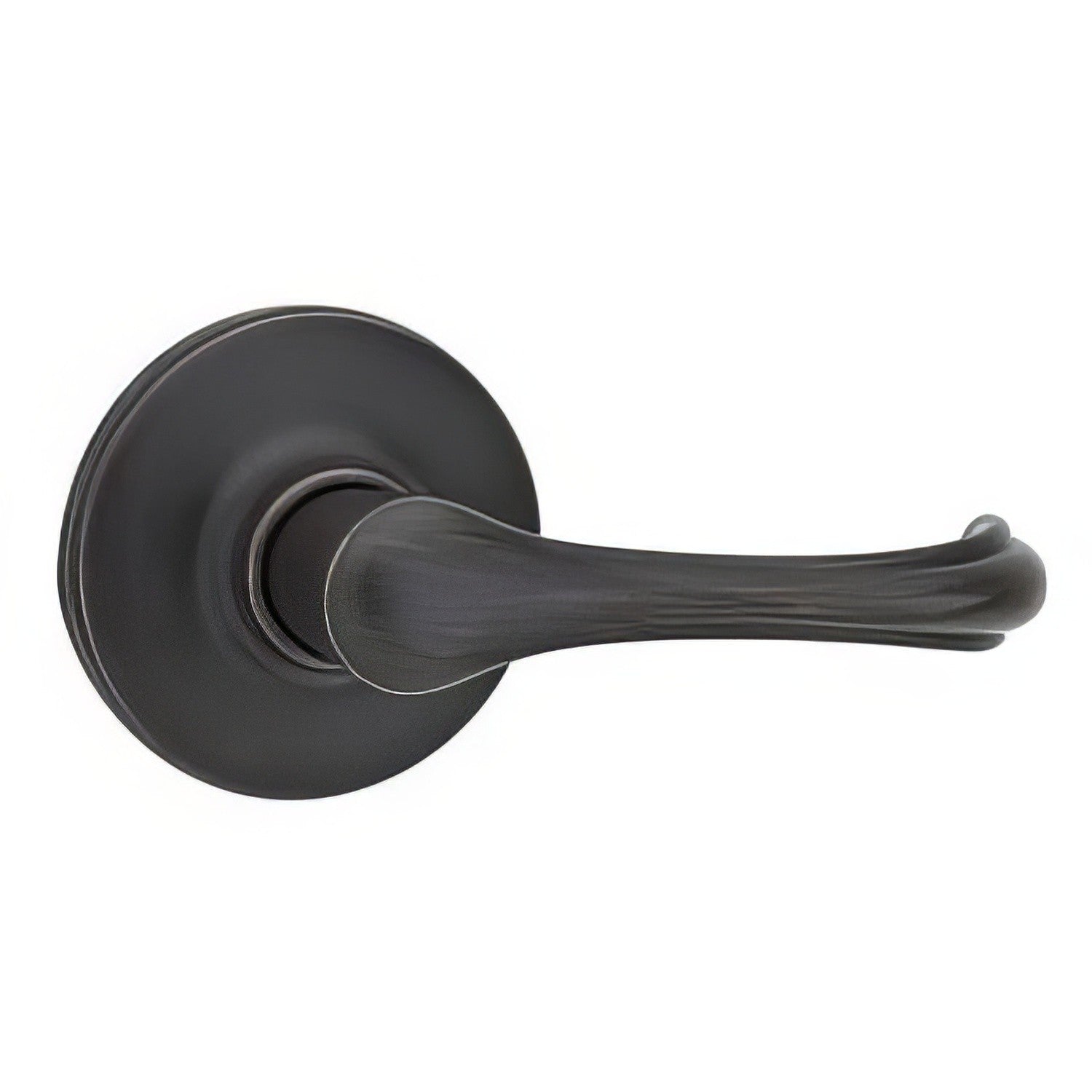

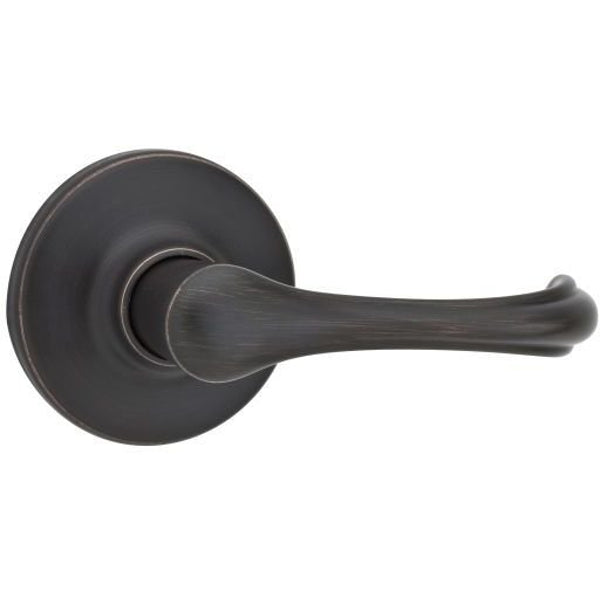

Kwikset 200DNL Dorian Maximum Series Passage Door Lever

The Kwikset 200DNL Dorian is a passage door lever for a hall, closet, pantry, or connecting-room door where locking is not required. Configuration details include Maximum Series.

Non-locking latch operation from both sides. Confirm door thickness, backset, bore preparation, latch faceplate, strike, and handing before ordering.

Product Details

• Manufacturer part number: 200DNL
• Collection: Dorian
• Function: Passage Door Lever
• Application: A hall, closet, pantry, or connecting-room door where locking is not required
• Operation: Non-locking latch operation from both sides
• Included configuration: Interior and exterior lever trim with operating latch hardware; confirm the exact faceplate and strike configuration in the current product documents
• Material: Zinc
• Style: Transitional
• Shape: Straight
• Handing: Reversible
• Projection: 2-1/4″
• Lever length: 3.75″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ to 2-3/4″
• Bore hole: 2-1/8″
• Edge bore: 1″
• ANSI/BHMA grade: Grade 3
• ADA compliant: Yes

Compatibility: Confirm the door thickness, bore preparation, backset, handing, latch faceplate, strike, and package contents for the exact model before ordering.

Product Documents

Kwikset Dorian 200DNL Passage Lever Installation Guide

Kwikset Dorian 200DNL Passage Lever Specifications

Additional Kwikset Information

View Kwikset Manufacturer Warranty

Shop All Kwikset Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
