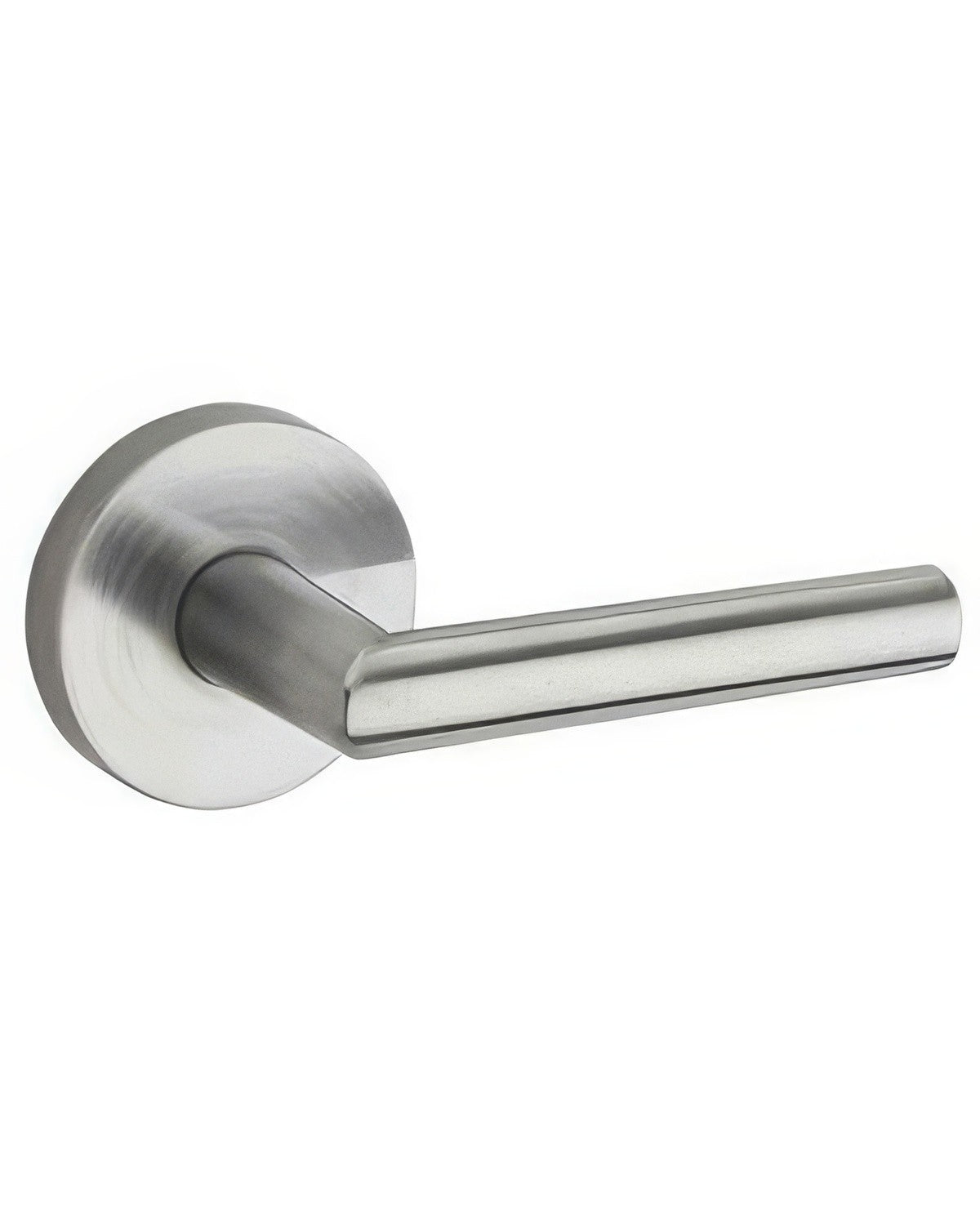

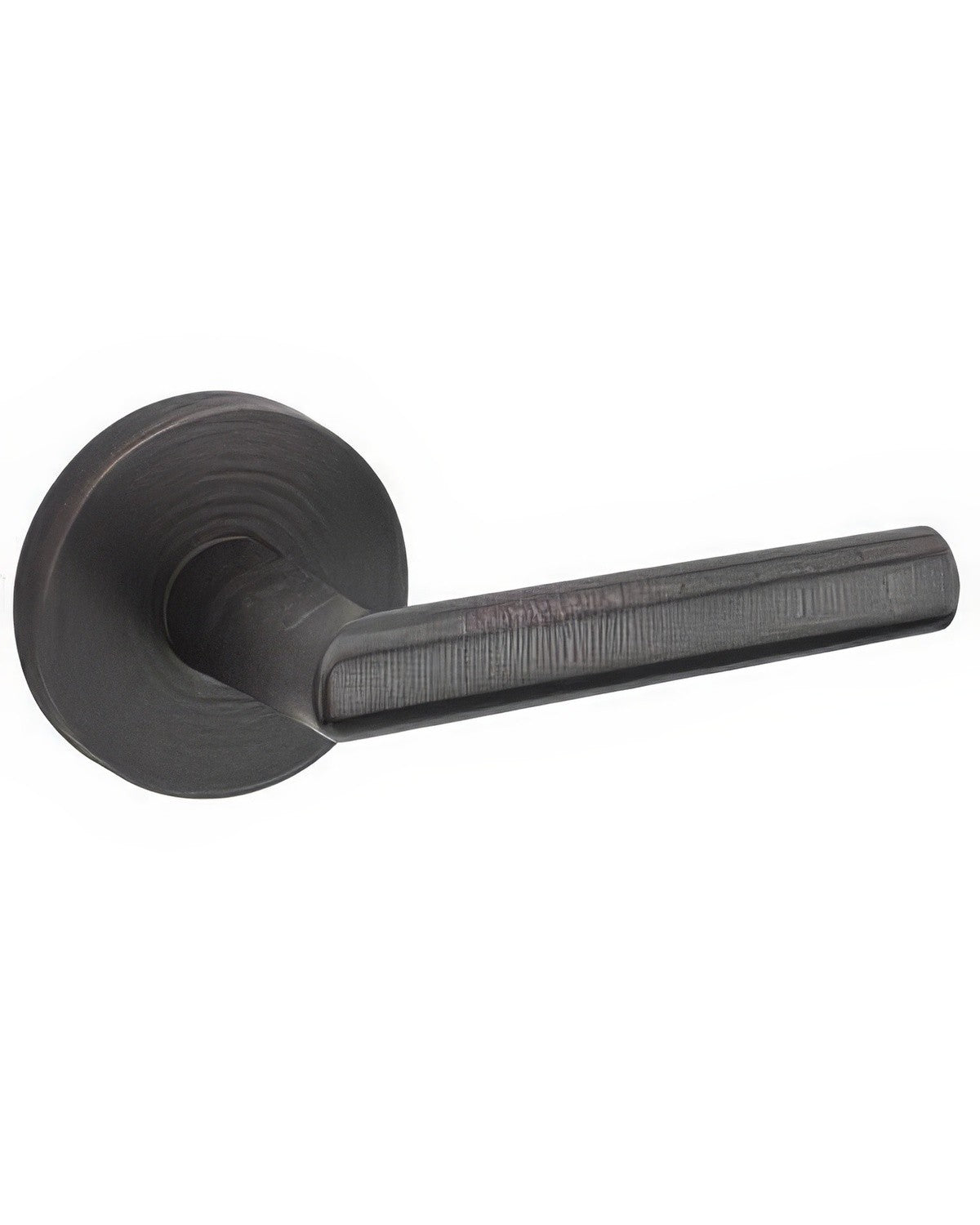

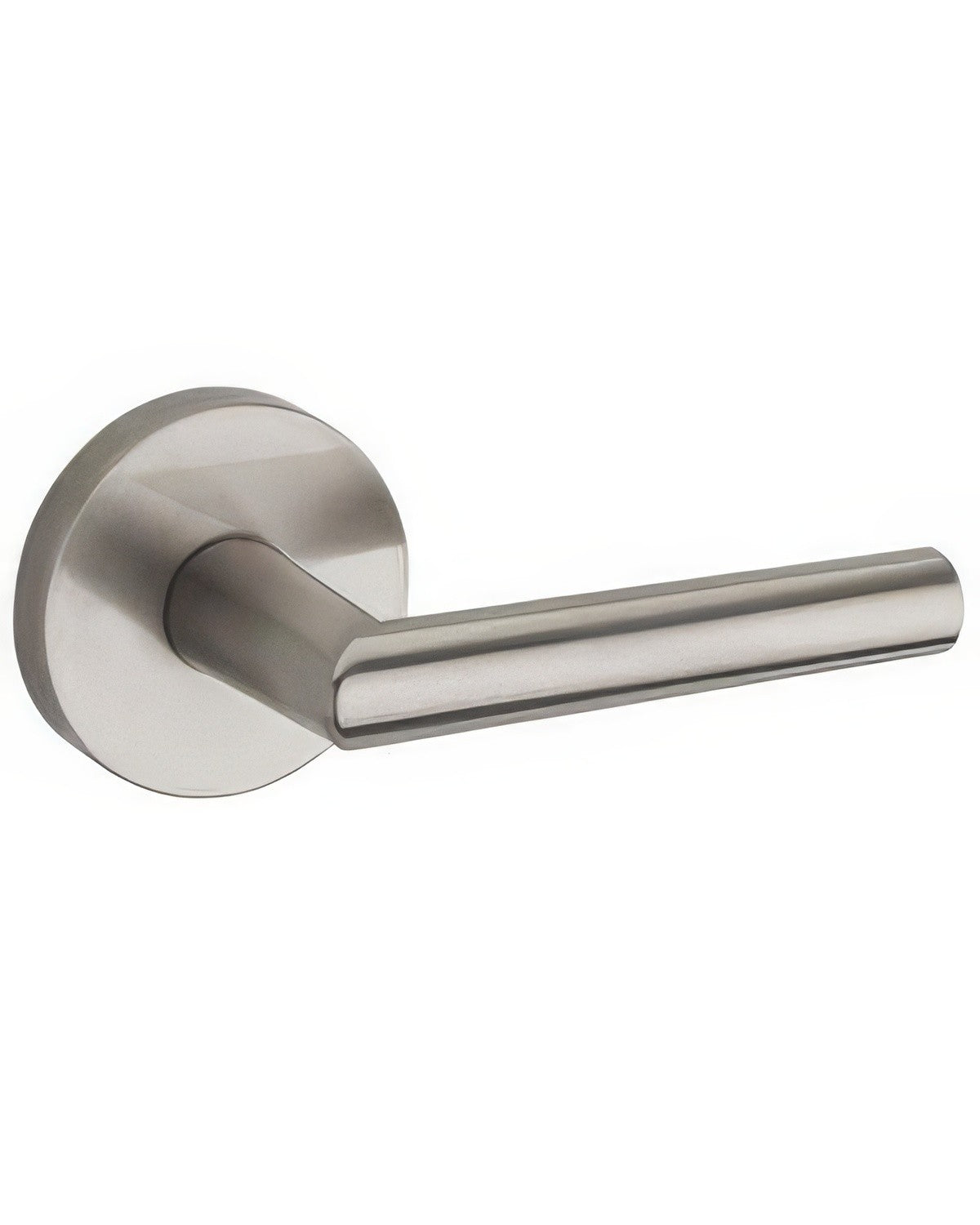

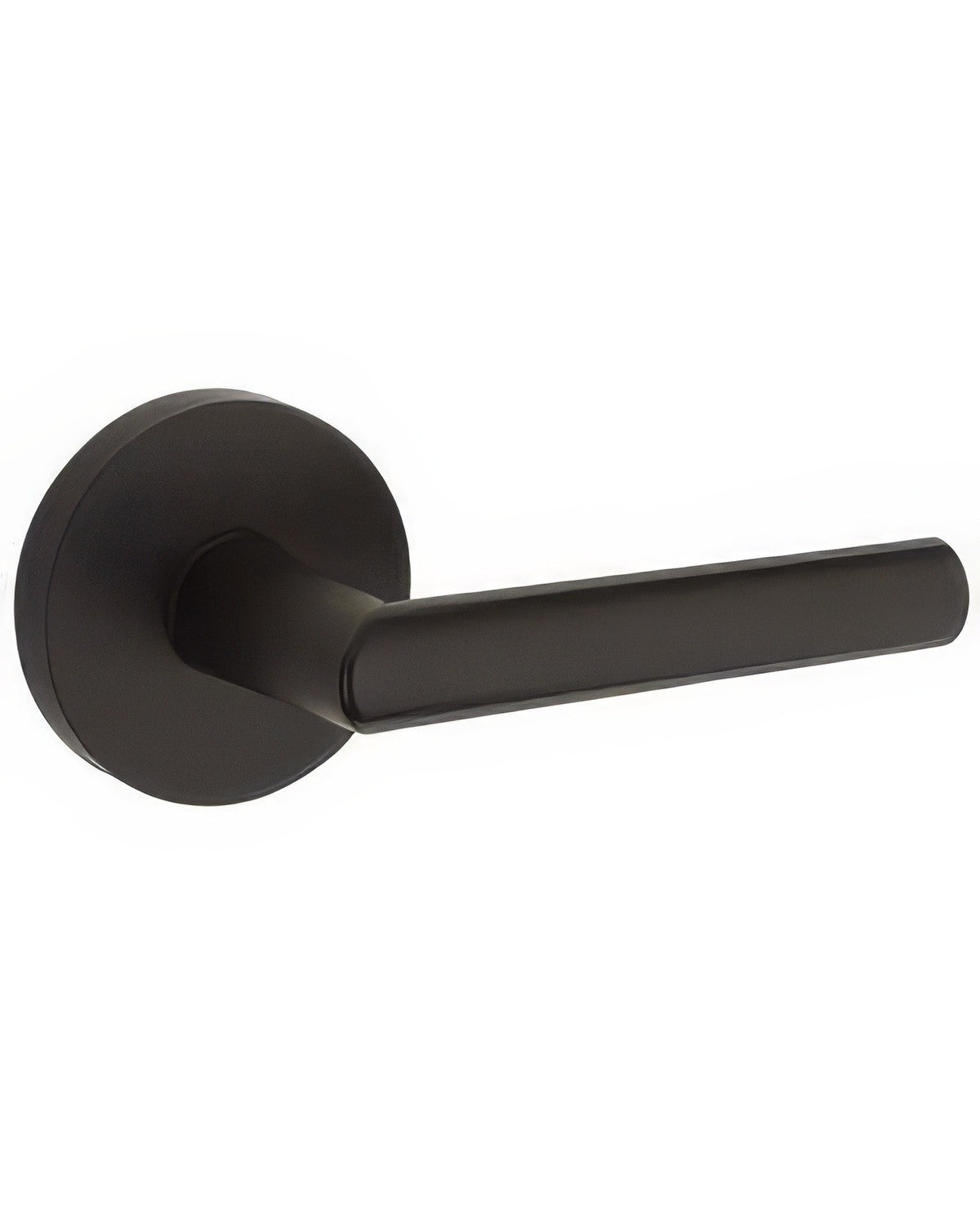

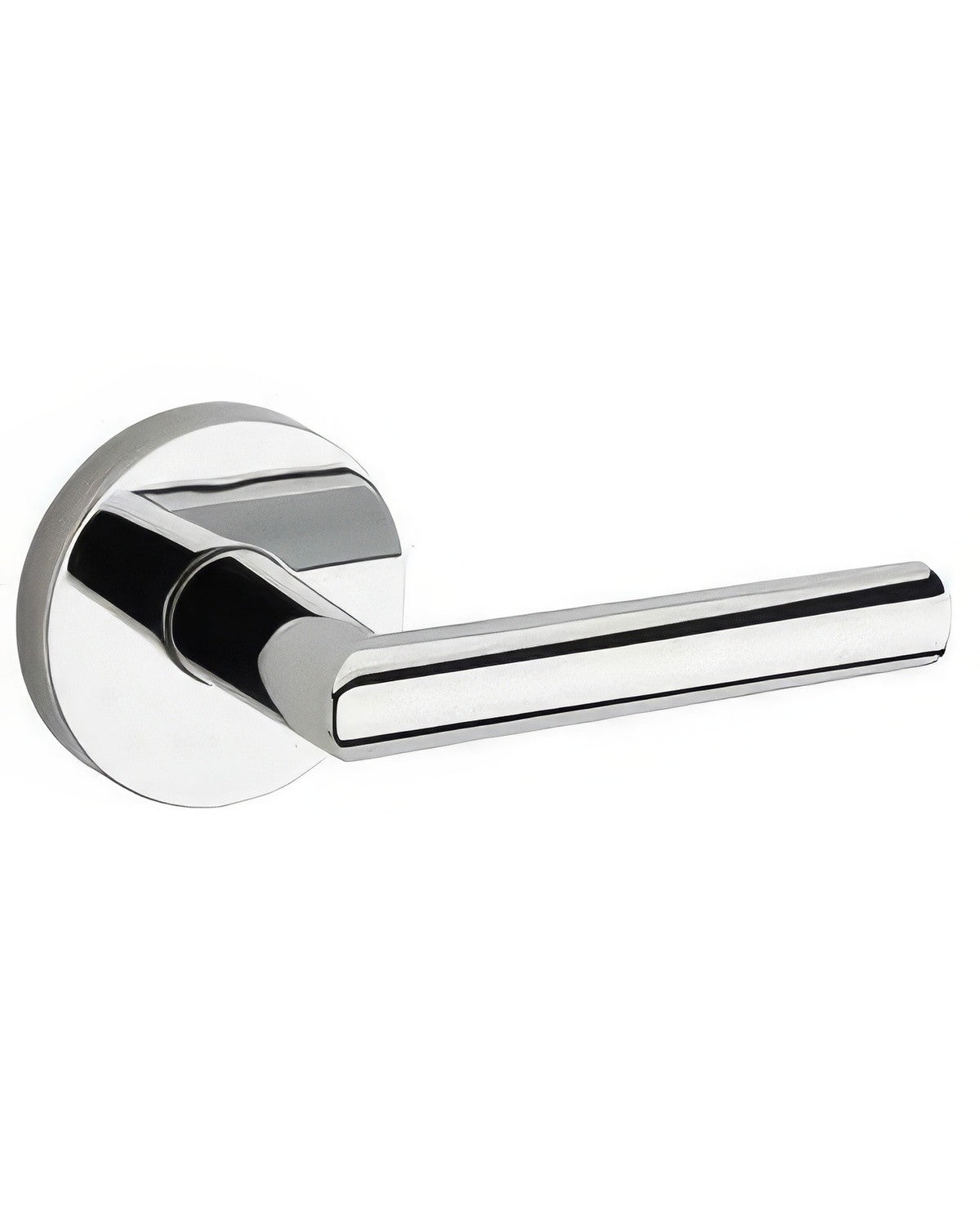

Kwikset 720MILRDT Milan Passage Door Lever with Round Rosette

The Kwikset 720MILRDT-11P Milan lever is a non-locking passage set for an interior door where privacy is not required. Turning either lever retracts the latch so the door opens from both sides.

Non-locking passage operation from both sides. Use this configuration only where the documented function matches the door application.

Product Details

• Manufacturer part number: 720MILRDT-11P
• Model: 720MILRDT
• Collection: Milan
• Product type: Passage Door Lever
• Application: Interior hall, closet, pantry or connecting-room door
• Operation: Non-locking passage operation from both sides
• Included configuration: Interior and exterior Milan levers with operating latch hardware; verify the current product documents for the exact faceplate and strike configuration.
• Rose shape: Round
• Material: Zinc
• Handing: Reversible
• Projection: 2-9/16″
• Lever length: 4.16″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ to 2-3/4″
• Cross bore: 2-1/8″
• ANSI/BHMA grade: Grade 2

Compatibility: Confirm the door thickness, adjustable backset, 2-1/8″ cross bore, handing and required latch faceplate and strike before ordering.
