Hager 17544 4" x 4" Square Corner Mortise Spring Hinge

Square Corner Mortise Spring Hinge - Sold Each

  • $9.05
Accepted payments
OR

Hager 17544 4" X 4" Square Corner Mortise Spring Hinge

Hager 17544 4" X 4" Square Corner Mortise Spring Hinge. This hinge features steel construction, square and 5/8" radius corners and includes mounting hardware. This spring hinge allows for automatic door closing and has adjustable tension (tool included). Hager residential hinges are provided without lubrication. It is recommended that you lubricate the hinges after installation. All Hager residential hinges conform to the light weight requirements of ANSI A156.1.

Features:

  • Spring Hinge
  • Adjustable Tension Tool Included
  • Steel Construction
  • Square and 5/8" Radius Corner
  • UL/CUL Listed
  • Three Knuckle
  • NRP - Non Removable Pin


Specifications:

  • 4" (102mm) x 4" (102mm)
  • 0.106 Metal Gauge
  • 8 Hole Count
  • 1 x 9 FH Screws


Hager residential hinges enhance the design of any home, with finishes that range from bright brass and antique bronze to satin nickel and bright chrome. Homeowners also gain additional peace of mind with Hager features such as interlocking security stud protection, fast riveted pins with rivet heads that are formed on both ends to prevent removal of the hinge pin, and hinges with non-removable pin set screws.

Additional Information

Hager 1754415 Installation Sheet Hager 1754415 Installation Sheet

Hager WarrantyView Hager Manufacturer Warranty

HagerShop All Hager Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

    • Weight
      0.5 lbs
    • SKU
      Hager-17544
    • Brand
      Hager
    • Collection
      Residential
    • Country Of Origin
      United States
    • Configuration
      Hinge
    • Finish
      Antique Bronze Matte Lacquered, Antique Nickel, Brass Tone Dichromate, Polished Brass, Polished Chrome, Prime Coat, Satin Brass, Satin Chrome
    • Function
      Spring Hinge
    • Height
      4
    • Made in America
      Yes
    • Material
      Steel
    • Product Class
      Residential
    • Theme
      Residential
    • Width
      4
    • ANSI Certification
      K81071F
    • Corners
      5/8" Radius Corner, Square Corner
    • Hinge Type
      Spring
    • Hole Pattern
      Zig Zag
    • Manufacturer Warranty
      Limited Lifetime
    • Number of Holes
      8
    • Number of Knuckles
      3
    • Sold
      in Pairs
    • UL Listed
      Yes

Planning on spending more than $1,200? We may be able to quote even lower prices.

Contact us with the products and quantities you want to purchase.

Large order discounts are valid for the product quantities quoted.

Product questions

Please to ask a question.
  • Bradley Williamson
    Apr 23, 2023, 17:32

    How many doors hinges are needed to close an exterior door?

    Administrator
    Apr 24, 2023, 07:23

    There are a lot of factors that go into this but 2 minimum, on the top and bottom. Depending on the door and how it is hung and closes you may need a third.

  • Anthony Buono
    Mar 12, 2023, 11:55

    is this door hinge available in black?

    Administrator
    Mar 13, 2023, 07:32

    I apologize, we do not have this item in black.
    Thank you,
    Customer Service

Flat Rate Shipping Charges

Note: Select items and Brands have Free Shipping and will show on product page.

  • Cart Total .01 to 99.99 = $9.95
  • Cart Total 100.00 to 199.99 = $12.95
  • Cart Total 200.00 to 298.99 = $14.95
  • Cart Total 299.00 and up = Free Shipping


Need to a make a return or report a damaged shipment?
No problem. Simply email cs@factorydirecthardware.com with your original invoice number and reason for return, and we'll email instructions for making your return.

We do ask that your return meets the following rules:

  • RGA request must be made within 60 days of receiving your order.
  • Products are in original packaging.
  • Products have not been installed or used.
  • Clearance returns are not accepted.



FAQ

Do I pay a restocking fee?

All  returns are subject to a 15% restocking fee.

Do I pay the return shipping?

We do not pay the return shipping unless an error was made on our end. We suggest shipping the return with FedEx or UPS so that proper tracking can be obtained.

What if my order was damaged or defective?

Please email cs@factorydirecthardware.com within 3 days of receiving the order to report the damage with pictures. We'll work to get replacements to you in a timely fashion.

How can I make an exchange?

We technically don't "exchange" orders. We find the easiest way to handle an exchange is to make your return and place a new order for the correct product. We will waive the 15% restocking fee if you let us know your new order number.

Important:

Special ordered products are not returnable.


Factory Direct Hardware
is the fastest growing place to buy products online. We take pride in guaranteeing your satisfaction with every purchase. Our manufactures and suppliers promise to deliver your quality products in excellent condition to your door. If for any reason you are not satisfied with your shipment we will gladly replace it or accept a return of the merchandise.

Within 60 days of order placement, you may return any product purchased from Factory Direct Hardware, Inc., provided that the merchandise is in new condition with original Packaging and accessories. Manager approval is required for any returns after 60 days and may be subject to a higher restocking fee. All returned merchandise is subject to a 15% restocking fee. Special order products and or non-stock products are considered special orders and are non-refundable.  Incurred shipping charges are not refundable. Customers must pay return shipping fees. Refunds or exchanges are only available on items that packaging has been opened and cannot be resold as new. We have the capability to customize some orders to our customers needs however these customized orders are nonreturnable and nonrefundable except by manager approval, and subject to a 50% restocking fee. Unapproved customized orders returned by the customer will be sent back at the customer's expense.

Factory Direct Hardware, Inc. is not responsible for any labor costs incurred as the result of the installation of wrong or defective parts. In addition, we're not responsible for lost shipments. Customers receive shipping information once the order has been shipped to allow you to know when to expect your products. You must file a lost shipment freight claim with the respective shipper if you product is lost. Finally, merchandise must have not been damaged in freight transit. If the delivering carrier is responsible for a lost and/or damaged shipment, the purchaser must file the appropriate transportation claim with the delivering carrier. All claims for shortage and/or damaged goods must be reported within five days of receipt of merchandise.


Items that may be returned for a refund:

  • Merchandise that has not been removed from its original packing
  • Defective merchandise
  • Merchandise that was mispackaged or was not shipped correctly
  • Merchandise that has not been installed
  • You must have the original packaging for the item (manufacturer's box, Styrofoam, plastic bags, etc.)
  • There cannot be any writing or labels on the packaging for the item
  • Packages must be sent back by customer via a traceable source, such as UPS. Please do not use USPS. Ground shipping only. If you return your product via a faster, more expensive shipper, you incur the expenses yourself and any request for reimbursement will be denied.
  • All items must be returned with their assigned return authorization (RGA) number. Items returned without an RGA number may delay credit.


PLEASE NOTE: Items marked as Clearance are not eligible for return unless defective. Please be aware that due to the nature of clearance sales we may not be able to offer a replacement on a defective clearance item. To cancel an order that has not yet shipped, please call our customer service department immediately at (855) 368-1040. Once an item or an order has been shipped it cannot be canceled, and you will have to process a general return.

Defective merchandise will be replaced with no restocking fee and can only be shipped UPS ground. The replacement item will be charge to the customer and the credit will be issued once the defective item has been received. Defective merchandise must be received within 60 days of order placement to receive a refund.

If your returned product does not match all applicable criteria listed below, it will be rejected by our returns department and returned back to you at the customers expense. Consequently, your RGA will be nullified and any credit request will be denied and any replacement order will be canceled. Our arrangements with our suppliers and manufacturers allow us no room to make exceptions.

You may contact our returns department by telephone (855) 368-1040 or fill out our online Returns Form to start the return process and receive a return goods authorization (RGA) number. Once you have set up your return, you will receive an email with an RGA number within 2 business days. Along with this return number you will receive a ship-to address where you must send your merchandise. Be sure to include your RGA number with your merchandise. This number will be used to guarantee you receive your credit. Note: If you return a product to us without an RGA number, your return may be subject to additional fees and delays. Product must be returned within 5 business days after receiving RGA number.

  • Include all original packing materials, manuals, and accessories with the product to avoid any additional fees.
  • We recommend items be returned via UPS or insured parcel post for proof of delivery. Please be certain that items are secure in their packaging so damage does not occur while they are in transit back to our warehouse.
  • You are responsible for all freight charges. However, you'll be credited all reasonable and customary freight charges relevant to that item if product is defective or the wrong item was shipped.


Refunds

We will notify you via email of your refund once we've received and processed the returned item.

PLEASE NOTE: We will refund shipping costs only if the return is a result of our error. We will do our best to process the return quickly.

Please allow 14-21 days for processing. Refunds will be credited to the original purchasing credit card account number or PayPal account only.

To begin processing a return, please Contact Us to Start a Return

Available in 8 Finishes

Our SKU: HagerHager-17544

This product is listed under the following manufacturer numbers

SKU Finish Price

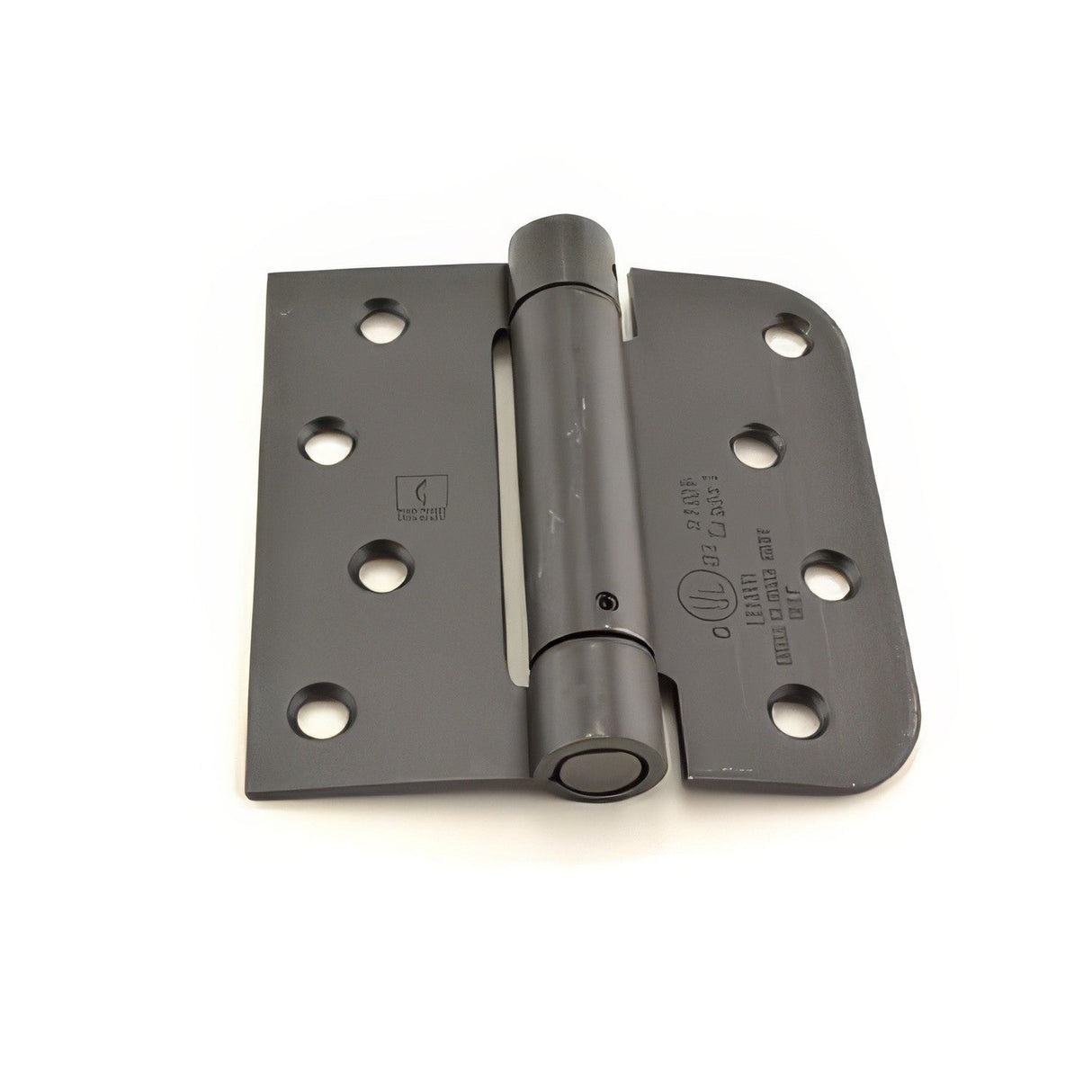

1754410R

Antique Bronze Matte Lacquered $9.05

1754415A

Antique Nickel $18.10

175442D

Brass Tone Dichromate $7.57

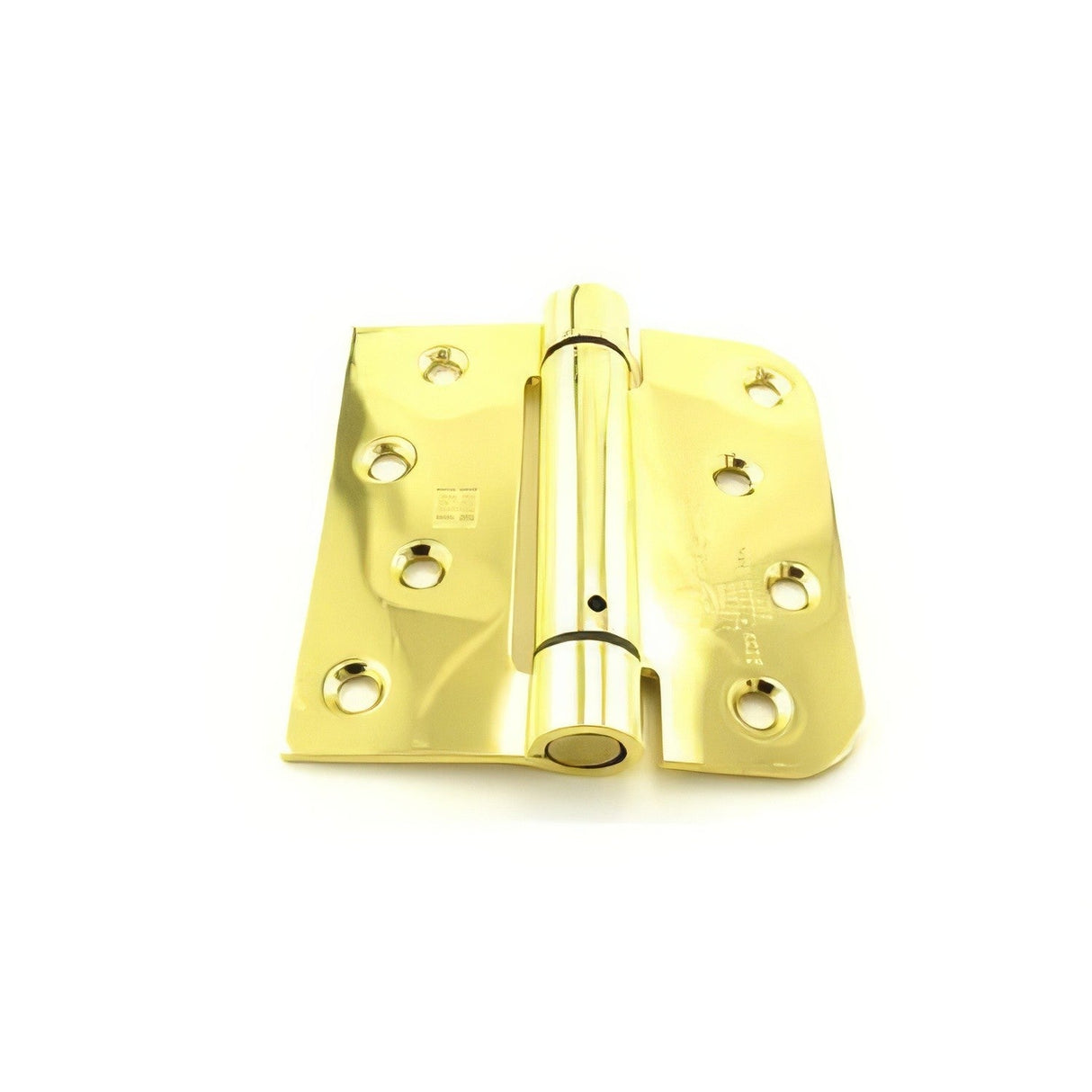

175443

Polished Brass $9.05

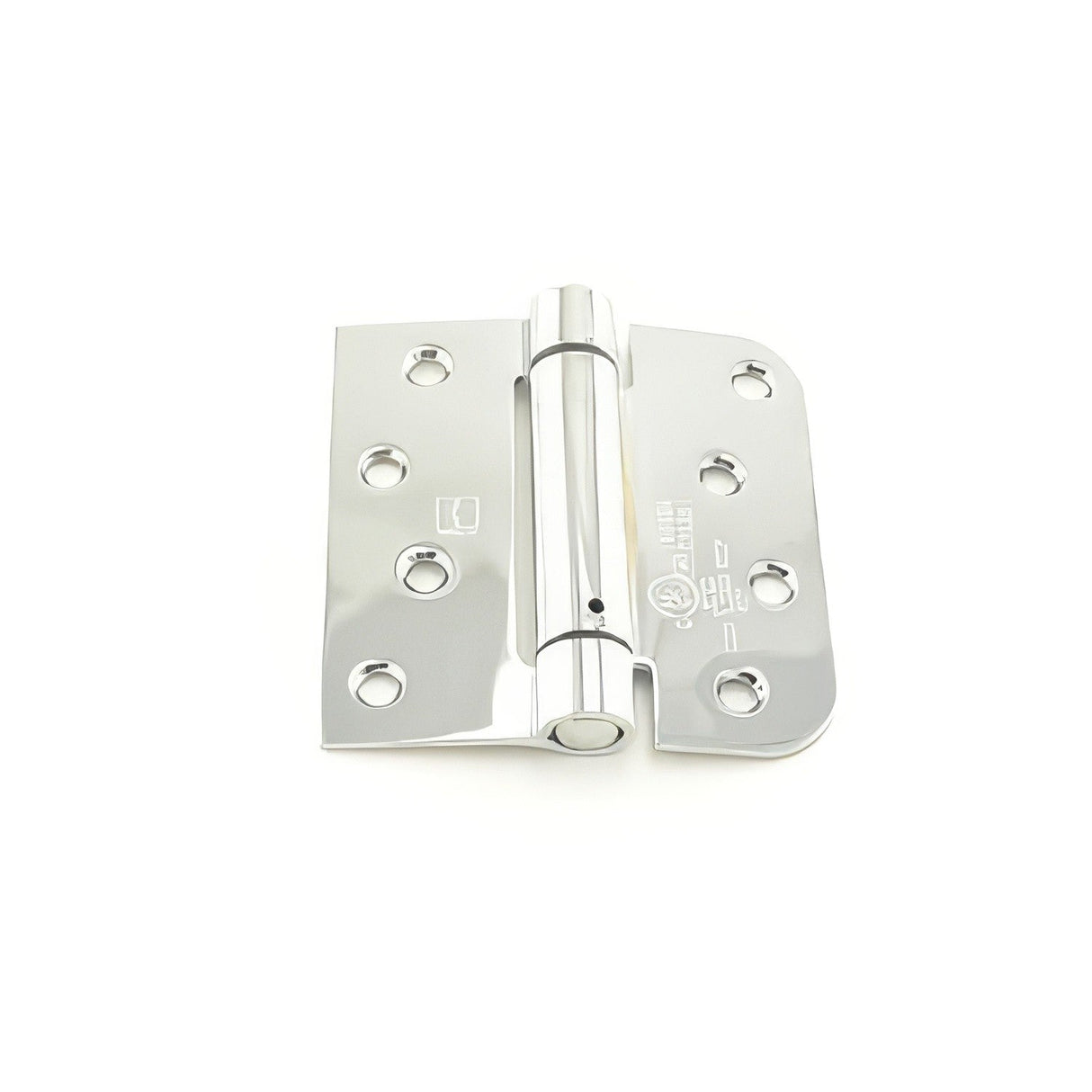

1754426

Polished Chrome $18.09

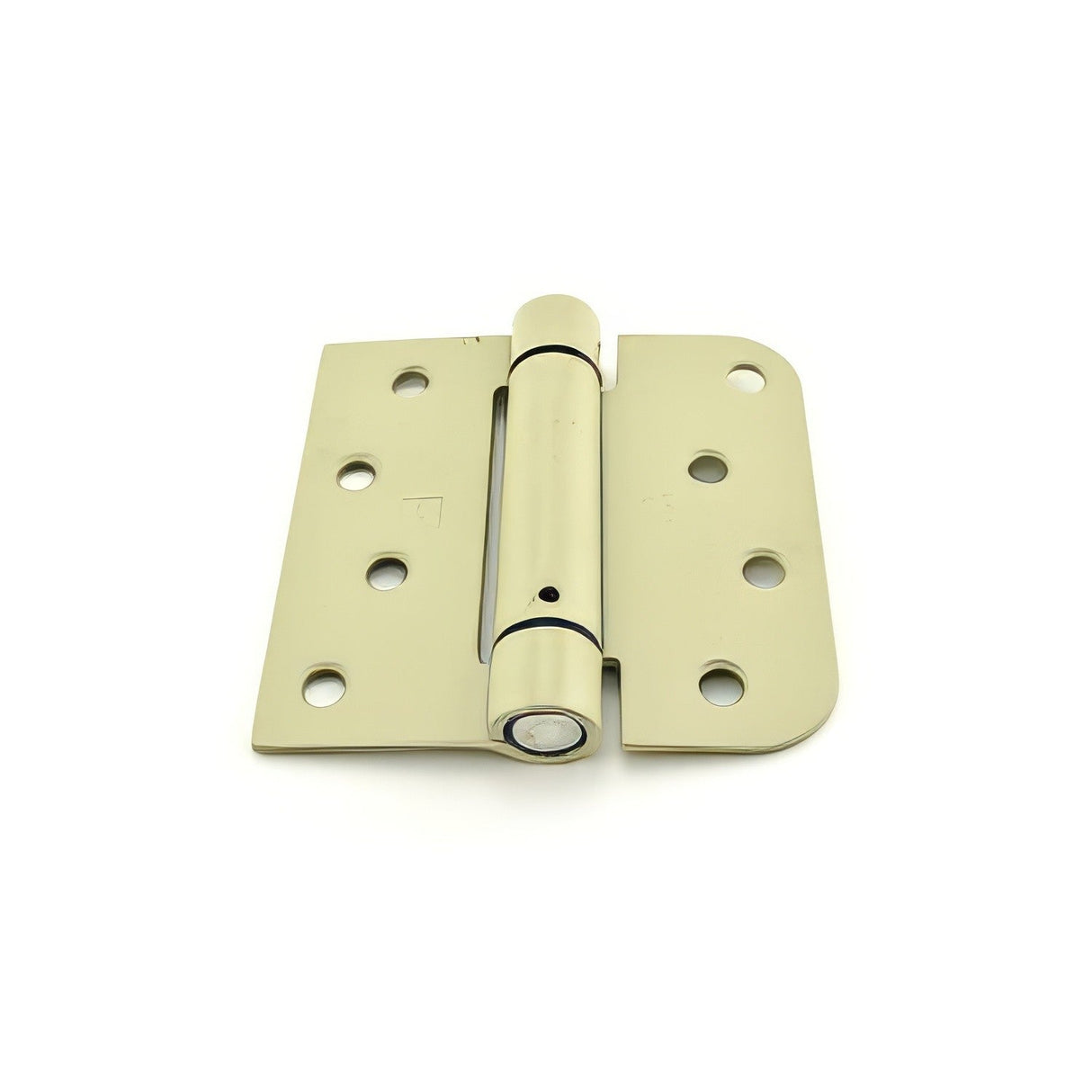

17544P

Prime Coat $7.57

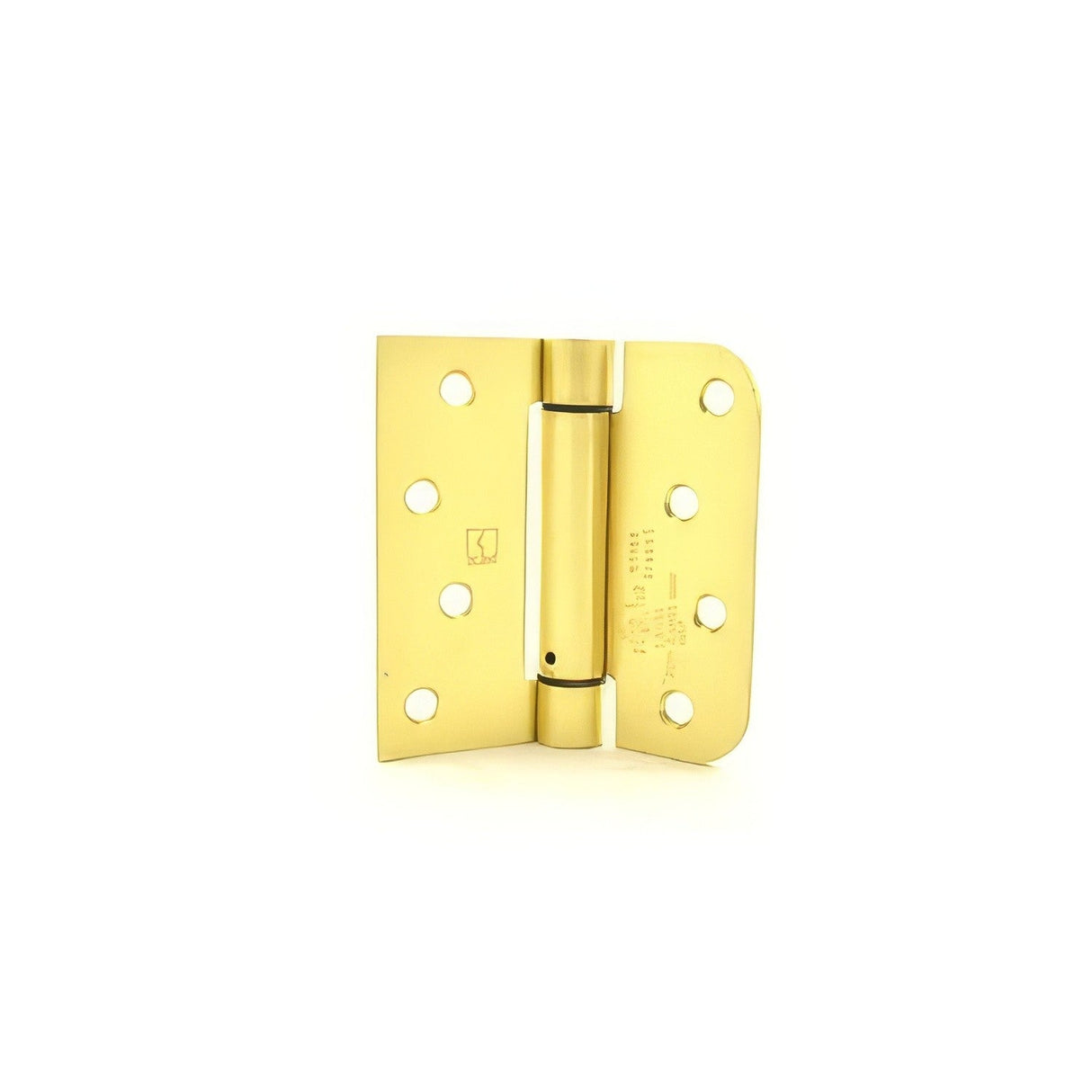

175444

Satin Brass $7.57

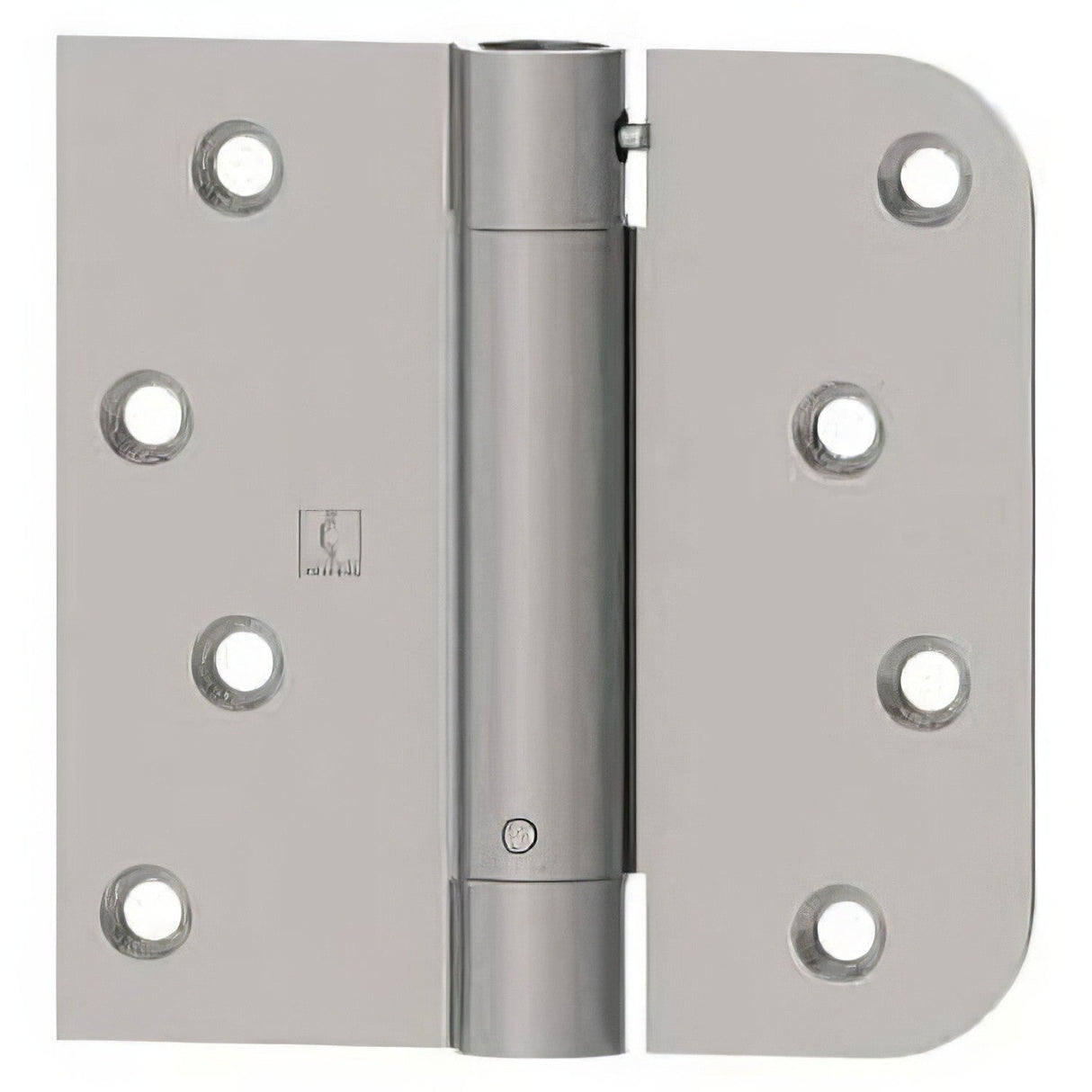

1754426D
