A commercial door that slams, closes too slowly, or fails to latch may need a door closer adjustment. Many hydraulic door closers have separate controls for closing speed, latching speed, and backcheck, allowing the door to operate smoothly without replacing the entire closer.
The key is knowing which adjustment controls which part of the door's movement. Sweep speed controls most of the closing cycle, latch speed controls the final few degrees, and backcheck cushions the door as it opens. Spring power is a separate setting that affects closing force.
This guide explains how to identify common adjustment screws, test a door closer, and troubleshoot problems. The exact valve positions, directions, and limits vary by manufacturer and model, so use the installation instructions for your specific closer before making changes.
How to Adjust a Door Closer: Quick Answer
For many adjustable hydraulic commercial closers, the usual process is to identify the model, observe the entire closing cycle, adjust the main or sweep speed in small increments, check the latch-speed phase, and then test backcheck during opening. Some units also have a delayed-action valve or a separate spring-power adjustment.
On many LCN-style hydraulic closers, turning a main-speed or latch-speed valve clockwise slows that portion of closing, while turning it counterclockwise speeds it up. Do not assume every closer uses the same controls or markings. Follow the manufacturer's valve diagram and adjustment limits; never remove a regulating screw.
Shop our door closers if the existing unit is damaged, leaking, or unsuitable for the opening.

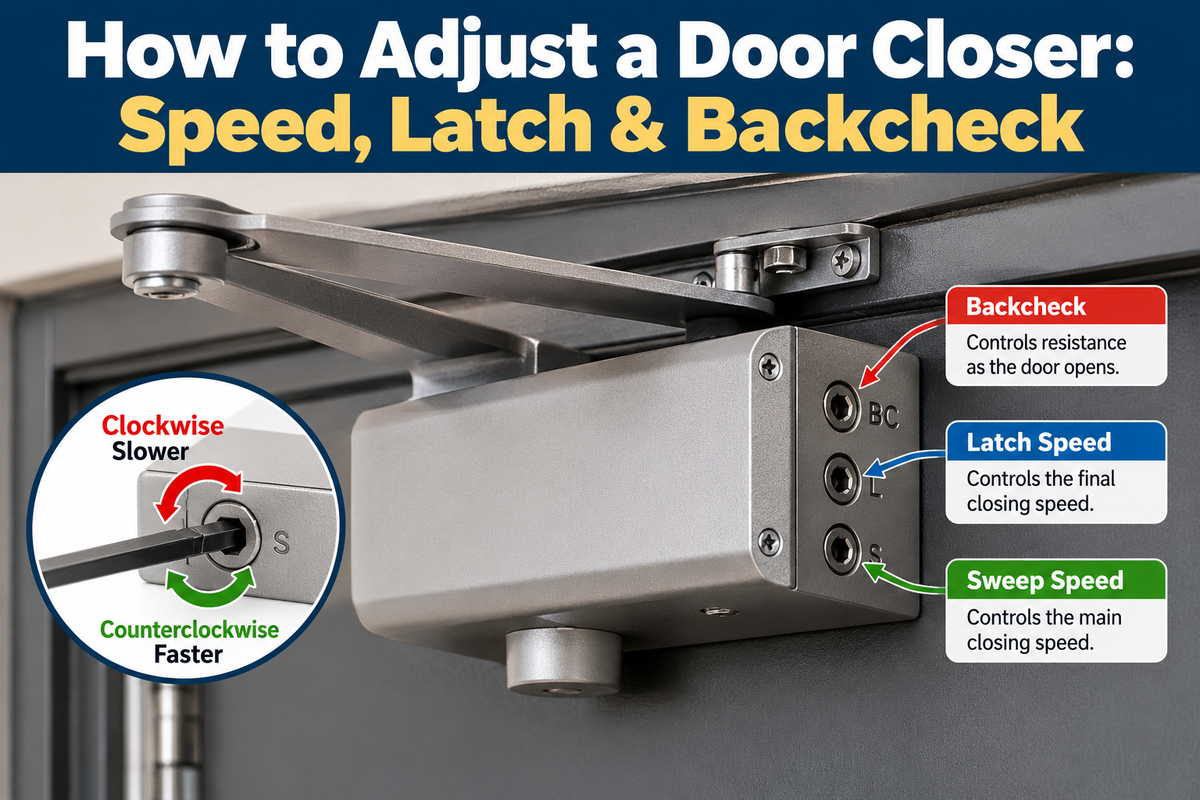

What Do Door Closer Adjustment Screws Control?
Most common commercial surface-mounted hydraulic closers use a spring to pull the door closed and hydraulic fluid to regulate the movement. A closer may have two, three, or more adjustment valves depending on its design.
Sweep Speed (Main Closing Speed)
The sweep, or main-speed, adjustment controls the door through most of its closing arc. If a door races toward the frame immediately after release, the main-speed setting may be too fast. If it creeps toward the frame and creates long waits, this phase may be too slow.
The label may say MAIN, SWEEP, C, or something else. Verify it with the manufacturer's diagram rather than relying on the location of the screw.
Latching Speed
The latching-speed adjustment controls the final part of travel as the door approaches the frame and the latch engages the strike. This phase must allow the door to close without banging while still latching reliably.
A latch-speed valve changes speed, not spring closing force. If the door repeatedly stops short of latching, check alignment, binding, and spring power rather than repeatedly opening the latch-speed valve to make the door hit harder.
Backcheck
Backcheck provides resistance during the opening swing, usually as the door approaches a wider open angle. It helps cushion a door pushed open forcefully. Backcheck does not control how fast the door closes and should never be treated as a substitute for a proper door stop.
Delayed Action
Some closers include delayed action, which slows the initial closing movement after a door has been opened widely. This can give people moving carts or using mobility devices more time to pass through. Not all closers offer delayed action, and the feature is different from holding a door open.
Spring Power (Closing Force)
Spring power determines how much force is available to bring the door back to the frame and engage the latch. Variable-power closers may have a separate spring-adjustment screw or nut. Increasing spring power can make the door harder to open, so this setting requires special care on accessible doors and fire-rated openings.
Before You Adjust a Hydraulic Door Closer
Start with a basic inspection. Adjusting valves cannot fix every door problem.
- Identify the closer: Record the manufacturer, series, model, and mounting arrangement. Look for a label on the body or under a removable cover.
- Get the instructions: Find the manufacturer's exact adjustment diagram, including valve names, permitted turn ranges, and any spring-power instructions.
- Inspect the opening: Check for loose hinges, a sagging door, frame contact, weatherstripping resistance, a misaligned strike, loose closer fasteners, or a damaged arm.
- Look for fluid: Oil around the closer body, end caps, or valves can indicate a failed seal. Stop adjusting and have the unit evaluated.
- Check the door's requirements: Fire-rated, smoke-control, accessible, and other regulated openings may have specific closing and latching requirements.
- Keep the door controlled: Make adjustments with the opening clear of people, and test without putting fingers near the hinge or arm.
Safety warning: Do not disassemble a closer body or spring assembly. Never back a hydraulic regulating valve out beyond the manufacturer's limit. Over-adjustment can cause fluid leakage, loss of control, property damage, or injury.
Step 1: Observe and Time the Closing Cycle
Open the door to approximately 90 degrees, release it safely, and watch its entire movement. Notice when it begins to slow down, whether it accelerates near the frame, and whether the latch engages the strike every time.
Use a phone stopwatch if helpful. For an accessible manual doorway covered by the 2010 ADA Standards, a closer must take at least five seconds to move from 90 degrees open to 12 degrees from the latch. This is not simply a five-second measurement from fully open to fully closed. Other standards and project requirements may also apply.
Write down the result before changing anything so you can tell whether each adjustment improves performance.
Step 2: Adjust the Main or Sweep Speed
Locate the main-speed adjustment identified in your closer's documentation. Make a very small adjustment, such as approximately one-eighth of a turn if the manufacturer permits it, then close the door several times to compare the result.
On many standard LCN hydraulic closers, clockwise adjustment reduces closing speed and counterclockwise adjustment increases it. Other products may differ, so the model instructions take priority.
A good sweep setting brings the door steadily through the main closing arc without a sudden rush or an excessive delay. Do not speed up a door simply to reduce wait time if accessibility or other requirements call for a slower closing cycle.
Step 3: Check the Latch-Speed Phase
After setting sweep speed, watch the final few degrees before the door meets the frame. The latch should enter the strike consistently, and the door should not bounce or strike the stop violently.
If the last part of closing is noticeably too fast, use the designated latch-speed valve to slow it slightly, following the manufacturer's instructions. If it is excessively slow, small changes may help, but do not use latch speed to compensate for insufficient closing power or a misaligned latch.
If the door will not latch, check for a dragging door, tight seals, pressure differences, misaligned strike plates, or inadequate spring force. Some LCN instructions specifically direct installers to address spring power rather than changing latch speed when a door does not latch.
Our door strike plate guide can help identify the frame-side hardware involved.
Step 4: Adjust Backcheck Only if Needed
Gently open the door toward its normal maximum swing and notice whether the closer provides controlled resistance near the wider open angle. Backcheck should cushion the motion rather than bring the door to an abrupt stop.
On many LCN models, a clockwise turn of the backcheck valve increases resistance, while a counterclockwise turn reduces it. Check your model's instructions before adjusting. Test the door's full opening travel afterward.
Backcheck is not a door stop. The opening still needs a suitable stop or other manufacturer-approved protection where required.
Step 5: Check Delayed Action and Spring Power, If Equipped
Delayed-action valves, when present, control an additional portion of the closing cycle. Adjust them only according to the specific closer's instructions, then verify the door still closes and latches as required.
If the closer has adjustable spring power, use the manufacturer's door-width and installation guidance. Do not turn the spring adjustment screw at random. Too little power may prevent latching; too much power may create excessive opening force, particularly at accessible entrances.
If the closer is a fixed-power model, an inappropriate spring size may require a different closer rather than an adjustment. Our door closer selection guide explains how size, arm configuration, mounting style, and opening requirements affect product choice.
Door Closer Adjustment Screws: What Do 1 and 2 Mean?
Some closers identify adjustment screws with numbers rather than words. A marking such as 1 or 2 does not have a universal meaning across all manufacturers or models.
Do not guess which one controls sweep speed and which one controls latching. Use the model's instructions or a labeled diagram from the manufacturer. Likewise, do not assume the closest visible screw is the spring-power adjuster.
If the cover conceals the model name, check the instructions before removing it. Never remove mounting fasteners or dismantle a spring-loaded closer to locate adjustment valves.
Why Is My Door Closer Slamming?
The Door Slams Through Most of Its Closing Arc
The sweep speed may be too fast. Check the main-speed adjustment, but also look for hydraulic fluid leaks or a failed closer. A closer with lost hydraulic control may not respond normally to valve adjustments.
The Door Moves Normally, Then Bangs at the End
The latching phase may be too fast, or there may be a strike, frame, or arm-geometry problem. Verify that the latch and strike are correctly matched and the door closes freely.
The Door Will Not Latch
Inspect the strike plate, lockset, hinges, door sweep, seals, and air pressure before adjusting the closer. A speed valve does not create additional spring force. If the installation requires more closing force, consult the manufacturer's spring-power instructions or a qualified door-hardware technician.
The Door Closes Too Slowly
Check whether the main-speed setting is too restrictive, whether delayed action is engaged, and whether the door is binding. Maintain any required accessible closing time rather than making the door close as fast as possible.
The Door Is Hard to Open
Excessive spring power, a misapplied closer size, incorrect arm installation, binding hinges, or a backcheck setting that engages too early can contribute. Opening resistance and closing speed are different issues; reducing speed alone usually will not solve high opening force.
The Door Flies Open Into the Wall
Check the backcheck function and the condition of the door stop. Increase backcheck resistance only as the manufacturer permits. Do not depend on the closer to act as the stop.
Door Closer Adjustment and ADA Accessibility
Door closing speed matters for accessibility. Under the 2010 ADA Standards, a manual door closer on a covered accessible doorway must allow at least five seconds for the door to travel from 90 degrees open to 12 degrees from the latch.
Opening force is a separate requirement. Many accessible interior hinged doors other than fire doors have a maximum opening-force requirement of five pounds under the ADA Standards. Exterior hinged doors and fire doors are treated differently, and local codes or other standards may impose additional requirements.
A closer marketed as accessible is not automatically compliant in every installation; the completed doorway must perform appropriately. Explore our accessibility-focused door closer options, then verify the exact model and opening requirements.
Special Considerations for Fire-Rated Doors
A fire-rated door must meet the requirements for its listed assembly, including appropriate closing and latching operation. Do not defeat the closer, wedge the door open, or install an unapproved mechanical hold-open feature.
Approved automatic-release hold-open systems are a separate category and must be designed and installed for the opening. If a fire door fails to close or latch, have the assembly evaluated promptly by qualified personnel.
Door closer adjustments on a fire-rated or other regulated opening should follow the closer instructions, hardware schedule, applicable standards, and authority having jurisdiction. Never trade reliable latching for a quieter closing sound.
When Should You Replace a Door Closer Instead of Adjusting It?
Minor speed problems may be adjustable, but a hydraulic closer is not always repairable in the field. Replacement or professional service may be appropriate when:
- Hydraulic fluid is leaking or there is little response to permitted valve adjustments.
- The body is cracked, loose, corroded, or visibly damaged.
- The arm, mounting plate, fasteners, or track is damaged or incompatible.
- The closer lacks the appropriate spring size, mounting configuration, or required features.
- The door still fails required closing or latching tests after alignment and manufacturer-approved adjustments.
Browse door closer parts for compatible arms, covers, brackets, and other service components, or shop LCN door closers and LCN replacement parts when servicing an identified LCN model. Always match the original series and mounting arrangement.
Frequently Asked Questions About Door Closer Adjustment
Which way do I turn a door closer screw to slow it down?
On many common hydraulic closers, turning the main-speed or latch-speed regulating valve clockwise slows that part of the closing cycle. Check the actual manufacturer's instructions: valve names, direction, and permitted range vary.
What is the difference between sweep speed and latch speed?
Sweep speed controls most of the door's closing travel. Latch speed controls the final portion just before the latch engages the frame-side strike.
What does backcheck do on a door closer?
Backcheck cushions the door as it opens toward a wider angle. It does not control closing speed, and it is not a substitute for a door stop.
Can adjusting latch speed make a door latch harder?
Latch speed changes the rate of movement, not the spring force available for latching. If the door cannot latch reliably, investigate alignment, resistance, and spring power rather than relying on extra impact speed.
How many turns can I adjust a closer valve?
There is no universal number. Each model has specific limits. For example, Allegion warns that opening LCN regulating valves too far can damage seals and cause hydraulic leaks. Follow the exact installation instructions.
Are screen-door and storm-door closer adjustments the same?
Not necessarily. Many screen and storm doors use a pneumatic closer with a different design and adjustment method. This guide focuses on common hydraulic commercial door closers; refer to the manufacturer for a pneumatic closer.
Can I adjust a door closer on a fire door myself?
Fire-rated openings have listing and performance requirements. If you are not responsible for and qualified to service that assembly, contact the facility manager or a qualified door-hardware professional. The door must continue to close and latch properly.
Choose the Right Door Closer and Replacement Parts
Successful door closer adjustment starts by separating closing speed, latching speed, backcheck, and spring power. Observe the problem, identify the model, make only manufacturer-permitted adjustments, and retest the complete door opening.
If the unit is leaking, damaged, incorrectly sized, or unable to latch reliably, further valve adjustments may not be the answer. Factory Direct Hardware offers commercial door closers, surface-mounted closers, closer replacement parts, and LCN door hardware for compatible repair and replacement projects.
For help selecting a different unit, read How to Choose a Door Closer: Types, Sizes & Mounting Options before ordering.
