When replacing a door knob, lever, deadbolt, or latch, one of the first things to check is how the latch is installed in the edge of the door.
Some doors use a drive-in latch with a round collar. Others use a rectangular latch faceplate with either square corners or rounded corners.
These differences may seem minor, but choosing the wrong latch style can prevent the replacement hardware from fitting the existing door preparation.
The correct replacement must match more than the visible faceplate. Backset, bore size, lock manufacturer, latch function, and compatibility with the existing knob or lever are also important.
This guide explains the differences between drive-in, square-corner, and round-corner door latches, how to measure an existing latch, and what to check before ordering replacement door hardware.

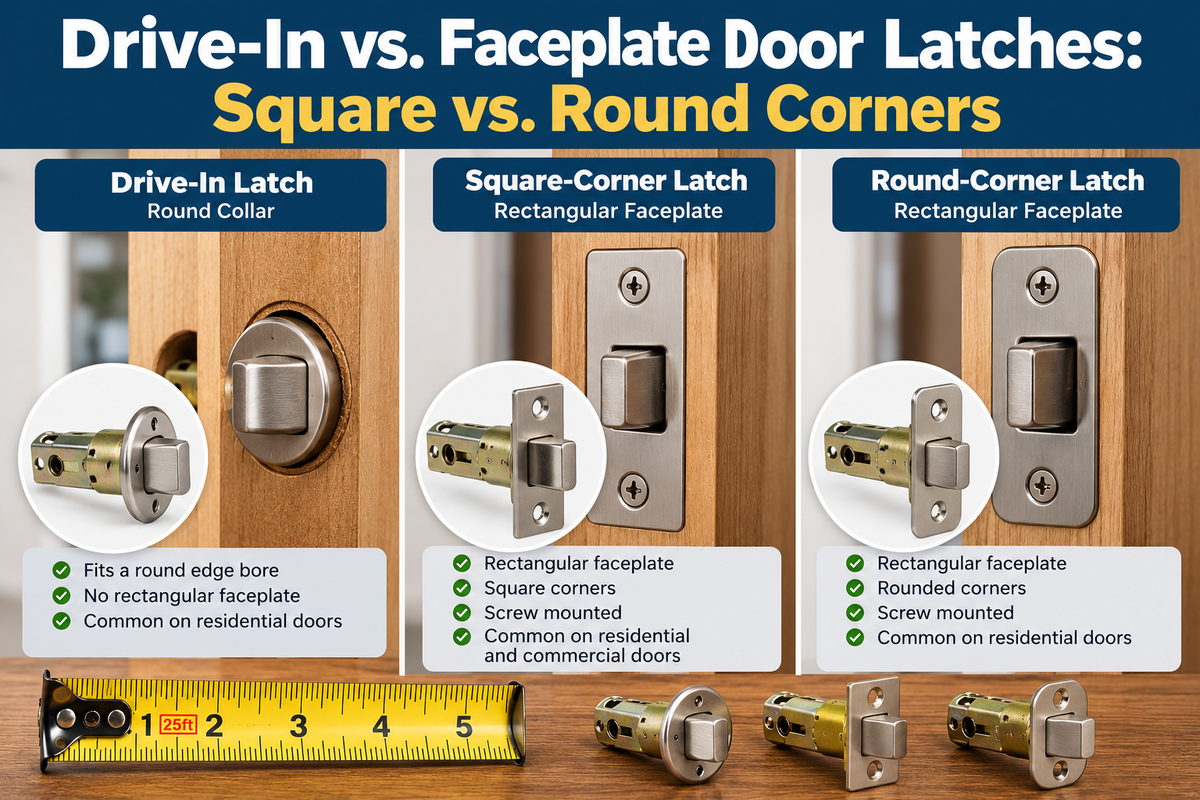

Drive-In vs. Faceplate Door Latches: Quick Answer
The primary difference between a drive-in latch and a faceplate latch is how the latch assembly is secured to the edge of the door.
Drive-in latch: Uses a circular collar or housing that fits into the door's edge bore. It generally does not require a rectangular faceplate or the two faceplate mounting screws used by traditional rectangular latch assemblies.
Square-corner faceplate latch: Uses a rectangular metal faceplate with square corners. The plate typically fits into a matching recessed preparation in the door edge and is secured with screws.
Round-corner faceplate latch: Uses a rectangular faceplate with rounded corners. Like the square-corner version, it is typically secured with screws in a matching recessed preparation.
All three styles can be found on residential door hardware, but they are not automatically interchangeable.
Browse our Door Latches collection to compare available replacement latch assemblies and related parts.
What Is a Door Latch?
A door latch is the mechanism installed in the edge of a door that helps keep the door closed.
On a typical door knob or lever, turning the handle retracts a spring-loaded latchbolt into the door. When the handle is released, the latchbolt extends again.
As the door closes, the angled surface of the latch contacts the strike plate installed in the door frame. The latch retracts and then extends into the strike opening when the door is properly aligned.
A latch assembly may include:
- Latchbolt
- Spring mechanism
- Latch housing
- Operating mechanism connection
- Faceplate or drive-in collar
- Mounting components
The exact construction depends on the lock manufacturer, series, and operating function.
A replacement latch must be compatible with the complete lockset, not simply the existing door opening.
What Is a Drive-In Door Latch?
A drive-in latch is a latch assembly designed to fit into a round opening in the edge of a door without a traditional rectangular faceplate.
Instead of using a rectangular metal plate secured by two screws, a drive-in latch generally uses a circular collar that retains the latch in the door preparation.
Drive-in latches are commonly encountered on residential door knobs, levers, and certain deadbolt assemblies.
A typical residential drive-in latch may be designed for a 1-inch edge bore, although the manufacturer's requirements should always be verified.
The drive-in collar is installed according to the manufacturer's instructions so that the front of the assembly sits correctly against the door edge.
Advantages of Drive-In Latches
Drive-in configurations can simplify installation when the door has already been prepared for this type of latch.
Potential advantages include:
- No rectangular faceplate recess required
- Compatibility with certain round edge-bore preparations
- A clean, circular appearance on the door edge
- Convenient replacement when the original door uses a drive-in latch
However, the collar, latch body, bore dimensions, and lockset must all be compatible.
Do not assume that every latch can be converted to a drive-in configuration.
When Should You Use a Drive-In Latch?
A drive-in replacement is generally appropriate when the existing door was prepared for a compatible drive-in latch and the replacement assembly is approved for the lock.
If the door already has a rectangular mortise for a faceplate, a drive-in latch may not be the best direct replacement.
Whenever possible, match the original manufacturer's latch configuration.
What Is a Square-Corner Door Latch?
A square-corner latch uses a rectangular metal faceplate with four square corners.
The faceplate surrounds the latchbolt at the edge of the door and is normally secured using two mounting screws.
The plate typically fits into a matching rectangular recess cut into the door edge.
Square-corner latch faceplates are common on residential and commercial door hardware, including many Schlage lock families.
A commonly encountered faceplate size is 1 inch wide by 2-1/4 inches tall, although other dimensions are available.
Some commercial and specialty locksets require larger or differently configured faceplates.
The existing door preparation should determine which faceplate configuration is appropriate.
When Should You Choose a Square-Corner Latch?
A square-corner replacement is usually the most straightforward option when the door already has a square-corner faceplate recess and the latch is compatible with the existing lockset.
Before ordering, compare the faceplate dimensions, screw-hole spacing, latch housing, and backset.
Two latches with identical-looking faceplates may still use different internal operating mechanisms.
What Is a Round-Corner Door Latch?
A round-corner latch also uses a rectangular faceplate secured to the edge of the door.
The difference is that the plate has rounded corners rather than square corners.
Round-corner faceplates are common on residential knobs, levers, and deadbolts.
Some manufacturers offer interchangeable faceplates that allow a compatible latch assembly to be configured for different door preparations.
For example, certain Schlage products are offered with a round-corner faceplate and an optional drive-in collar.
However, not every latch includes multiple faceplate options.
Why Does the Corner Shape Matter?
The faceplate must fit the existing recess in the door edge.
A square-corner faceplate may not fit properly into a recess with rounded corners unless the door preparation is modified.
Similarly, a rounded-corner faceplate installed in a square-corner recess may leave visible gaps.
For replacement projects, matching the existing corner shape usually provides the cleanest installation.
Square-Corner vs. Round-Corner Faceplates
The main difference is the shape of the faceplate corners.
Both configurations may be available for the same general type of residential latch.
The correct choice depends on:
- Existing door-edge preparation
- Faceplate width and height
- Corner radius
- Mounting screw locations
- Lock manufacturer and series
- Latch compatibility
If the faceplate has rounded corners, the corner radius may also matter.
Do not assume that all rounded-corner faceplates use the same radius.
When the original latch is available, compare it with the manufacturer's dimensional drawing before ordering.
What Is the Standard Door Latch Faceplate Size?
One common residential latch faceplate size is 1 inch by 2-1/4 inches.
This size is used on numerous residential knob, lever, and deadbolt configurations.
However, there is no single faceplate size that fits every lock.
Commercial hardware, mortise locks, older doors, and specialty locksets may use different dimensions.
Some deadbolt assemblies also use wider faceplates than a typical residential spring latch.
Always confirm the dimensions listed for the exact replacement product.
How to Measure a Replacement Door Latch
Measuring the existing latch is one of the most important steps when ordering a replacement.
Ideally, identify the manufacturer and lock series before removing the old hardware.
Step 1: Identify the Latch Style
Open the door and examine the latch at the edge.
Determine whether it uses:
- A circular drive-in collar
- A square-corner rectangular faceplate
- A round-corner rectangular faceplate
Record the existing configuration.
Step 2: Measure the Backset
Backset is the distance from the edge of the door to the center of the main lock bore.
Two common residential backsets are:
2-3/8 inches: Frequently used on residential doors.
2-3/4 inches: Also common on residential and commercial-style door preparations.
Some older or specialized hardware uses other backsets.
Do not measure only the overall length of the latch assembly. Backset is a specific door-preparation measurement.
For detailed instructions, read our Door Backset Measuring Guide.
Step 3: Measure the Faceplate
If the latch has a rectangular faceplate, measure its overall height and width.
Also note the corner shape and screw-hole spacing.
If the latch uses a circular drive-in collar, measure the collar and verify the required edge-bore diameter.
Step 4: Check the Door Edge Bore
The edge bore is the hole drilled into the edge of the door for the latch assembly.
A 1-inch edge bore is common on many residential locksets.
However, the correct diameter depends on the product.
Do not enlarge the opening without confirming the required preparation.
Step 5: Identify the Lock Manufacturer and Series
Look for manufacturer markings on the latch, faceplate, knob, lever, or other visible hardware.
Useful information includes:
- Brand name
- Lock series
- Part number
- Backset
- Lock function
- Door preparation
This information can help identify a compatible replacement without unnecessary modifications.
Adjustable vs. Fixed-Backset Door Latches
Many modern residential door latches are adjustable for either 2-3/8-inch or 2-3/4-inch backsets.
These are sometimes described as adjustable or dual-backset latches.
Other latches are manufactured for a fixed backset and cannot be adjusted.
Commercial hardware frequently uses series-specific latch assemblies that must be ordered for the correct backset and function.
Always verify the adjustment method in the manufacturer's instructions.
Do not attempt to change the length of a fixed-backset latch unless the manufacturer provides an approved adjustment procedure.
Can You Convert a Faceplate Latch to a Drive-In Latch?
Sometimes, but compatibility depends on the latch design.
Some manufacturers offer latch assemblies with interchangeable front components.
These may allow the installer to switch between a square-corner faceplate, round-corner faceplate, and circular drive-in collar.
Other latch assemblies are manufactured for one particular configuration.
For example, some Kwikset replacement latches are sold without the faceplate or drive-in collar and require the appropriate existing component.
Never assume that a replacement latch includes all three front configurations.
Check the product description and installation instructions before ordering.
Are Schlage Door Latches Interchangeable?
Schlage offers multiple latch configurations across its residential and commercial hardware families.
Certain residential products support interchangeable faceplates or drive-in collars.
However, Schlage latches are not universally interchangeable across every lock series.
Differences may include:
- Latch mechanism design
- Backset
- Faceplate dimensions
- Lock function
- Spring-latch or deadlatch configuration
- Door preparation
- Commercial versus residential lock construction
Matching the original Schlage lock series and replacement part number is usually the most reliable approach.
Browse our Schlage Catches and Latches collection for available manufacturer-specific components.
Are Drive-In Latches Better Than Faceplate Latches?
Not necessarily.
Neither style should be considered universally better simply because it uses a different mounting method.
The primary goal is to match the latch to the door preparation and lock manufacturer's specifications.
A properly installed drive-in latch may be appropriate for a compatible residential door.
A screw-mounted faceplate latch may be appropriate where the door has a matching mortised preparation.
Performance also depends on the latch construction, lock grade, installation, and expected use.
For commercial and institutional openings, follow the required hardware specifications rather than choosing a latch style based only on convenience.
Spring Latches vs. Deadlatches
Latch mounting style and latch operating function are two different considerations.
A spring latch normally retracts when the knob or lever is operated and extends when released.
A deadlatch includes an additional mechanism intended to prevent the latchbolt from being forced back under specified conditions.
Some deadlatches use an auxiliary deadlocking plunger that must contact the strike correctly when the door is closed.
Replacing a deadlatch with an ordinary spring latch may change the intended security and operating characteristics of the lock.
Always identify the original latch function before selecting a replacement.
Door Latches vs. Deadbolt Assemblies
Door knobs and levers commonly operate spring-loaded latch mechanisms.
Deadbolts use a separate bolt assembly that extends and retracts through operation of the key, thumbturn, or another approved mechanism.
Although manufacturers may offer similar faceplate or drive-in configurations for both products, the mechanisms are not interchangeable.
A deadbolt assembly must match the exact deadbolt lock and its intended door preparation.
Browse our Deadbolts collection when replacing or selecting complete deadbolt hardware.
What Is the Difference Between a Latch Faceplate and a Strike Plate?
These two components are frequently confused.
Latch faceplate: The component mounted to the edge of the door around the latch or bolt.
Strike plate: The component mounted to the door frame where the latch or deadbolt engages.
These parts perform different functions and generally have different dimensions.
For example, a residential latch may use a 1-inch by 2-1/4-inch faceplate, while its corresponding strike plate uses a different size.
If you are replacing frame-side hardware, see our Door Strike Plates Guide for information about T-strikes, full-lip strikes, ANSI strikes, deadbolt strikes, and common measurements.
You can also browse our Strike Plates collection for replacement frame hardware.
Why Won't My Replacement Door Latch Fit?
If a new latch does not fit the existing door, several factors may be responsible.
Incorrect Backset
The latch may be configured for a different backset than the existing door preparation.
Wrong Faceplate Shape
A square-corner faceplate may not fit into a rounded-corner recess without modification.
Incorrect Latch Housing
The replacement latch body may have a different diameter or other dimensions than the existing assembly.
Incompatible Lock Mechanism
Even if a latch fits the door opening, it may not engage correctly with the knob or lever mechanism.
Incorrect Latch Function
A replacement spring latch may not be suitable for an opening originally equipped with a deadlatch or specialized locking function.
Missing Drive-In Collar
Some replacement latch assemblies do not include the circular drive-in collar or rectangular faceplate.
If the original component is missing, a compatible replacement may need to be ordered separately.
Can You Install a Square-Corner Latch on a Round-Corner Door?
A square-corner faceplate may not fit the original rounded recess.
Depending on the door and hardware, modifying the recess might be possible.
However, choosing a compatible round-corner replacement is generally preferable when the existing preparation is in good condition.
On commercial or fire-rated doors, modifications should not be made without verifying the applicable manufacturer instructions, listings, and requirements.
How to Replace a Door Latch
Replacement procedures vary by manufacturer and lock series.
For a typical residential door, the general process includes:
- Open the door and identify the existing latch configuration.
- Record the manufacturer, lock series, backset, and faceplate style.
- Confirm the replacement latch is compatible with the lockset.
- Follow the manufacturer's instructions for removing the knob, lever, or other required components.
- Remove the existing latch assembly.
- Install the compatible replacement using the required faceplate, collar, and mounting hardware.
- Reassemble the lockset according to the manufacturer's instructions.
- Test latch operation with the door open.
- Close the door and verify proper engagement with the strike plate.
Do not force a latch into an incompatible opening or operate a lock against a misaligned strike.
If the door is fire-rated or uses specialized commercial hardware, use approved components and follow the applicable installation requirements.
How to Choose the Right Replacement Door Latch
The easiest way to avoid ordering the wrong latch is to start with the existing hardware.
Identify the lock manufacturer and series, then determine the latch style and backset.
Compare the replacement's dimensions and operating mechanism with the original component.
For residential doors, consider whether the existing latch uses an interchangeable faceplate system.
For commercial doors, verify the complete lock specification and any required certifications or listings.
If the original part number is available, use it to identify the replacement rather than relying only on appearance.
Door Latch Replacement Checklist
Before ordering a replacement latch, confirm:
- Lock manufacturer
- Lock series or model number
- Door knob, lever, or deadbolt application
- Spring latch, deadlatch, or bolt assembly
- Drive-in, square-corner, or round-corner configuration
- Faceplate dimensions
- Corner radius if applicable
- Screw-hole spacing
- Door backset
- Edge-bore diameter
- Door thickness
- Required finish
- Included collar or faceplate components
- Applicable manufacturer specifications
- Required fire or commercial listings
Taking these measurements before ordering can help prevent unnecessary returns and installation problems.
Frequently Asked Questions
What Is a Drive-In Door Latch?
A drive-in latch is a latch assembly secured in a round door-edge preparation using a circular collar rather than a traditional rectangular screw-mounted faceplate.
What Is the Difference Between Square-Corner and Round-Corner Latches?
Square-corner latches have rectangular faceplates with square corners. Round-corner latches use rectangular faceplates with rounded corners. The correct replacement should match the existing door preparation.
What Size Is a Standard Door Latch Faceplate?
A common residential latch faceplate measures 1 inch by 2-1/4 inches. Other sizes are available, particularly for commercial and specialty hardware.
Are Door Latches Universal?
No. Replacement latches must match the lock manufacturer, series, backset, operating mechanism, and door preparation.
Can I Change a Drive-In Latch to a Faceplate Latch?
Some latch assemblies support interchangeable front components, but not all do. Verify compatibility and the required door preparation before attempting a conversion.
Can I Replace Only the Door Latch?
Often, yes, provided a compatible replacement latch is available and the other lock components remain serviceable.
Are Deadbolt Latches the Same as Door Knob Latches?
No. A deadbolt uses a bolt assembly designed for its locking mechanism, while a typical knob or lever uses a spring-loaded latch. The parts are not automatically interchangeable.
What Is an Adjustable Door Latch?
An adjustable latch is designed to accommodate more than one specified backset, commonly 2-3/8 inches or 2-3/4 inches on many residential products.
Why Does My Door Latch Stick?
Possible causes include an incompatible latch, incorrect installation, strike misalignment, worn hardware, or door movement. Identify the problem before replacing parts.
Where Can I Buy Replacement Door Latches?
Factory Direct Hardware carries replacement door latches and related hardware for residential and commercial applications. Choose a replacement based on the manufacturer's specifications and the existing lock configuration.
Choosing Between Drive-In and Faceplate Door Latches
The most important factor when choosing a replacement door latch is compatibility with the existing door and lockset.
A drive-in latch is intended for a compatible circular edge-bore preparation. Square-corner and round-corner faceplate latches use rectangular plates that fit matching recessed preparations.
Beyond the faceplate style, verify the backset, latch mechanism, manufacturer, lock series, and included components.
Not every latch is interchangeable, even when the visible dimensions appear similar.
For replacement projects, matching the original manufacturer's latch configuration is usually the most reliable approach.
Browse Factory Direct Hardware's Door Latches, Schlage Catches and Latches, Keyed Entry Door Knobs, and Keyed Entry Door Levers to compare available hardware.
For more guidance on door preparation and replacement measurements, visit our Hardware Learning Center.
