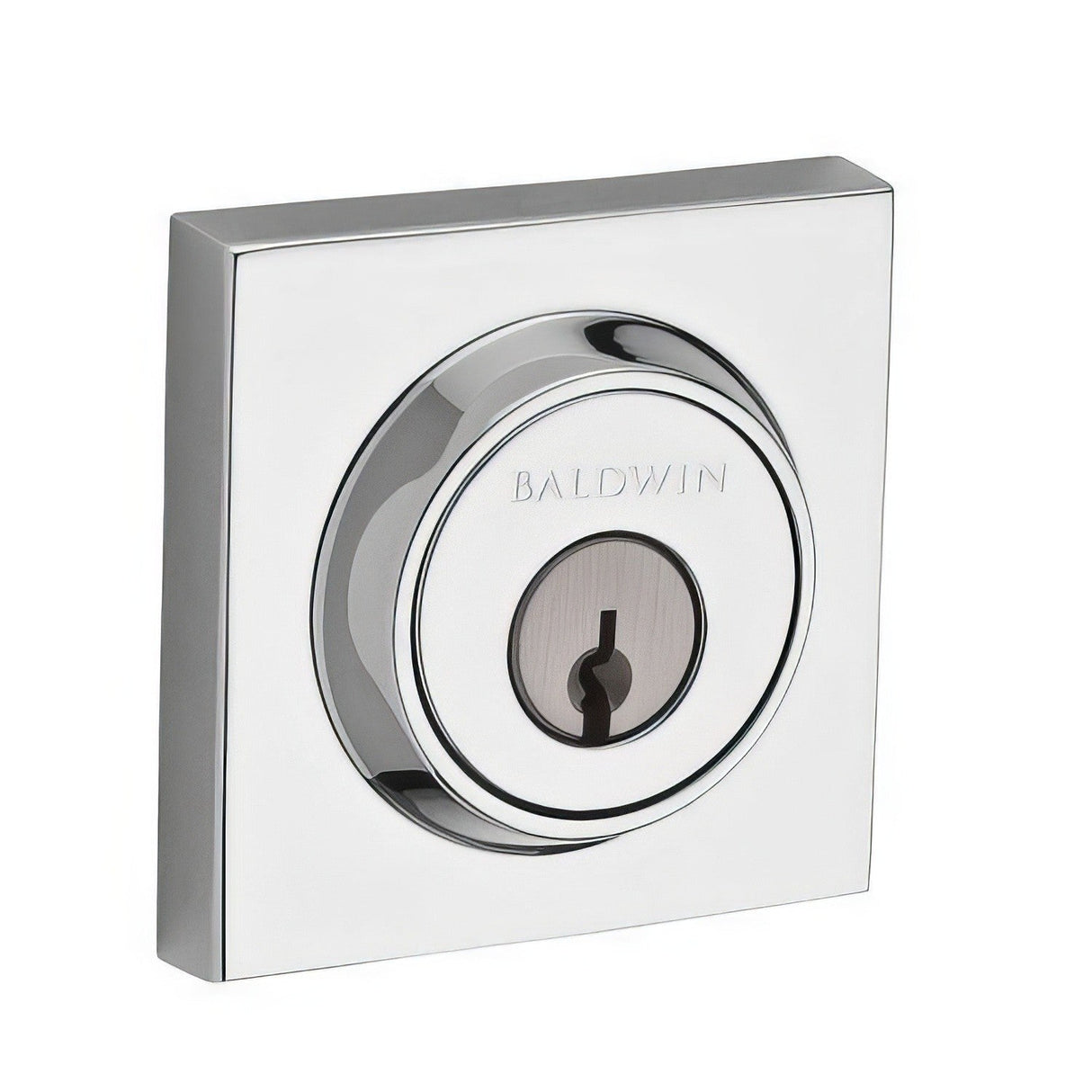

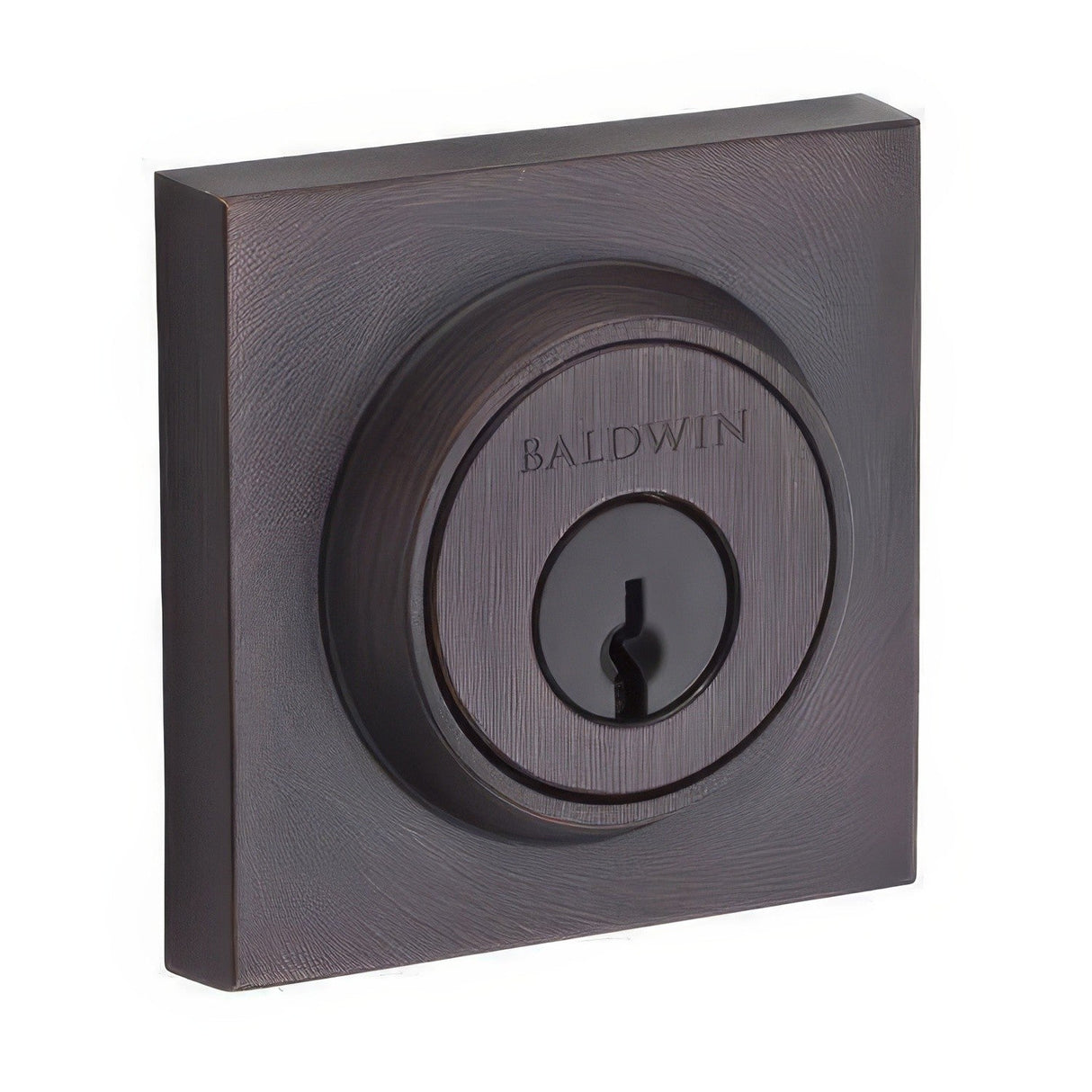

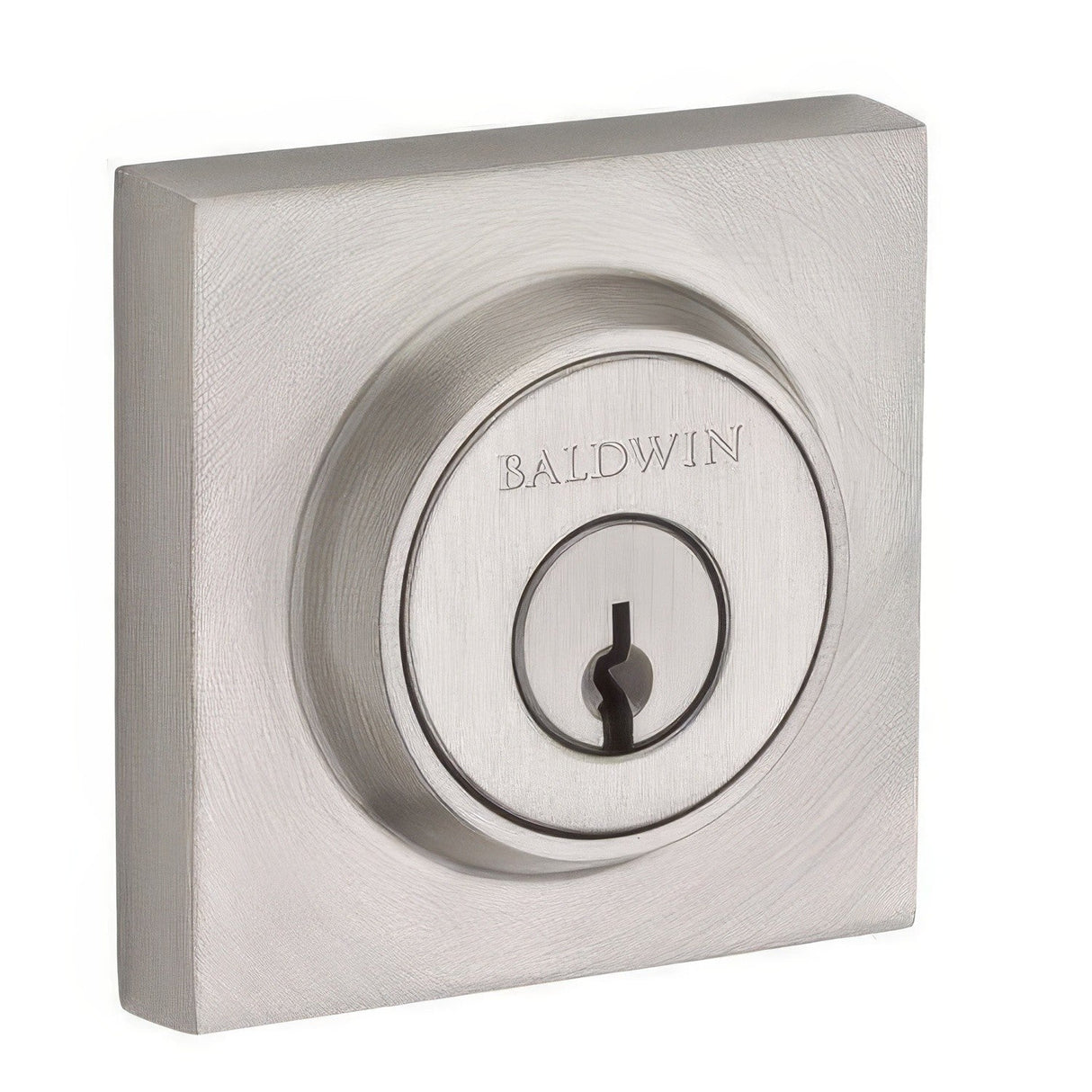

Baldwin DC.CSD Contemporary Square Keyed Entry Double Cylinder Deadbolt

Baldwin's Contemporary Square Deadbolt is a classic modern style with a clean angular design, available in popular finishes such as Polished Chrome and Satin Nickel. Pair this deadbolt with a Baldwin Contemporary keyed or passage lever or knob with the Contemporary Square rosette for a complete entry set and a perfect match.

Double Cylinder: Baldwin's double cylinder deadbolt has a keyed cylinder on the outside as well as a keyed cylinder on the inside, unlike a single cylinder which has a thumb turn on the interior. The deadbolt latch is locked and unlocked only via a key so it is ideal for doors near glass where someone could break the glass and turn the thumbturn on the interior. Due to fire codes, be sure to check with your local building codes to be sure a double cylinder deadbolt is able to be installed in your state.

• Solid forged brass construction built to last a lifetime.
• To personalize your look, this Contemporary inspired design is available in 3 finishes.
• Baldwin 5-pin C-Keyway standard. SmartKey Re-Key Technology optional (Contact Customer Service is SmartKey Cylinder is desired).
• Versatility and Easy Installation:
  • Adjustable Latch for both 2-3/8" and 2-3/4" backset
  • Round Corner, Square Corner and Drive-In Latch Plates
  • Includes both Round Corner and Square Corner Strike Plates
  • Guide Post for Easy Installation
• Accommodates door thickness 1-3/4" to 2". Up to 2-1/2" thick door with service part kit (Please call Customer Service is door thickness is beyond 2").
• 2-1/8" cross bore and 1" edge bore for latch.
• Tested to exceed ANSI/BHMA Grade 2 security.
• Features 1" solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
• Features low profile cylinder projection.
• Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.

Baldwin Reserve combines Baldwin's legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin's most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today's design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin's legacy of craftsmanship with a custom look for every architectural style.

Baldwin Hardware DC.CSD Specification

Baldwin Hardware DC.CSD Installation Instruction

Baldwin Hardware DC.CSD Drilling Instructions

View Baldwin Hardware Manufacturer Warranty

Shop All Baldwin Hardware Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
