Schlage A53PD-PLY-LEV Plymouth Keyed Entry Knobset

Plymouth Keyed Entry Knobset

  • $162.31
Market price: $290.00, you save $127.69
  • 44% less
Please select Finish.
Qty:

Schlage Plymouth Keyed Entry Knobset

Specifications
  • Backset: 2-3/4" Backset
  • No of Pins: 6 Pin Cylinder
  • Crossbore Size: 2-1/8" Bore
  • No of Inners: 1
Additional Information

Schlage A53PD-PLY-LEV Installation Sheet Schlage A53PD-PLY-LEV Installation Sheet

Schlage Warranty View Schlage Manufacturer Warranty

Schlage Shop All Schlage Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

  • Weight
    1.8 lbs
  • SKU
    A53PD-PLY-LEV
  • Finish
    Polished Brass, Satin Chrome
  • Backset
    2-3/8", 2-3/4", 3-3/4", 5"
  • Latch Type
    Round Corner, Square Corner, Drive-In Latch
  • Handing
    Left, Reversible, Right
  • Keying Option
    Keyed Alike, Keyed Different
  • Projection
    2.3125, 3.1875
  • Collection
    Plymouth
  • Handle Style
    Metal Knob
  • Product Class
    Commercial
  • Approved for Commercial Use
    Yes
  • Function
    Single Cylinder
  • Material
    Brass, Bronze
  • Configuration
    Door Knob
  • Brand
    Schlage
  • ANSI Certification
    A156.2
  • Backset
    2-3/4", 2-3/8", 3-3/4", 5"
  • BHMA Certification
    Grade 2
  • Cross Bore
    2-1/8"
  • Cylinder
    6 Pin Schlage C123
  • Door Thickness
    1-3/8" to 1-7/8"
  • Edge Bore
    1"
  • Interior Handle Style
    Metal Lever
  • Knob Diameter
    2-1/8"
  • Latch Faceplate
    Drive-In, Round Corner, Square Corner
  • Lever Lenght
    3.09
  • Panic Proof
    No
  • Rose Diameter
    2.56
  • Shape
    Flat, Round
  • Style
    Commercial

Product questions

No questions yet. Be the first to ask the question!

Available in 2 Finishes

Our SKU: Schlage A53PD-PLY-LEV

This product is listed under the following manufacturer numbers

SKU Finish Price

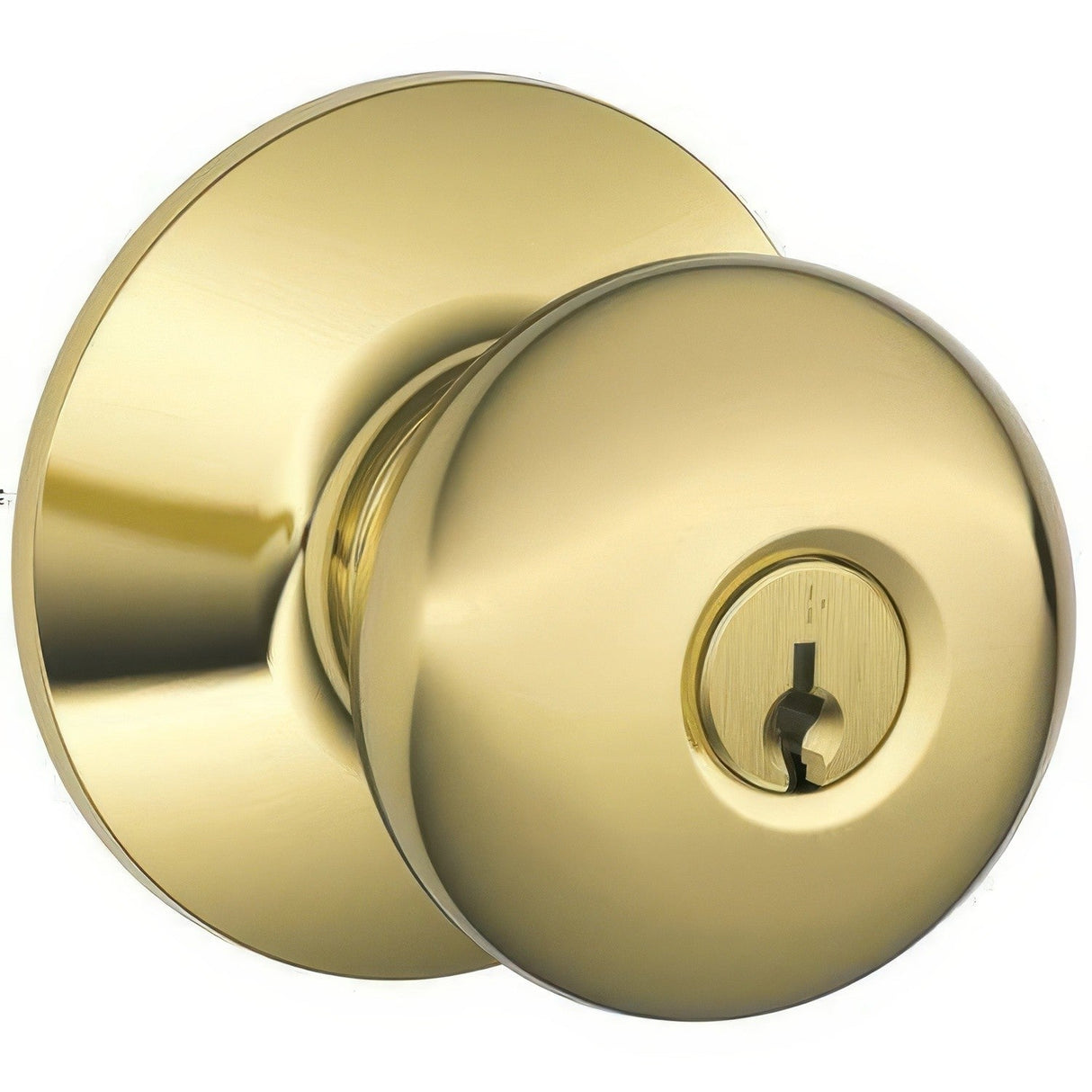

A53PLY605LEV

Polished Brass $170.89

A53PLY626LEV

Satin Chrome $162.31
