Schlage Commercial ND96RATH Athens Vandlgard Keyed Storeroom Door Lever

Athens Vandlgard Keyed Storeroom Door Leverset Less Interchangeable Core

$914.76 USD $1,188.00
Shipping Icon

Free Shipping Eligible

On orders over $299
Shipping calculated at checkout.
Select Finish:

The Schlage Commercial ND96RATH Athens Vandlgard Keyed Storeroom Door Lever is a storeroom door lever. It is configured for a storeroom-function commercial door.

Verified specifications include Zinc construction; Collection: Athens; Backset: 2-3/8″ to 5″; Door Thickness: 1-5/8″ to 2-1/8″.

Product Details

  • Manufacturer Part Number: ND96RATH
  • Product Type: Storeroom Door Lever
  • Function: Storeroom Door Lever
  • Brand: Schlage Commercial
  • Material: Zinc
  • Collection: Athens
  • Style: Commercial
  • Shape: Flat / Straight
  • Backset: 2-3/8″ to 5″
  • Door Thickness: 1-5/8″ to 2-1/8″
  • Cross Bore: 2-1/8″
  • Edge Bore: 1″
  • Handing: Left Hand / Right Hand / Reversible
  • BHMA Certification: Grade 1
  • ANSI Certification: A156.2
  • ANSI/BHMA: A156.2
  • ADA Compliant: Yes
  • Latch Faceplate: Round Corner / Square Corner
  • Cylinder: Interchangeable 6 Pin Schlage C123
  • Projection: 2-13/16″
  • Lever Length: 4.56″
  • Rose Diameter: 3.44
  • Approved Commercial Use: Yes

Before ordering: Confirm model ND96RATH and the required function, cylinder or core configuration, handing, door preparation, and dimensions shown in the product details.

Additional Schlage Commercial Information

Schlage ND96RD-ATH Installation Sheet Sheet PDF iconSchlage ND96RD-ATH Installation Sheet Sheet

View Schlage Commercial Manufacturer Warranty

Shop All Schlage Commercial Products

Available in 7 Finish

This product is listed under the following manufacturer numbers.

SKU Finish Price

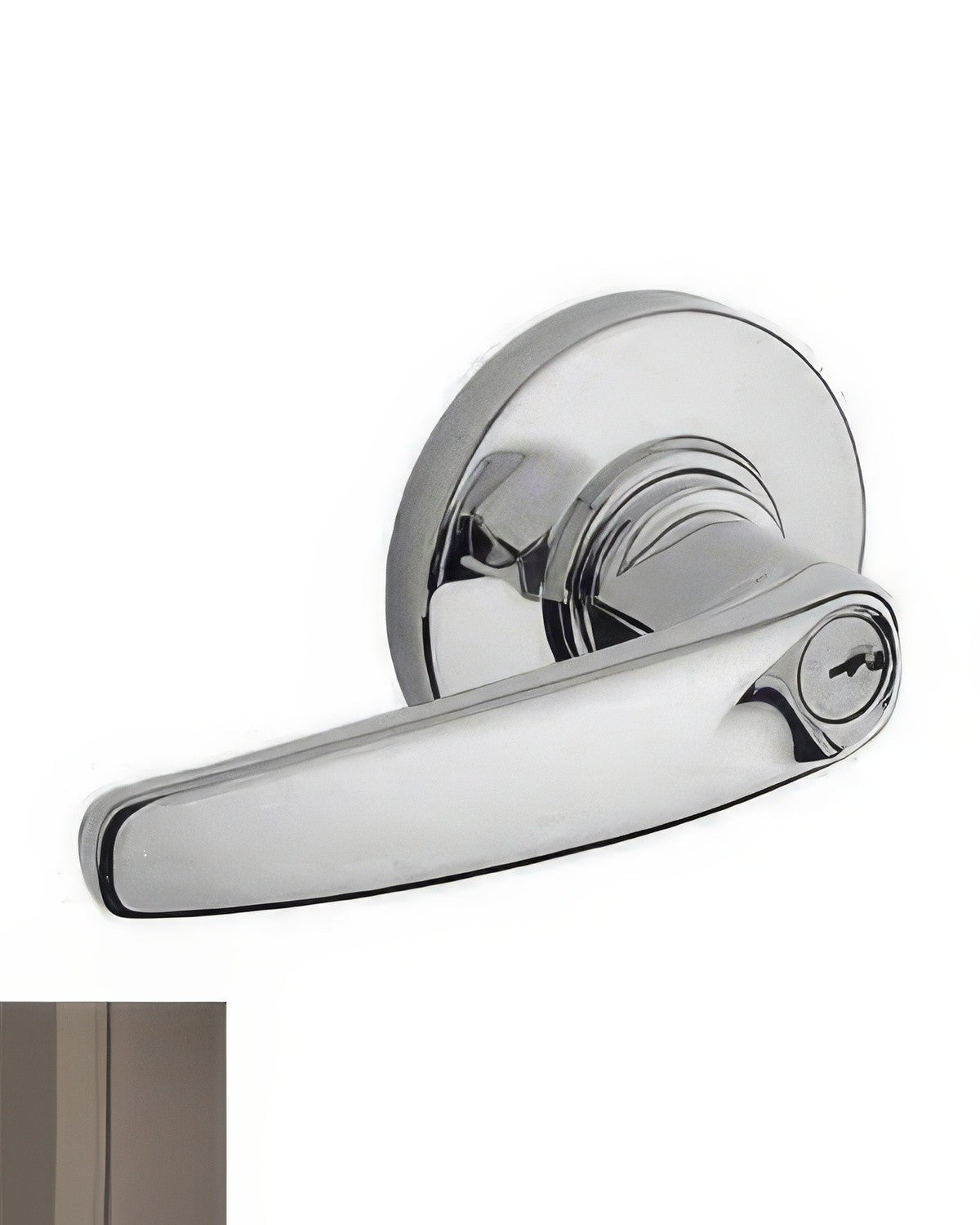

ND96RATH613 Oil Rubbed Bronze $914.76 USD

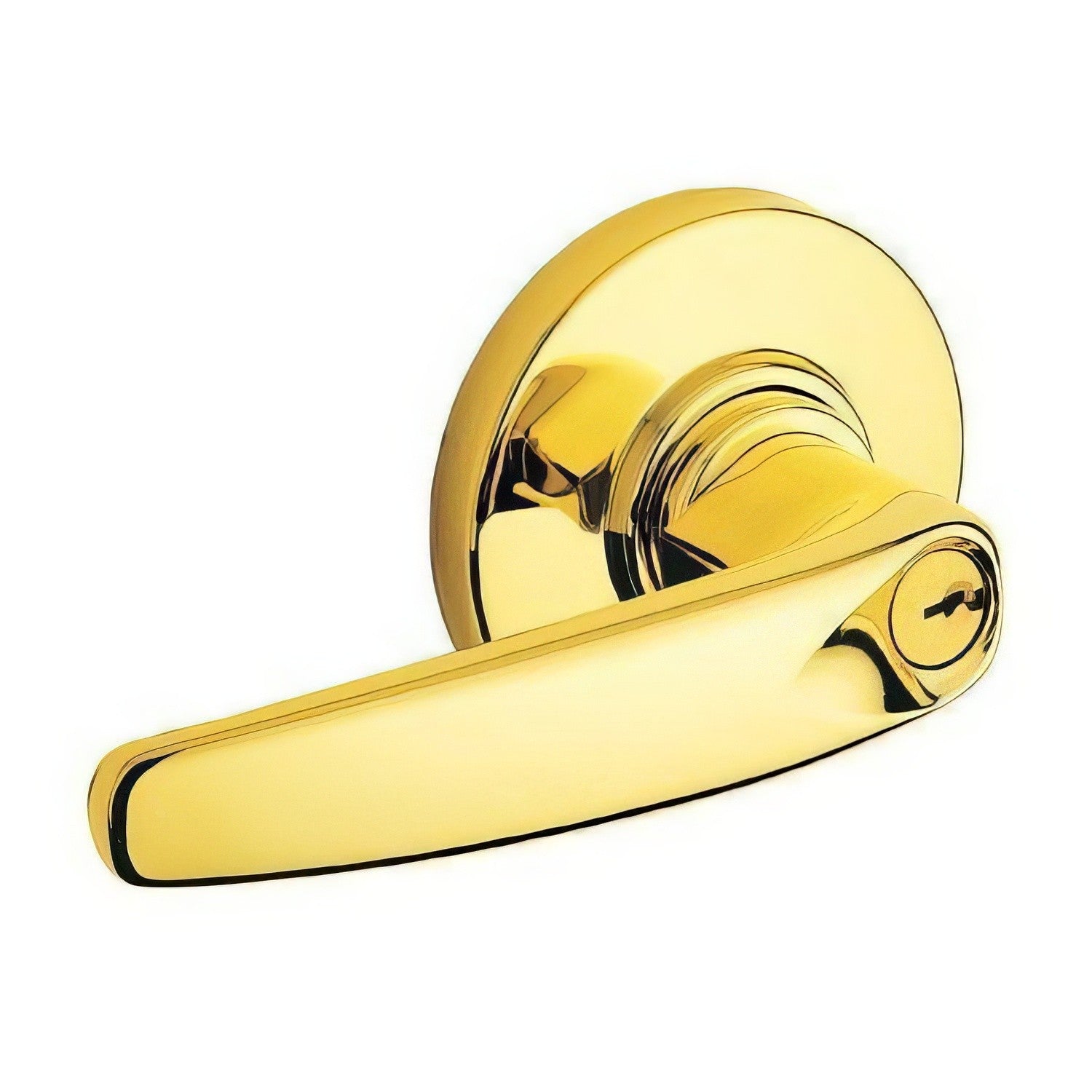

ND96RATH605 Polished Brass $900.13 USD

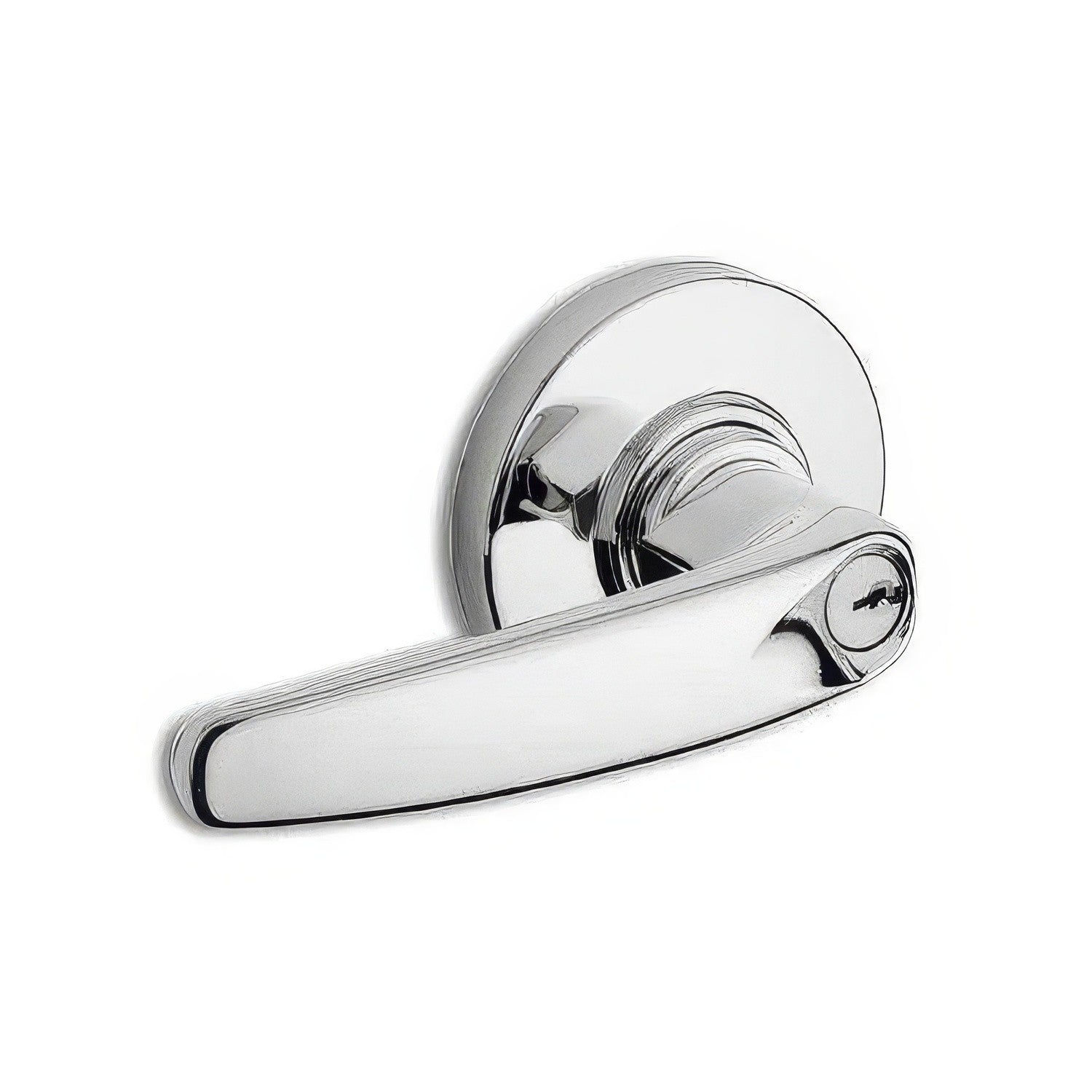

ND96RATH625 Polished Chrome $900.13 USD

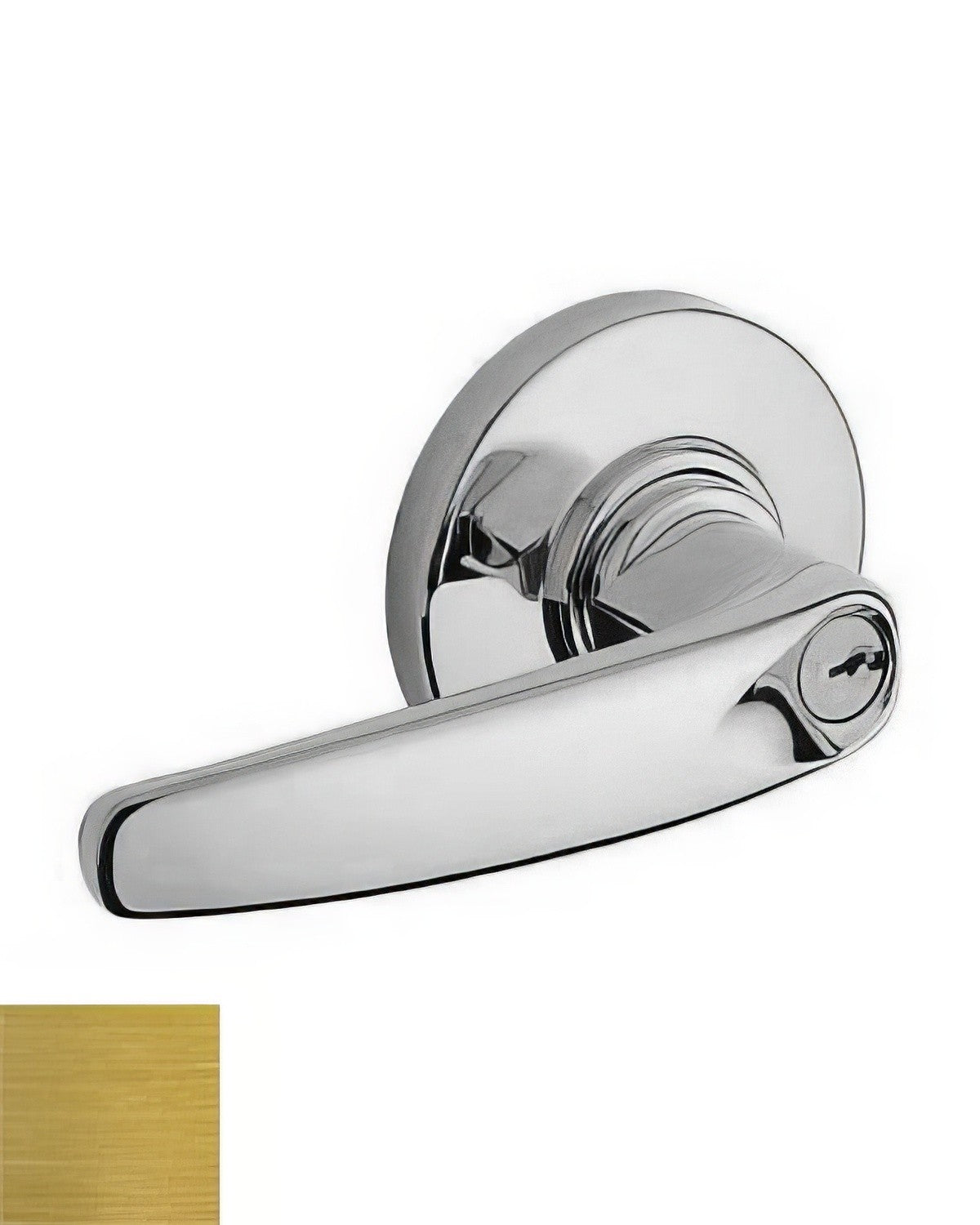

ND96RATH606 Satin Brass $900.13 USD

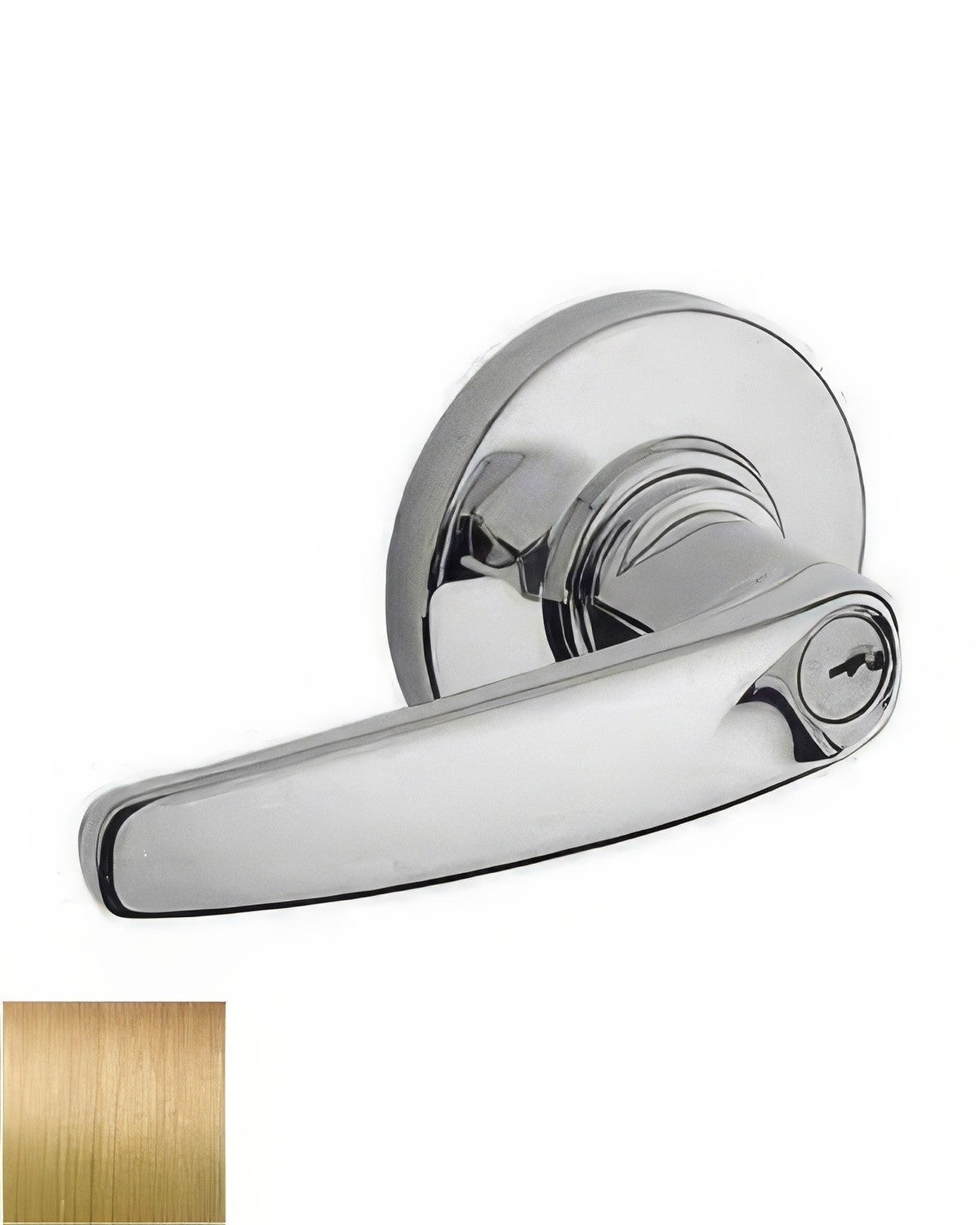

ND96RATH612 Satin Bronze $900.13 USD

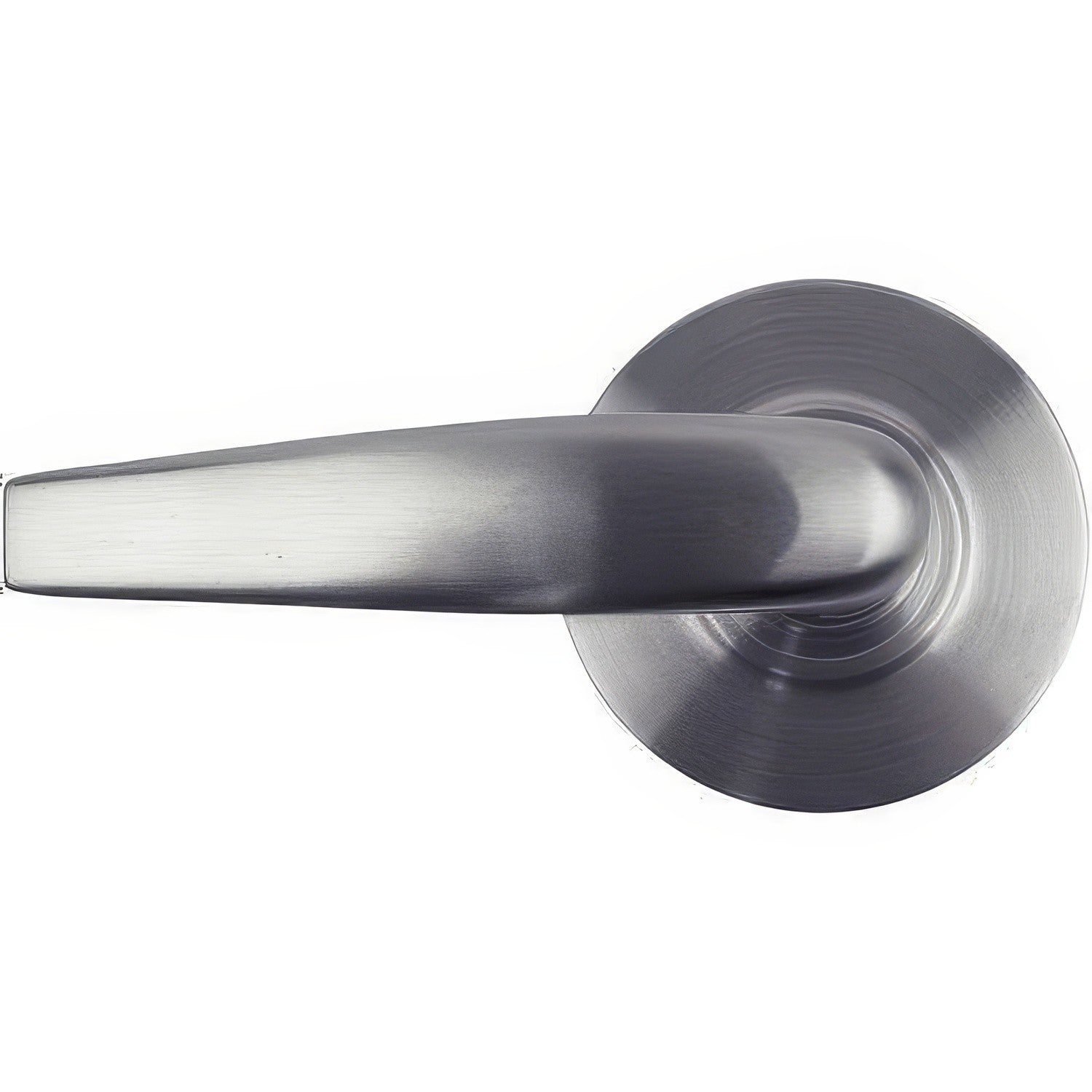

ND96RATH626 Satin Chrome $890.89 USD

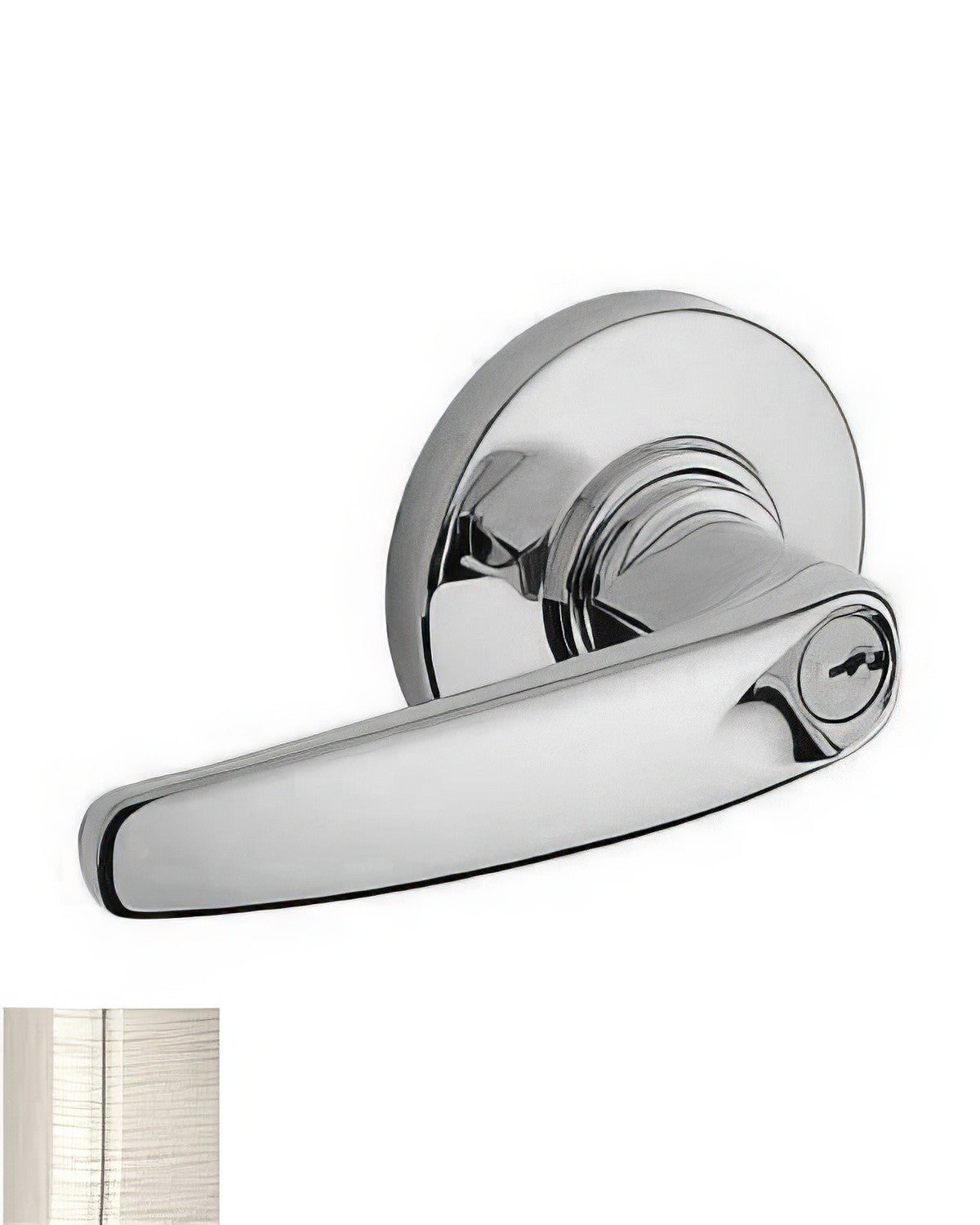

ND96RATH619 Satin Nickel $900.13 USD

Description

The Schlage Commercial ND96RATH Athens Vandlgard Keyed Storeroom Door Lever is a storeroom door lever. It is configured for a storeroom-function commercial door.

Verified specifications include Zinc construction; Collection: Athens; Backset: 2-3/8″ to 5″; Door Thickness: 1-5/8″ to 2-1/8″.

Product Details

  • Manufacturer Part Number: ND96RATH
  • Product Type: Storeroom Door Lever
  • Function: Storeroom Door Lever
  • Brand: Schlage Commercial
  • Material: Zinc
  • Collection: Athens
  • Style: Commercial
  • Shape: Flat / Straight
  • Backset: 2-3/8″ to 5″
  • Door Thickness: 1-5/8″ to 2-1/8″
  • Cross Bore: 2-1/8″
  • Edge Bore: 1″
  • Handing: Left Hand / Right Hand / Reversible
  • BHMA Certification: Grade 1
  • ANSI Certification: A156.2
  • ANSI/BHMA: A156.2
  • ADA Compliant: Yes
  • Latch Faceplate: Round Corner / Square Corner
  • Cylinder: Interchangeable 6 Pin Schlage C123
  • Projection: 2-13/16″
  • Lever Length: 4.56″
  • Rose Diameter: 3.44
  • Approved Commercial Use: Yes

Before ordering: Confirm model ND96RATH and the required function, cylinder or core configuration, handing, door preparation, and dimensions shown in the product details.

Additional Schlage Commercial Information

Schlage ND96RD-ATH Installation Sheet Sheet PDF iconSchlage ND96RD-ATH Installation Sheet Sheet

View Schlage Commercial Manufacturer Warranty

Shop All Schlage Commercial Products

Specifications
  • Weight
    2.5 lb
  • SKU
    ND96RATH
  • ADA Compliant
    Yes
  • Brand
    Schlage Commercial
  • Function
    Storeroom
  • Material
    Zinc
  • Product Class
    Commercial
  • Certification
    A156.2
  • Backset
    2-3/4", 2-3/8", 3-3/4", 5"
  • BHMA Certification
    Grade 1
  • Cylinder
    Interchangeable 6 Pin Schlage C123
  • Collections
    Athens
  • Configuration
    Door Lever
  • Finish
    Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Brass, Satin Bronze, Satin Chrome, Satin Nickel
  • Free Shipping
    Yes
  • Function
    Storeroom
  • Handing
    Left Hand, Right Hand, Reversible
  • Handle Style
    Lever
  • Material
    Zinc
  • Door Thinkness
    1-5/8" to 2-1/8"
  • Edge Bore
    1"
  • Shape
    Flat, Straight
  • Style
    Commercial
  • Handle Material
    Metal
  • Latch Faceplate
    Round Corner, Square Corner
  • Panic Proof
    Yes
  • Approved for Commercial Use
    Yes
  • Cross Bore
    2-1/8"
  • Projection
    2-13/16"
