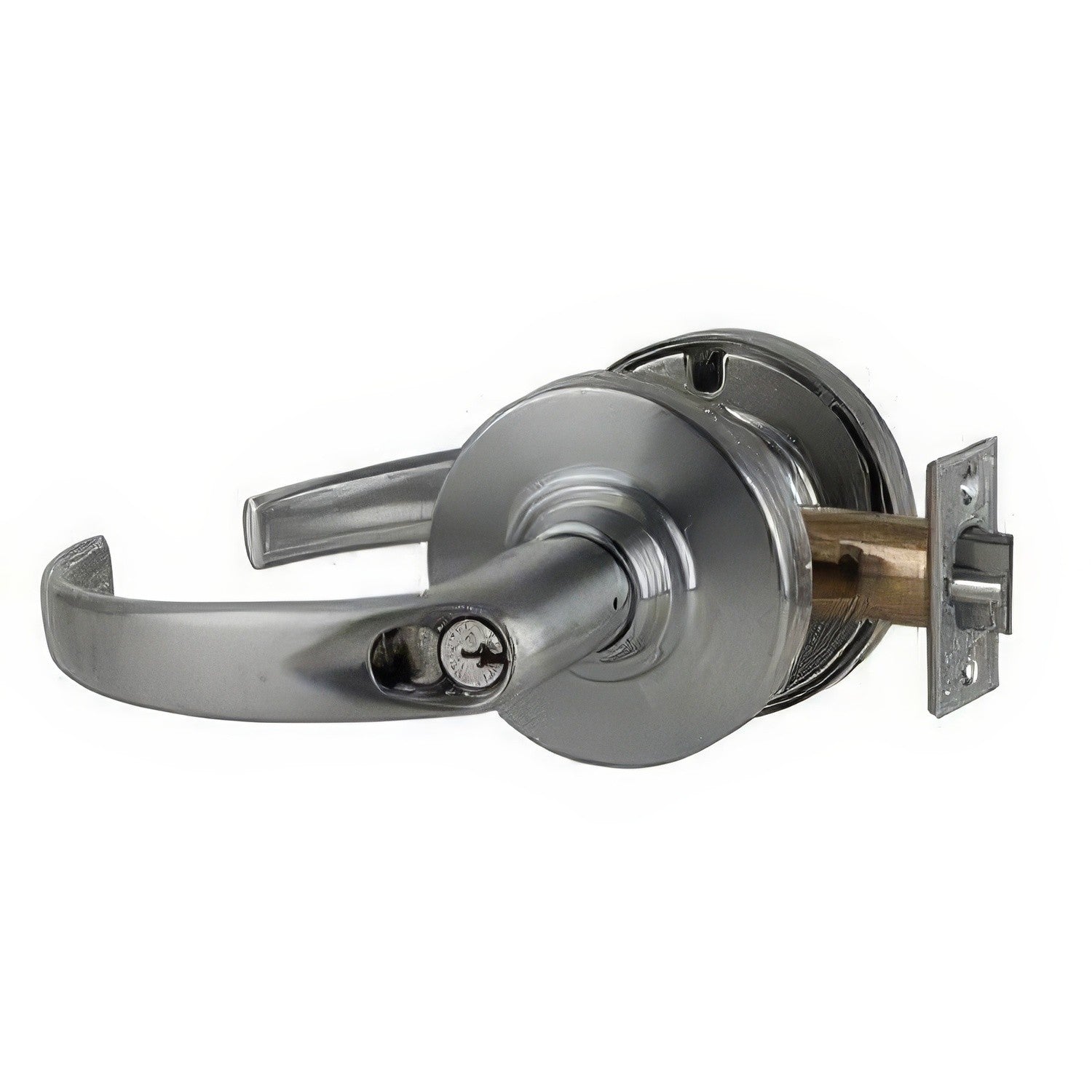

Schlage Commercial ND70RSPA606 Sparta Keyed Classroom Door Lever

The Schlage Commercial ND70RSPA606 Sparta Keyed Classroom Door Lever is a classroom door lever. It is configured for a classroom-function commercial door.

Verified specifications include Zinc construction; Collection: Sparta; Backset: 2-3/8″ to 5″; Door Thickness: 1-5/8″ to 2-1/8″.

Product Details

• Manufacturer Part Number: ND70RSPA606
• Product Type: Classroom Door Lever
• Function: Classroom Door Lever
• Brand: Schlage Commercial
• Material: Zinc
• Collection: Sparta
• Style: Commercial
• Shape: Flat / Straight
• Backset: 2-3/8″ to 5″
• Door Thickness: 1-5/8″ to 2-1/8″
• Cross Bore: 2-1/8″
• Edge Bore: 1″
• Handing: Left Hand / Right Hand / Reversible
• BHMA Certification: Grade 1
• ANSI Certification: A156.2
• ANSI/BHMA: A156.2
• ADA Compliant: Yes
• Latch Faceplate: Round Corner / Square Corner
• Cylinder: Interchangeable 6 Pin Schlage C123
• Projection: 2-13/16″
• Lever Length: 5-1/4″
• Rose Diameter: 3.44
• Approved Commercial Use: Yes

Before ordering: Confirm model ND70RSPA606 and the required function, cylinder or core configuration, handing, door preparation, and dimensions shown in the product details.
