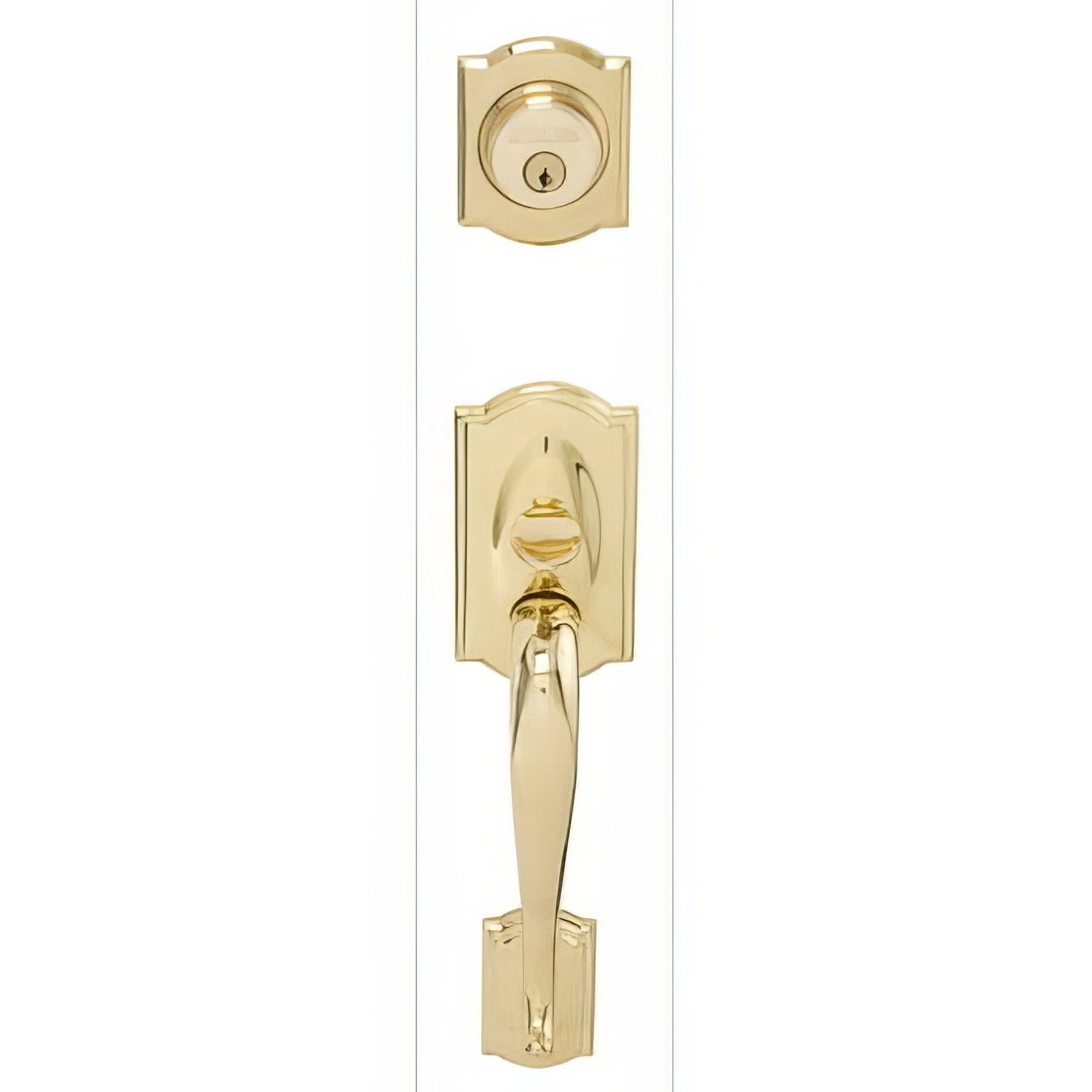

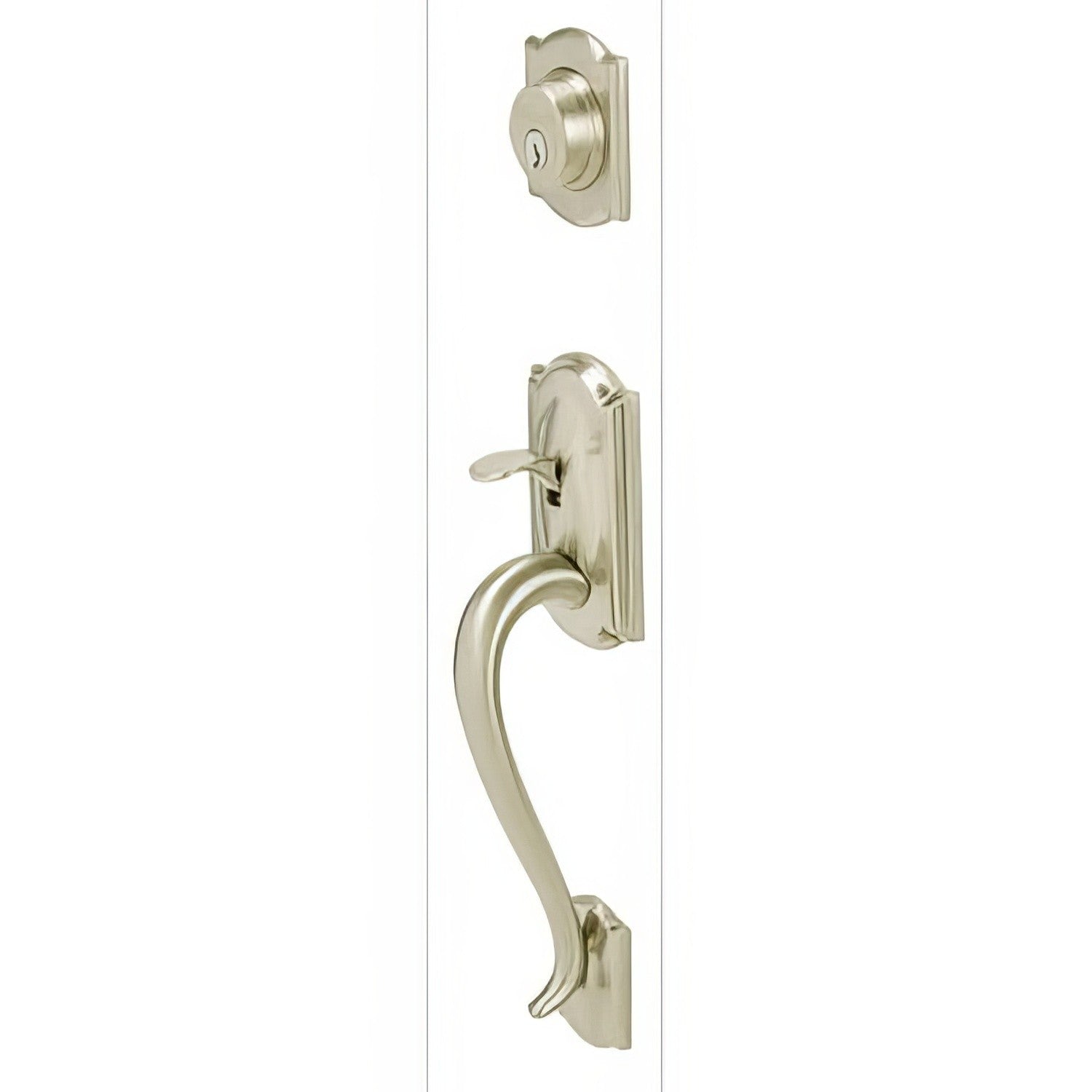

Schlage F62-CAM-ORB Camelot with Orbit Knob Double Cylinder Handleset

The Schlage F62-CAM-ORB is a double-cylinder entry-door handleset with Camelot exterior trim and an interior Orbit Knob. The deadbolt is keyed on both sides, while the interior knob or lever operates the latch.

Verified specifications include handing listed as Left Hand, Right Hand, and Reversible, Metal construction, backset of Adjustable 2-3/8″ to 2-3/4″, door thickness of 1-5/8″ to 2″ and cross bore of 2-1/8″.

Product Details

• Manufacturer part number: F62-CAM-ORB
• Product type: Double Cylinder Handleset
• Function: Double Cylinder Handleset
• Exterior trim: Camelot
• Interior handle: Orbit Knob
• Interior hardware: Knob
• Collection: F-Series
• Material: Metal
• Style: Transitional
• Backset: Adjustable 2-3/8″ to 2-3/4″
• Door Thickness: 1-5/8″ to 2″
• Cross Bore: 2-1/8″
• Handing: Left Hand, Right Hand, and Reversible
• BHMA Certification: Grade 2
• ANSI Certification: A156.5
• Latch Faceplate: Round Corner / Square Corner / Drive-In
• Cylinder: 5 Pin Schlage C
• Mount Type: Sectional
• Projection: 2-7/8″
• Height: 12.875″

Before ordering: Confirm model F62-CAM-ORB, the Camelot exterior trim, the Orbit Knob interior handle, Left Hand, Right Hand, and Reversible handing, and the door preparation required for the installation.
