Schlage F51A-ORB-CEN F-Series Orbit Keyed Entry Door Knob
F-Series Keyed Entry Orbit Door Knobset
Schlage F51A-ORB-CEN F-Series Orbit Keyed Entry Door Knob - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Schlage F51A-ORB-CEN Orbit is a keyed entry door knob with Century trim for entry doors, side doors, and other openings where keyed access is required.
The exterior side locks and unlocks with a key. The interior side uses a turn-button, and rotating the interior knob retracts the latch and unlocks the lock for exit. Confirm the model, Orbit design, Century trim, door preparation, cylinder, and verified dimensions before ordering.
Product Details
- Manufacturer part number: F51A-ORB-CEN
- Function: Keyed Entry Door Knob
- Design: Orbit
- Trim: Century Trim
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 0.875″
- Latch faceplate: Round Corner / Drive-In
- Cylinder: 5 Pin Schlage C
- Collection: F-Series
- BHMA certification: Grade 2
- ANSI certification: A156.5
- Style: Modern
- Shape: Ball
Compatibility: Confirm model F51A-ORB-CEN, the Orbit design, Century Trim, reversible handing, door thickness, backset, cylinder or keyway, the intended keyed-entry application before ordering.
Additional Schlage Information
Schlage F51-ORB-CEN Installation Template
Schlage F51-ORB-CEN Installation Instructions
Schlage F51-ORB-CEN Specification
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Cylinder5 Pin Schlage C
-
Collections
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Standard Shipping — Lower 48 States
- Orders $0.01–$99.99: $11.95
- Orders $100.00–$199.99: $13.95
- Orders $200.00–$298.99: $15.95
- Orders $299.00 and above: Free Shipping
In-stock items usually ship within 0–1 business day, with typical transit of 1–5 business days. We do not ship to Alaska or Hawaii. Special-order lead times are shown on the product page.
Returns
- Eligible returnable items may be returned within 60 days.
- Returnable Special Order items are subject to a 50% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible returnable items may be returned within 60 days.
- Returnable Special Order items are subject to a 50% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible returnable items may be returned within 60 days.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Product-specific notices shown on the product page and at checkout control over this summary. View the full return policy.
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

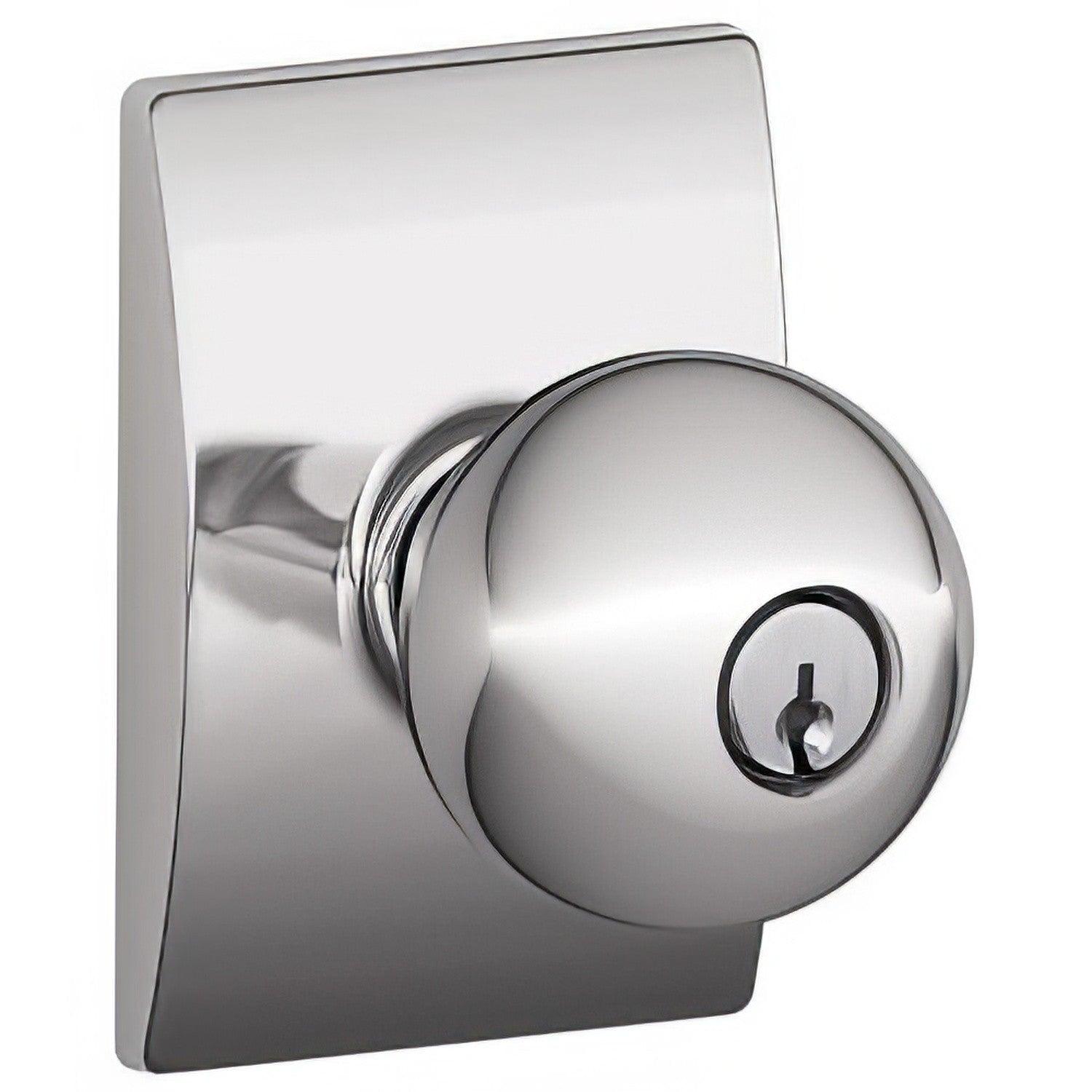

| F51AORB625CEN | Polished Chrome | $70.02 USD |

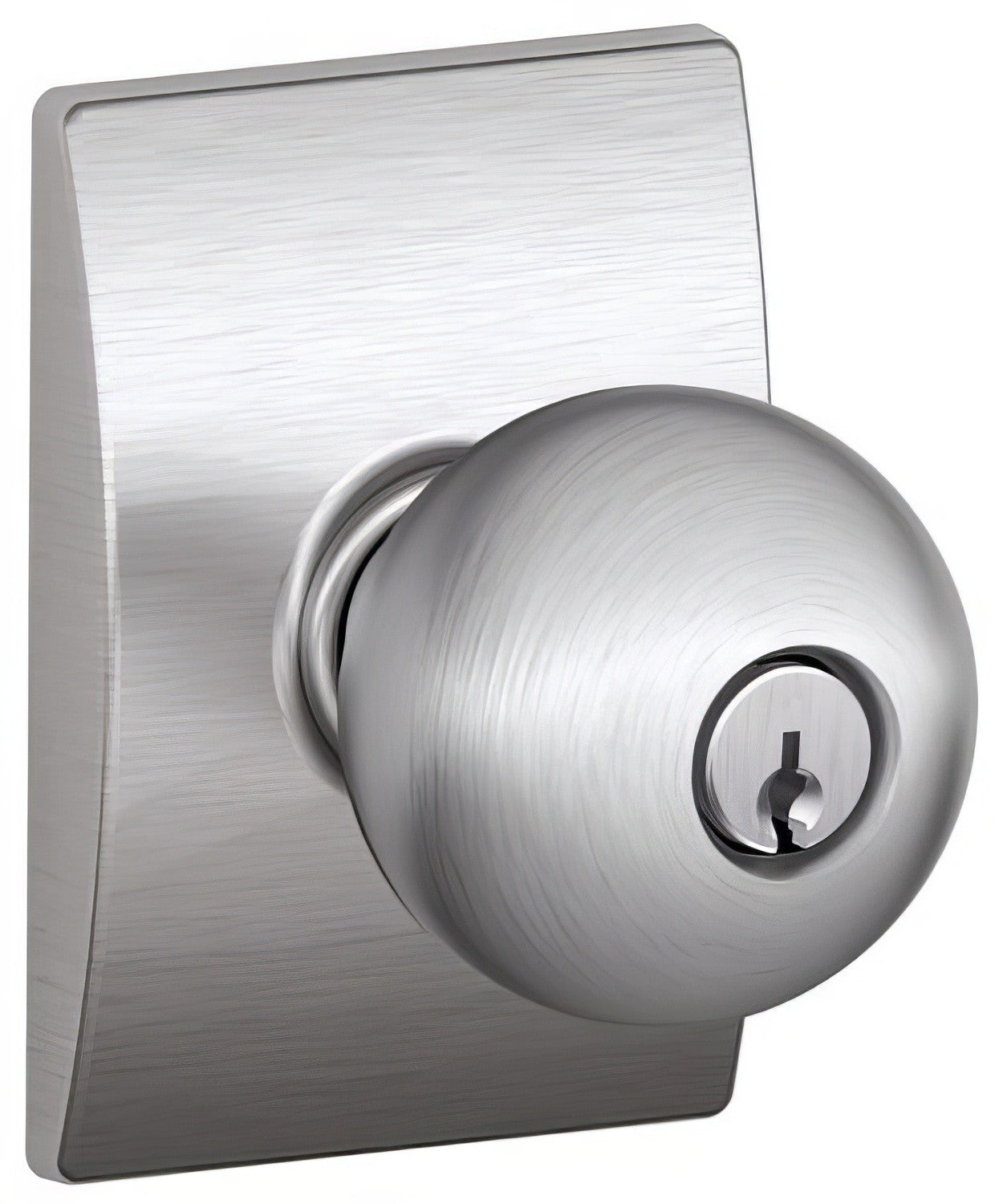

| F51AORB626CEN | Satin Chrome | $70.02 USD |

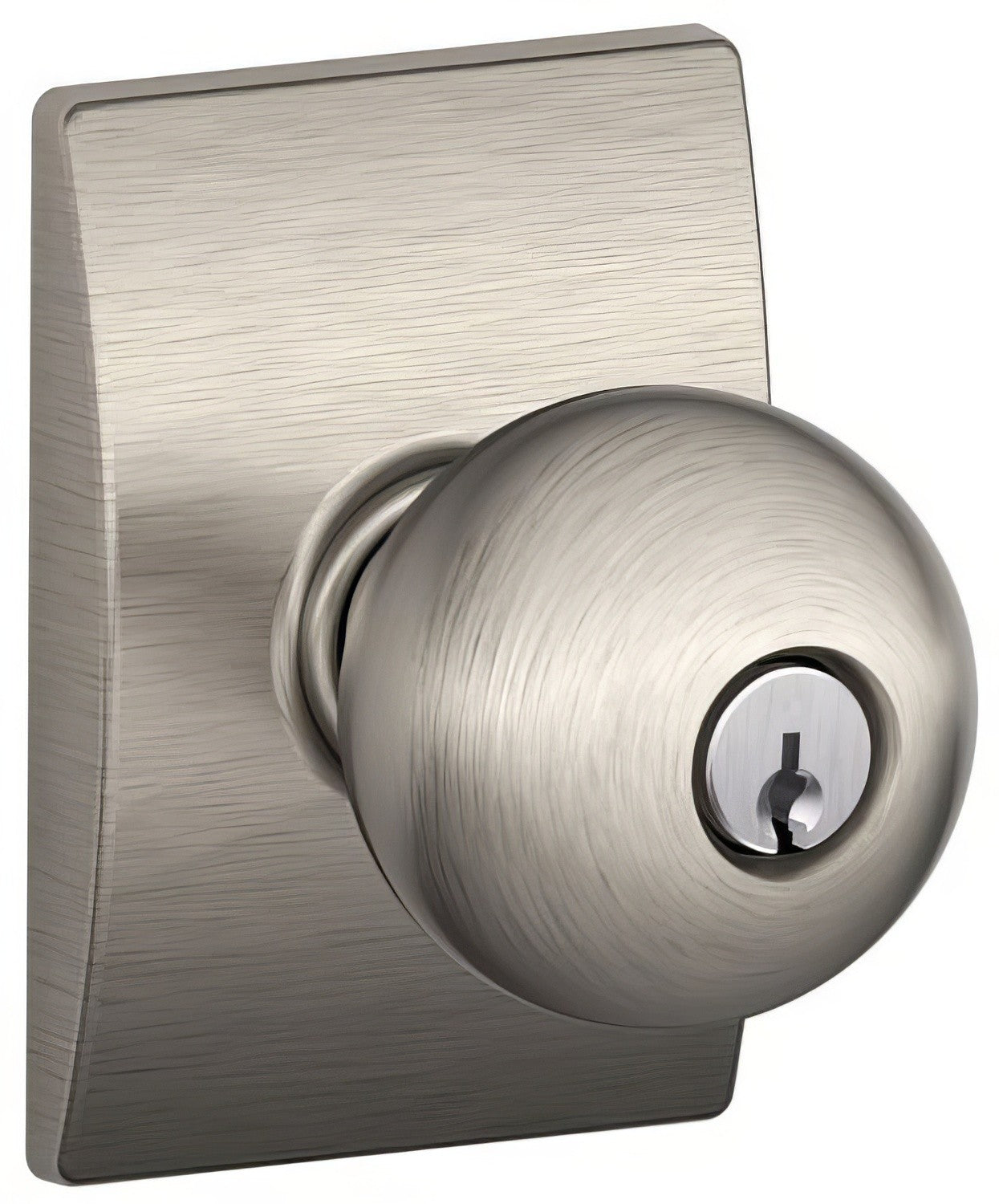

| F51AORB619CEN | Satin Nickel | $70.02 USD |
Description
Description
The Schlage F51A-ORB-CEN Orbit is a keyed entry door knob with Century trim for entry doors, side doors, and other openings where keyed access is required.
The exterior side locks and unlocks with a key. The interior side uses a turn-button, and rotating the interior knob retracts the latch and unlocks the lock for exit. Confirm the model, Orbit design, Century trim, door preparation, cylinder, and verified dimensions before ordering.
Product Details
- Manufacturer part number: F51A-ORB-CEN
- Function: Keyed Entry Door Knob
- Design: Orbit
- Trim: Century Trim
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 0.875″
- Latch faceplate: Round Corner / Drive-In
- Cylinder: 5 Pin Schlage C
- Collection: F-Series
- BHMA certification: Grade 2
- ANSI certification: A156.5
- Style: Modern
- Shape: Ball
Compatibility: Confirm model F51A-ORB-CEN, the Orbit design, Century Trim, reversible handing, door thickness, backset, cylinder or keyway, the intended keyed-entry application before ordering.
Additional Schlage Information
Schlage F51-ORB-CEN Installation Template
Schlage F51-ORB-CEN Installation Instructions
Schlage F51-ORB-CEN Specification
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Cylinder5 Pin Schlage C
-
Collections
-
FinishPolished Chrome, Satin Chrome, Satin Nickel
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Material
-
Door Thinkness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
