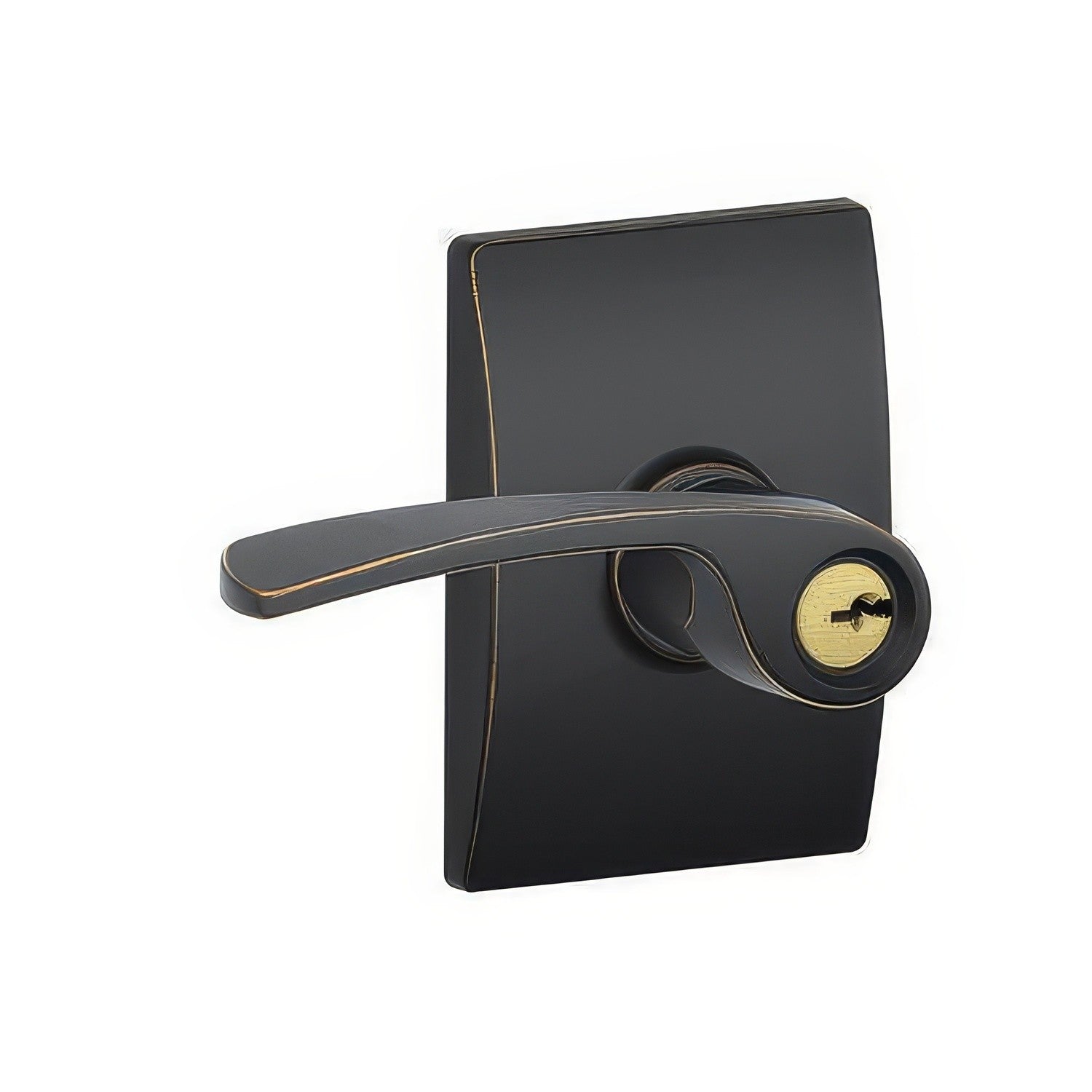

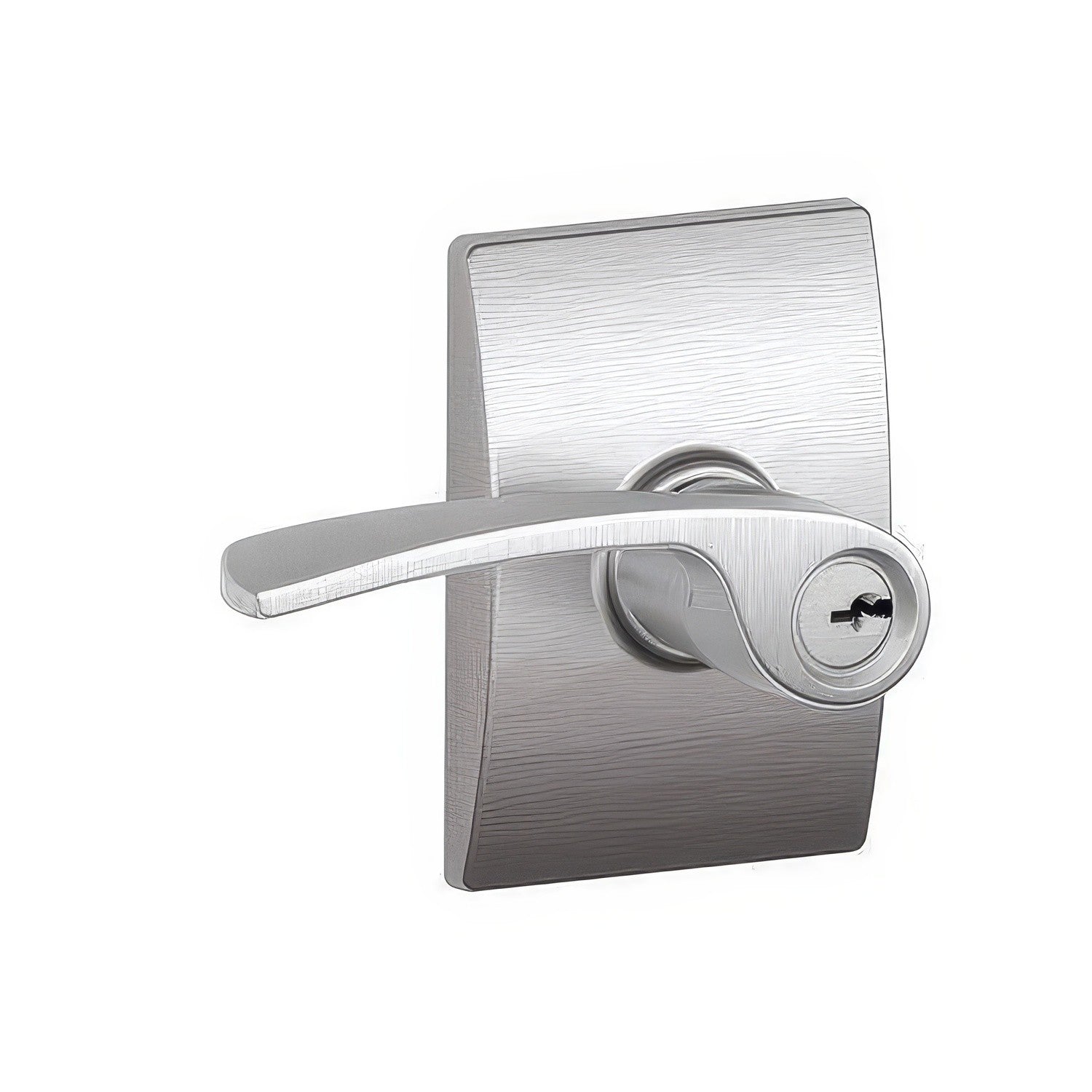

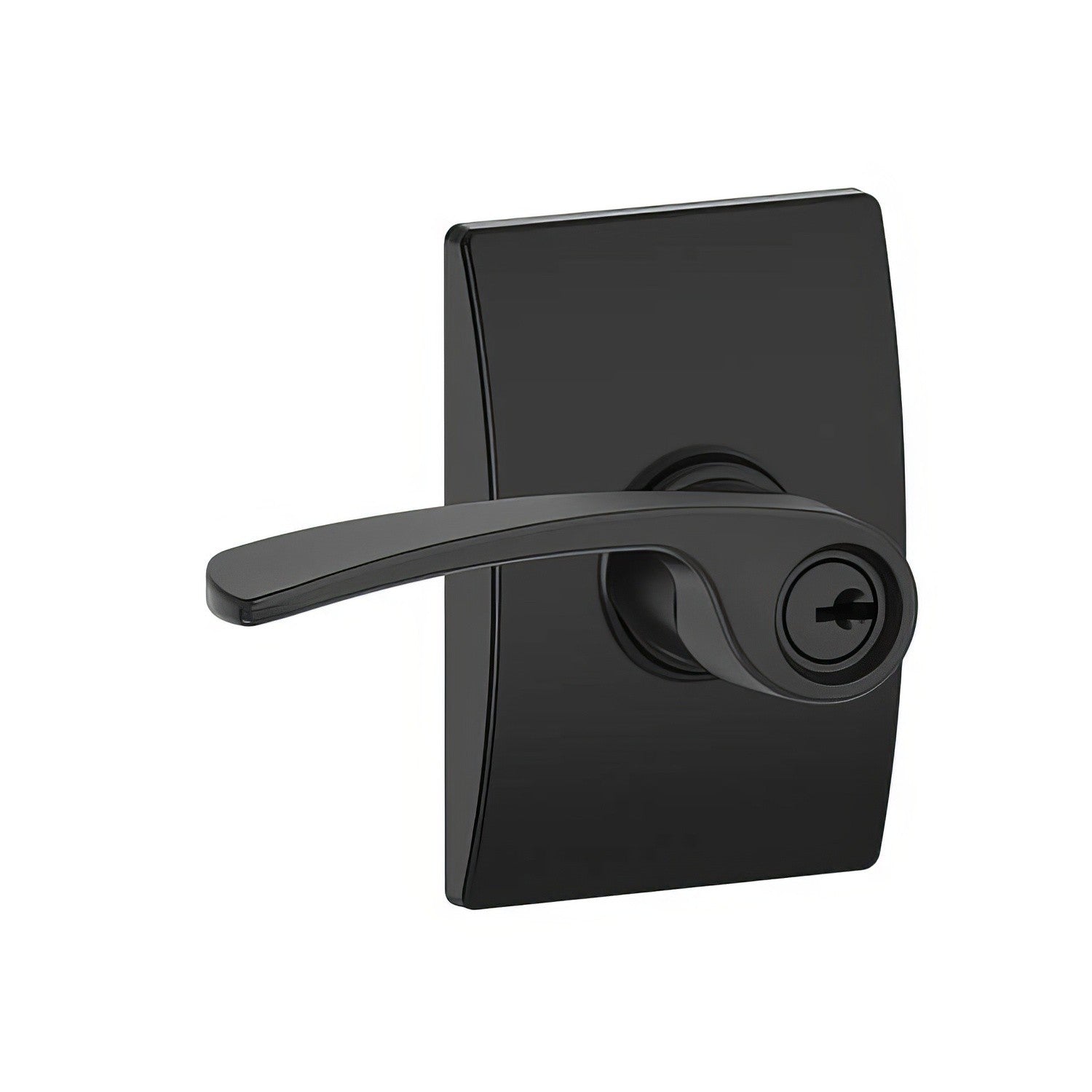

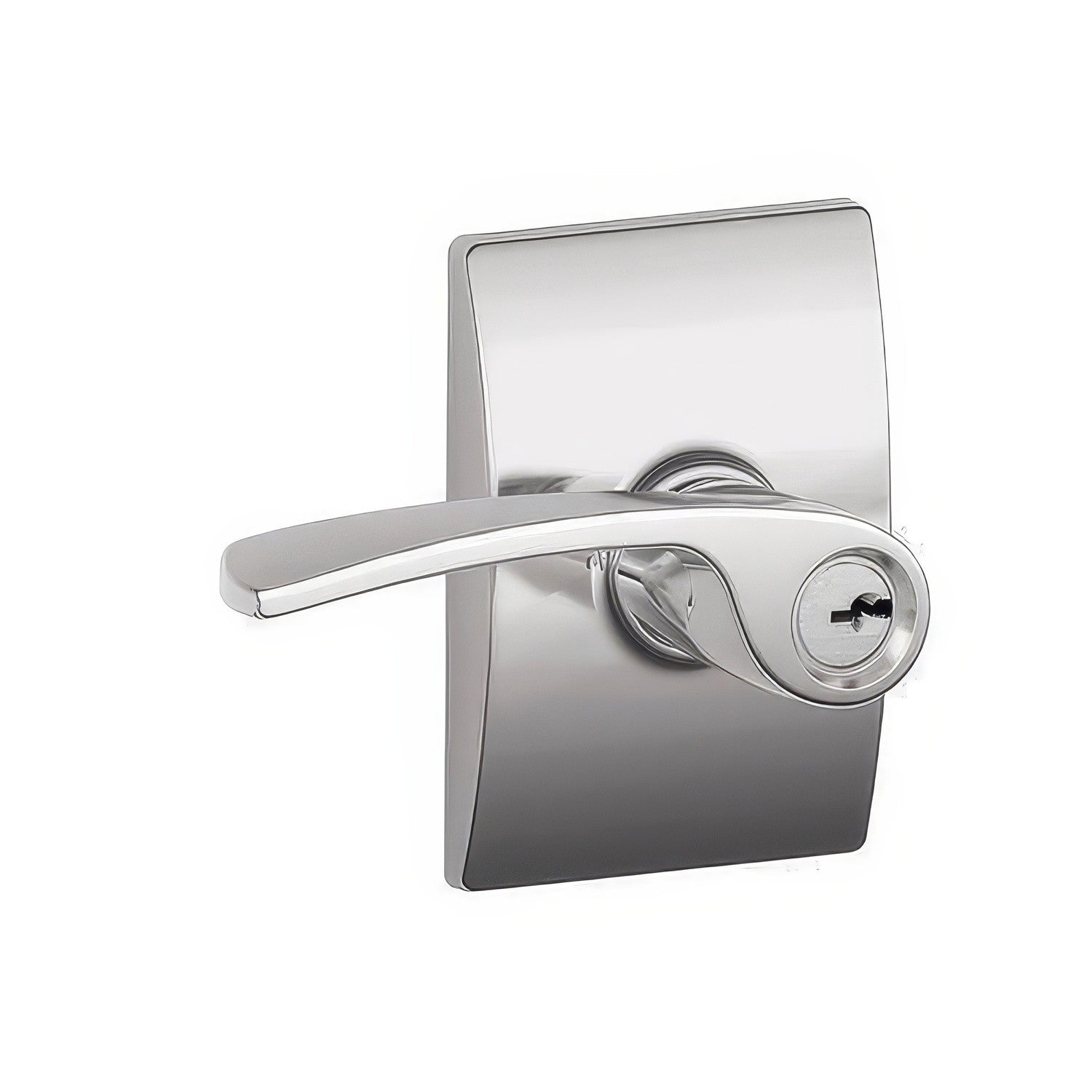

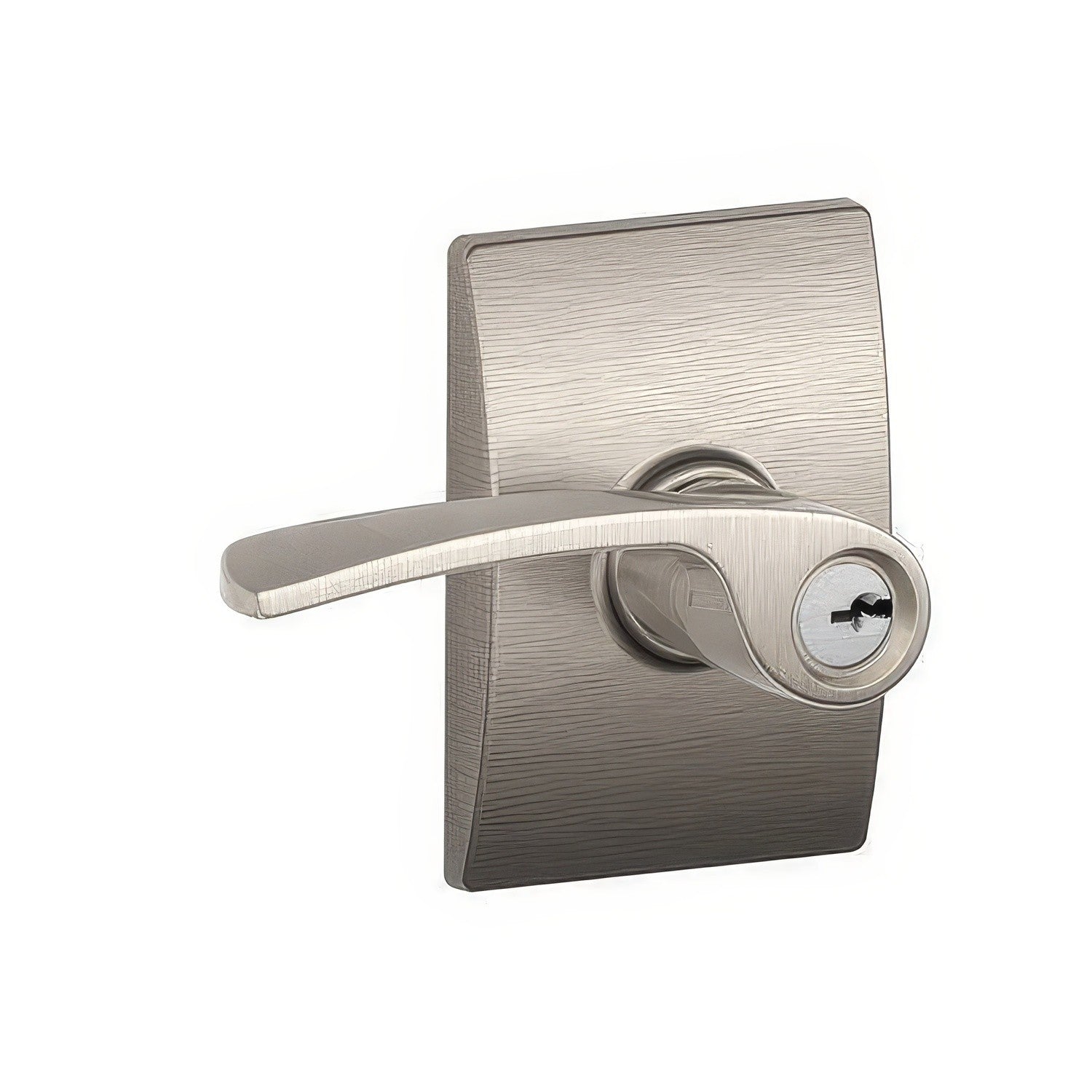

Schlage F51A-MER-CEN Merano Keyed Entry Door Lever

The Schlage F51A-MER-CEN Merano is a keyed entry door lever with Century trim for entry doors, side doors, and other openings where keyed access is required.

The exterior side locks and unlocks with a key. The interior side uses a turn-button, and rotating the interior lever retracts the latch and unlocks the lock for exit. Confirm the model, Merano design, Century trim, door preparation, cylinder, and verified dimensions before ordering.

Product Details

• Manufacturer part number: F51A-MER-CEN
• Function: Keyed Entry Door Lever
• Design: Merano
• Trim: Century Trim
• Handing: Reversible
• Material: Metal
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 0.875″
• Latch faceplate: Round Corner / Drive-In
• Cylinder: 5 Pin Schlage C
• Collection: F-Series
• BHMA certification: Grade 2
• ANSI certification: A156.5
• Style: Modern
• Shape: Flat / Straight

Compatibility: Confirm model F51A-MER-CEN, the Merano design, Century Trim, reversible handing, door thickness, backset, cylinder or keyway, the intended keyed-entry application before ordering.

Additional Schlage Information

Schlage F51-MER-CEN Installation Template

Schlage F51-MER-CEN Installation Instructions

View Schlage Manufacturer Warranty

Shop All Schlage Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
