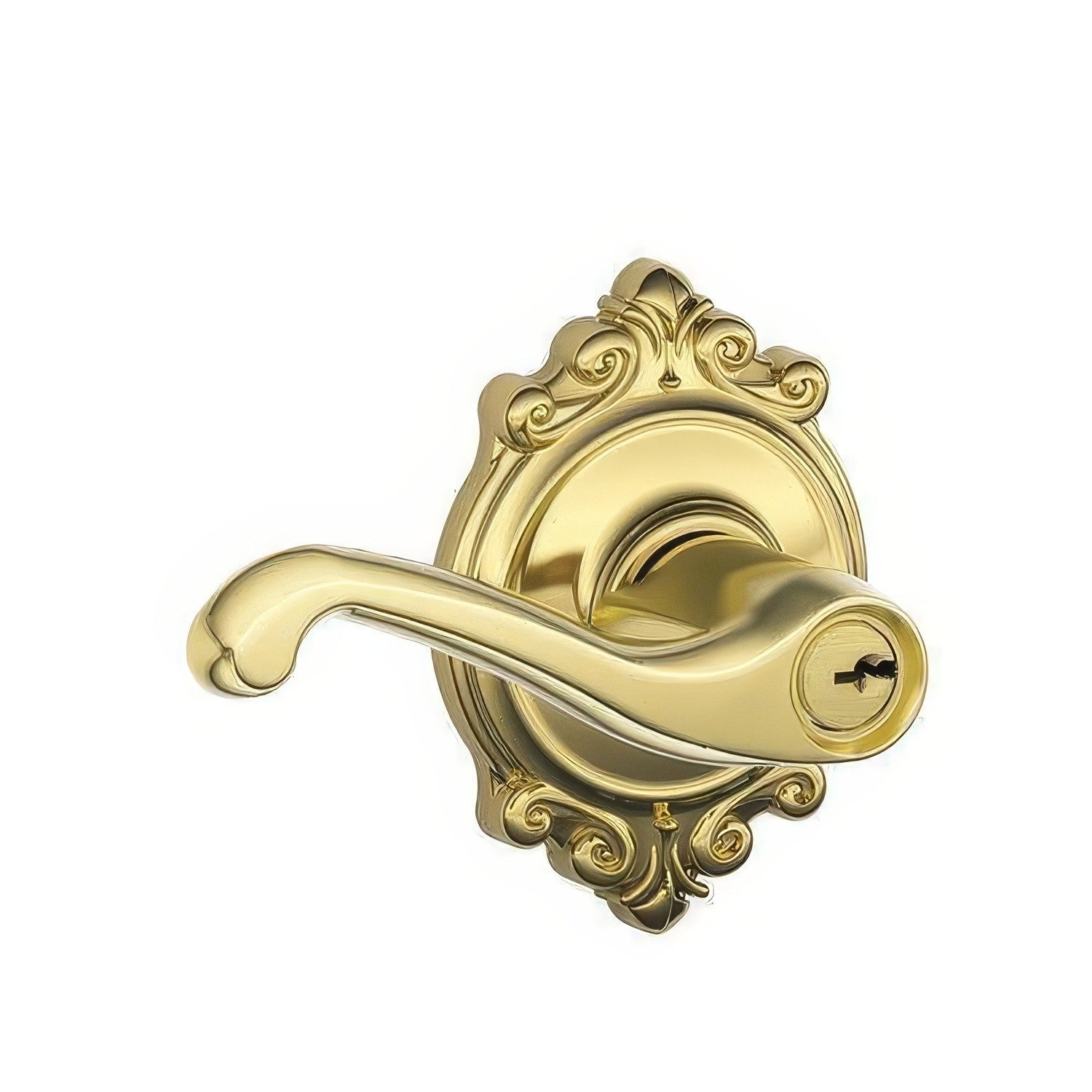

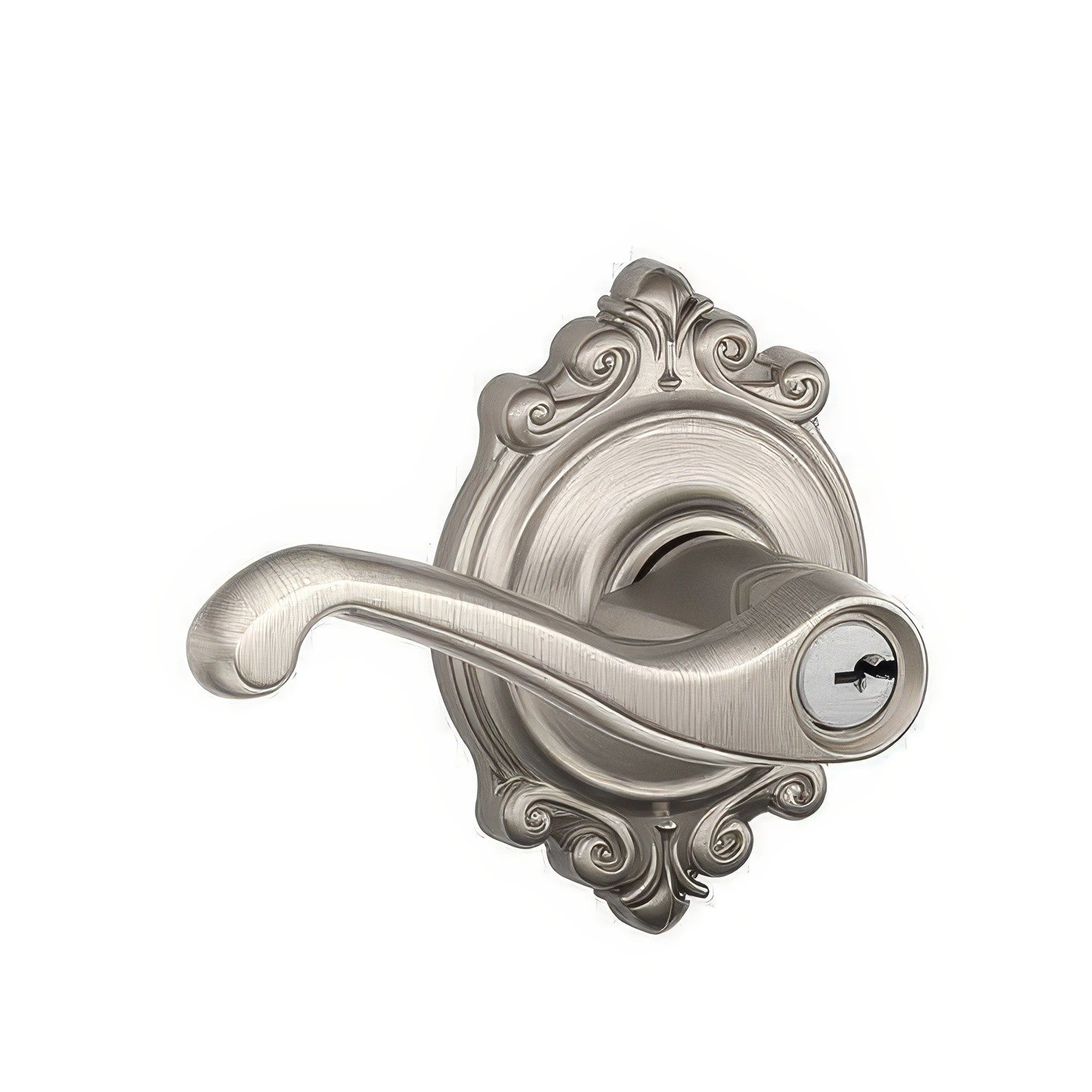

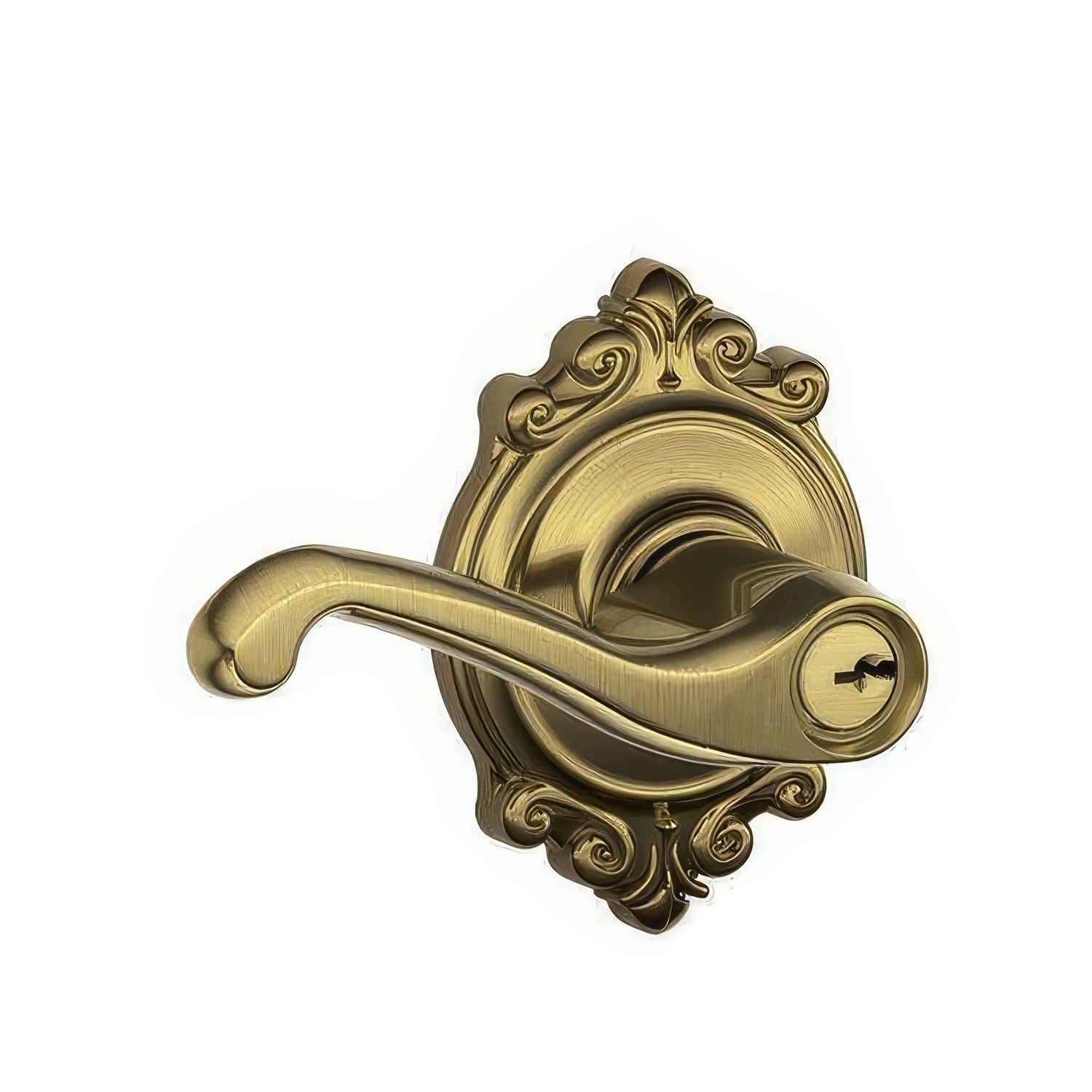

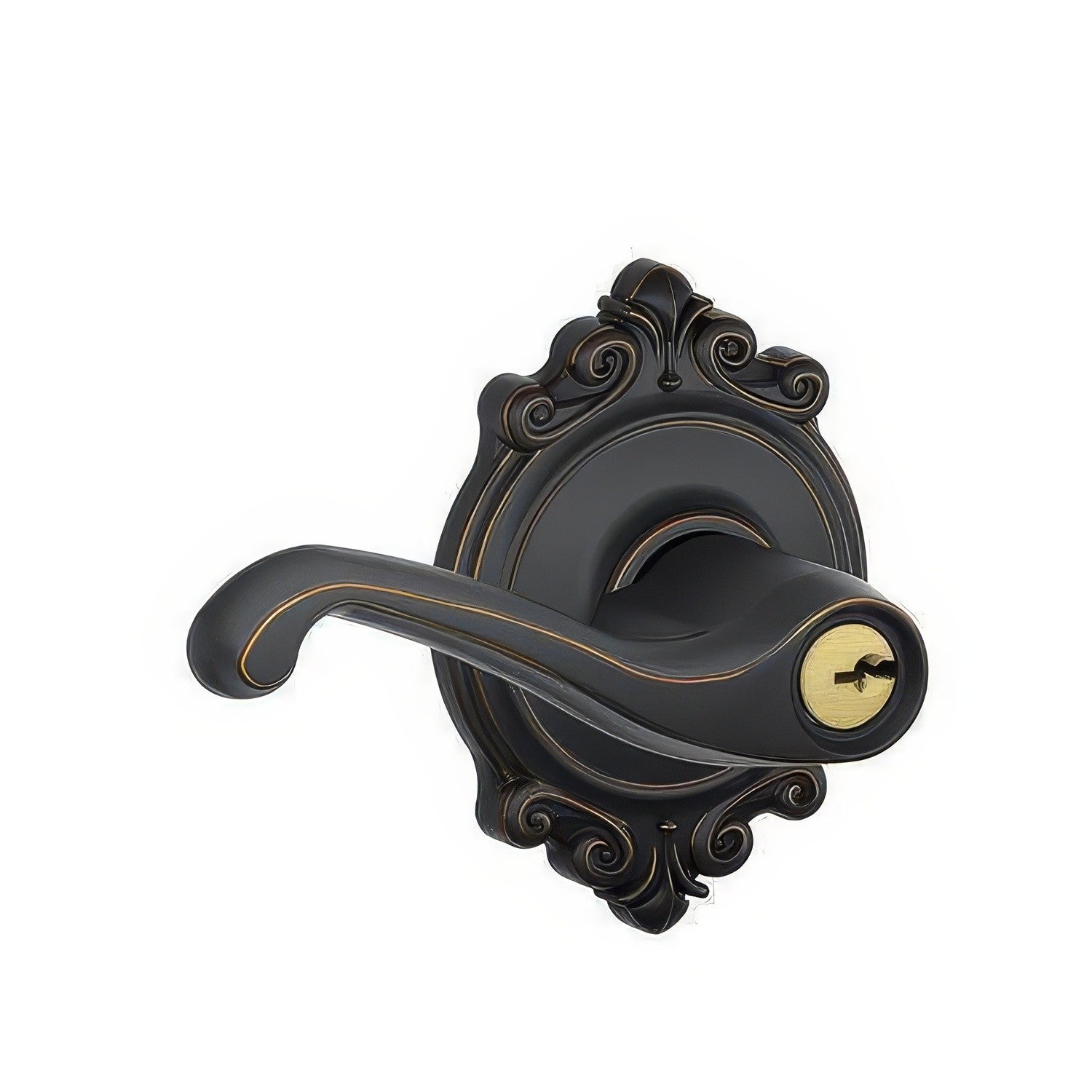

Schlage F51A-FLA-BRK F-Series Flair Keyed Entry Door Lever

The Schlage F51A-FLA-BRK Flair is a keyed entry door lever with Brookshire trim for entry doors, side doors, and other openings where keyed access is required.

The exterior side locks and unlocks with a key. The interior side uses a turn-button, and rotating the interior lever retracts the latch and unlocks the lock for exit. Confirm the model, Flair design, Brookshire trim, door preparation, cylinder, and verified dimensions before ordering.

Product Details

• Manufacturer part number: F51A-FLA-BRK
• Function: Keyed Entry Door Lever
• Design: Flair
• Trim: Brookshire Trim
• Handing: Reversible
• Material: Metal
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 0.875″
• Latch faceplate: Round Corner / Drive-In
• Cylinder: 5 Pin Schlage C
• Keying options: Keyed Alike / Keyed Different
• Collection: F-Series
• BHMA certification: Grade 2
• ANSI certification: A156.5
• Style: Victorian
• Shape: Scroll / Wave

Compatibility: Confirm model F51A-FLA-BRK, the Flair design, Brookshire Trim, reversible handing, door thickness, backset, cylinder or keyway, the intended keyed-entry application before ordering.

Additional Schlage Information

Schlage F51-FLA-BRK Installation Template

Schlage F51-FLA-BRK Installation Instructions

View Schlage Manufacturer Warranty

Shop All Schlage Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
