Schlage F10-VLA Avila Passage Door Lever
Avila Passage Door Lever
Schlage F10-VLA Avila Passage Door Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Schlage F10-VLA Avila is a passage door lever. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.
The door lever turns from either side to retract the latch. Confirm the model, Avila design, standard trim, door preparation, and dimensions before ordering.
Product Details
- Manufacturer part number: F10-VLA
- Function: Passage Door Lever
- Design: Avila
- Trim: Standard Trim
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: 2-3/4″ / 2-3/8″
- Cross bore: 2-1/8″
- Edge bore: 1″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Collection: Avila
- ANSI certification: A156.2
- Style: Contemporary/Modern
- Shape: Straight
Compatibility: Confirm model F10-VLA, the Avila design, Standard trim, reversible handing, door thickness, backset, and the intended function before ordering.
Additional Schlage Information
Schlage F10-VLA Installation
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
Backset2-3/4", 2-3/8"
-
Collections
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 7 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

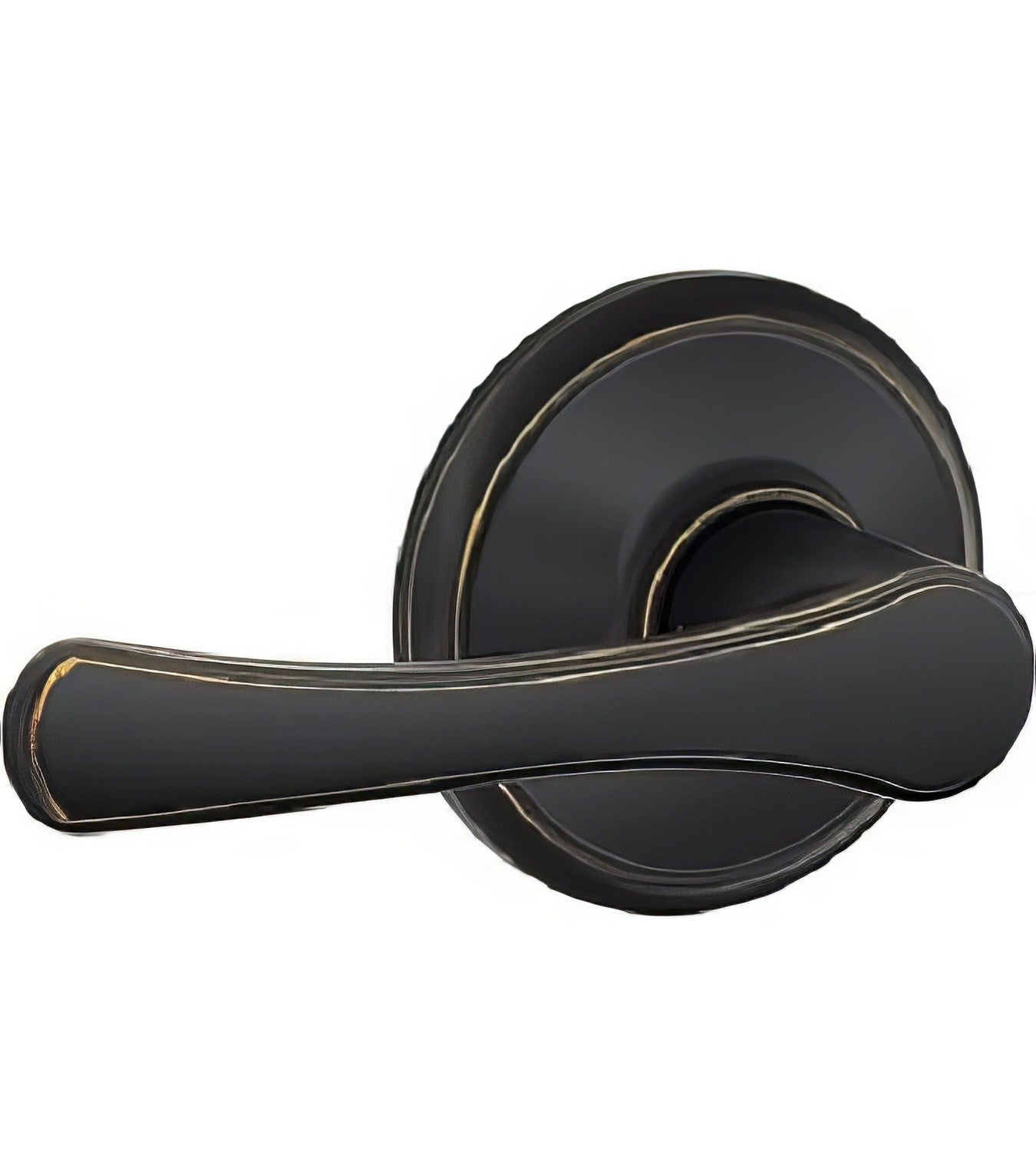

| F10VLA716 | Aged Bronze | $43.09 USD |

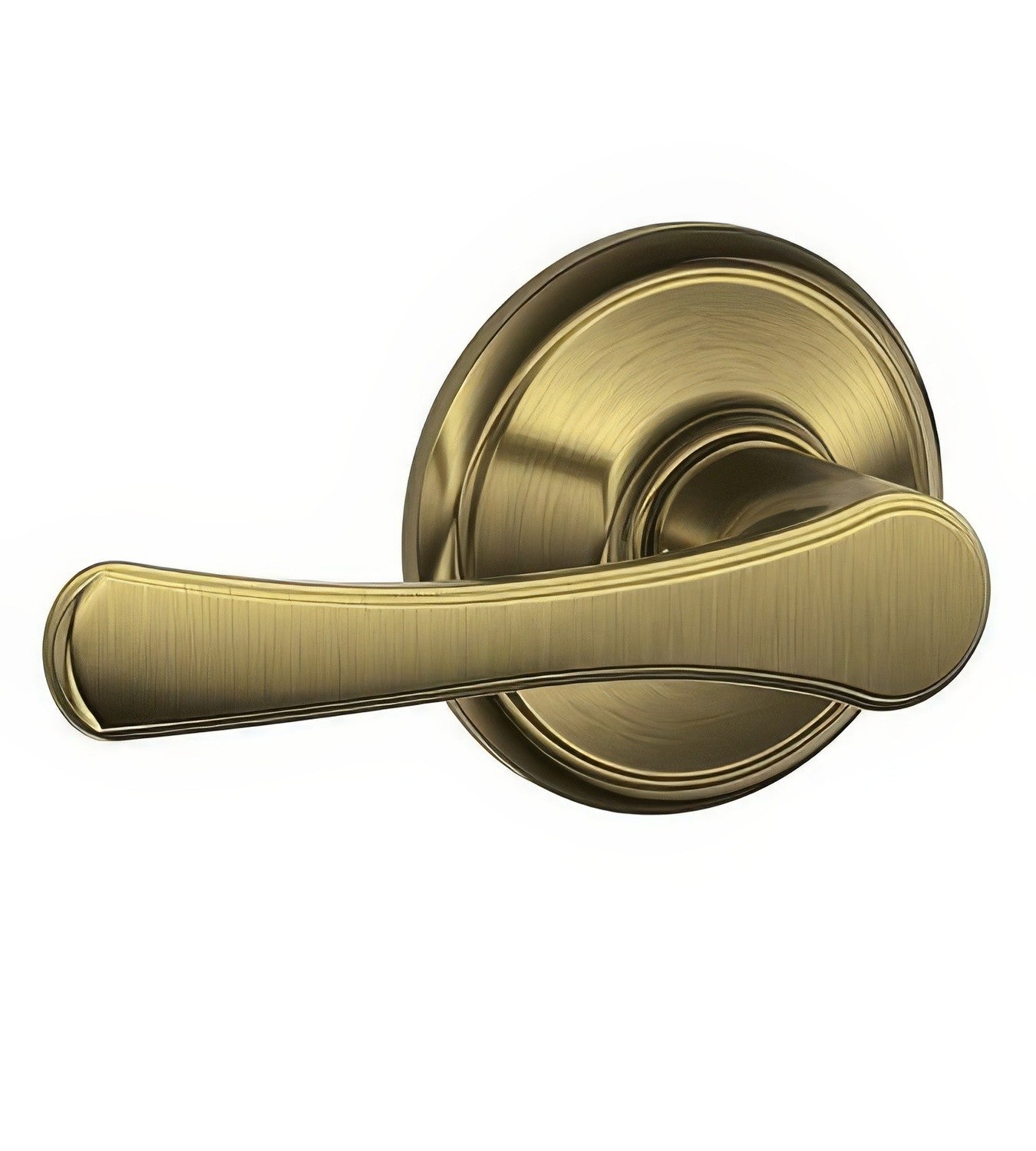

| F10VLA609 | Antique Brass | $43.09 USD |

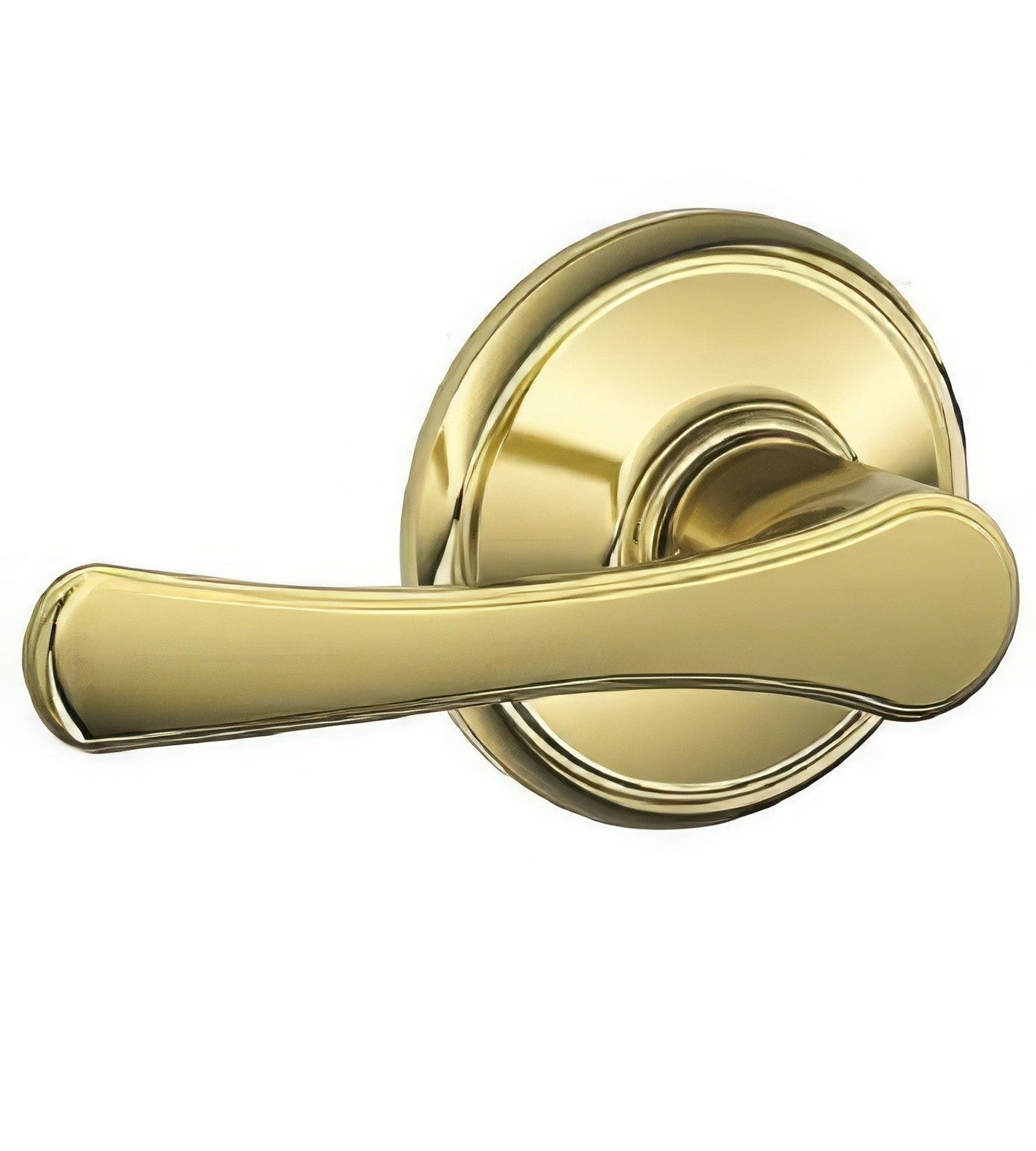

| F10VLA505 | Lifetime Brass | $43.09 USD |

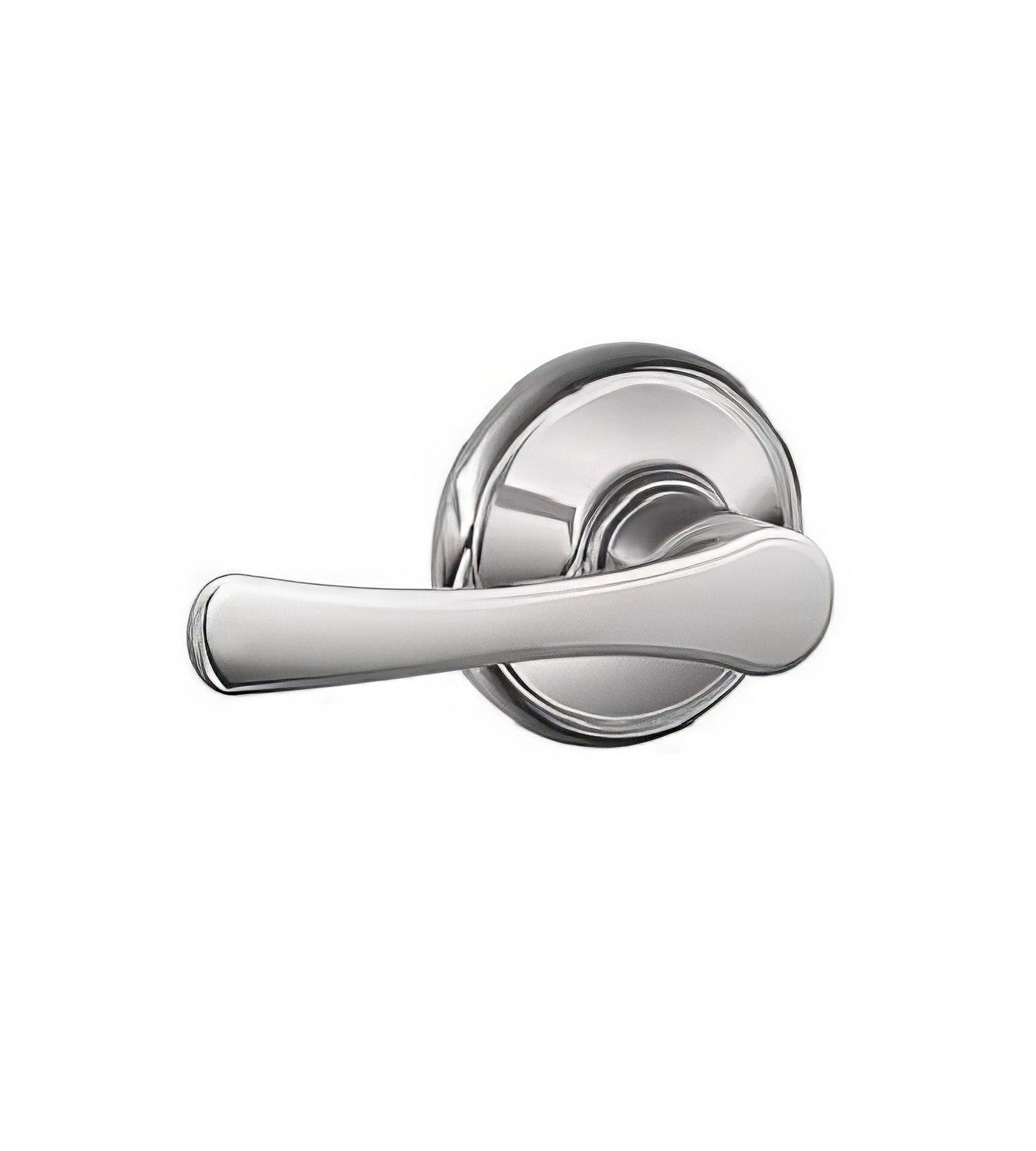

| F10VLA625 | Polished Chrome | $43.09 USD |
| F10VLA626 | Satin Chrome | $43.09 USD |

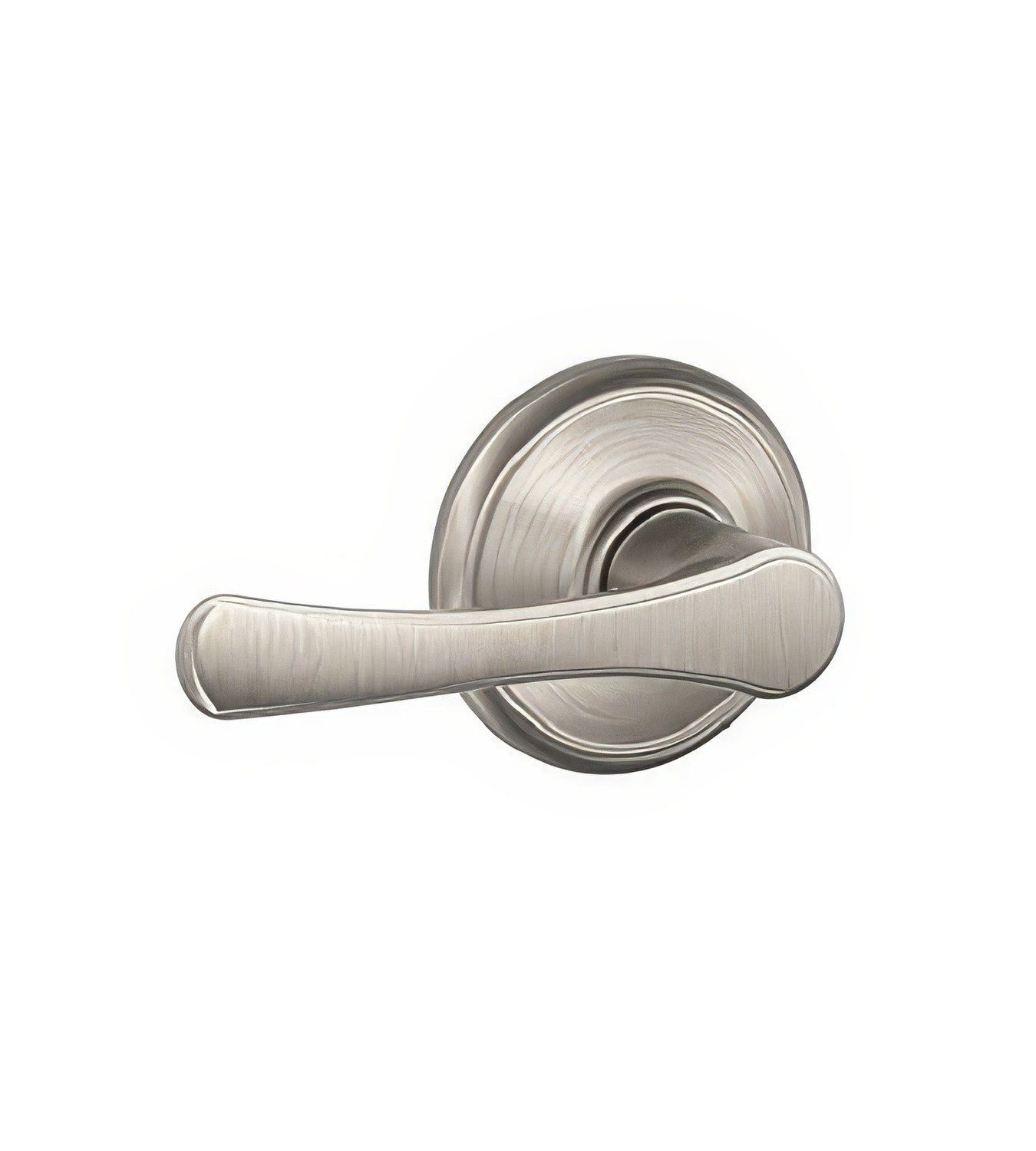

| F10VLA619 | Satin Nickel | $43.09 USD |

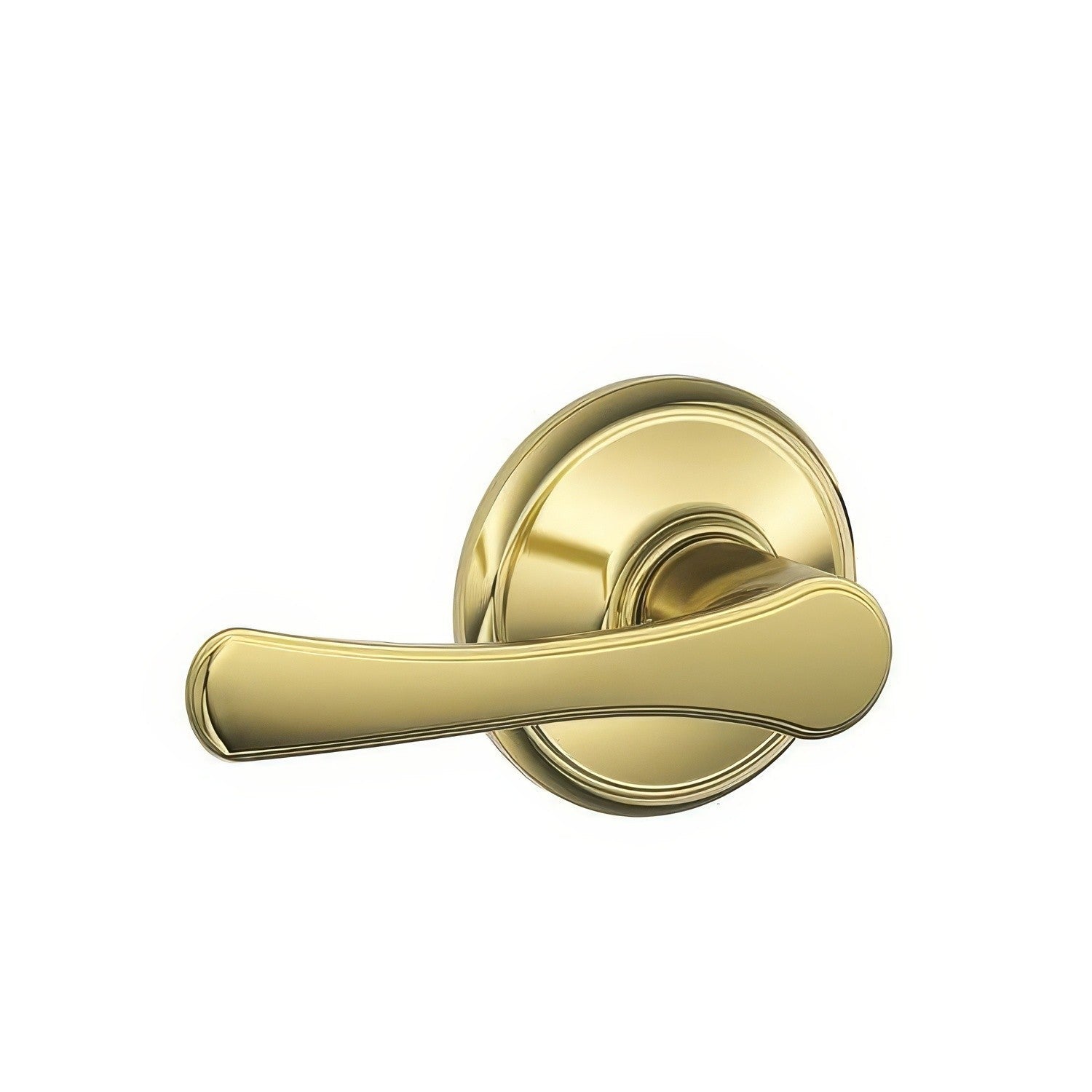

| F10VLA605 | Polished Brass | $38.90 USD |
Description
Description
The Schlage F10-VLA Avila is a passage door lever. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.
The door lever turns from either side to retract the latch. Confirm the model, Avila design, standard trim, door preparation, and dimensions before ordering.
Product Details
- Manufacturer part number: F10-VLA
- Function: Passage Door Lever
- Design: Avila
- Trim: Standard Trim
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: 2-3/4″ / 2-3/8″
- Cross bore: 2-1/8″
- Edge bore: 1″
- Latch faceplate: Round Corner / Square Corner / Drive-In
- Collection: Avila
- ANSI certification: A156.2
- Style: Contemporary/Modern
- Shape: Straight
Compatibility: Confirm model F10-VLA, the Avila design, Standard trim, reversible handing, door thickness, backset, and the intended function before ordering.
Additional Schlage Information
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
Backset2-3/4", 2-3/8"
-
Collections
-
FinishAged Bronze, Antique Brass, Lifetime Brass, Polished Chrome, Satin Chrome, Satin Nickel, Polished Brass
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Material
-
Door Thinkness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Handle Material
-
Latch Faceplate
-
Cross Bore
