Schlage F10-PLY F-Series Plymouth Passage Door Knob
F-Series Plymouth Passage Door Knobset
Schlage F10-PLY F-Series Plymouth Passage Door Knob - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Schlage F10-PLY Plymouth is a passage door knob. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.
The knob turns from either side to retract the latch. Confirm the model, design, door preparation, and verified dimensions before ordering.
Product Details
- Manufacturer part number: F10-PLY
- Function: Passage Door Knob
- Knob design: Plymouth
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 0.875″
- Latch faceplate: Round Corner / Drive-In
- Collection: F-Series
- BHMA certification: Grade 2
- ANSI certification: A156.5
- Style: Transitional
- Shape: Round
Before ordering: Confirm model F10-PLY, the Plymouth design, reversible handing, door thickness and backset, and the intended function.
Additional Schlage Information
Schlage F10-PLY Installation
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Collections
-
HandingReversible
-
Handle Style
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 10 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

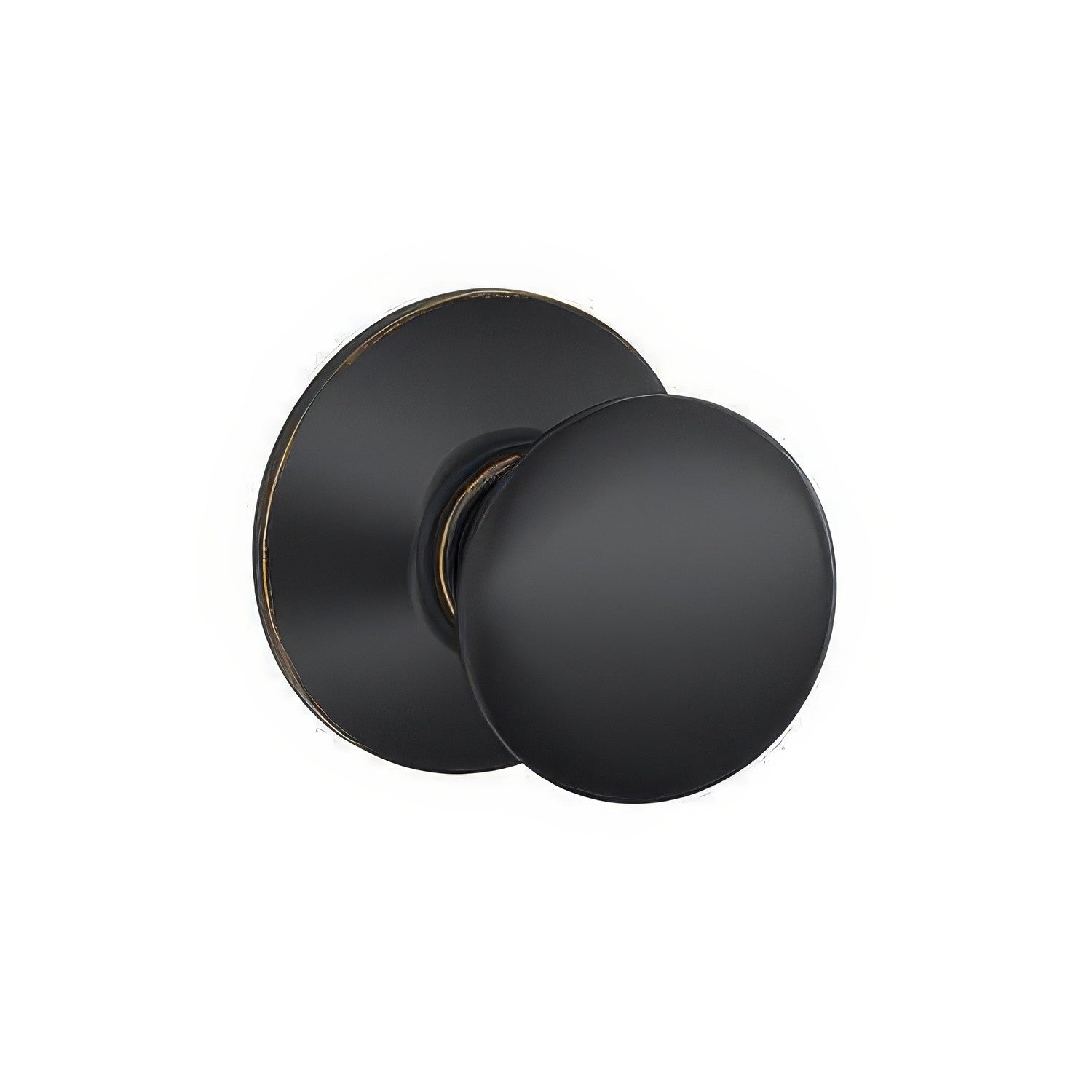

| F10PLY716 | Aged Bronze | $31.72 USD |

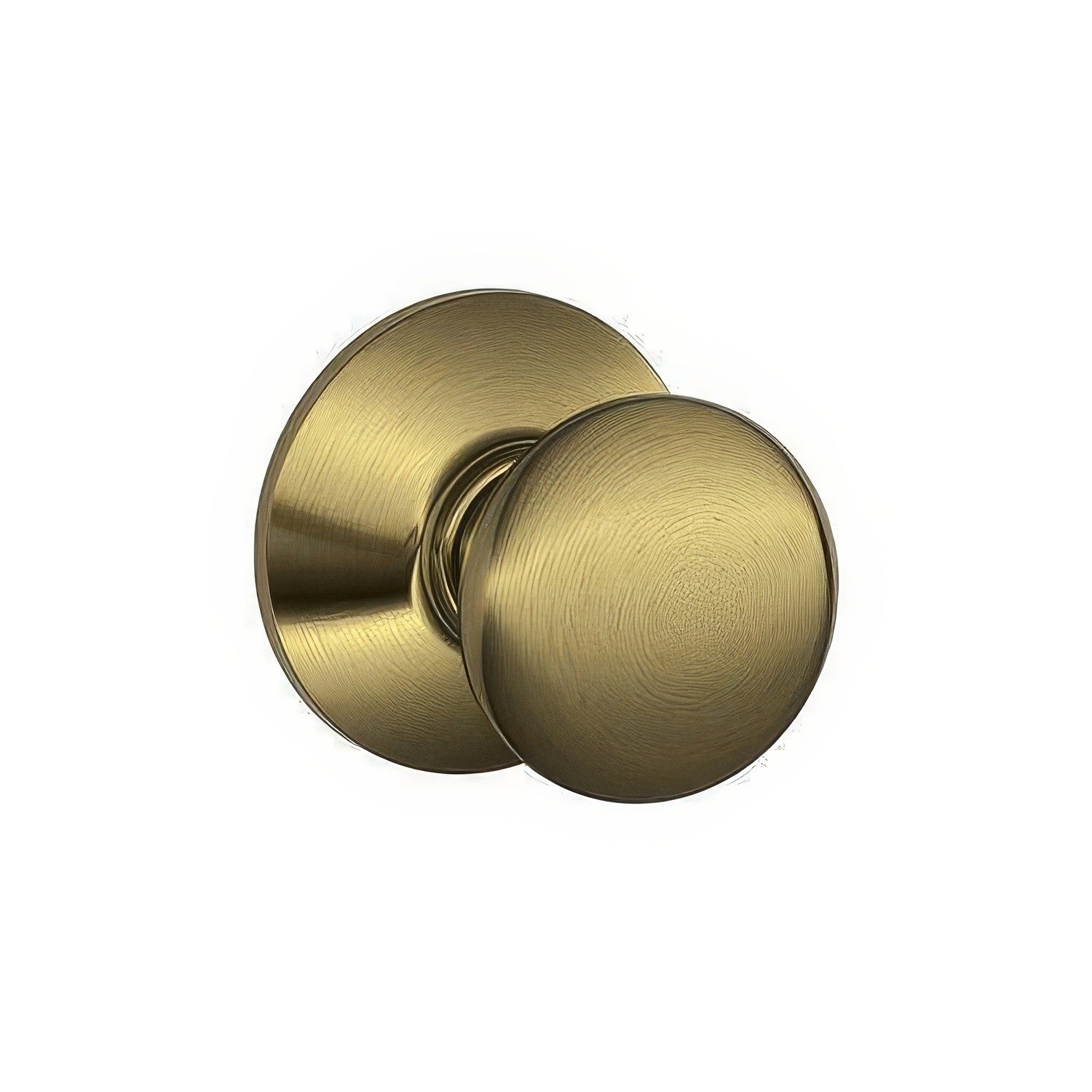

| F10PLY609 | Antique Brass | $31.72 USD |

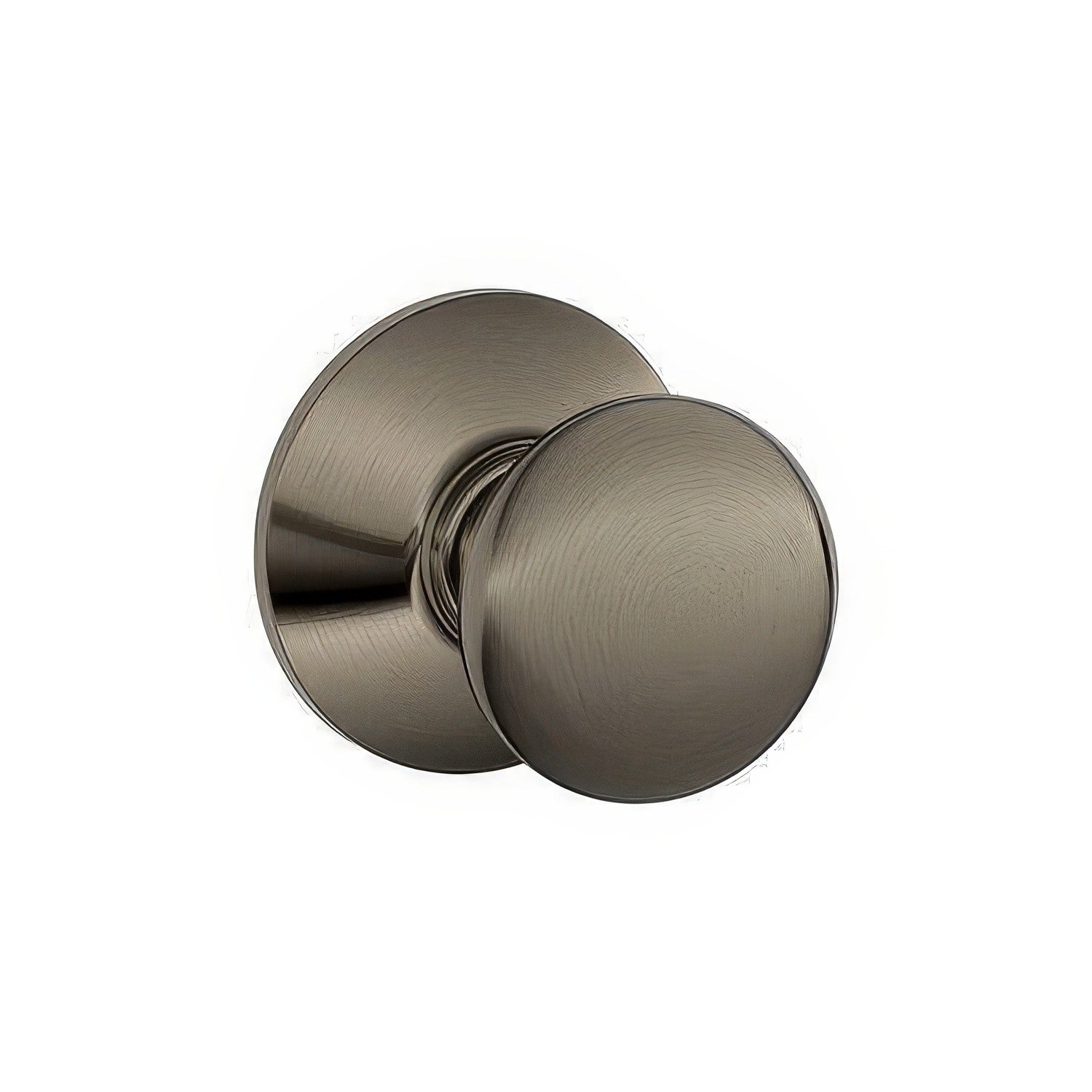

| F10PLY620 | Antique Pewter | $31.72 USD |

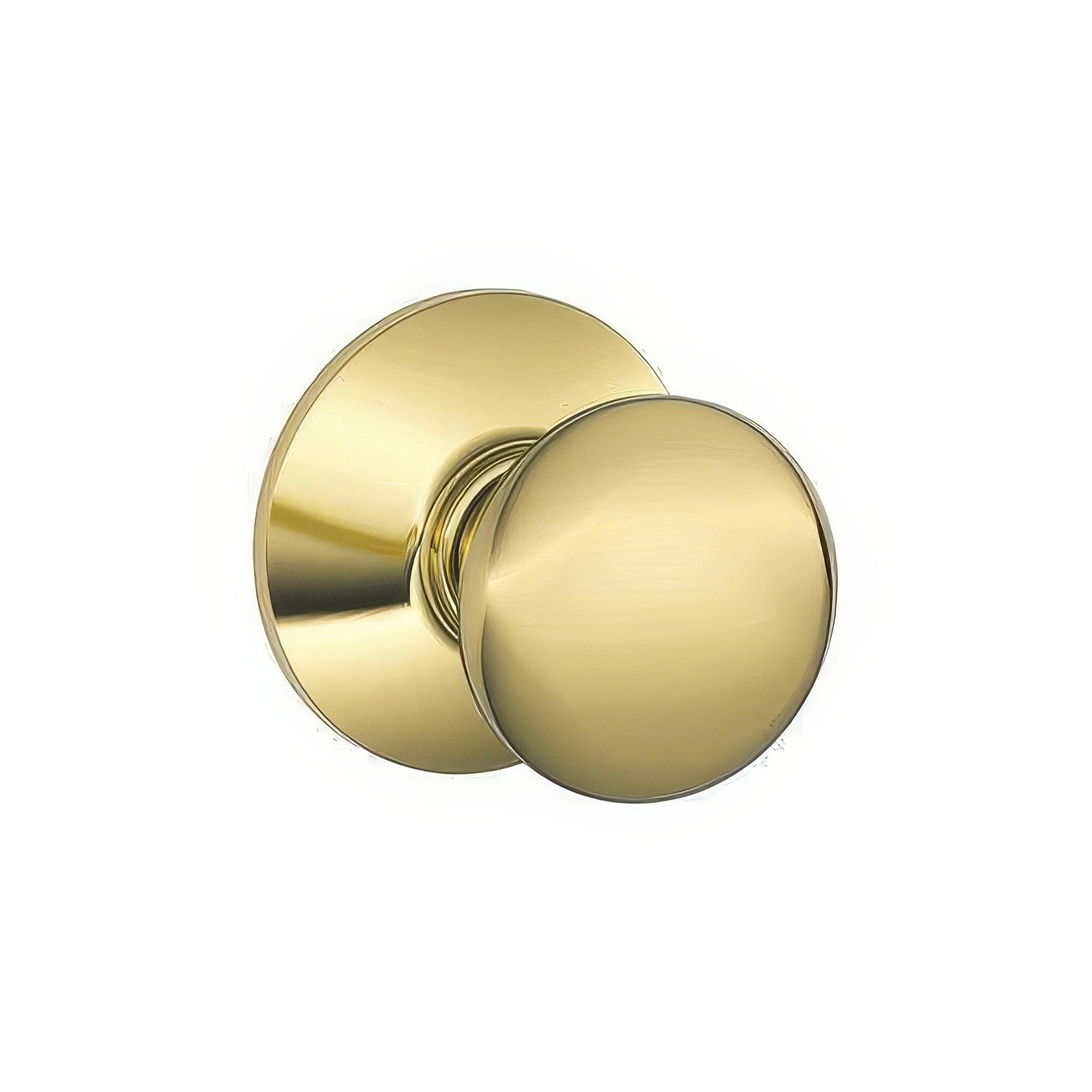

| F10PLY505 | Lifetime Polished Brass | $31.72 USD |

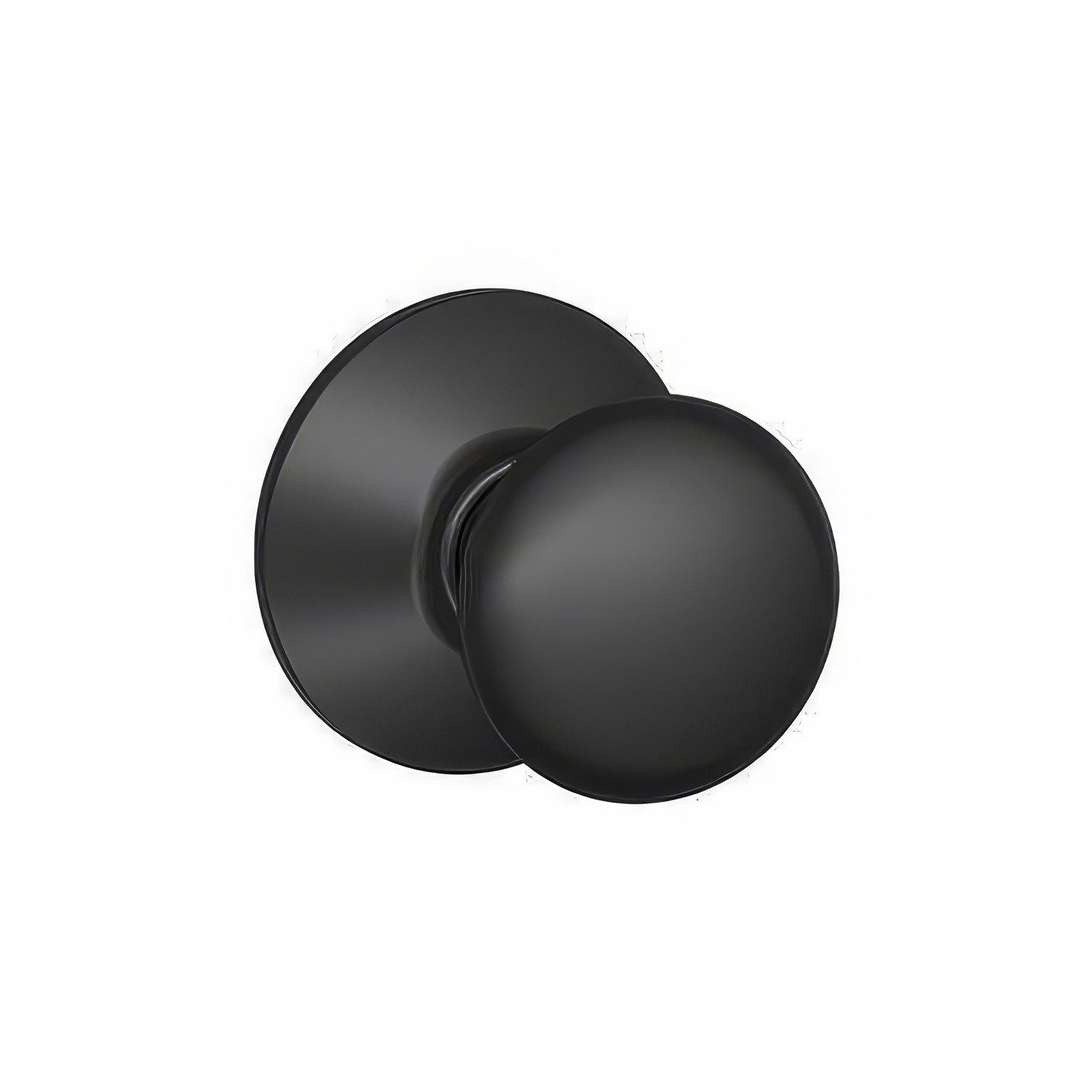

| F10PLY622 | Matte Black | $31.72 USD |
| F10PLY605 | Polished Brass | $30.52 USD |

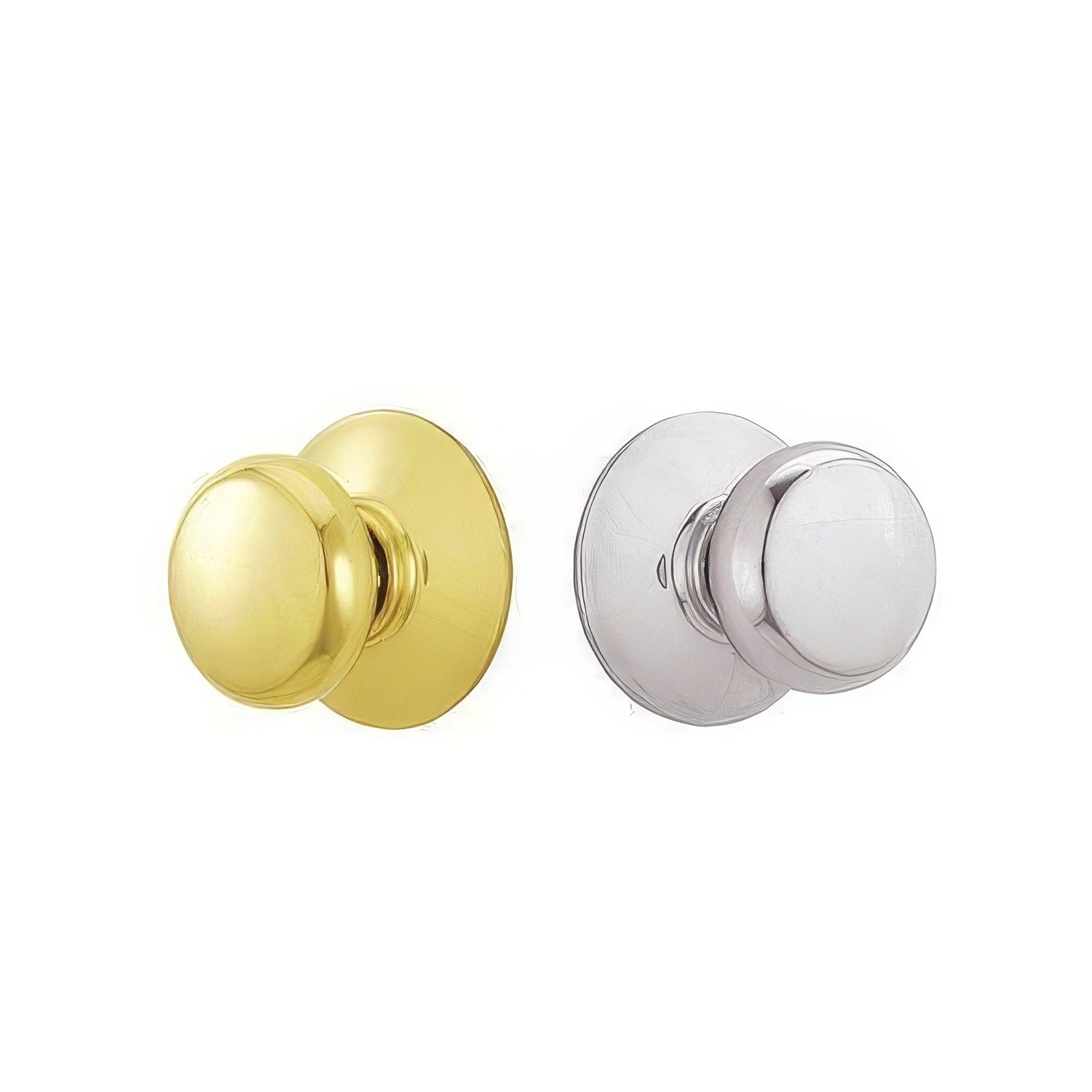

| F10PLY605625 | Polished Brass x Polished Chrome | $37.11 USD |
| F10PLY625 | Polished Chrome | $31.72 USD |
| F10PLY626 | Satin Chrome | $31.72 USD |

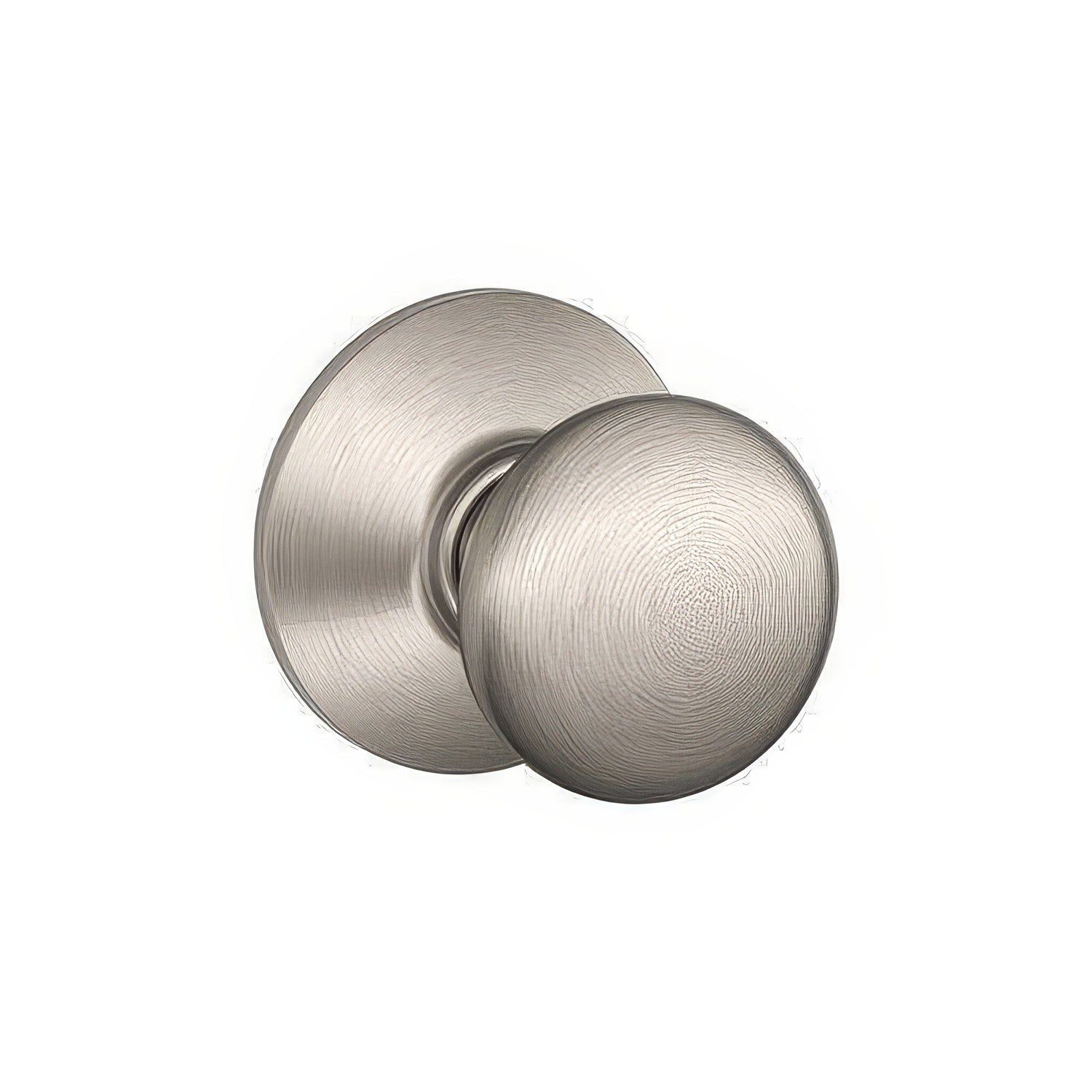

| F10PLY619 | Satin Nickel | $31.72 USD |
Description
Description
The Schlage F10-PLY Plymouth is a passage door knob. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.
The knob turns from either side to retract the latch. Confirm the model, design, door preparation, and verified dimensions before ordering.
Product Details
- Manufacturer part number: F10-PLY
- Function: Passage Door Knob
- Knob design: Plymouth
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 0.875″
- Latch faceplate: Round Corner / Drive-In
- Collection: F-Series
- BHMA certification: Grade 2
- ANSI certification: A156.5
- Style: Transitional
- Shape: Round
Before ordering: Confirm model F10-PLY, the Plymouth design, reversible handing, door thickness and backset, and the intended function.
Additional Schlage Information
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Collections
-
FinishAged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Matte Black, Polished Brass, Polished Brass x Polished Chrome, Polished Chrome, Satin Chrome, Satin Nickel
-
Function
-
HandingReversible
-
Handle Style
-
Material
-
Door Thinkness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
