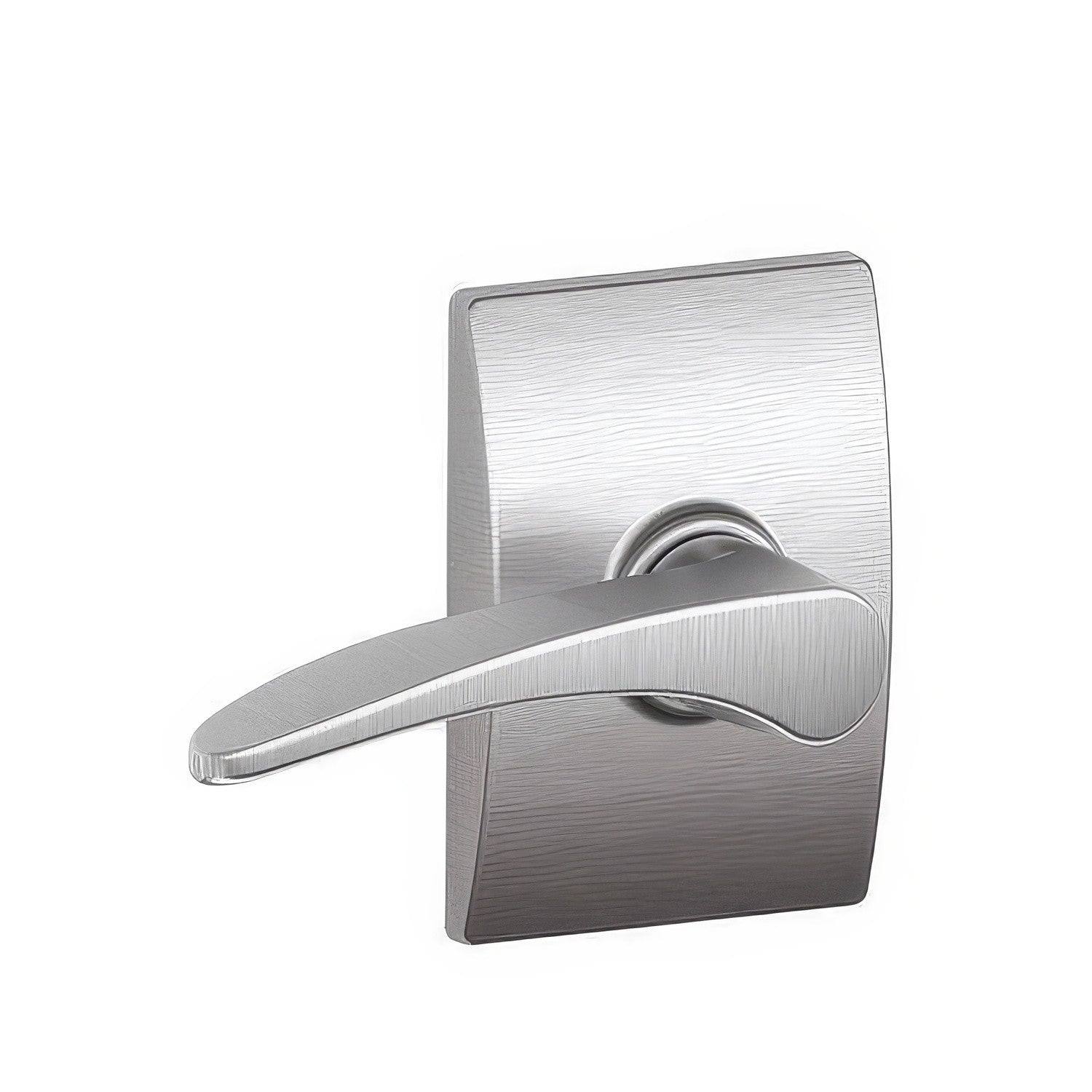

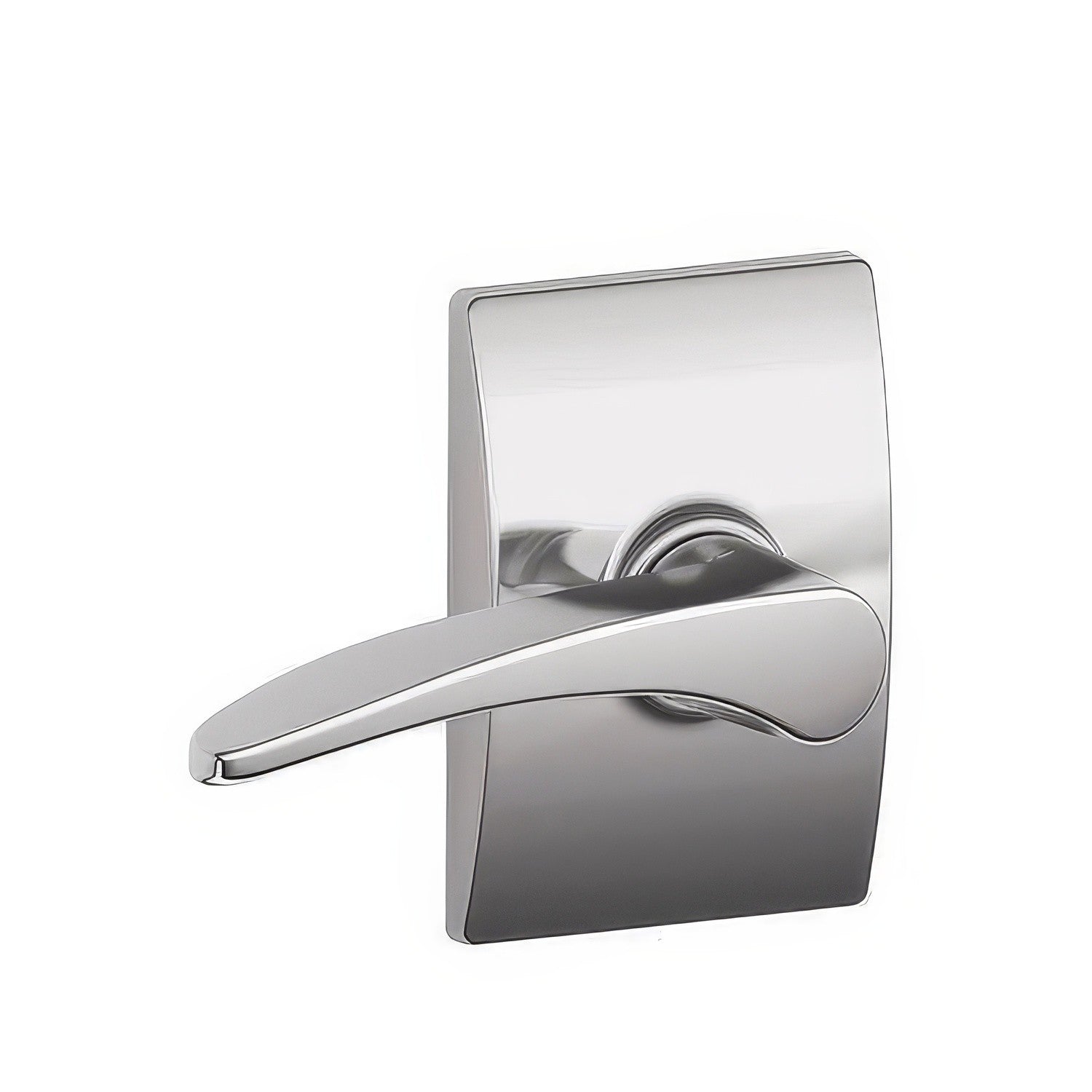

Schlage F10-MNH-CEN F-Series Manhattan Passage Door Lever

The Schlage F10-MNH-CEN Manhattan is a passage door lever with Century trim. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.

The door lever turns from either side to retract the latch. Confirm the model, Manhattan design, century trim, door preparation, and dimensions before ordering.

Product Details

• Manufacturer part number: F10-MNH-CEN
• Function: Passage Door Lever
• Design: Manhattan
• Trim: Century Trim
• Handing: Reversible
• Material: Metal
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 0.875″
• Latch faceplate: Round Corner / Drive-In
• Collection: F-Series
• BHMA certification: Grade 2
• ANSI certification: A156.5
• Style: Modern
• Shape: Flat / Straight

Compatibility: Confirm model F10-MNH-CEN, the Manhattan design, Century trim, reversible handing, door thickness, backset, and the intended function before ordering.

Additional Schlage Information

Schlage F10-MNH-CEN Installation Template

Schlage F10-MNH-CEN Installation Instructions

View Schlage Manufacturer Warranty

Shop All Schlage Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Planning on spending more than $1,200? We may be able to quote even lower prices.

Contact us with the products and quantities you want to purchase.

Large order discounts are valid for the product quantities quoted.

Questions
