Schlage F10-LAT F-Series Latitude Reversible Passage Door Lever
F-Series Latitude Reversible Passage Door Leverset
Schlage F10-LAT F-Series Latitude Reversible Passage Door Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Schlage F10-LAT Latitude is a passage door lever. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.
The door lever turns from either side to retract the latch. Confirm the model, Latitude design, standard trim, door preparation, and dimensions before ordering.
Product Details
- Manufacturer part number: F10-LAT
- Function: Passage Door Lever
- Design: Latitude
- Trim: Standard Trim
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 0.875″
- Lever length: 4-1/2″
- Projection: 2-1/4″
- Latch faceplate: Round Corner / Drive-In
- Collection: F-Series
- BHMA certification: Grade 2
- Style: Contemporary/Modern
- Shape: Flat / Straight
Compatibility: Confirm model F10-LAT, the Latitude design, Standard trim, reversible handing, door thickness, backset, and the intended function before ordering.
Additional Schlage Information
Schlage F10-LAT Specification
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Collections
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
-
Projection
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 6 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

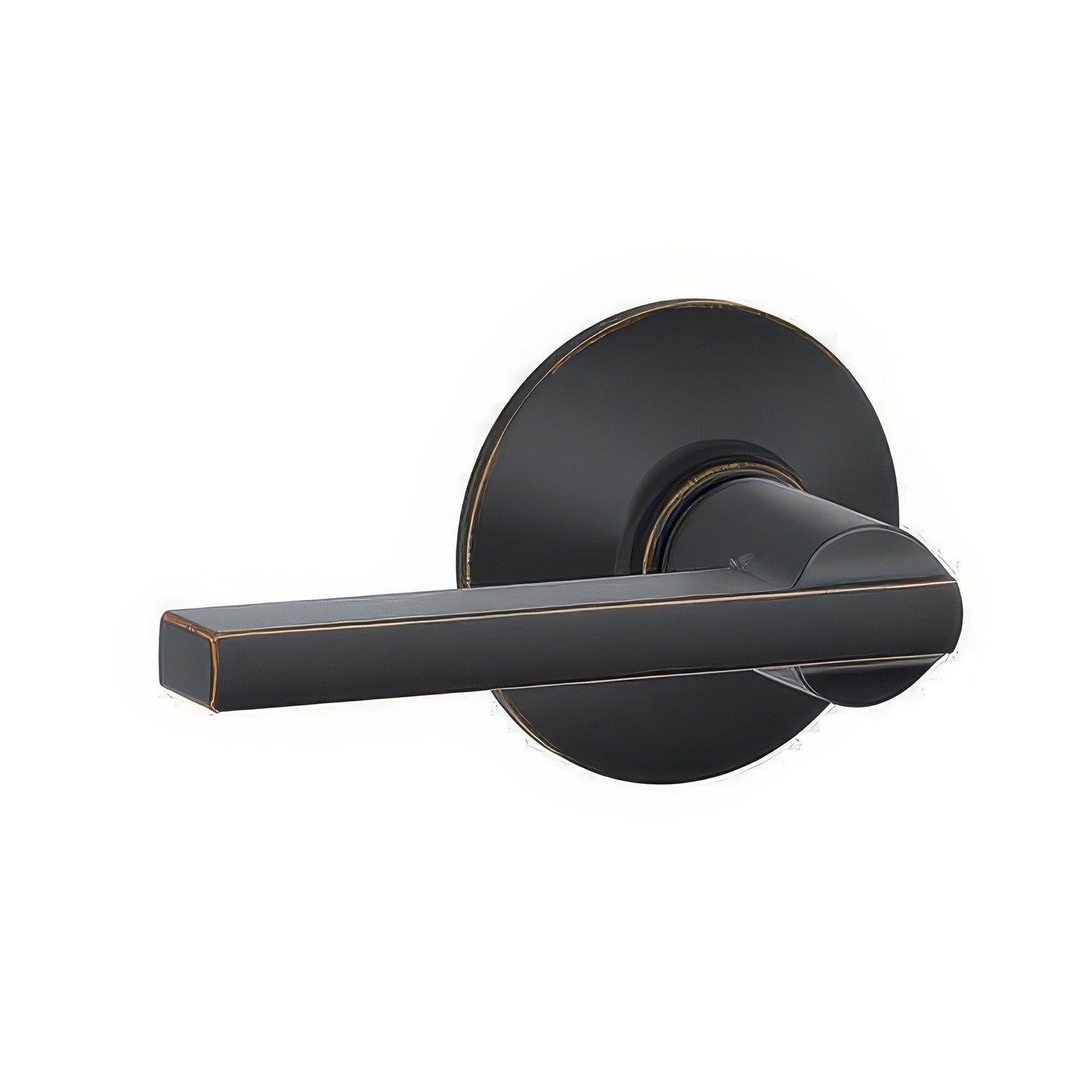

| F10LAT716 | Aged Bronze | $53.27 USD |

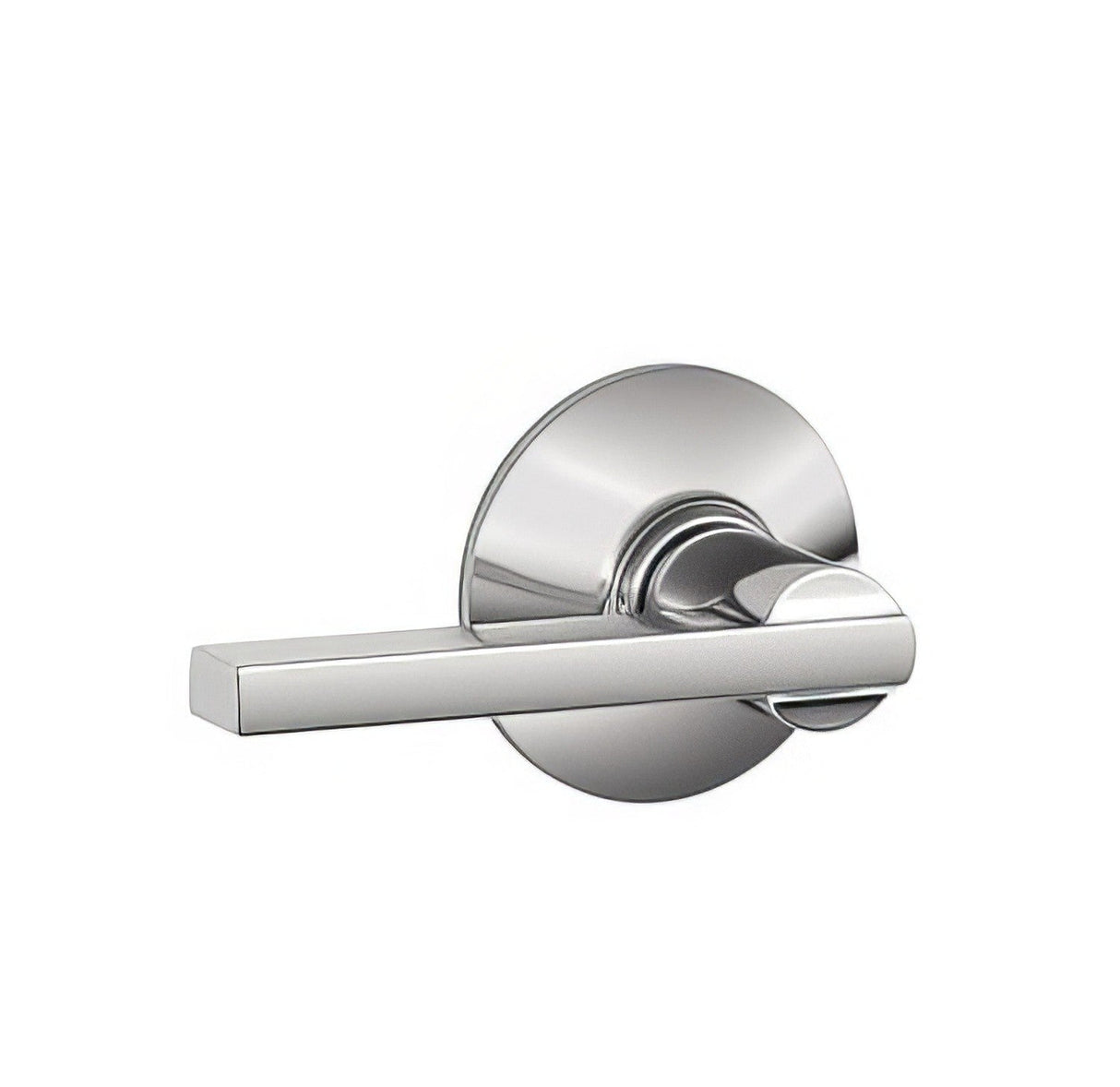

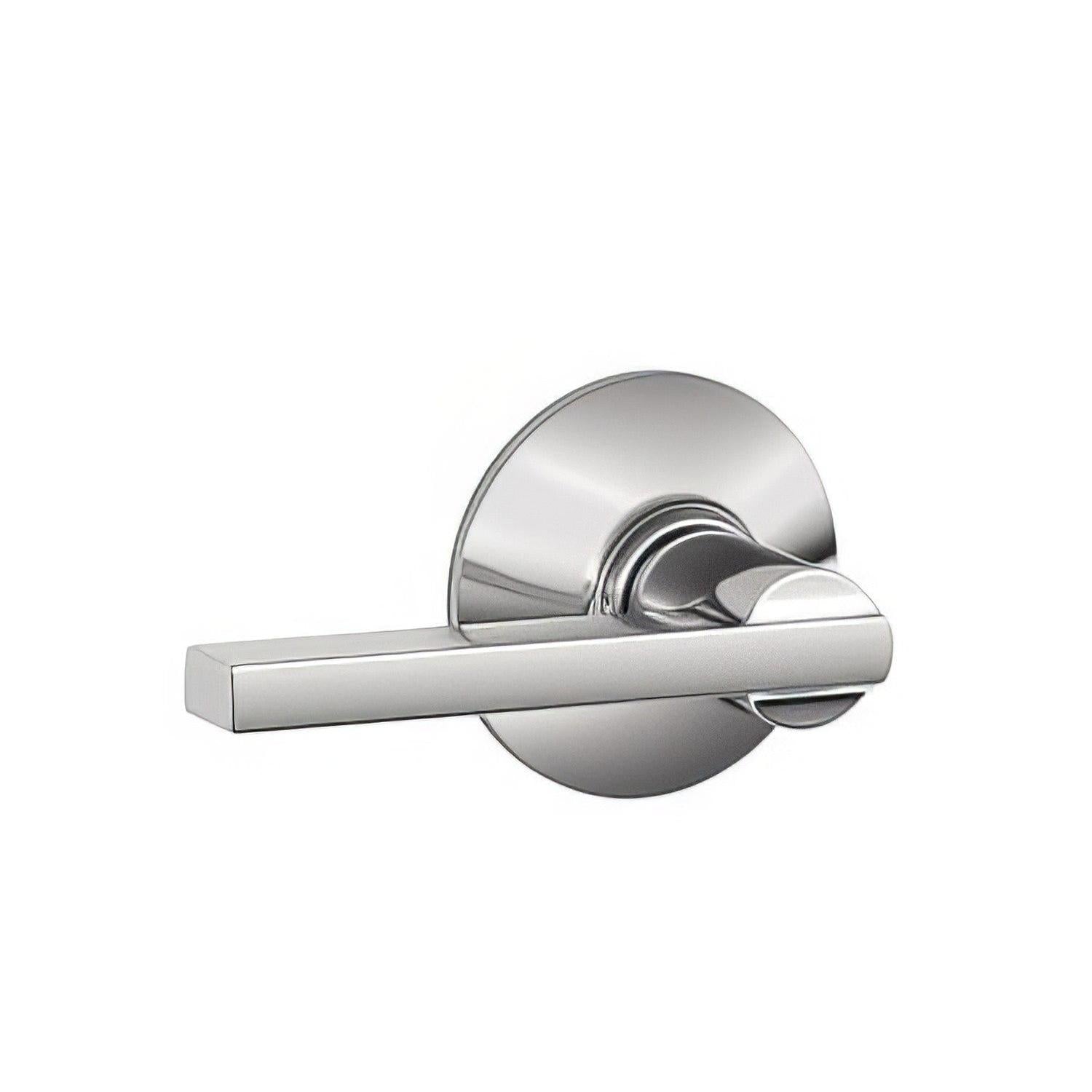

| F10LAT625 | Bright Chrome | $53.27 USD |

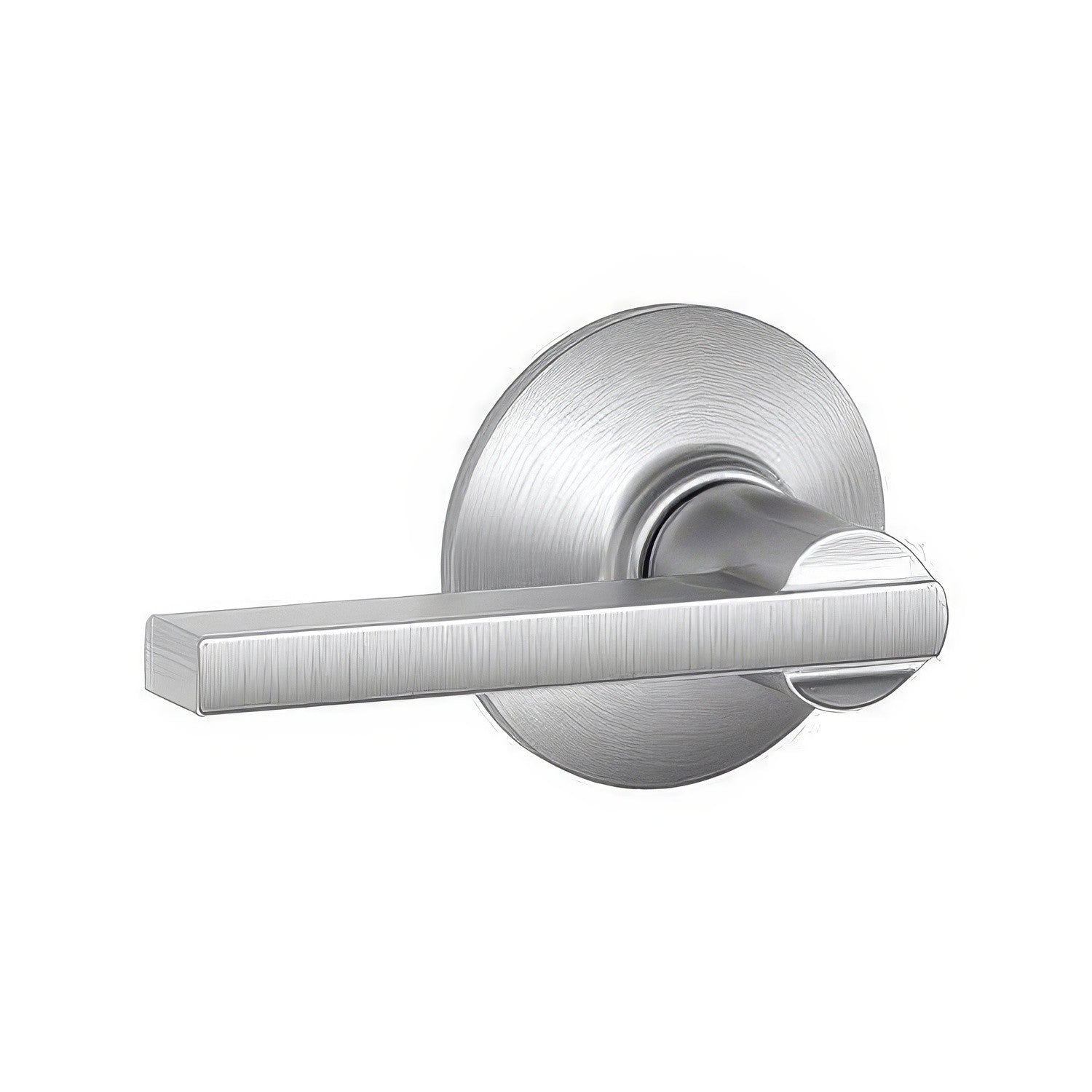

| F10LAT626 | Satin Chrome | $53.27 USD |

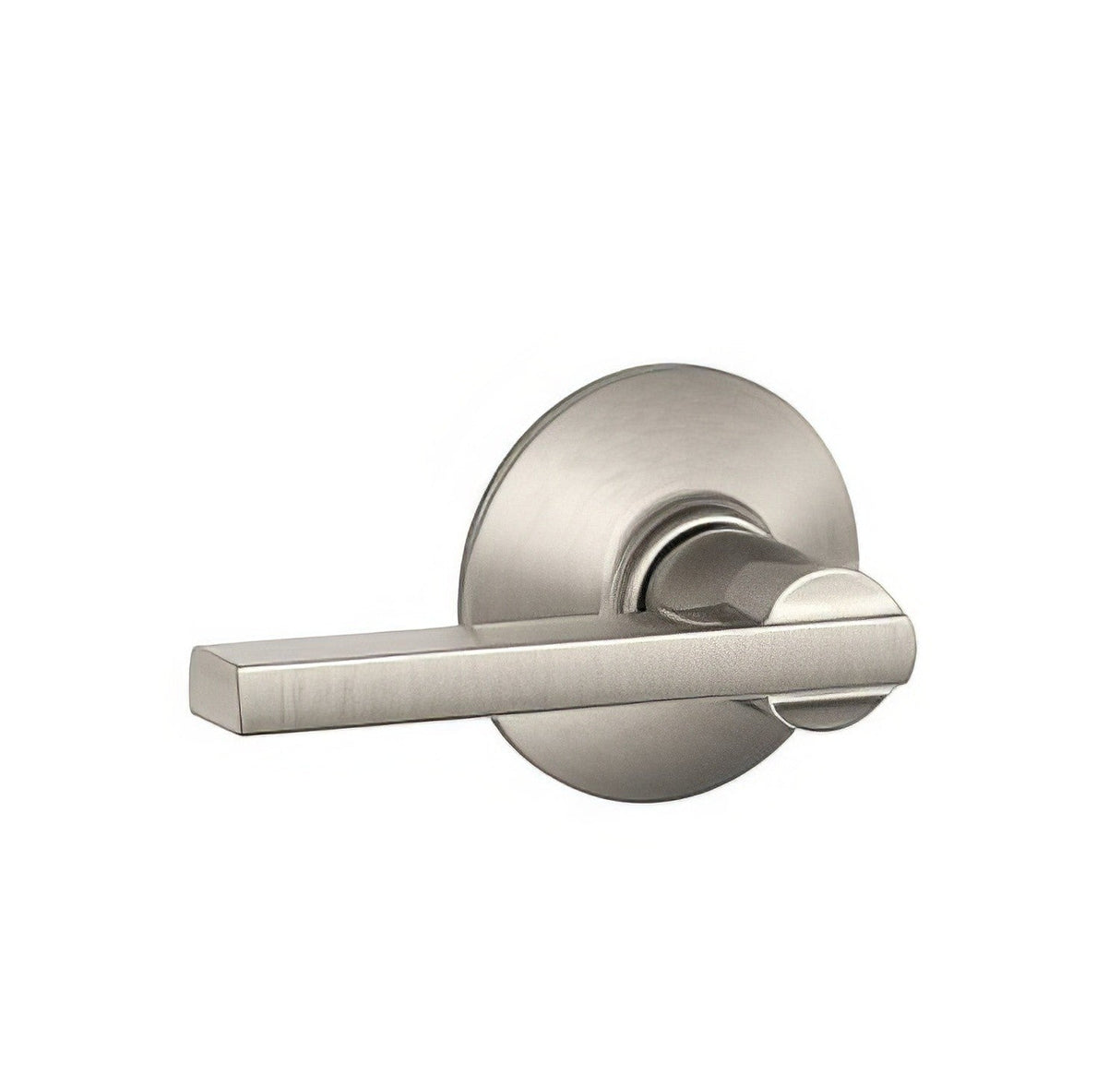

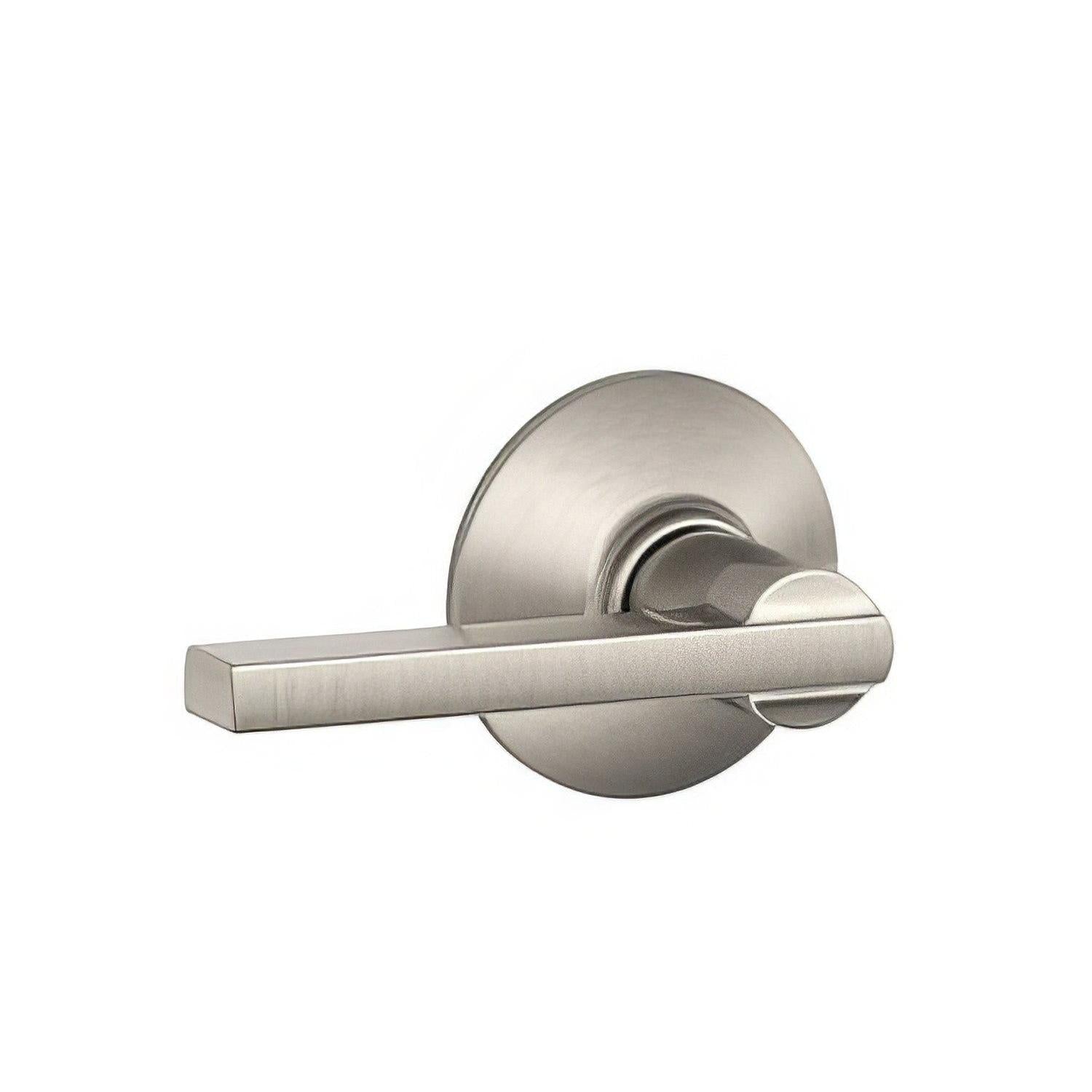

| F10LAT619 | Satin Nickel | $53.27 USD |

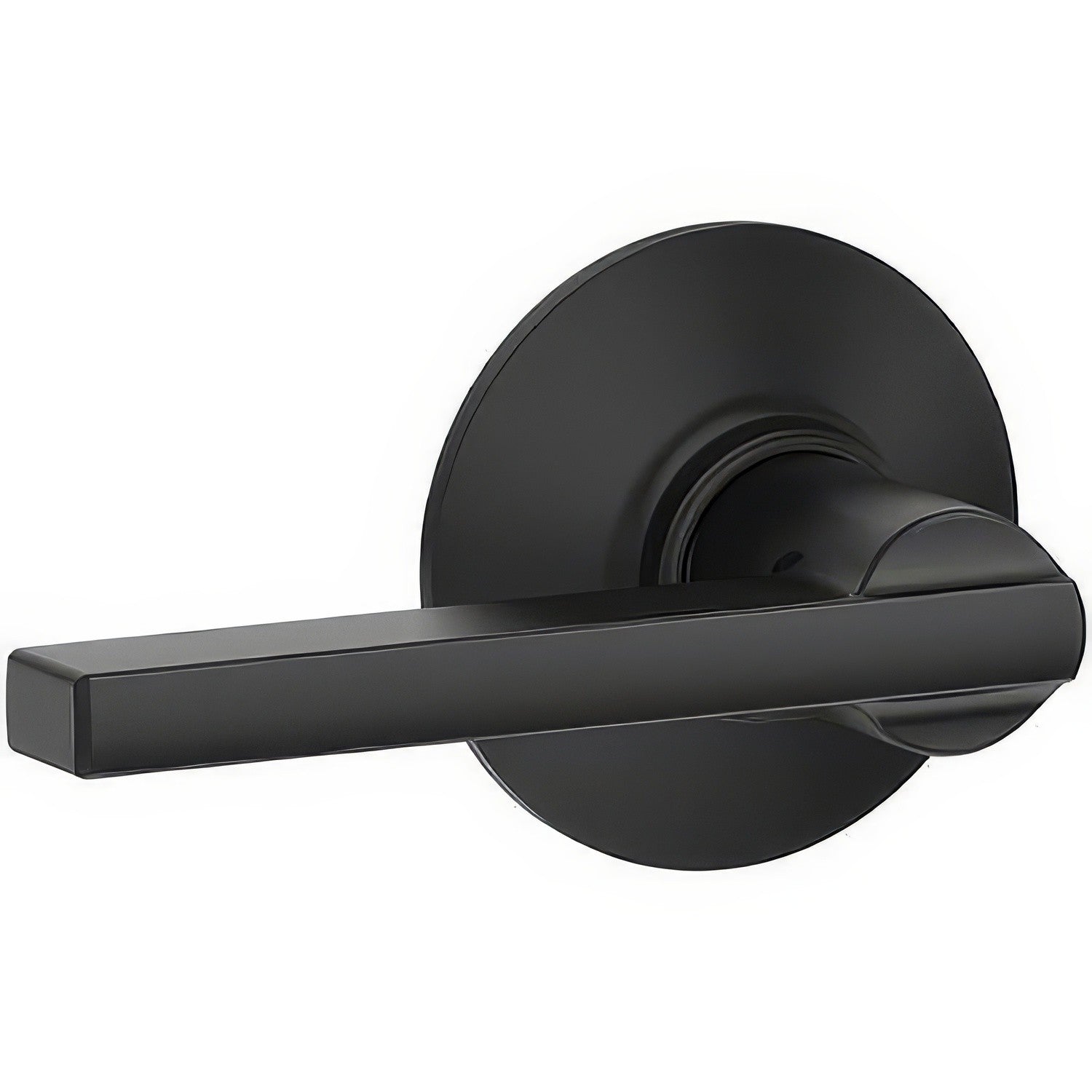

| F10LAT622 | Matte Black | $53.27 USD |

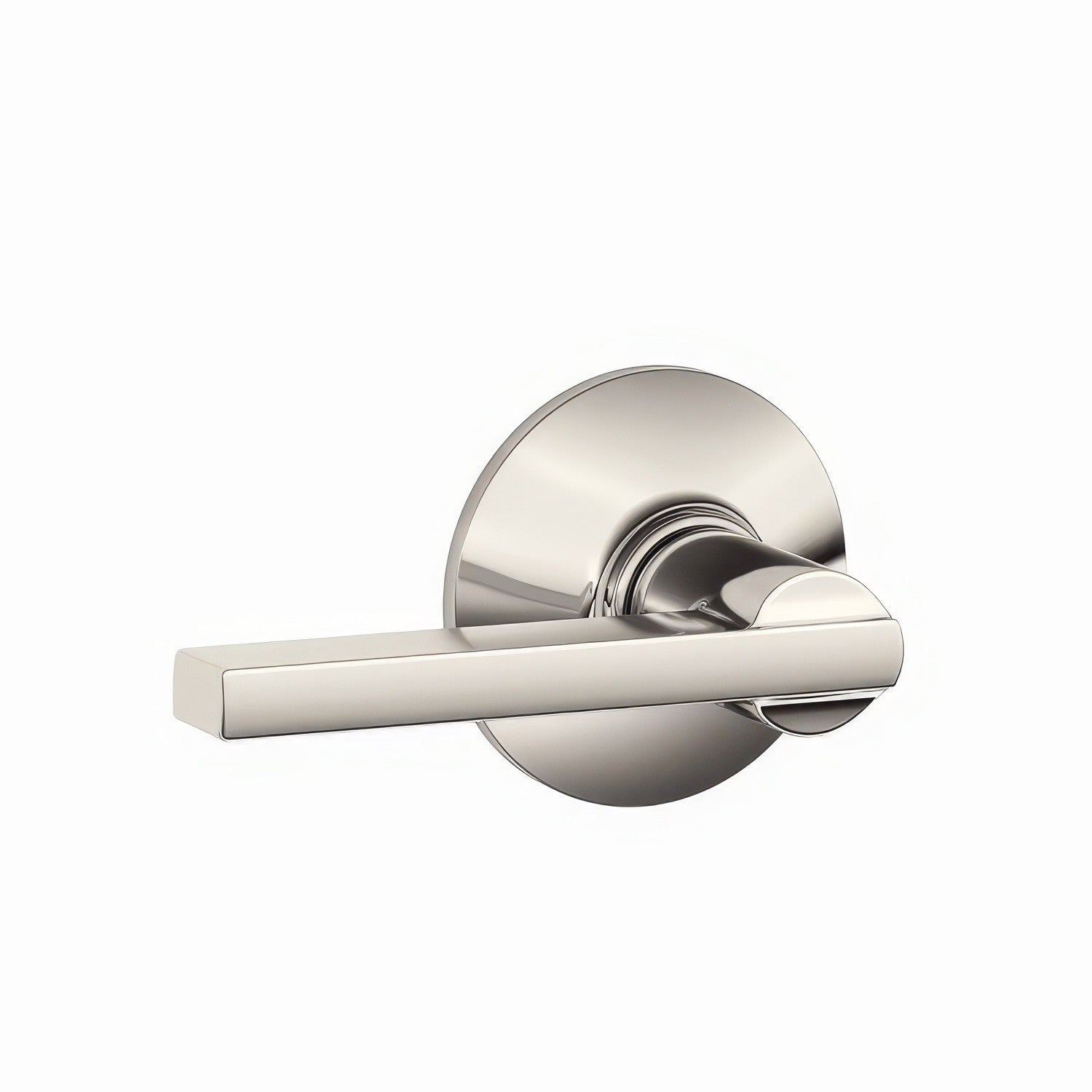

| F10LAT618 | Bright Nickel | $53.27 USD |
Description
Description
The Schlage F10-LAT Latitude is a passage door lever. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.
The door lever turns from either side to retract the latch. Confirm the model, Latitude design, standard trim, door preparation, and dimensions before ordering.
Product Details
- Manufacturer part number: F10-LAT
- Function: Passage Door Lever
- Design: Latitude
- Trim: Standard Trim
- Handing: Reversible
- Material: Metal
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 0.875″
- Lever length: 4-1/2″
- Projection: 2-1/4″
- Latch faceplate: Round Corner / Drive-In
- Collection: F-Series
- BHMA certification: Grade 2
- Style: Contemporary/Modern
- Shape: Flat / Straight
Compatibility: Confirm model F10-LAT, the Latitude design, Standard trim, reversible handing, door thickness, backset, and the intended function before ordering.
Additional Schlage Information
View Schlage Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.55 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
Collections
-
FinishAged Bronze, Bright Chrome, Satin Chrome, Satin Nickel, Matte Black, Bright Nickel
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Material
-
Door Thinkness1-3/8" to 1-3/4"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Cross Bore
-
Projection
