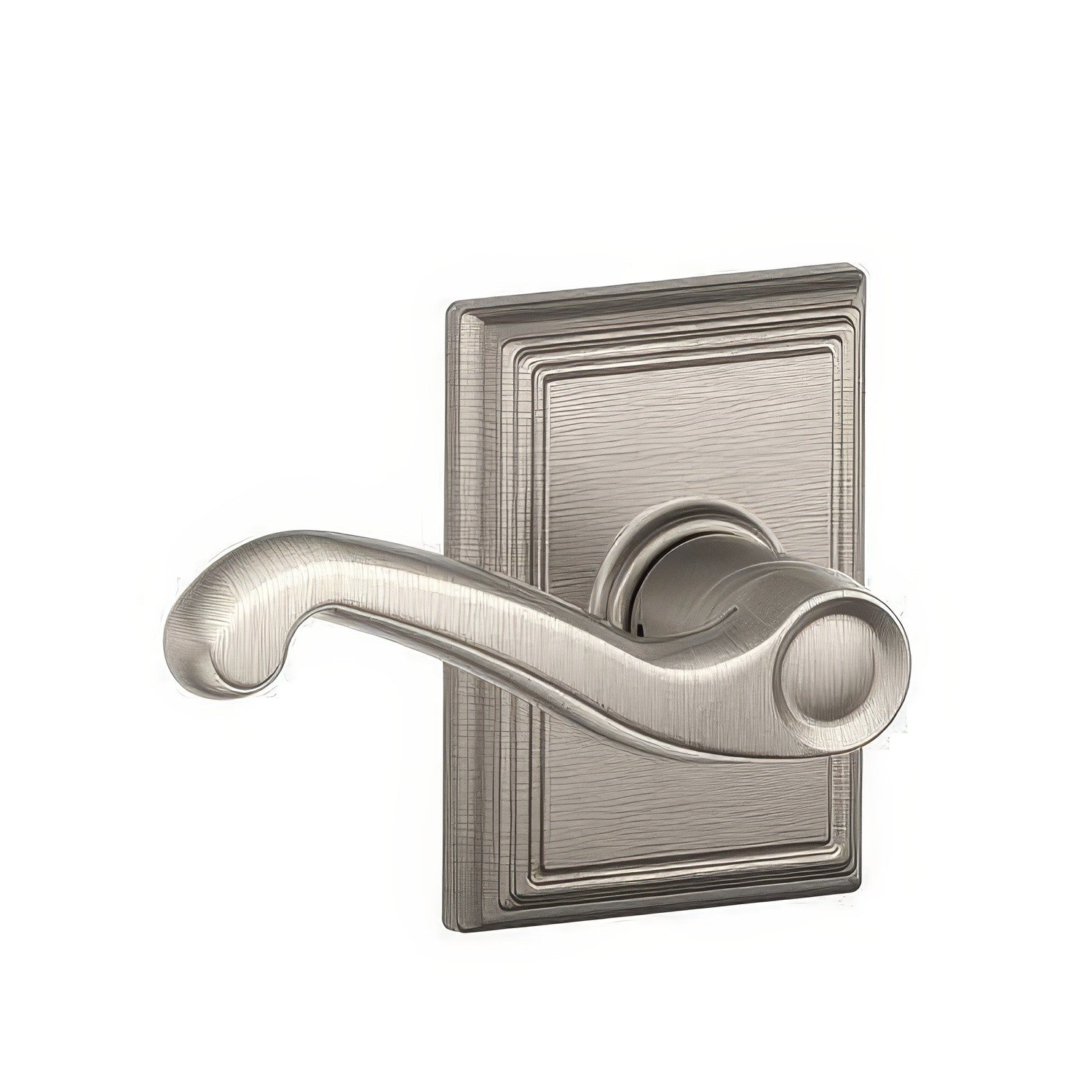

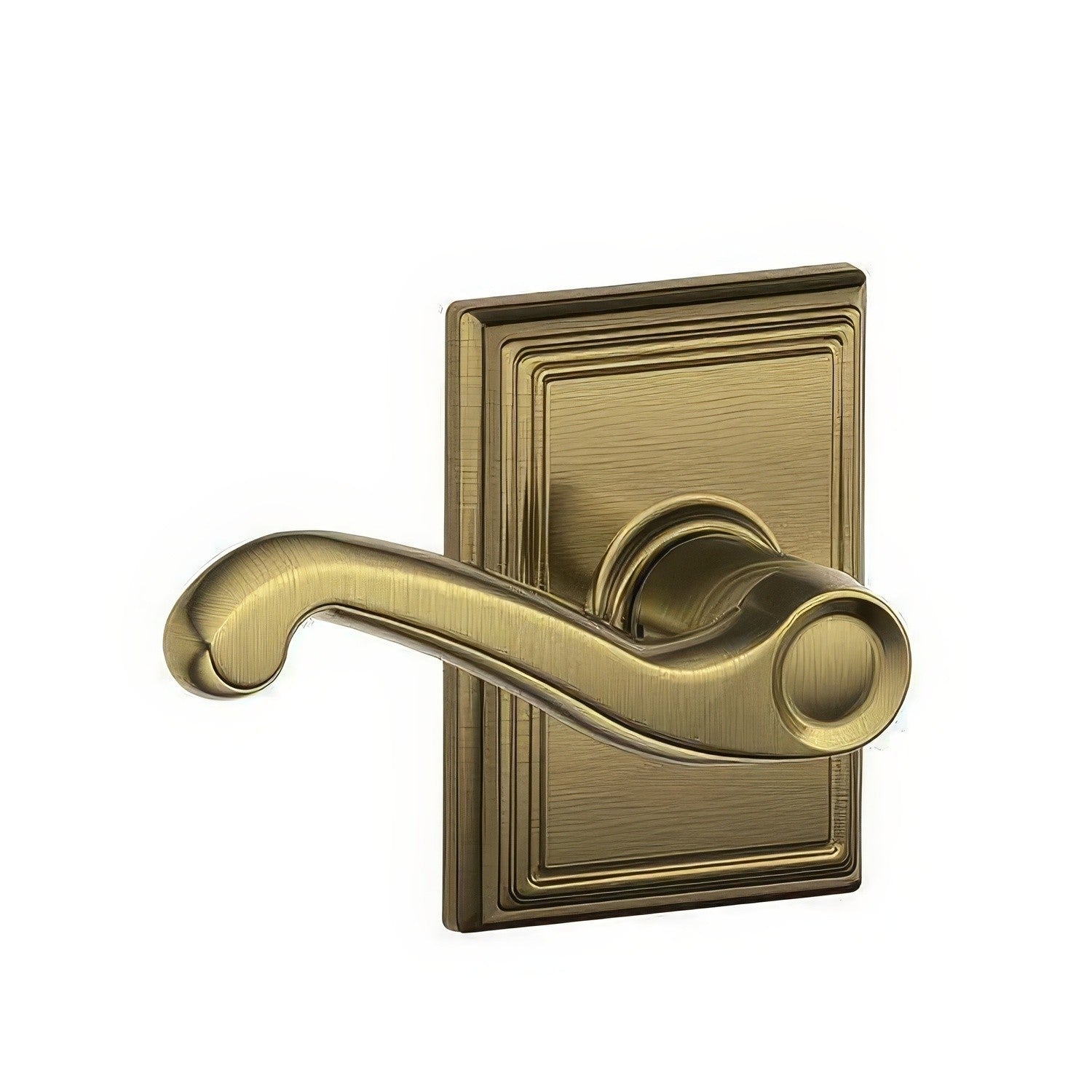

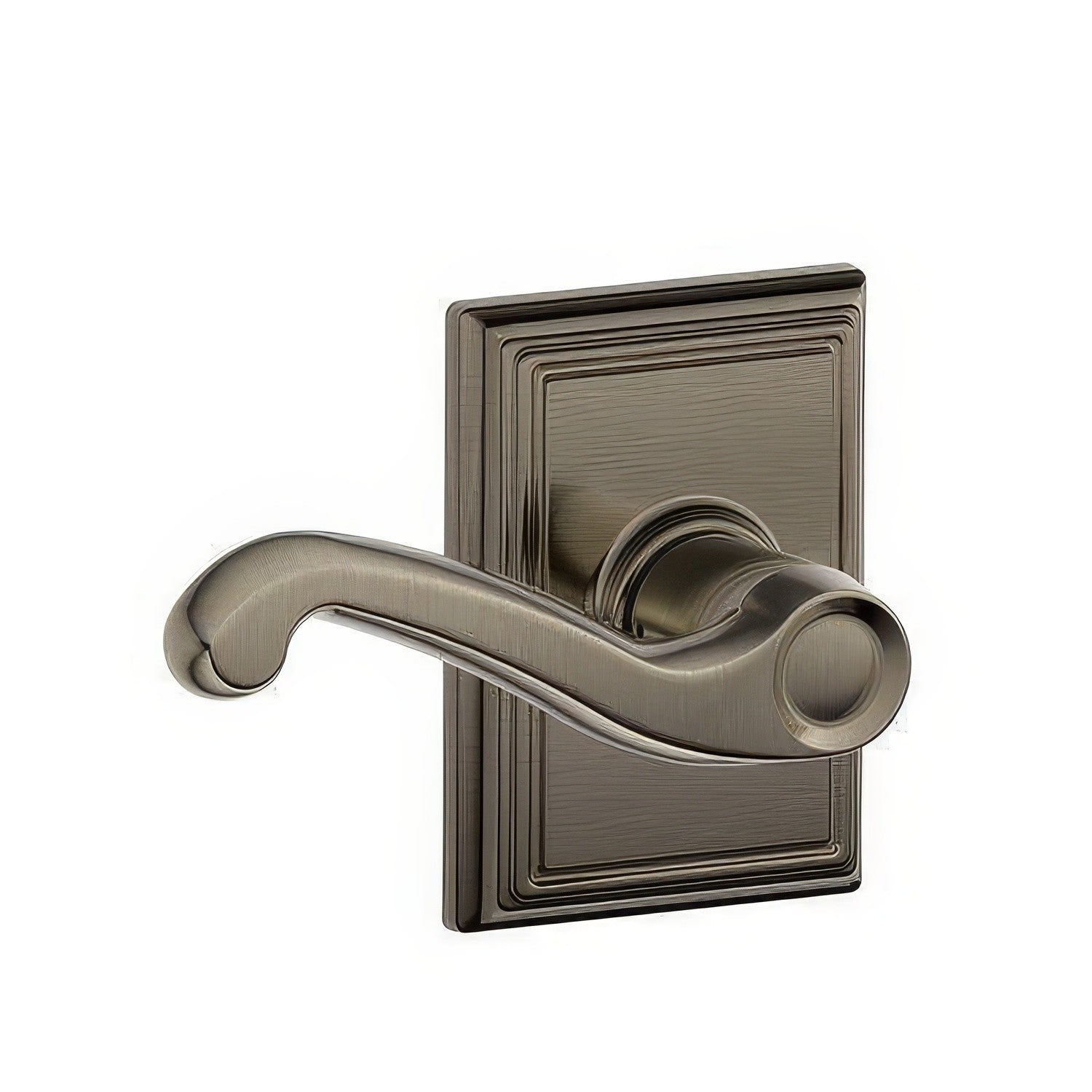

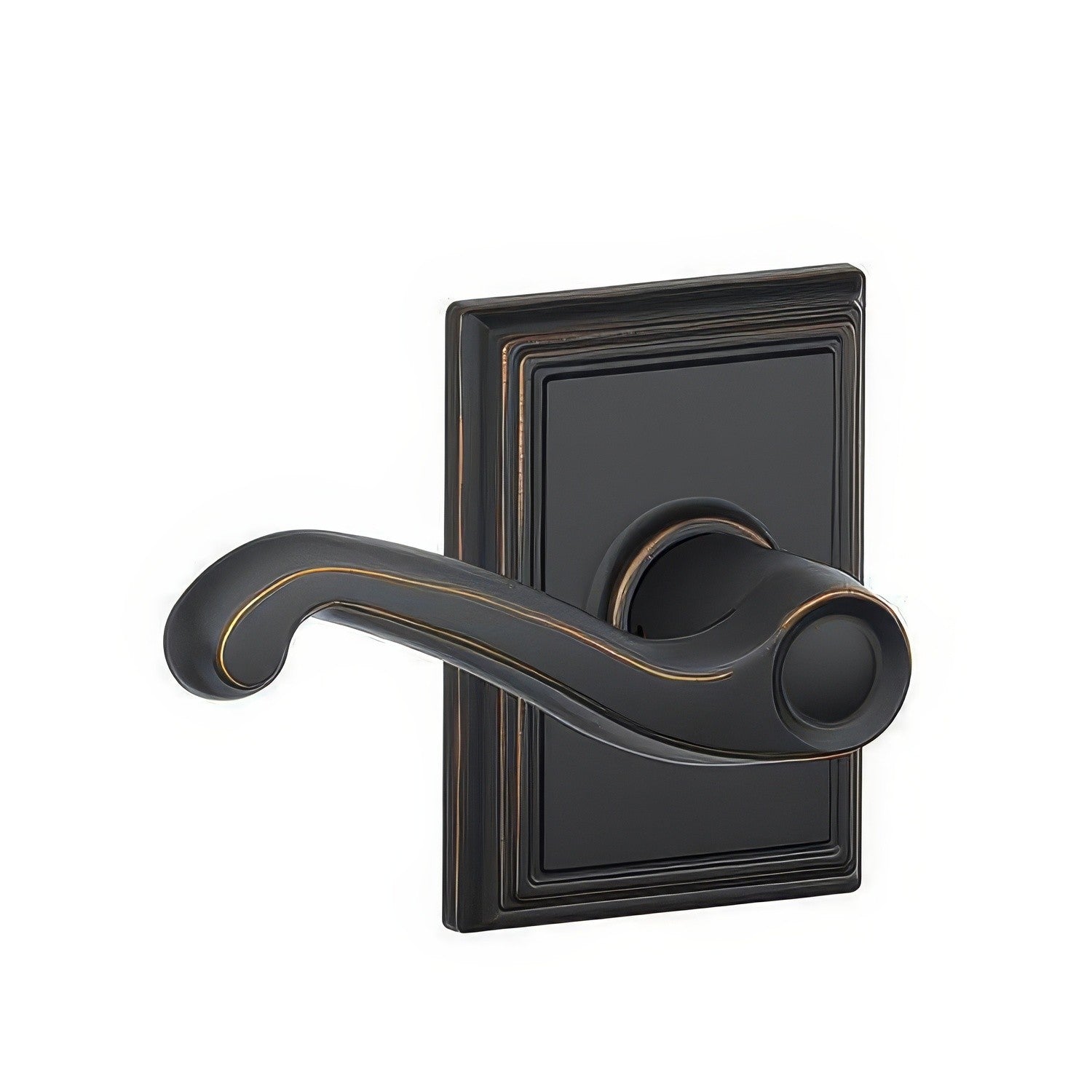

Schlage F10-FLA-ADD F-Series Flair Passage Door Lever

The Schlage F10-FLA-ADD Flair is a passage door lever with Addison trim. It provides non-locking operation for hallways, closets, and other interior doors where locking is not required.

The door lever turns from either side to retract the latch. Confirm the model, Flair design, addison trim, door preparation, and dimensions before ordering.

Product Details

• Manufacturer part number: F10-FLA-ADD
• Function: Passage Door Lever
• Design: Flair
• Trim: Addison Trim
• Handing: Reversible
• Material: Metal
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 0.875″
• Latch faceplate: Round Corner / Drive-In
• Collection: F-Series
• BHMA certification: Grade 2
• ANSI certification: A156.5
• Style: Modern
• Shape: Drop / Wave

Compatibility: Confirm model F10-FLA-ADD, the Flair design, Addison trim, reversible handing, door thickness, backset, and the intended function before ordering.

Additional Schlage Information

Schlage F10-FLA-ADD Installation Template

Schlage F10-FLA-ADD Installation Instructions

View Schlage Manufacturer Warranty

Shop All Schlage Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
