Schlage Commercial ALX53RATH Grade 2 Athens Keyed Entry Door Lever with Large Format IC Core C Keyway
ALX53RATH Grade 2 Athens Keyed Entry Door Lever with Large Format IC Core C Keyway Deadlatch and ANSI Strike
Schlage Commercial ALX53RATH Grade 2 Athens Keyed Entry Door Lever with Large Format IC Core C Keyway - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Schlage Commercial ALX53RATH Grade 2 Athens Keyed Entry Door Lever with Large Format IC Core C Keyway is a keyed entry door lever. It provides keyed access for an entry-function commercial door.
Verified specifications include Zinc construction; Collection: Athens; Backset: 2-3/8″ to 5″; Door Thickness: 1-3/8″ to 1-7/8″.
Product Details
- Manufacturer Part Number: ALX53RATH
- Product Type: Keyed Entry Door Lever
- Function: Keyed Entry Door Lever
- Brand: Schlage Commercial
- Material: Zinc
- Collection: Athens
- Style: Commercial
- Shape: Flat / Straight
- Backset: 2-3/8″ to 5″
- Door Thickness: 1-3/8″ to 1-7/8″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Handing: Left Hand / Right Hand / Reversible
- BHMA Certification: Grade 2
- ANSI Certification: A156.2
- ANSI/BHMA: A156.2
- Latch Faceplate: Round Corner / Square Corner / Drive-In
- Cylinder: Interchangeable 6 Pin Schlage C123
- Projection: 2-1/2″
- Lever Length: 4-1/4″
- Rose Diameter: 3.44
- Approved Commercial Use: Yes
Before ordering: Confirm model ALX53RATH and the required function, cylinder or core configuration, handing, door preparation, and dimensions shown in the product details.
Additional Schlage Commercial Information
-
Weight4.3 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
Backset2-3/4", 2-3/8", 3-3/4", 5"
-
BHMA Certification
-
CylinderInterchangeable 6 Pin Schlage C123
-
Collections
-
Configuration
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Latch TypeSquare Corner
-
Door Thickness1-3/8" to 1-7/8"
-
Edge Bore
-
Shape
-
Style
-
Latch Faceplate
-
Panic Proof
-
Approved for Commercial UseYes
-
Cross Bore
-
Projection
-
Interchangeable CoreNo Thanks! I have my own Cylinder.
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 9 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|
| ALX53RATH613 | Oil Rubbed Bronze | $293.09 USD |

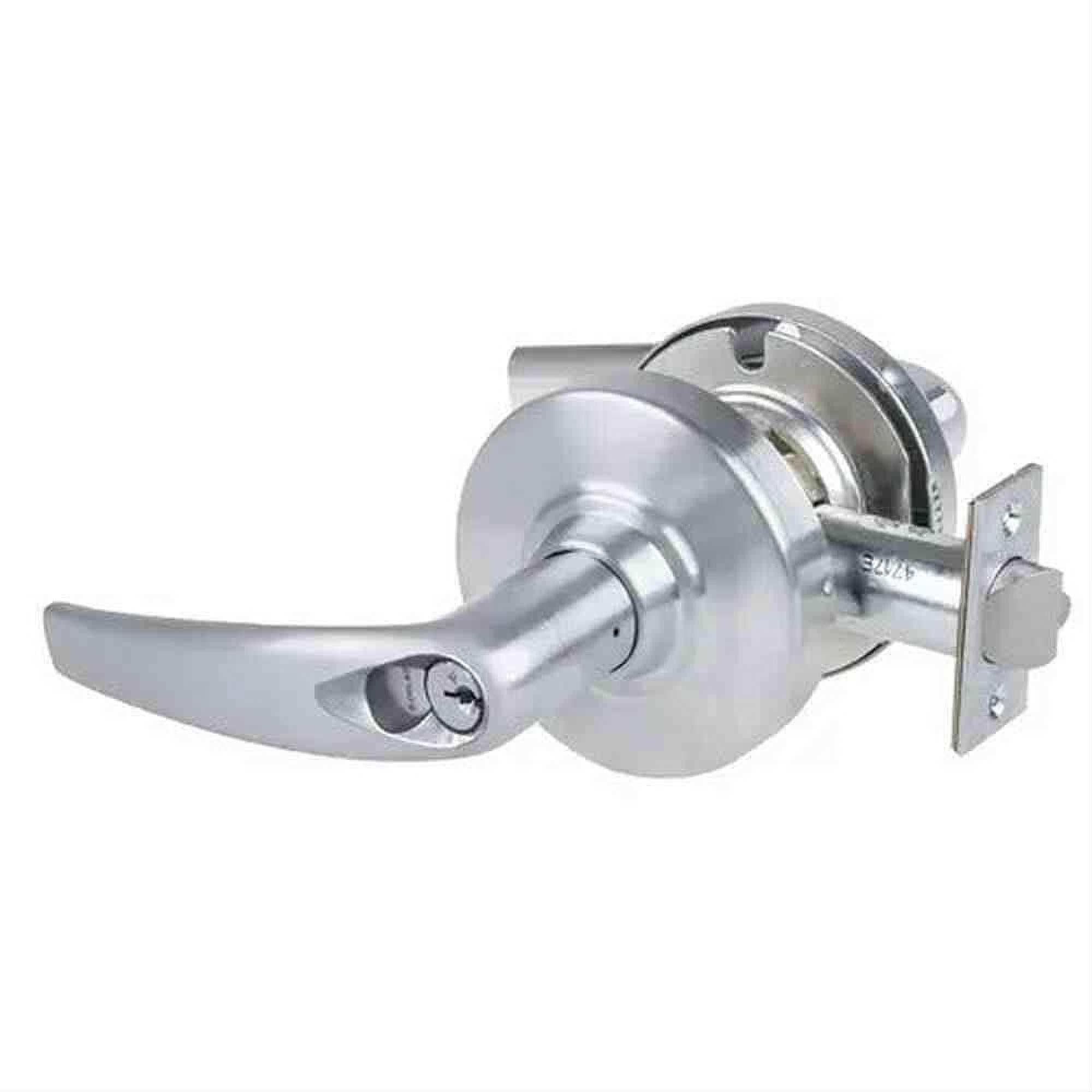

| ALX53RATH626 | Satin Chrome | $276.50 USD |

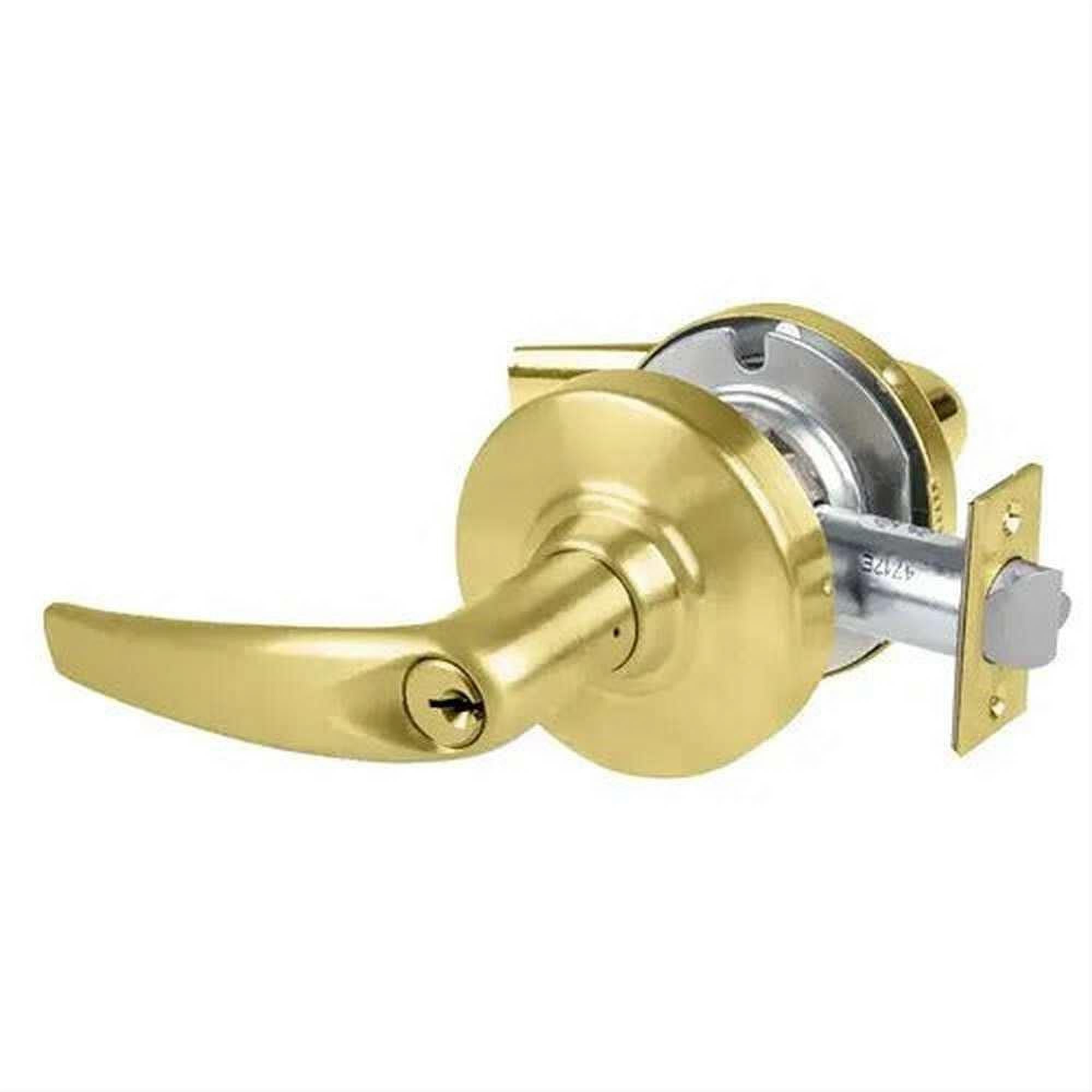

| ALX53RATH605 | Polished Brass | $283.14 USD |
| ALX53RATH606 | Satin Brass | $283.14 USD |

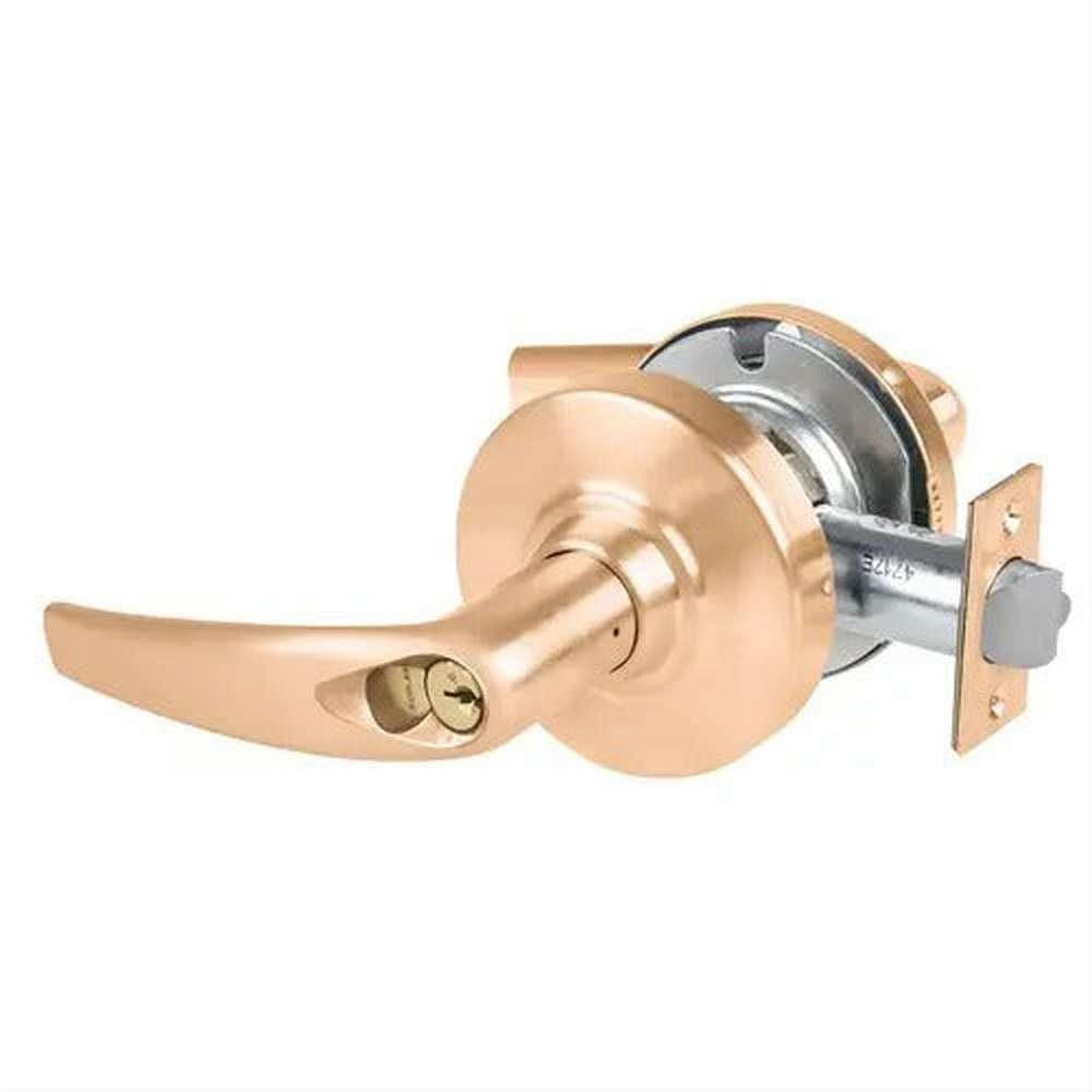

| ALX53RATH612 | Satin Bronze | $283.14 USD |

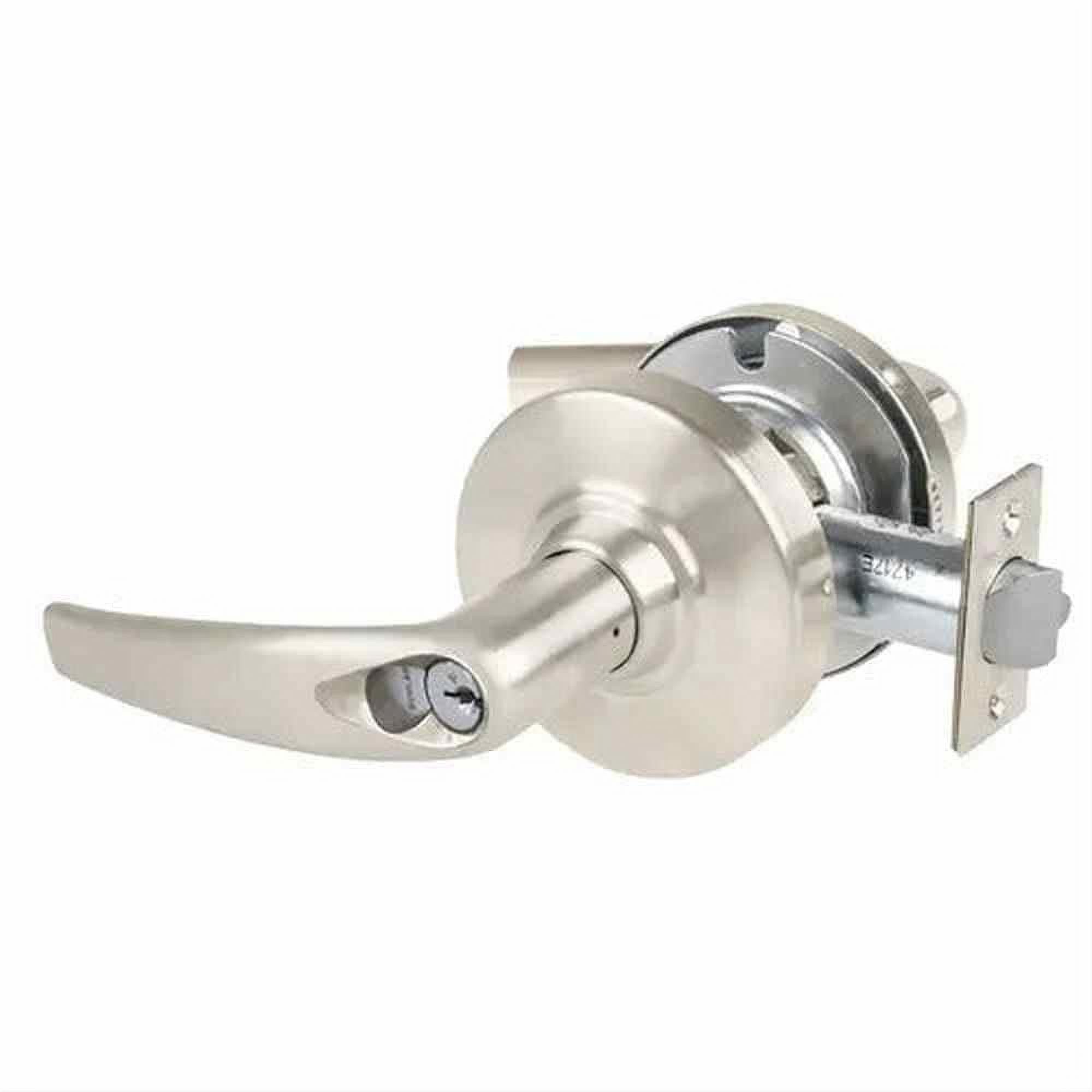

| ALX53RATH619 | Satin Nickel | $283.14 USD |
| ALX53RATH622 | Matte Black | $283.14 USD |

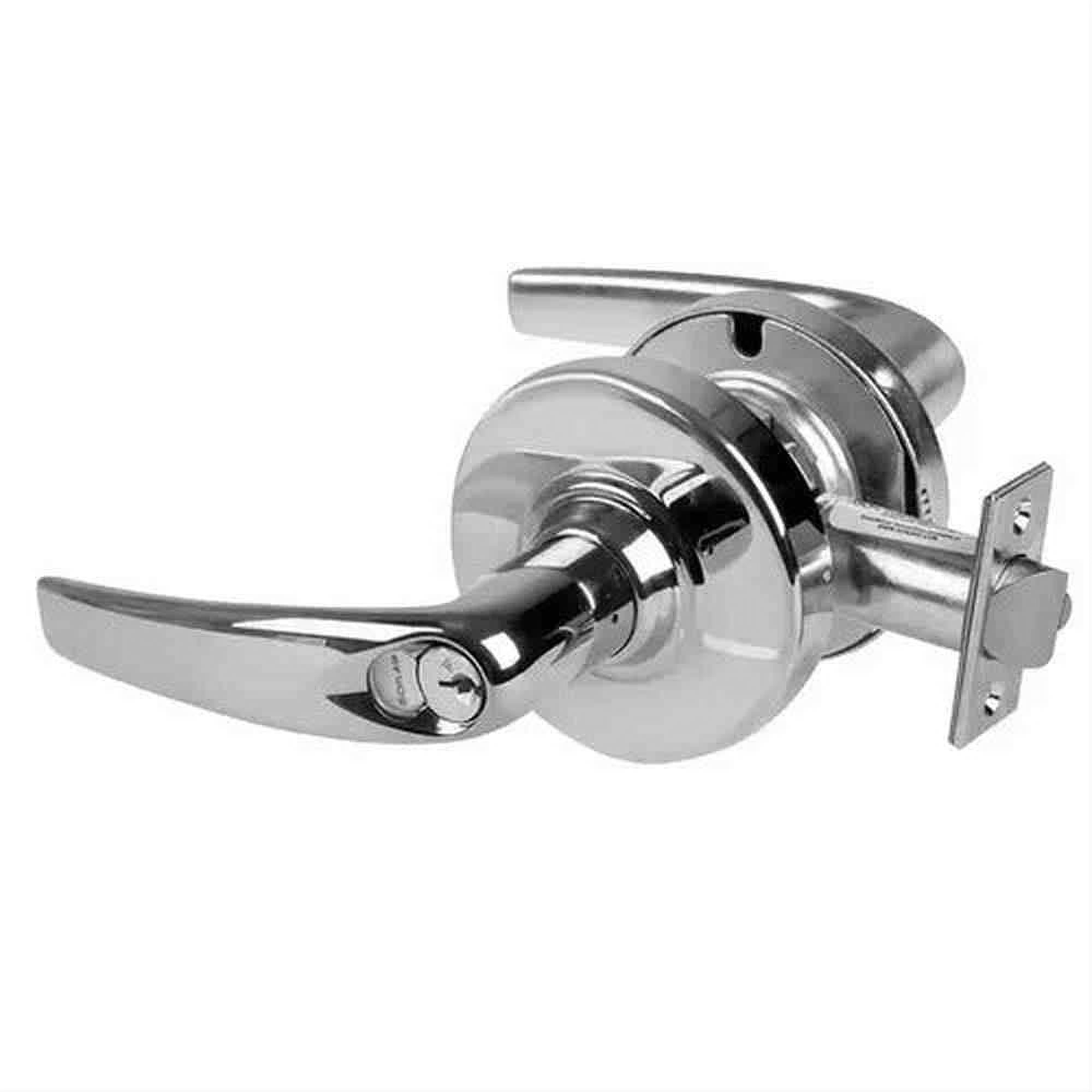

| ALX53RATH625 | Bright Chrome | $283.14 USD |

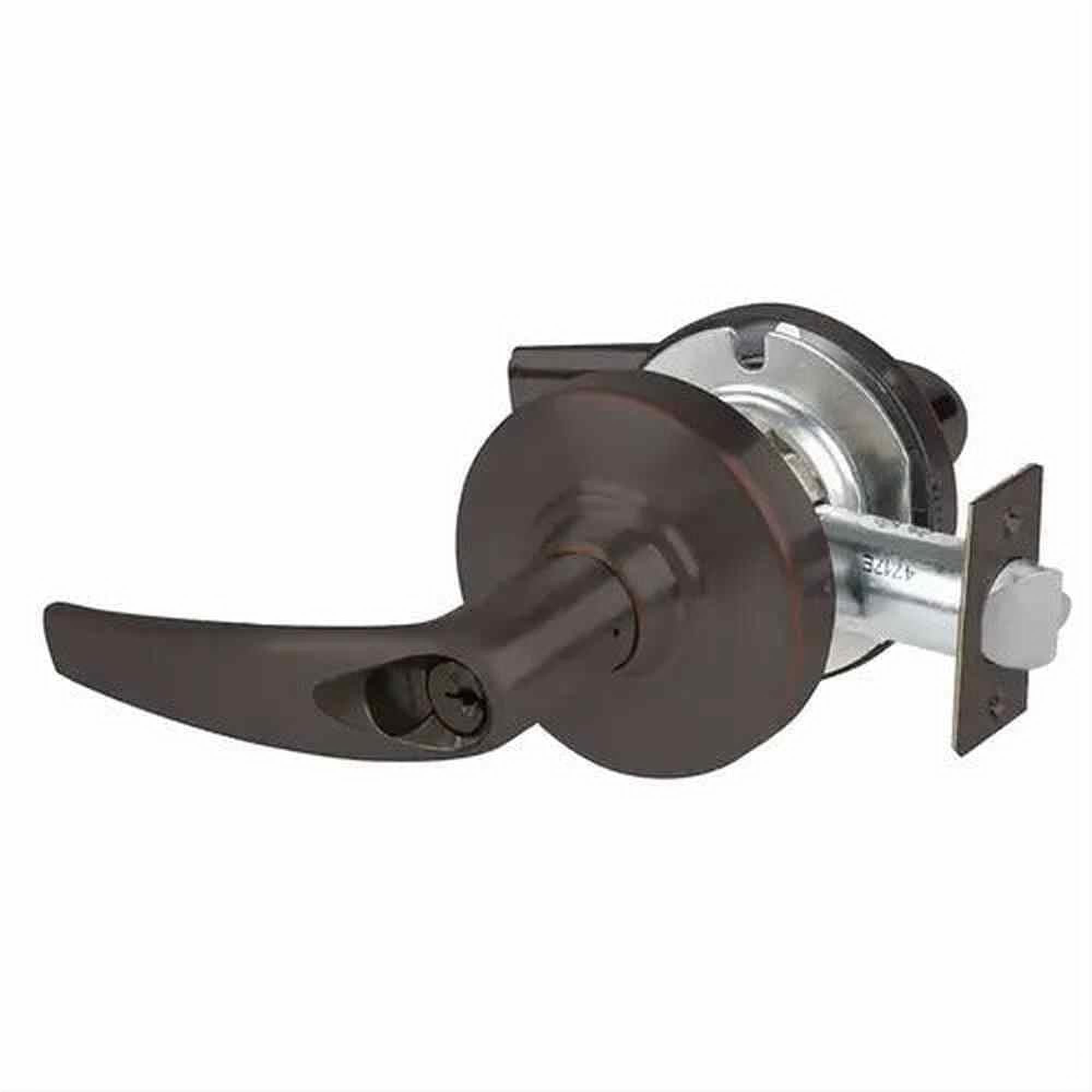

| ALX53RATH643E | Aged Bronze | $283.14 USD |
Description
Description
The Schlage Commercial ALX53RATH Grade 2 Athens Keyed Entry Door Lever with Large Format IC Core C Keyway is a keyed entry door lever. It provides keyed access for an entry-function commercial door.
Verified specifications include Zinc construction; Collection: Athens; Backset: 2-3/8″ to 5″; Door Thickness: 1-3/8″ to 1-7/8″.
Product Details
- Manufacturer Part Number: ALX53RATH
- Product Type: Keyed Entry Door Lever
- Function: Keyed Entry Door Lever
- Brand: Schlage Commercial
- Material: Zinc
- Collection: Athens
- Style: Commercial
- Shape: Flat / Straight
- Backset: 2-3/8″ to 5″
- Door Thickness: 1-3/8″ to 1-7/8″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Handing: Left Hand / Right Hand / Reversible
- BHMA Certification: Grade 2
- ANSI Certification: A156.2
- ANSI/BHMA: A156.2
- Latch Faceplate: Round Corner / Square Corner / Drive-In
- Cylinder: Interchangeable 6 Pin Schlage C123
- Projection: 2-1/2″
- Lever Length: 4-1/4″
- Rose Diameter: 3.44
- Approved Commercial Use: Yes
Before ordering: Confirm model ALX53RATH and the required function, cylinder or core configuration, handing, door preparation, and dimensions shown in the product details.
Additional Schlage Commercial Information
Specifications
Specifications
-
Weight4.3 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Certification
-
Backset2-3/4", 2-3/8", 3-3/4", 5"
-
BHMA Certification
-
CylinderInterchangeable 6 Pin Schlage C123
-
Collections
-
Configuration
-
FinishOil Rubbed Bronze, Satin Chrome, Polished Brass, Satin Brass, Satin Bronze, Satin Nickel, Matte Black, Bright Chrome, Aged Bronze
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Latch typeSquare Corner
-
Material
-
Door Thinkness1-3/8" to 1-7/8"
-
Edge Bore
-
Shape
-
Style
-
Handle Material
-
Latch Faceplate
-
Panic Proof
-
Approved for Commercial UseYes
-
Cross Bore
-
Projection
-
Interchangeable CoreNo Thanks! I have my own Cylinder.
