Precision Lock PLS24PROXHD Heavy Duty Concealed Magnetic Catch
Heavy Duty Magnetic Catch with Adjustable Strength
Precision Lock PLS24PROXHD Heavy Duty Concealed Magnetic Catch - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Precision Lock PLS24PROXHD is an extra-heavy-duty concealed magnetic catch for large or heavy full-size hinged and pivot doors. It provides approximately three times the holding strength of the standard PLS24PRO while remaining hidden when the door is closed.
Product Specifications
- Brand: Precision Lock
- Model: PLS24PROXHD
- Product Type: Extra Heavy Duty Concealed Magnetic Catch
- Material: Steel
- Approximate Pull Strength: 9 kg (19 lb)
- Minimum Door Thickness: 1-1/8″ (30 mm)
- Magnetic Assembly Diameter: 15/16″ (24 mm)
- Installation Bores: Five overlapping 1″ (25 mm) bores
- Bore Depth: 5/16″ (8 mm)
- Recommended Backset: Approximately 2-3/8″ (60 mm) from the leading edge
- Jamb Offset: Approximately 1/8″ to 3/8″ (3 to 10 mm) toward the door stop
- Power Adjustment: Spacer rings from 0.5 to 3 mm
- Mounting: Concealed when the door is closed
Applications
Suitable for large or heavy full-size hinged and pivot doors where a heavy-duty roller catch would otherwise be used.
Included Installation Components
The manufacturer installation kit includes door and jamb magnetic assemblies, self-adhesive stainless-steel cover plates, stainless-steel fixing screws, a SmartBore drilling template, power-adjustment spacer rings and drill-in rubber buffers.
Installation Note
The manufacturer guide specifies five overlapping 1″ (25 mm) installation bores to a depth of 5/16″ (8 mm). Optional PF10PK impact pads are sold separately for additional noise and bounce reduction.
Additional Precision Lock Information
View Precision Lock Manufacturer Warranty
Shop All Precision Lock Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight0.8 lb
-
SKU
-
Brand
-
Function
-
Door ThicknessMinimum 1-1/8″ (30 mm)
-
Diameter
-
Manufacturer Warranty
-
Bore Diameter
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

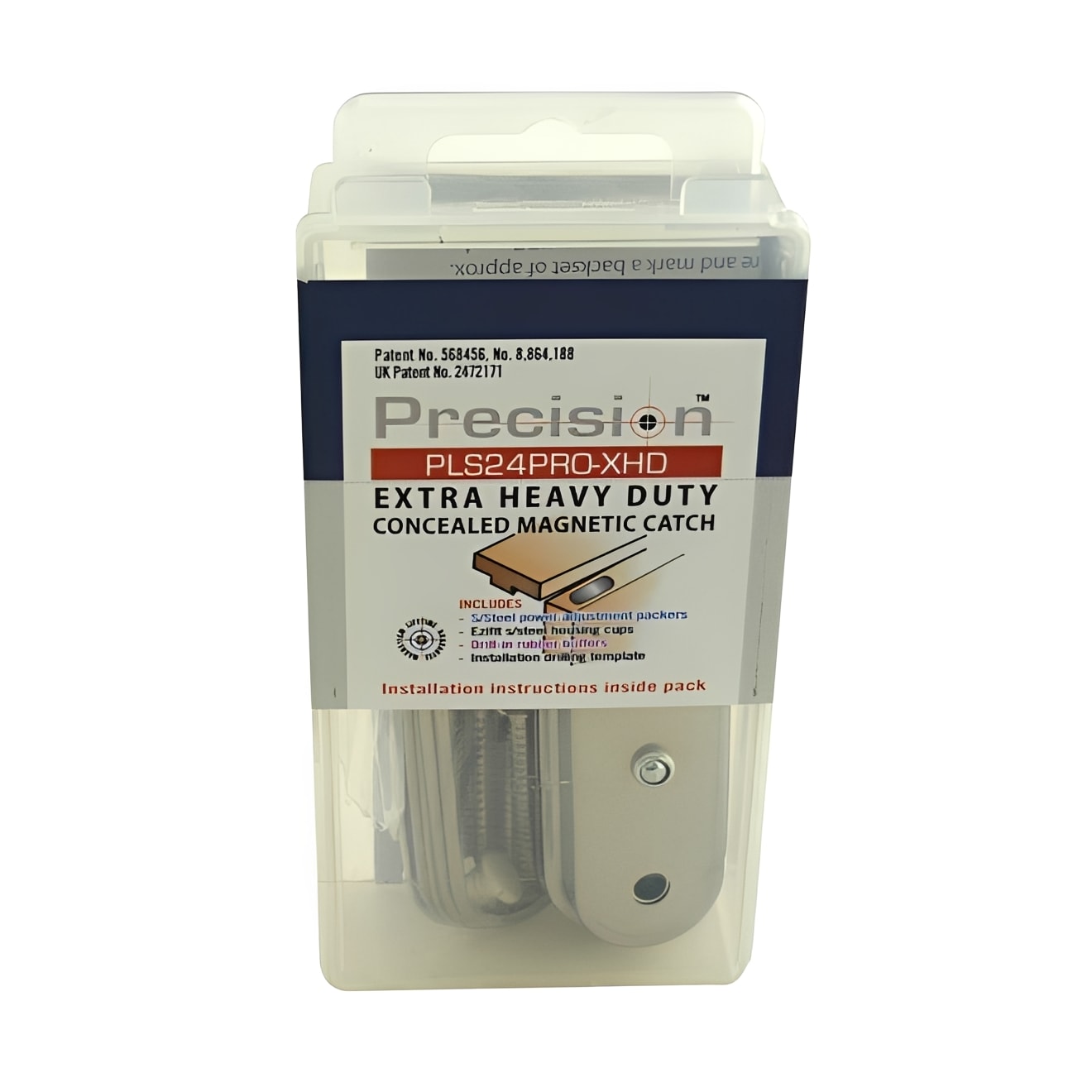

| PLS24PROXHD | Silver | $37.37 USD |

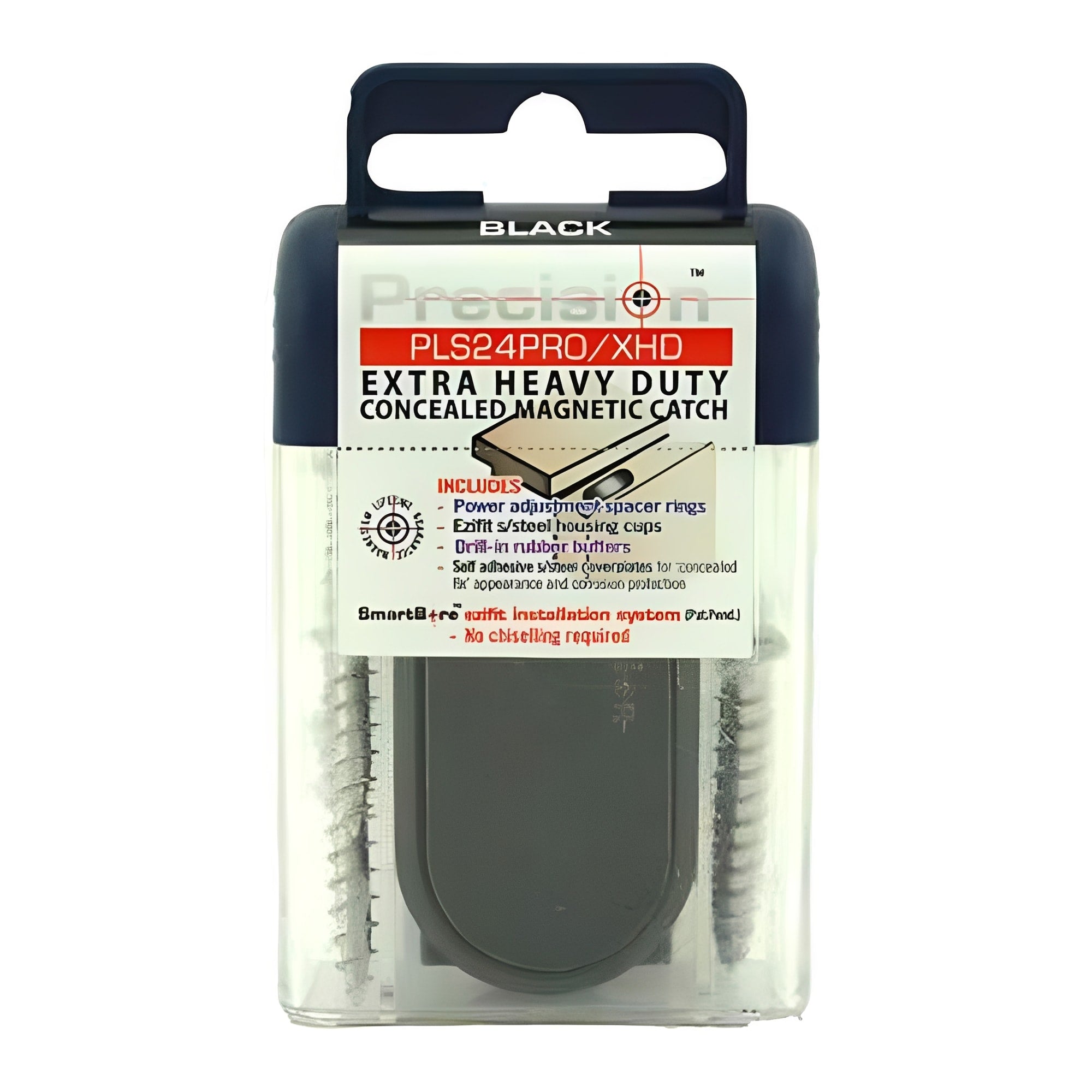

| PLS24PROXHD-BLK | Black | $43.33 USD |

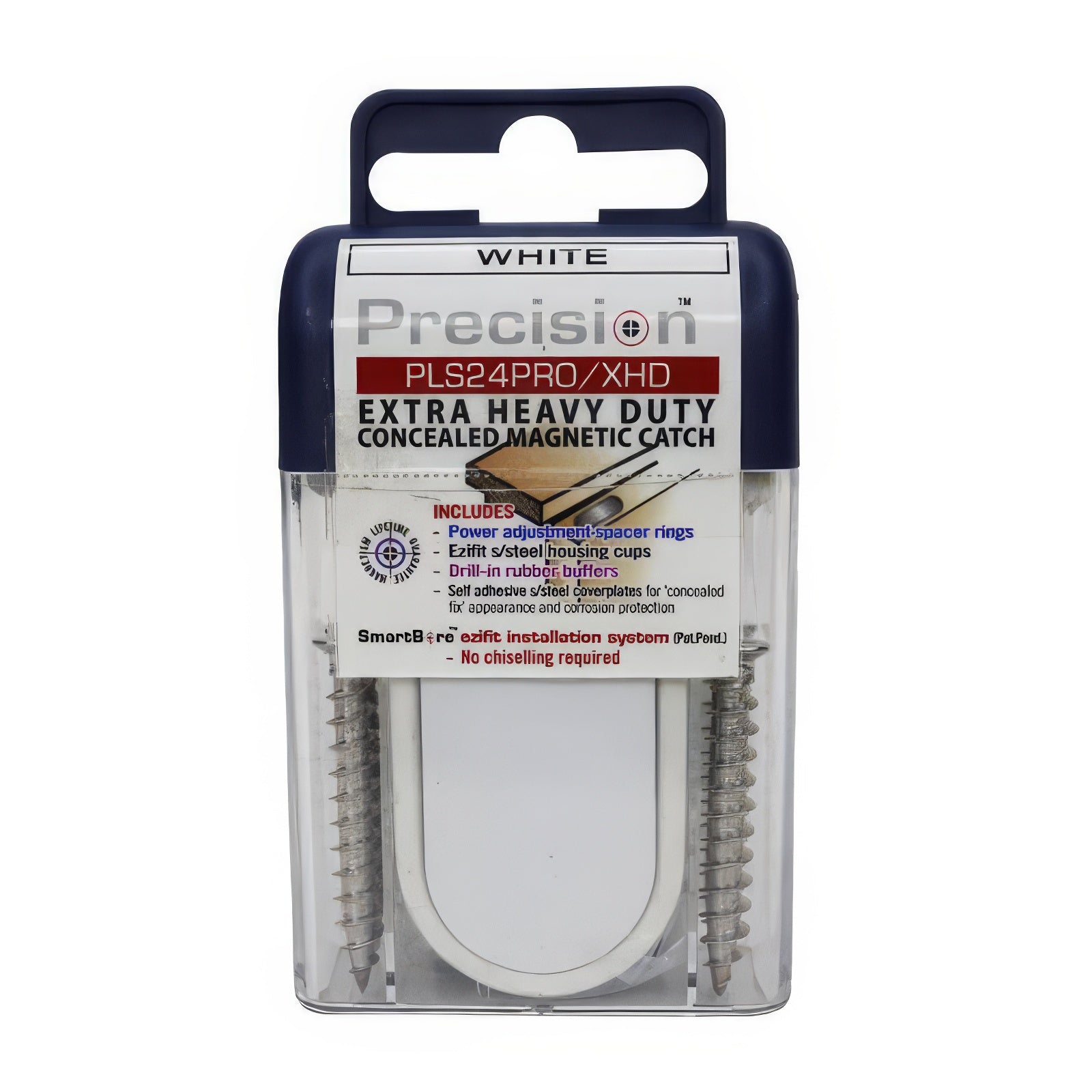

| PLS24PROXHD-WHT | White | $43.33 USD |
Description
Description
The Precision Lock PLS24PROXHD is an extra-heavy-duty concealed magnetic catch for large or heavy full-size hinged and pivot doors. It provides approximately three times the holding strength of the standard PLS24PRO while remaining hidden when the door is closed.
Product Specifications
- Brand: Precision Lock
- Model: PLS24PROXHD
- Product Type: Extra Heavy Duty Concealed Magnetic Catch
- Material: Steel
- Approximate Pull Strength: 9 kg (19 lb)
- Minimum Door Thickness: 1-1/8″ (30 mm)
- Magnetic Assembly Diameter: 15/16″ (24 mm)
- Installation Bores: Five overlapping 1″ (25 mm) bores
- Bore Depth: 5/16″ (8 mm)
- Recommended Backset: Approximately 2-3/8″ (60 mm) from the leading edge
- Jamb Offset: Approximately 1/8″ to 3/8″ (3 to 10 mm) toward the door stop
- Power Adjustment: Spacer rings from 0.5 to 3 mm
- Mounting: Concealed when the door is closed
Applications
Suitable for large or heavy full-size hinged and pivot doors where a heavy-duty roller catch would otherwise be used.
Included Installation Components
The manufacturer installation kit includes door and jamb magnetic assemblies, self-adhesive stainless-steel cover plates, stainless-steel fixing screws, a SmartBore drilling template, power-adjustment spacer rings and drill-in rubber buffers.
Installation Note
The manufacturer guide specifies five overlapping 1″ (25 mm) installation bores to a depth of 5/16″ (8 mm). Optional PF10PK impact pads are sold separately for additional noise and bounce reduction.
Additional Precision Lock Information
View Precision Lock Manufacturer Warranty
Shop All Precision Lock Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight0.8 lb
-
SKU
-
Brand
-
Function
-
FinishSilver, Black, White
-
Function
-
Door ThinknessMinimum 1-1/8″ (30 mm)
-
Diameter
-
Installation Type
-
Manufacturer Warranty
