Precision Lock PLS24PROXHD-BLKBP Heavy Duty Concealed Magnetic Catch - Black

The Precision Lock PLS24PROXHD-BLKBP is the black box-pack configuration of the extra-heavy-duty concealed magnetic catch. It is intended for large or heavy full-size hinged and pivot doors and provides approximately three times the holding strength of the standard PLS24PRO.

Product Specifications

• Brand: Precision Lock
• Model: PLS24PROXHD-BLKBP
• Product Type: Extra Heavy Duty Concealed Magnetic Catch
• Material: Steel
• Finish: Black
• Package Type: Box Pack
• Approximate Pull Strength: 9 kg (19 lb)
• Minimum Door Thickness: 1-1/8″ (30 mm)
• Magnetic Assembly Diameter: 15/16″ (24 mm)
• Installation Bores: Five overlapping 1″ (25 mm) bores
• Bore Depth: 5/16″ (8 mm)
• Recommended Backset: Approximately 2-3/8″ (60 mm) from the leading edge
• Mounting: Concealed when the door is closed

Included Installation Components

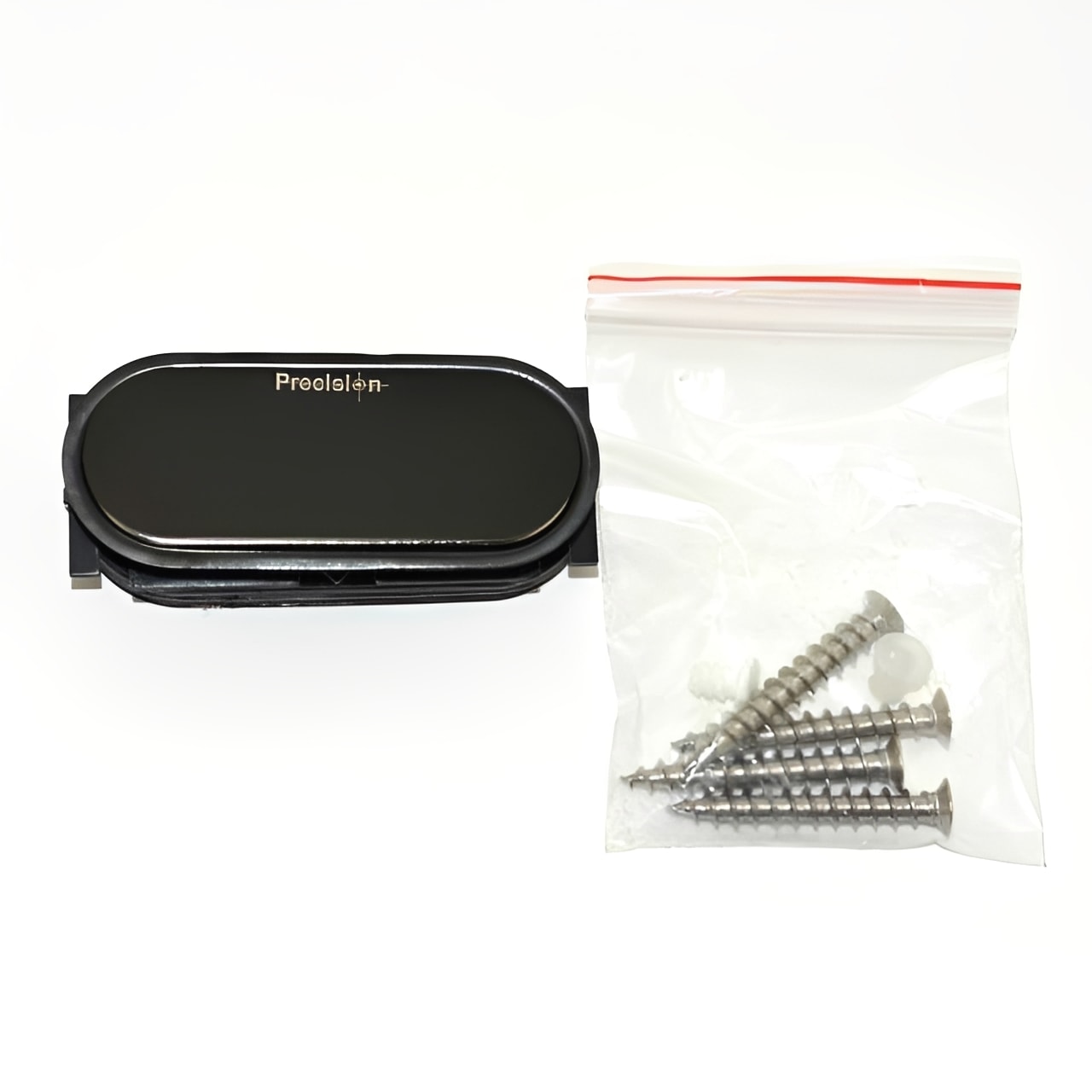

Includes the XHD magnetic assemblies, self-adhesive cover plates, fixing screws, SmartBore drilling template, power-adjustment spacer rings and drill-in rubber buffers.

Installation Note

The manufacturer guide specifies five overlapping 1″ (25 mm) installation bores to a depth of 5/16″ (8 mm). Optional PF10PK impact pads are sold separately for additional impact-noise and bounce reduction.
