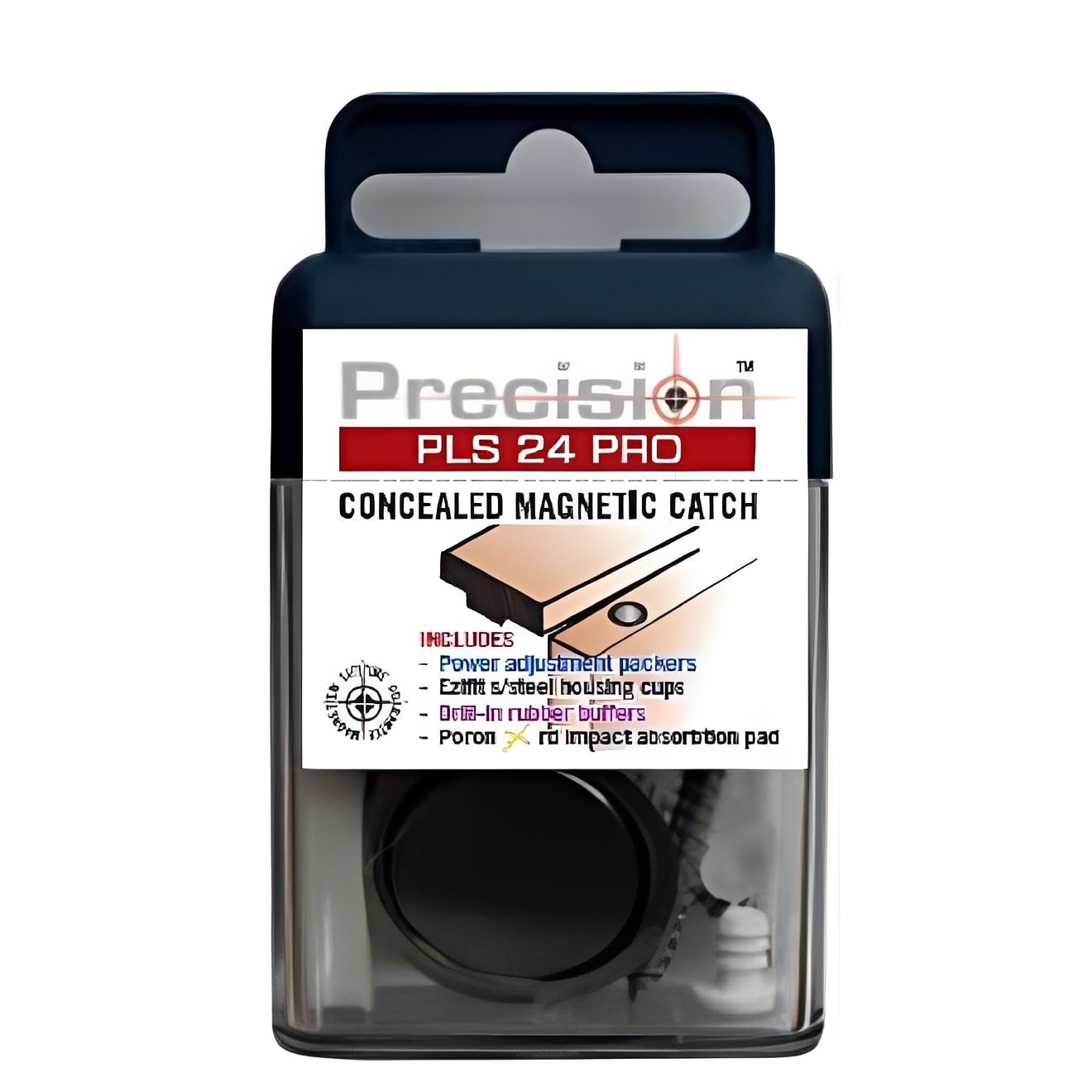

Precision Lock PLS24PRO Concealed Magnetic Catch
PLS24PRO & PLS24PRO-BLK Concealed Magnetic Catch with Adjustable Strength
Precision Lock PLS24PRO Concealed Magnetic Catch - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Precision Lock PLS24PRO is an adjustable concealed magnetic catch for light to heavy full-size interior doors and other applications where a roller or ball catch would normally be used. The magnetic assemblies remain hidden when the door is closed and do not contact each other after installation.
Product Specifications
- Brand: Precision Lock
- Model: PLS24PRO
- Product Type: Concealed Magnetic Catch
- Material: Steel
- Approximate Pull Strength: 4 kg (8.8 lb)
- Minimum Door Thickness: Greater than 1-3/16″ (30 mm)
- Magnetic Assembly Diameter: 15/16″ (24 mm)
- Recommended Magnet Air Gap: Approximately 1 mm
- Recommended Backset: Approximately 1.57″ (40 mm) from the leading edge
- Power Adjustment: Four spacer thicknesses from 0.5 to 3 mm
- Mounting: Concealed when the door is closed
- Country of Origin: New Zealand
Applications
Suitable for full-size hinged interior doors, standard hollow-core pocket doors, interior sliding pocket doors, closet doors and interior double doors.
Design and Installation
No chiseling is required. Supplied power-adjustment packers change the magnetic hold by reducing the air gap. Self-adhesive brushed stainless-steel cover plates protect and conceal the magnetic assemblies. Optional PF10PK impact pads are sold separately for additional impact-noise and bounce reduction.
Manufacturing
Designed and assembled in New Zealand using New Zealand-made and imported components.
Additional Precision Lock Information
Precision Lock PLS24PRO Specifications
Precision Lock PLS24PRO Installation Instructions
View Precision Lock Manufacturer Warranty
Shop All Precision Lock Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight0.8 lb
-
SKU
-
Brand
-
Function
-
Door ThicknessGreater than 1-3/16″ (30 mm)
-
Diameter
-
Manufacturer Warranty
-
Bore Diameter
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Shipping and Returns
Flat Rate Shipping Charges and Return Policy
Note: Select items and Brands have Free Shipping and will show on product page.
- Cart Total.01 to 99.99 = $11.95
- Cart Total 100.00 to 199.99 = $13.95
- Cart Total 200.00 to 298.99 = $15.95
- Cart Total 299.00 and up = Free Shipping
No problem. Simply email cs@factorydirecthardware.com with your original invoice number and reason for return, and we'll email instructions for making your return.
We do ask that your return meets the following rules:
- RGA request must be made within 60 days of receiving your order.
- Products are in original packaging.
- Products have not been installed or used.
- Clearance returns are not accepted.
Do I pay a restocking fee?
All returns are subject to a 15% restocking fee.
Do I pay the return shipping?
We do not pay the return shipping unless an error was made on our end. We suggest shipping the return with FedEx or UPS so that proper tracking can be obtained.
What if my order was damaged or defective?
Please email cs@factorydirecthardware.com within 3 days of receiving the order to report the damage with pictures. We'll work to get replacements to you in a timely fashion.
How can I make an exchange?
We technically don't "exchange" orders. We find the easiest way to handle an exchange is to make your return and place a new order for the correct product. We will waive the 15% restocking fee if you let us know your new order number.
Important:
Special ordered products are not returnable.
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|
| PLS24PRO | Silver | $10.42 USD |
| PLS24PRO-BLK | Black | $13.94 USD |

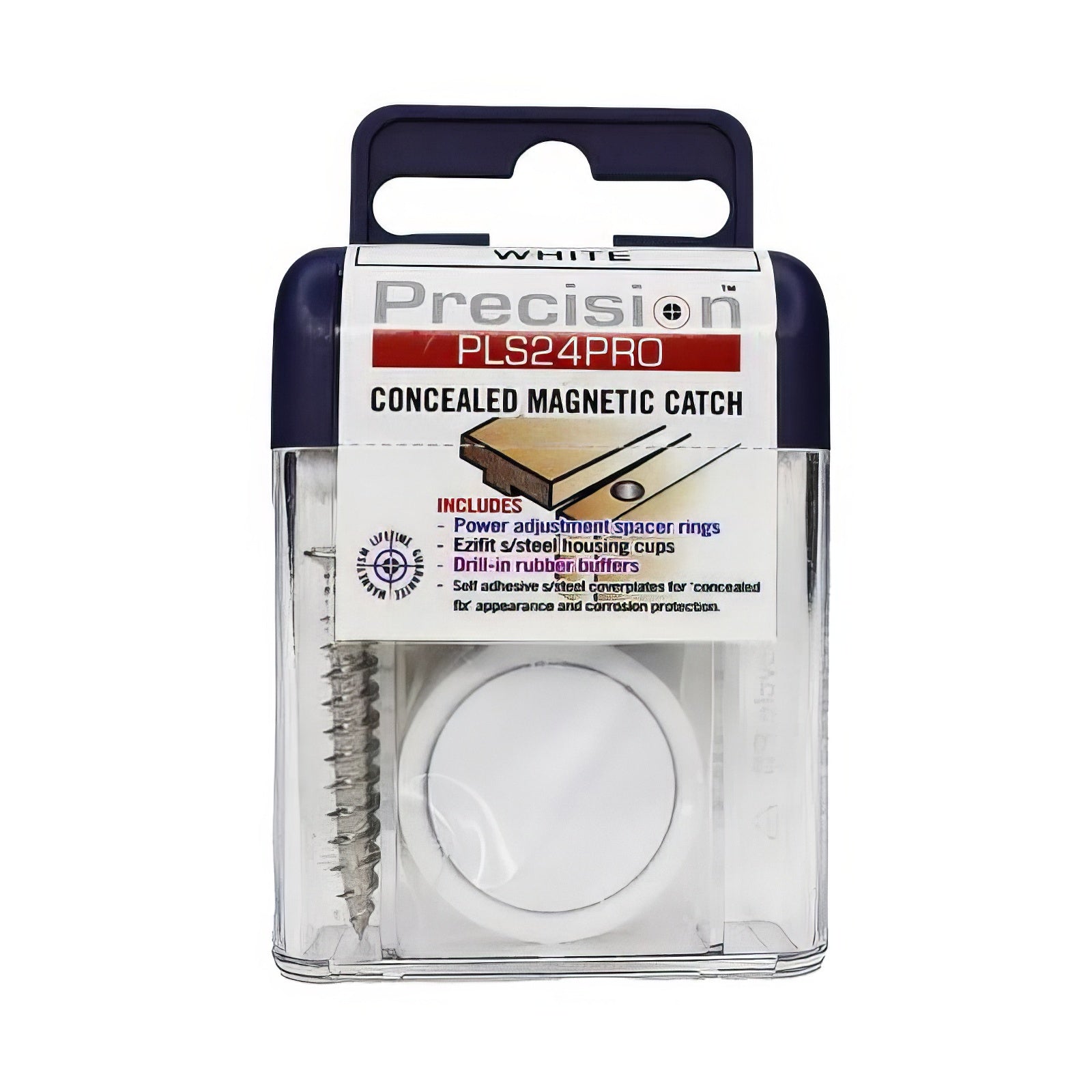

| PLS24PRO-WHT | White | $13.94 USD |
