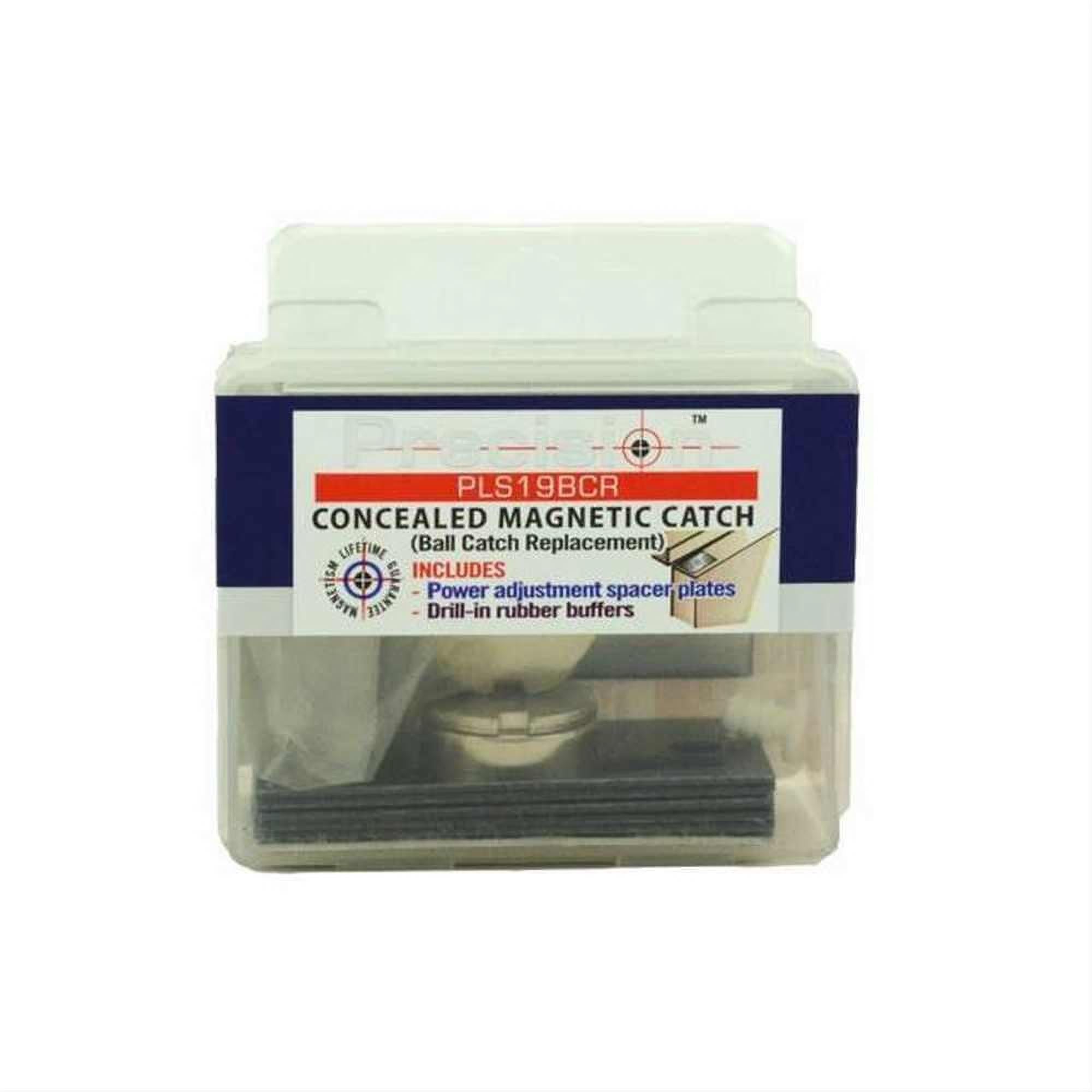

Precision Lock PLS19BCR-SS Ball Catch Replacement Concealed Magnetic Catch

The Precision Lock PLS19BCR-SS is a concealed magnetic replacement kit for a standard ball catch. It is designed to fit an existing 2-1/8″ × 1″ ball-catch opening with a 2-1/8″ × 1-3/8″ strike-plate footprint while providing smooth and near-silent operation.

Product Specifications

• Brand: Precision Lock
• Model: PLS19BCR-SS
• Product Type: Ball Catch Replacement Concealed Magnetic Catch
• Plate Material: SS304 Stainless Steel
• Magnet Type: Neodymium
• Finish: Satin Steel
• Minimum Door Thickness: 5/8″ (16 mm)
• Ball Catch Opening: 2-1/8″ × 1″
• Strike Plate Footprint: 2-1/8″ × 1-3/8″
• Power Adjustment: Five 3/64″ spacer plates
• Mounting: Concealed

Compatibility

Designed as a replacement for specified Baldwin ball catches including 9BR7018006, 9BR7018004, 9BR7018002, 0425056 and 0425031; Emtek 8802; and Deltana BC218.

Included Installation Components

Includes power-adjustment spacer plates, drill-in rubber buffers and a strike-plate drilling template. The magnetic assemblies do not contact after installation. Optional PF10PK impact pads are sold separately for additional noise and bounce reduction.
