Emtek S50003SS Square Single Cylinder Stainless Steel Deadbolt

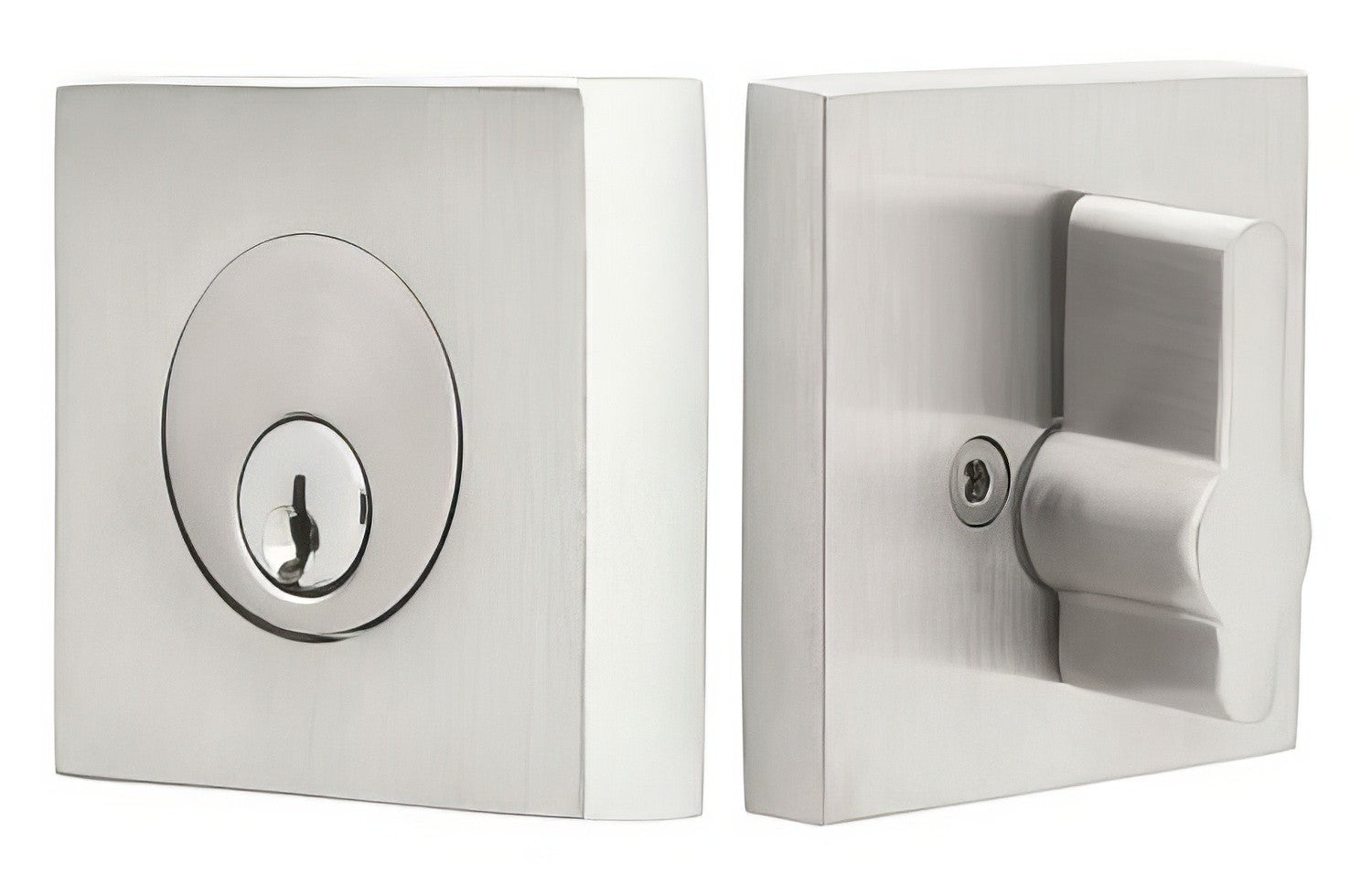

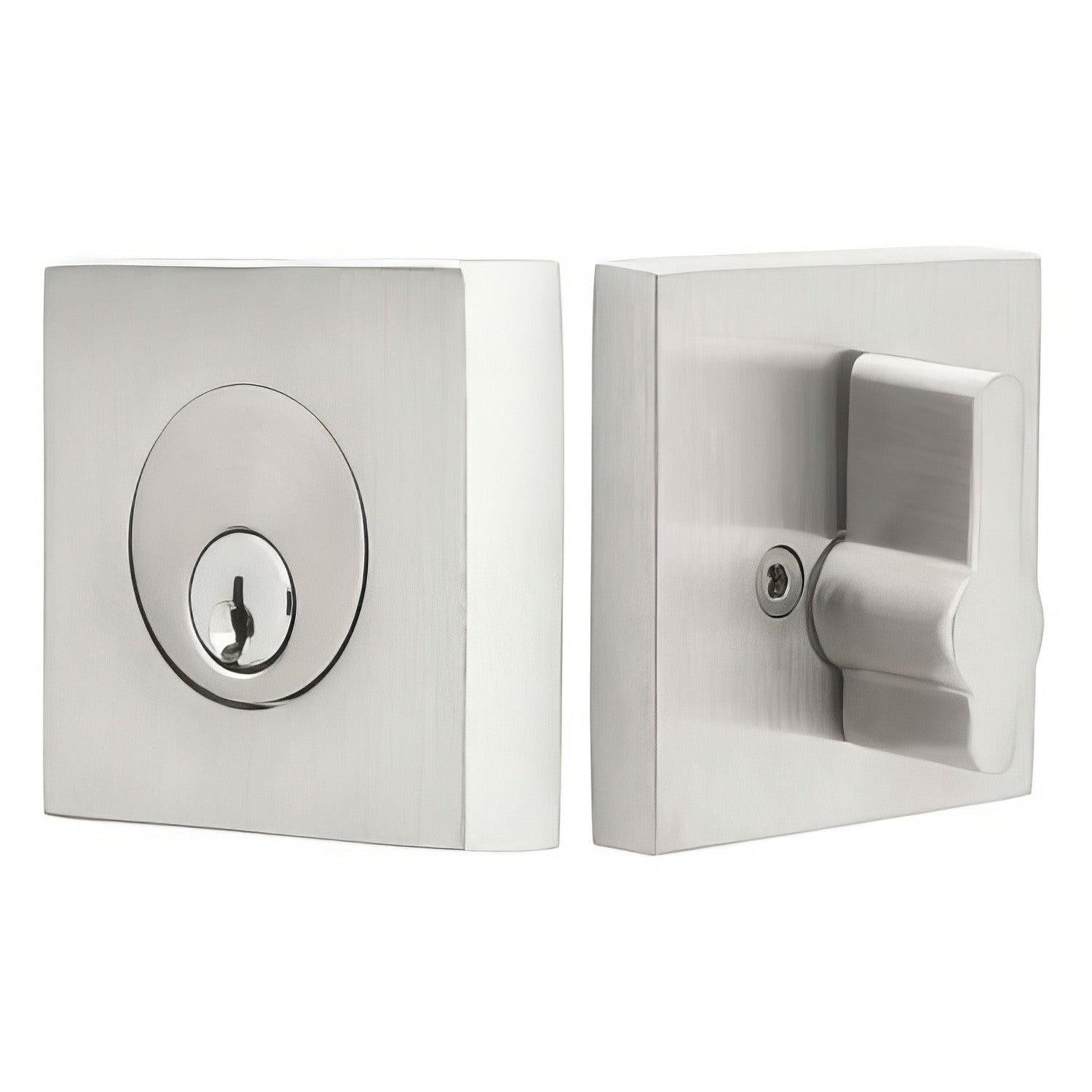

Emtek S50003SS Square Single Cylinder Deadbolt

The Emtek S50003SS Square Single Cylinder Deadbolt is a single cylinder deadbolt for entry-door security. Uses an exterior keyed cylinder and an interior thumbturn.

Construction is listed as Stainless Steel. The listed backset is 2-3/8″ to 2-3/4″. It fits the listed 1-3/8″ to 2-3/4″ door-thickness range. Review door preparation, dimensions, keyway, handing, and included components before ordering.

Specifications

• Model: S50003SS
• Function: Single Cylinder Deadbolt
• Material: Stainless Steel
• Collection: Stainless Steel
• Projection: 21/32″
• Width: 2-1/2″
• Height: 2-1/2″
• Backset: 2-3/8″ to 2-3/4″
• Door Thickness: 1-3/8″ to 2-3/4″
• Cross Bore: 2-1/8″
• Edge Bore: 1″
• Latch Faceplate: Round Corner / Square Corner
• Latch Type: Round Corner / Drive-In Latch

Additional Emtek Information

Emtek S50003 Specification Sheet

Emtek S50003 Strikeplate Specification

Emtek S50003 Installation Guide

View Emtek Manufacturer Warranty

Shop All Emtek Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
