Emtek Privacy Latch with 2-3/8 Backset and Drive-In for Products

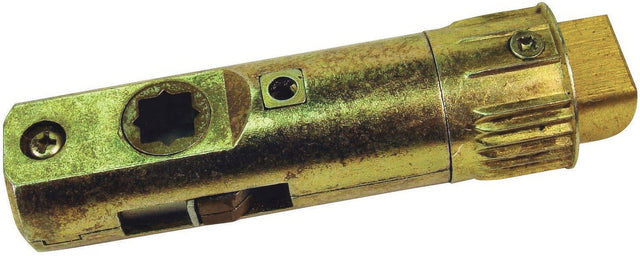

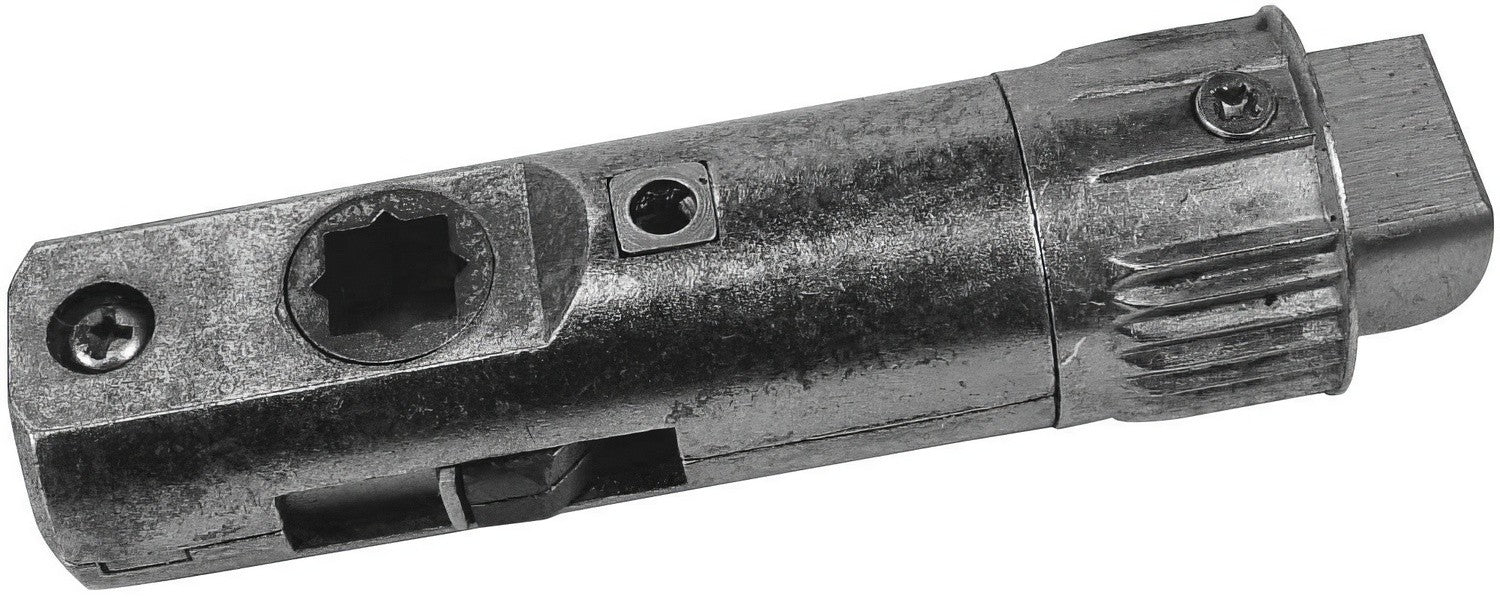

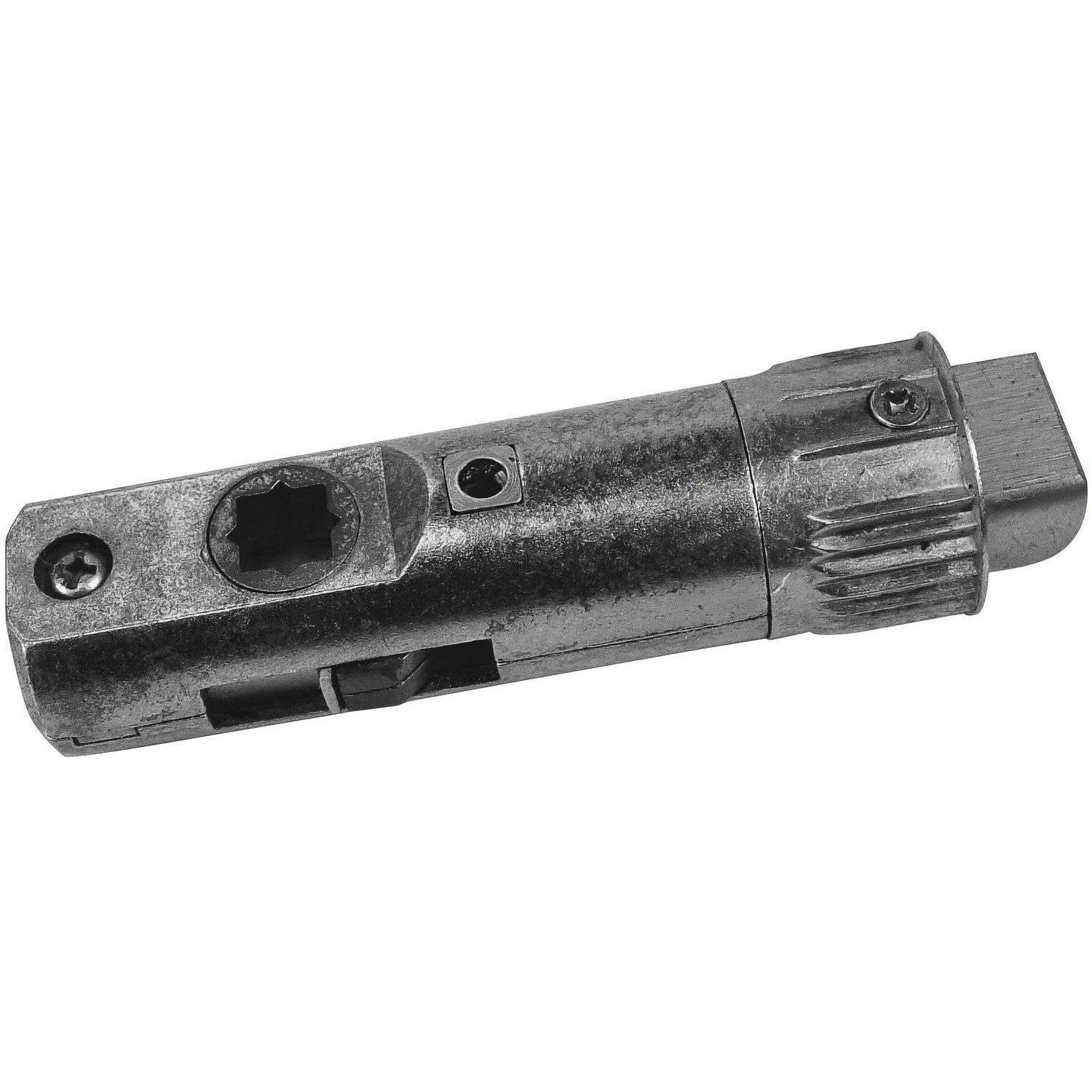

The Emtek LC4-PRVDV2375 is a drive-in privacy door latch with a 2-3/8″ backset. Its ribbed drive-in collar seats directly in a round door-edge bore instead of using a rectangular faceplate mortise.

Use this replacement latch only where the door is prepared for a drive-in collar and the Emtek lock uses a privacy mechanism. It is not interchangeable with a square- or radius-corner faceplate latch without changing the door preparation.

Product Details

• Product type: drive-in privacy latch
• Function: privacy door latch
• Backset: 2-3/8″
• Door-edge mounting: ribbed drive-in collar
• Faceplate: not used
• Product code: LC4-PRVDV2375
• Application: compatible Emtek privacy knob or lever mechanism

Compatibility: Confirm the 2-3/8″ backset, drive-in edge bore, collar diameter, latchbolt orientation, and compatible Emtek privacy mechanism before ordering.
