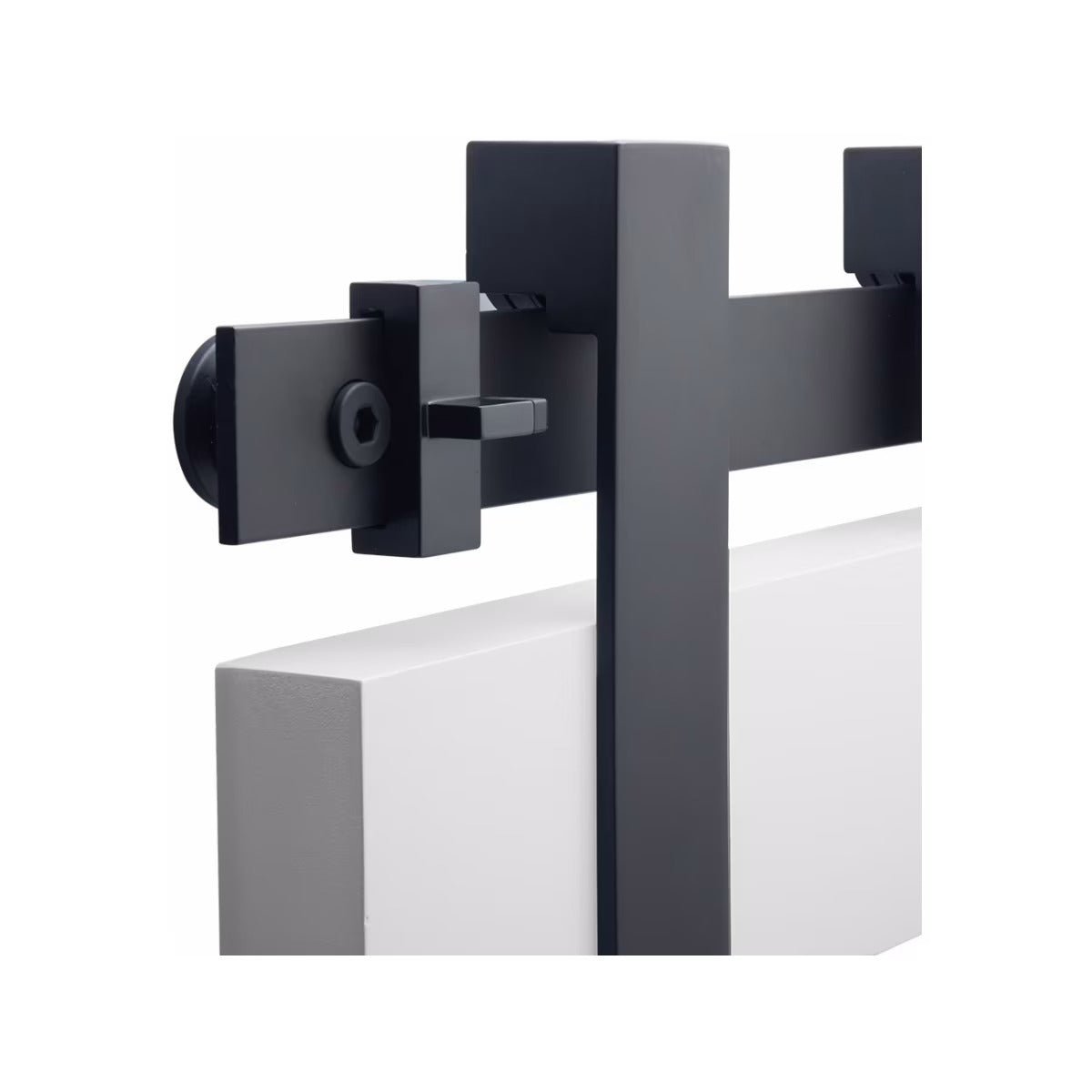

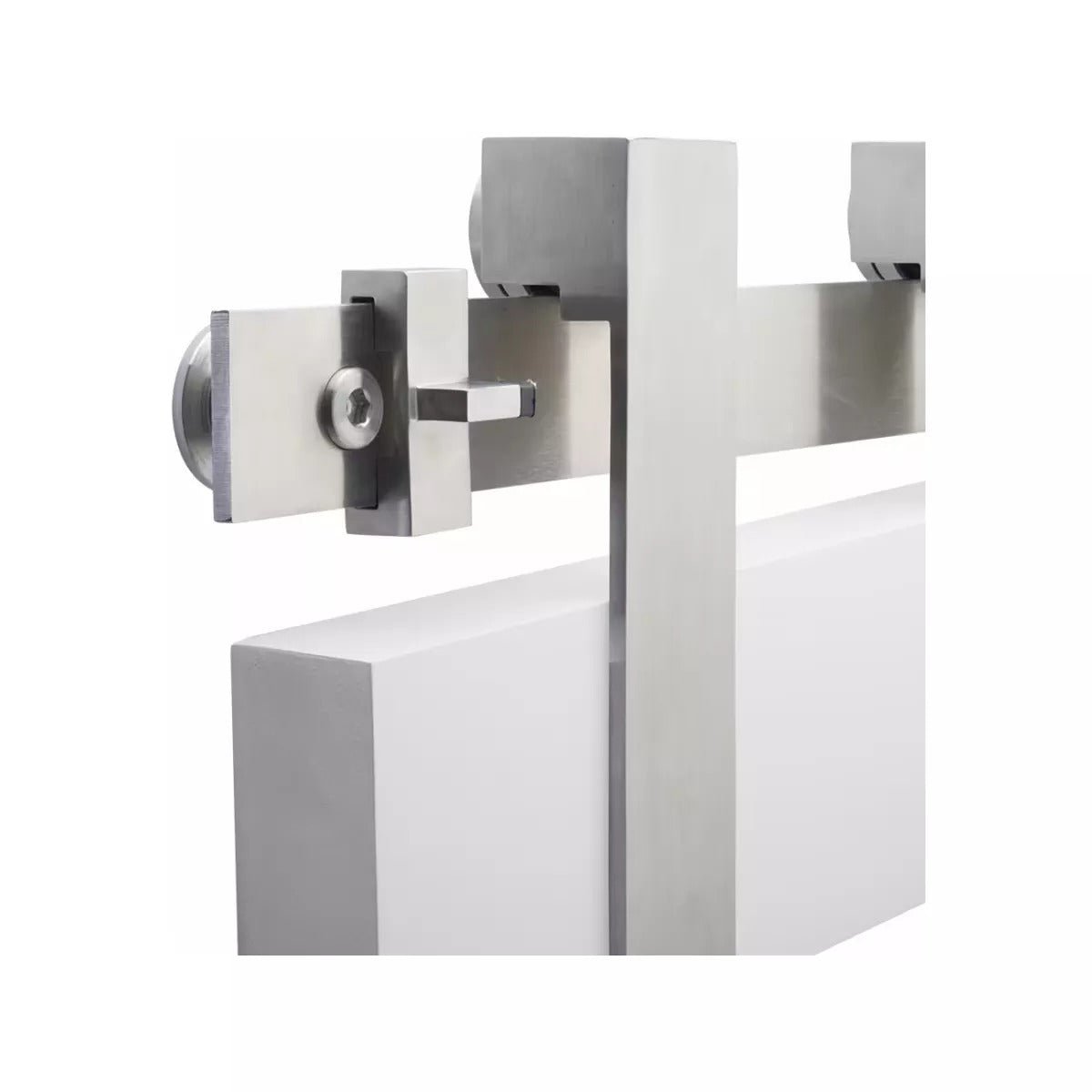

Emtek B130310 Flat Track Sliding Barn Door Hardware Kit with 10ft Track for Single Doors

The Emtek B130310 is a 10 ft flat-track barn-door hardware kit configured for one sliding interior door. It combines the track and operating hardware needed to suspend and guide a compatible barn door.

Emtek barn-door systems use heavy-duty 1/4″ track, sealed wheel bearings, adjustable stops, an anti-jump mechanism, and a floor guide. The supported structure must be designed for the installed door and hardware load.

Product Details

• Product type: single-door barn-door hardware kit
• Track length: 10 ft
• Door configuration: one sliding door
• Track thickness: 1/4″
• Door thickness range: 1-3/8″ to 2-1/4″
• System rating: up to 400 lb when properly supported
• Included family components: hanger pair with wheels, stops, fasteners, anti-jump mechanism, and floor guide

Compatibility: Confirm wall structure, blocking, door weight, 1-3/8″ to 2-1/4″ door thickness, hanger style, wheel style, fastener style, required travel, floor-guide location, and overhead clearance.
