Emtek 92033US 3-1/2" x 3-1/2" Plated Steel Heavy Duty 5/8" Radius Round Corner Plain Bearing Hinges - Pair

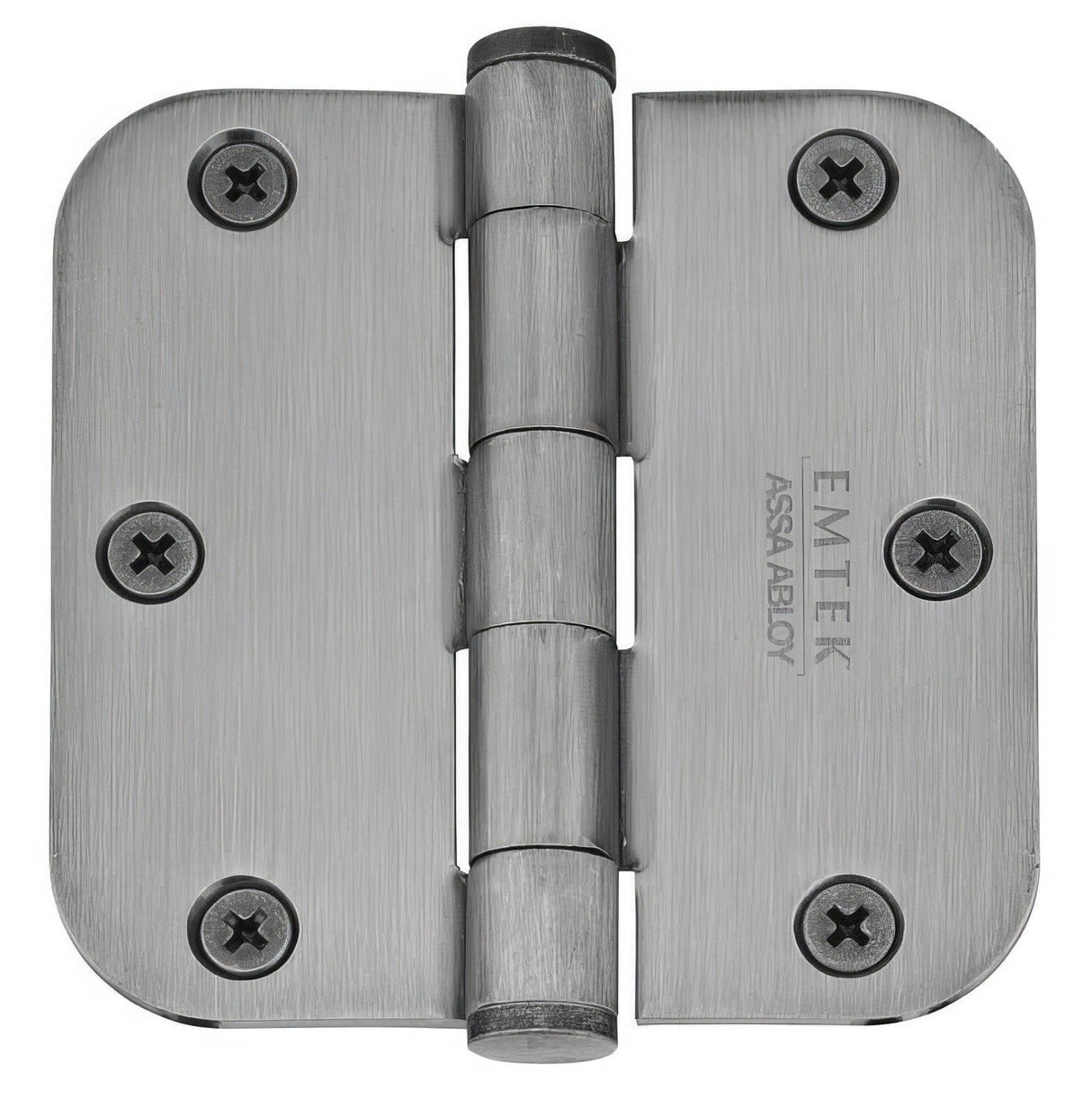

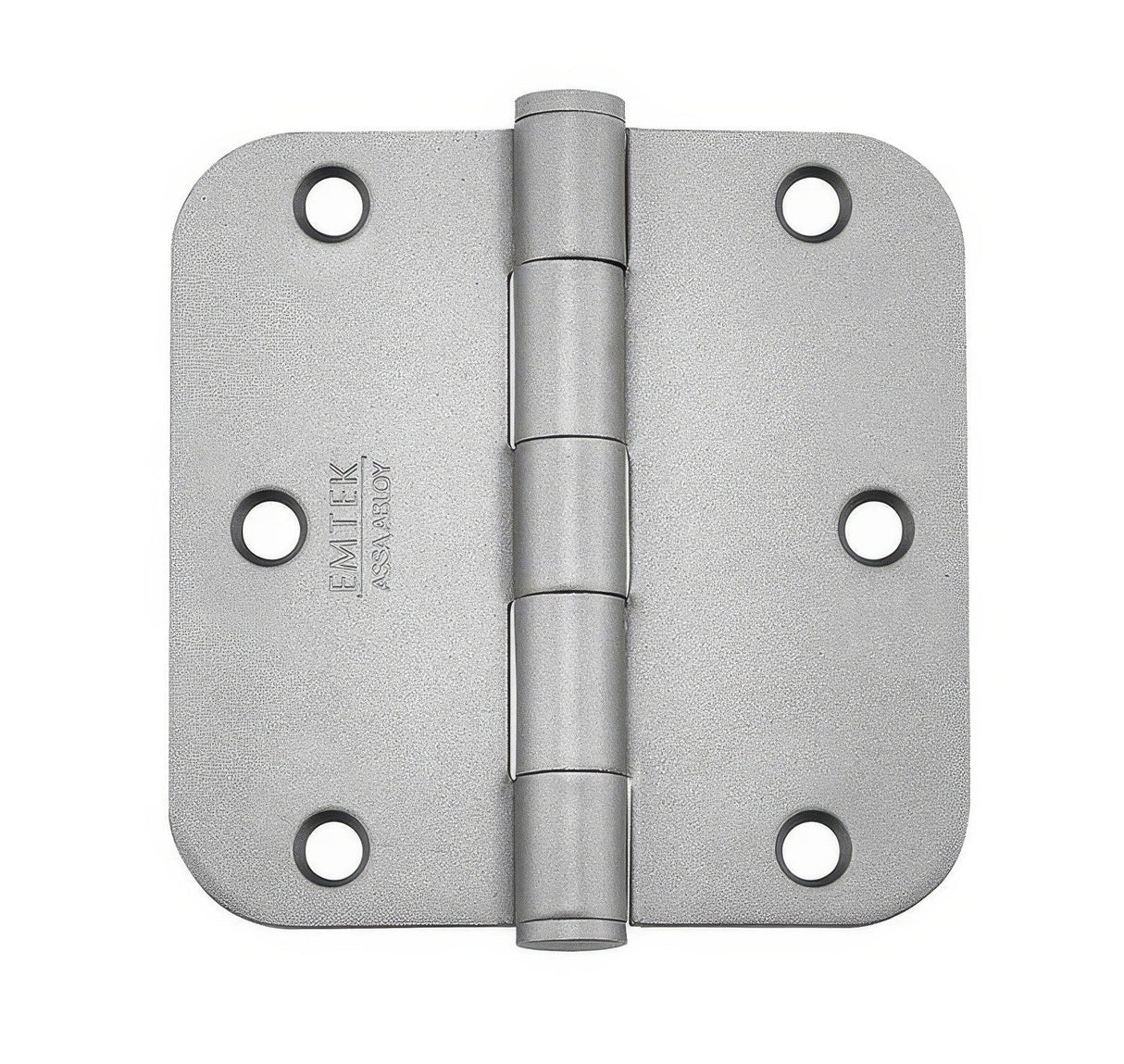

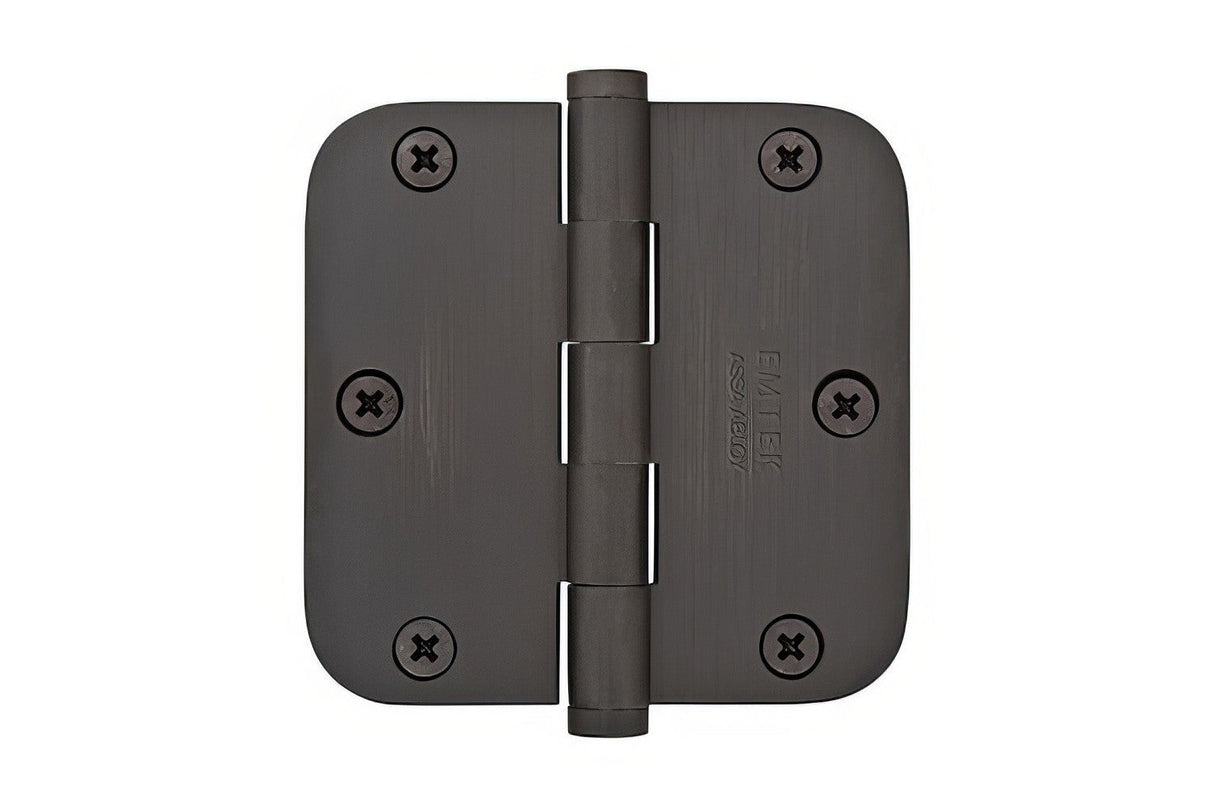

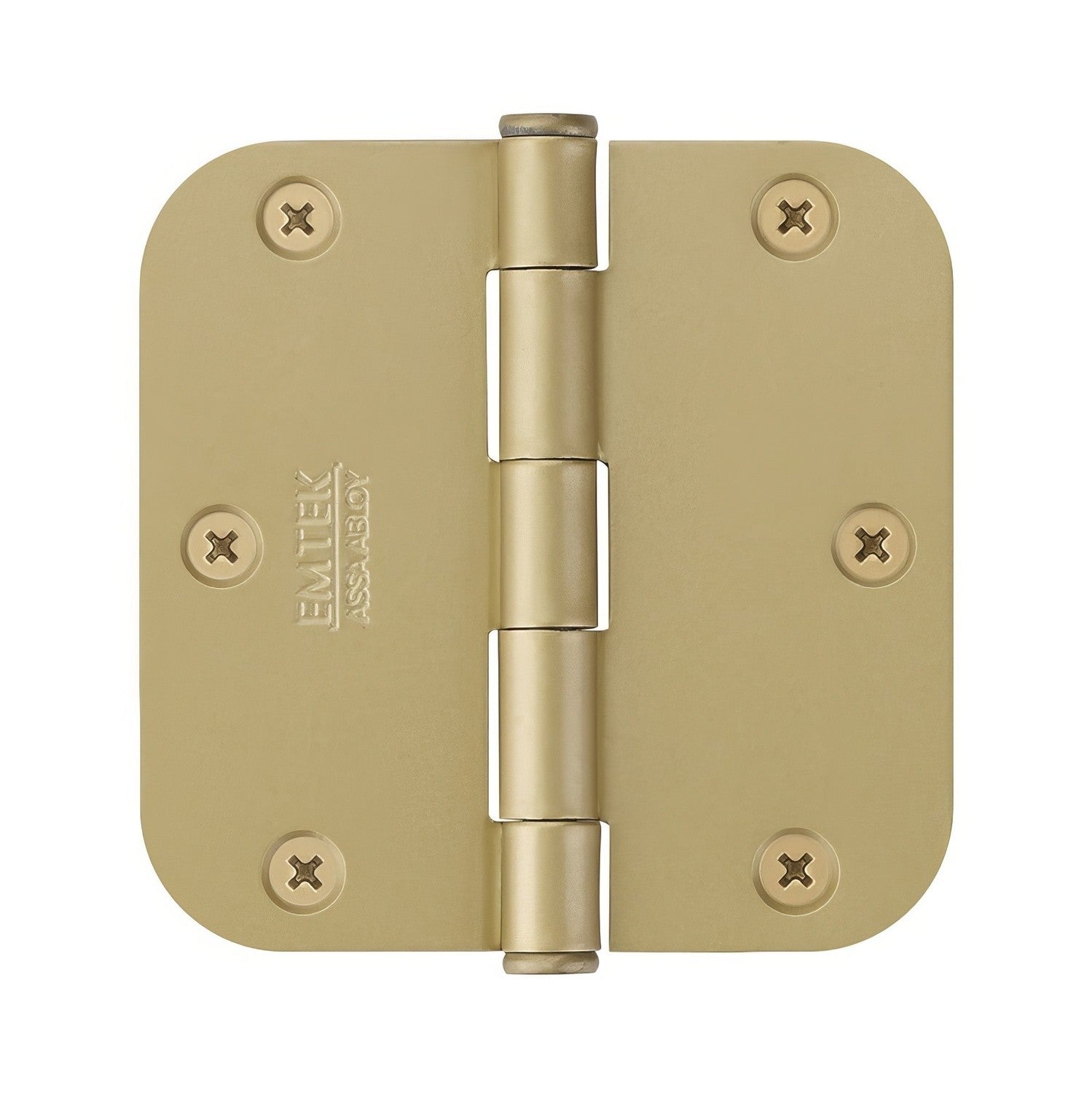

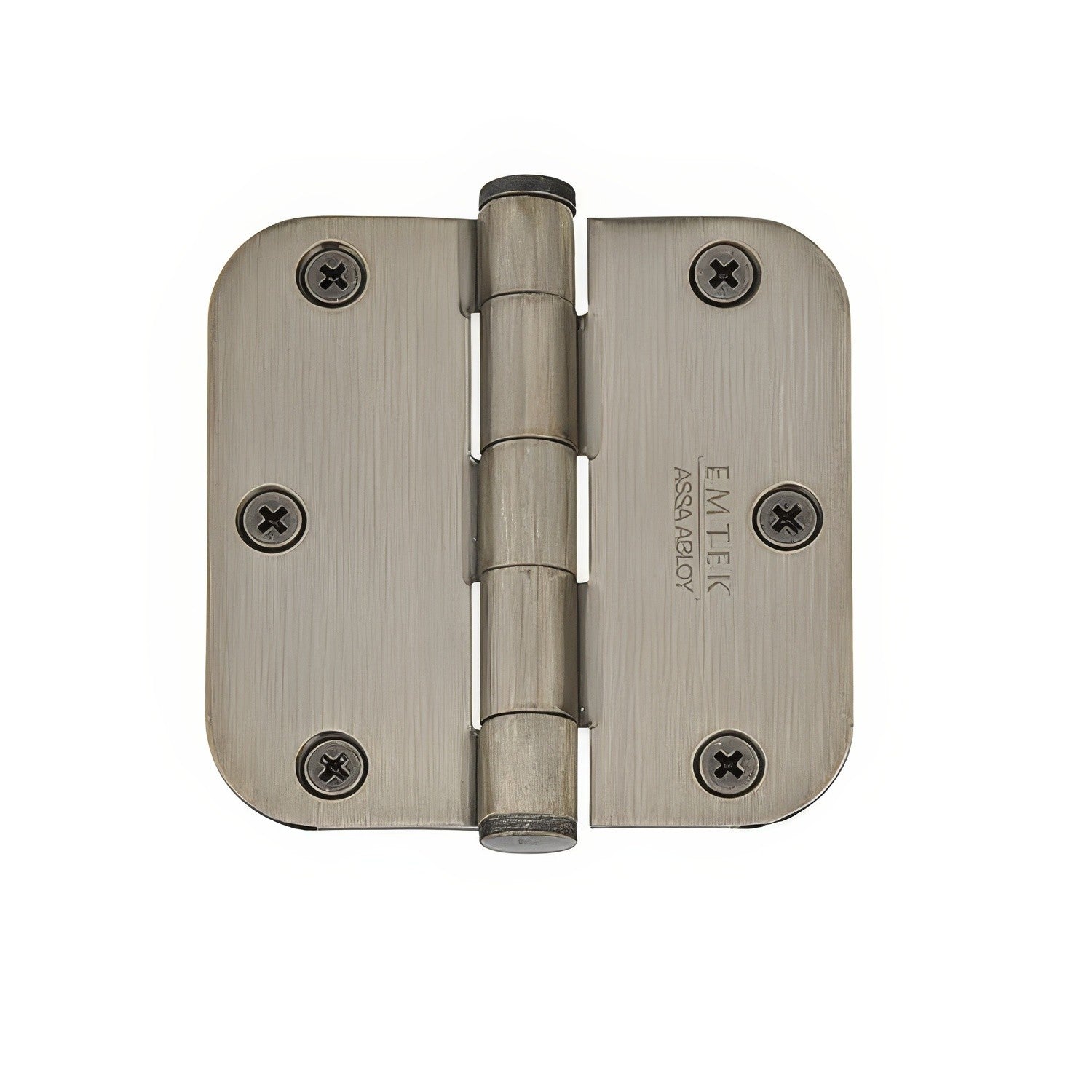

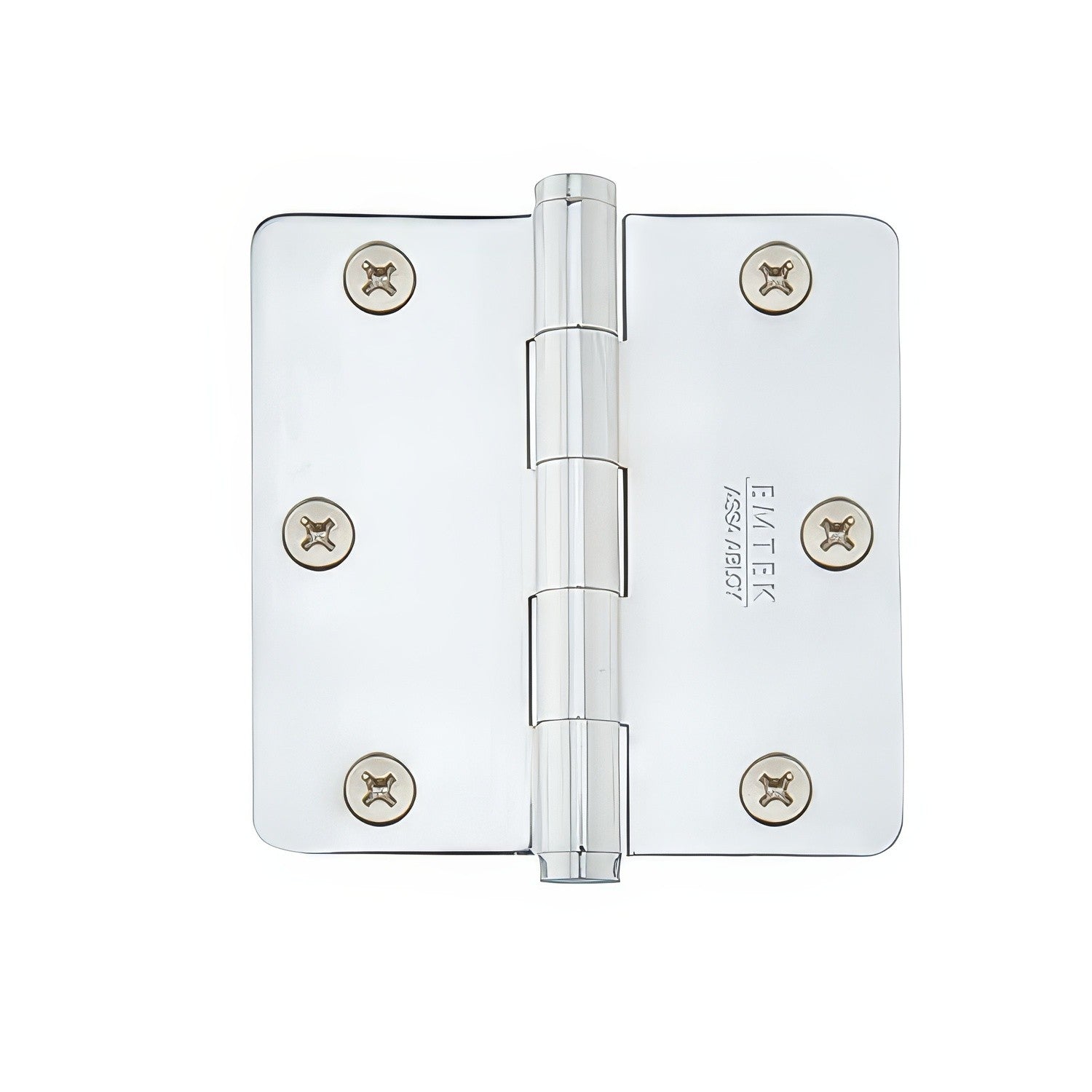

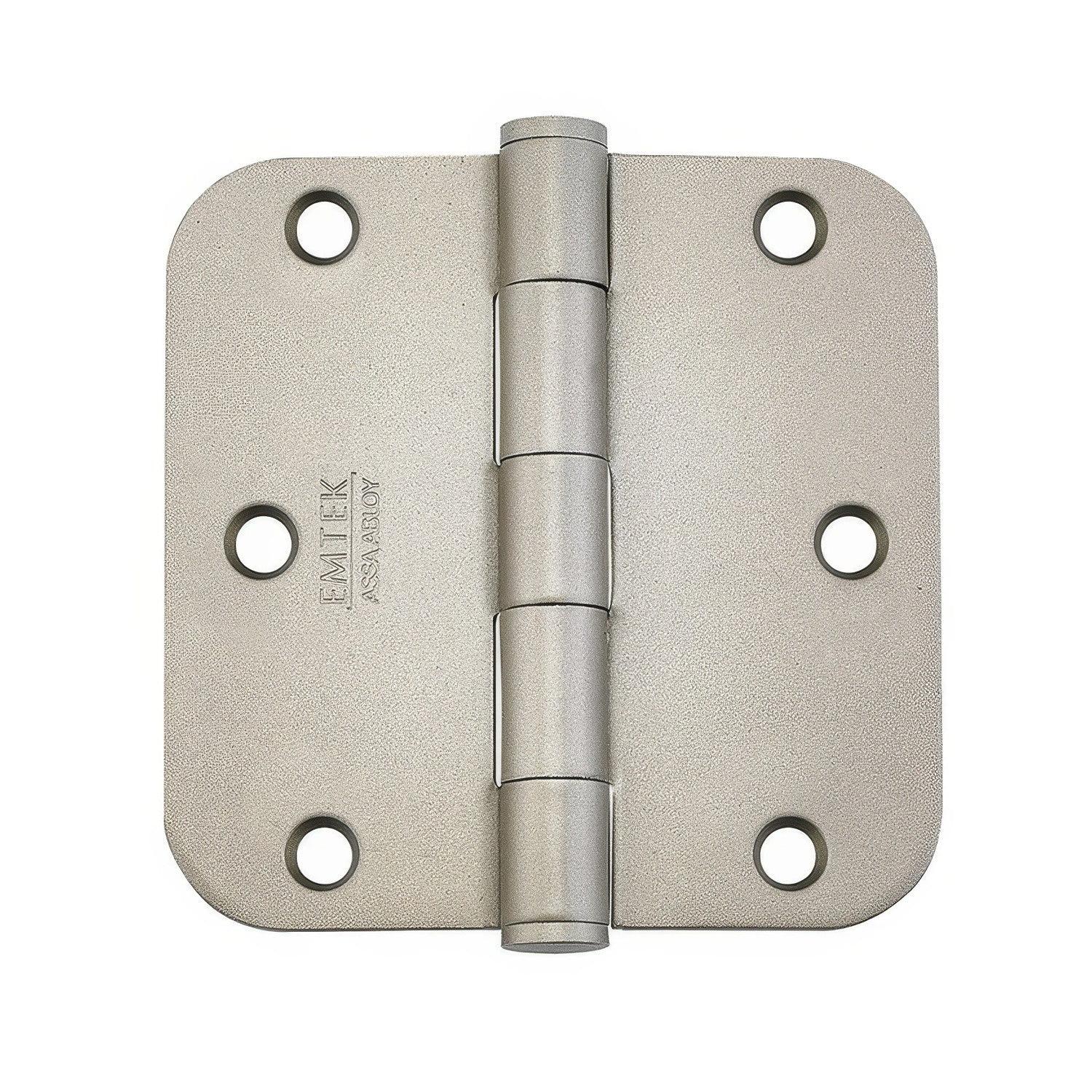

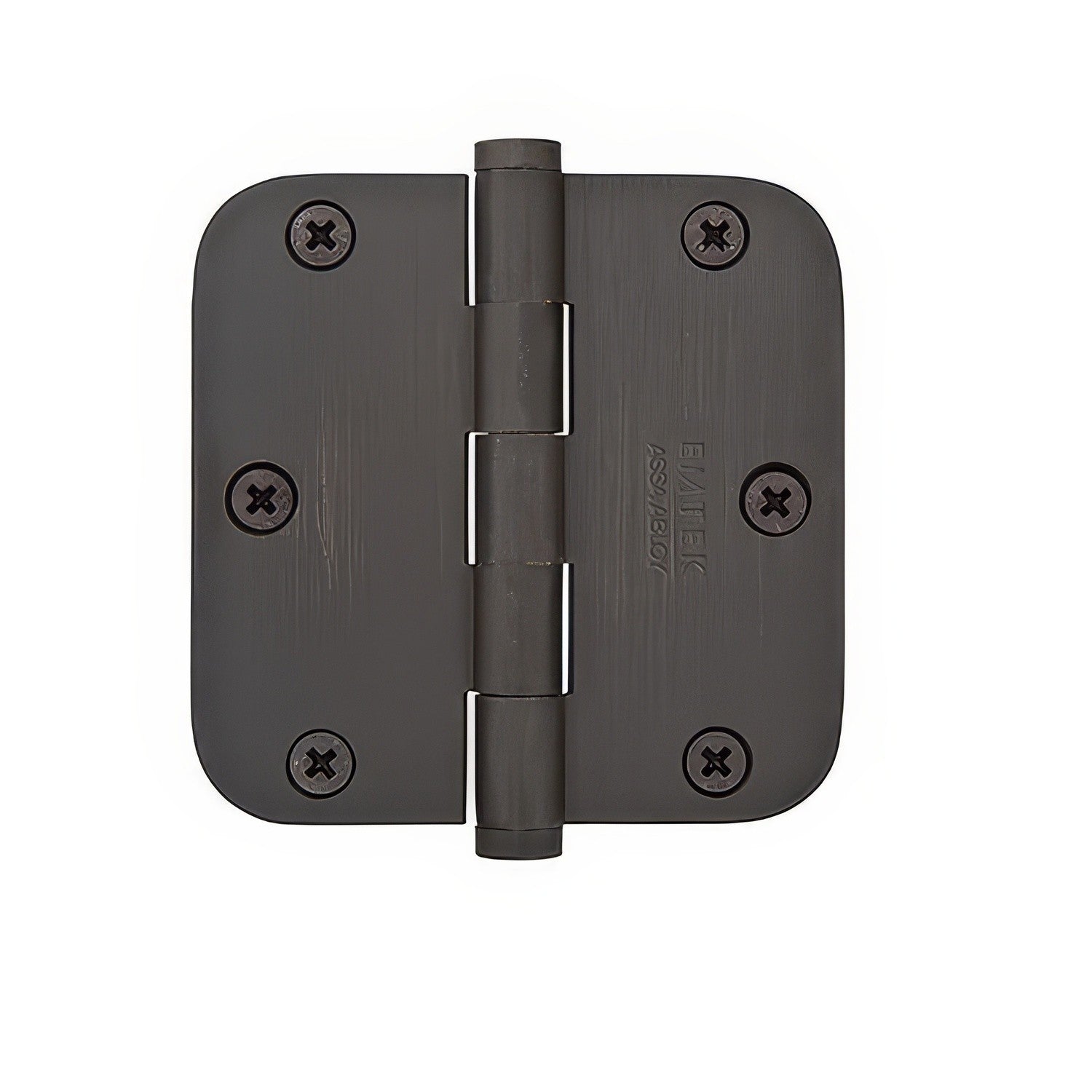

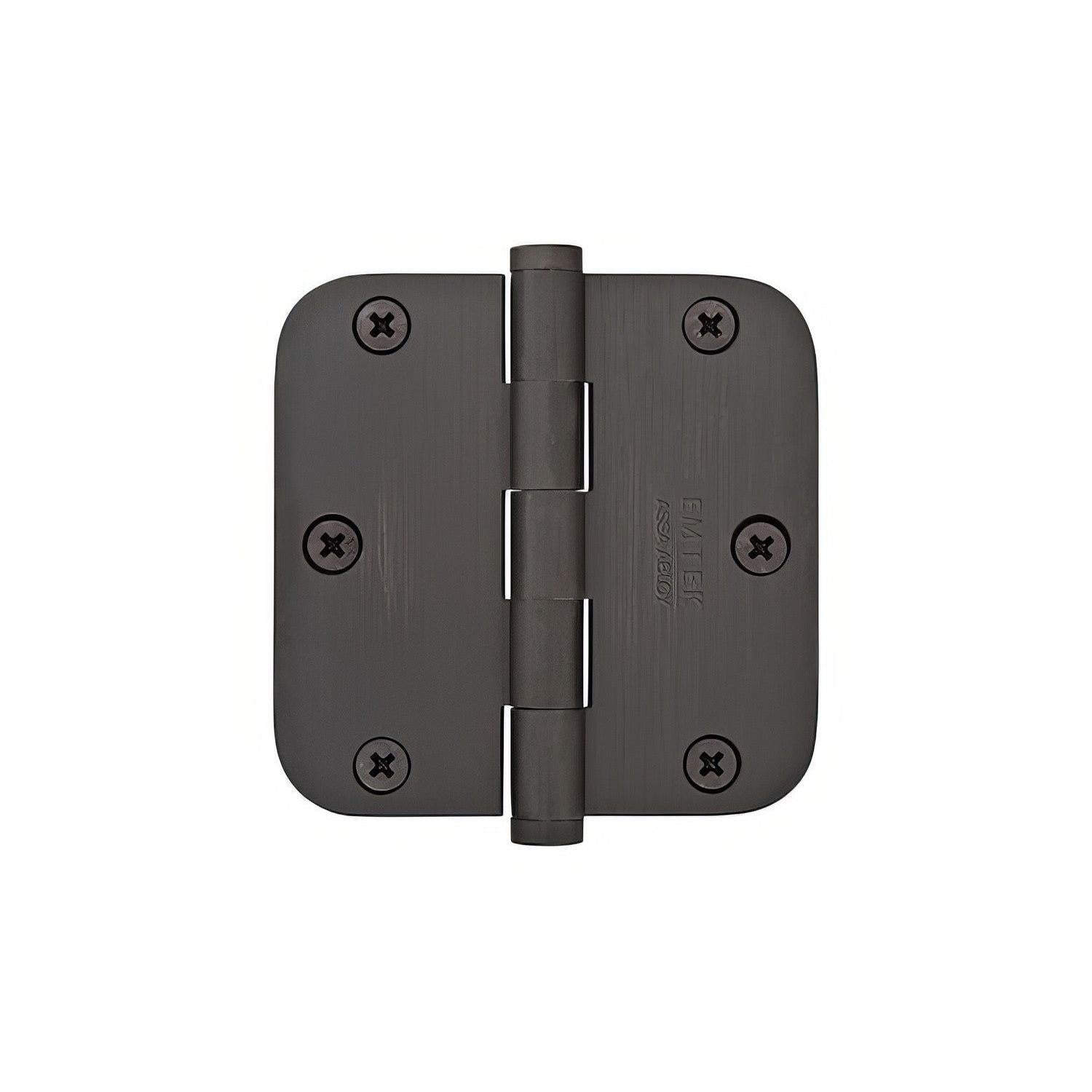

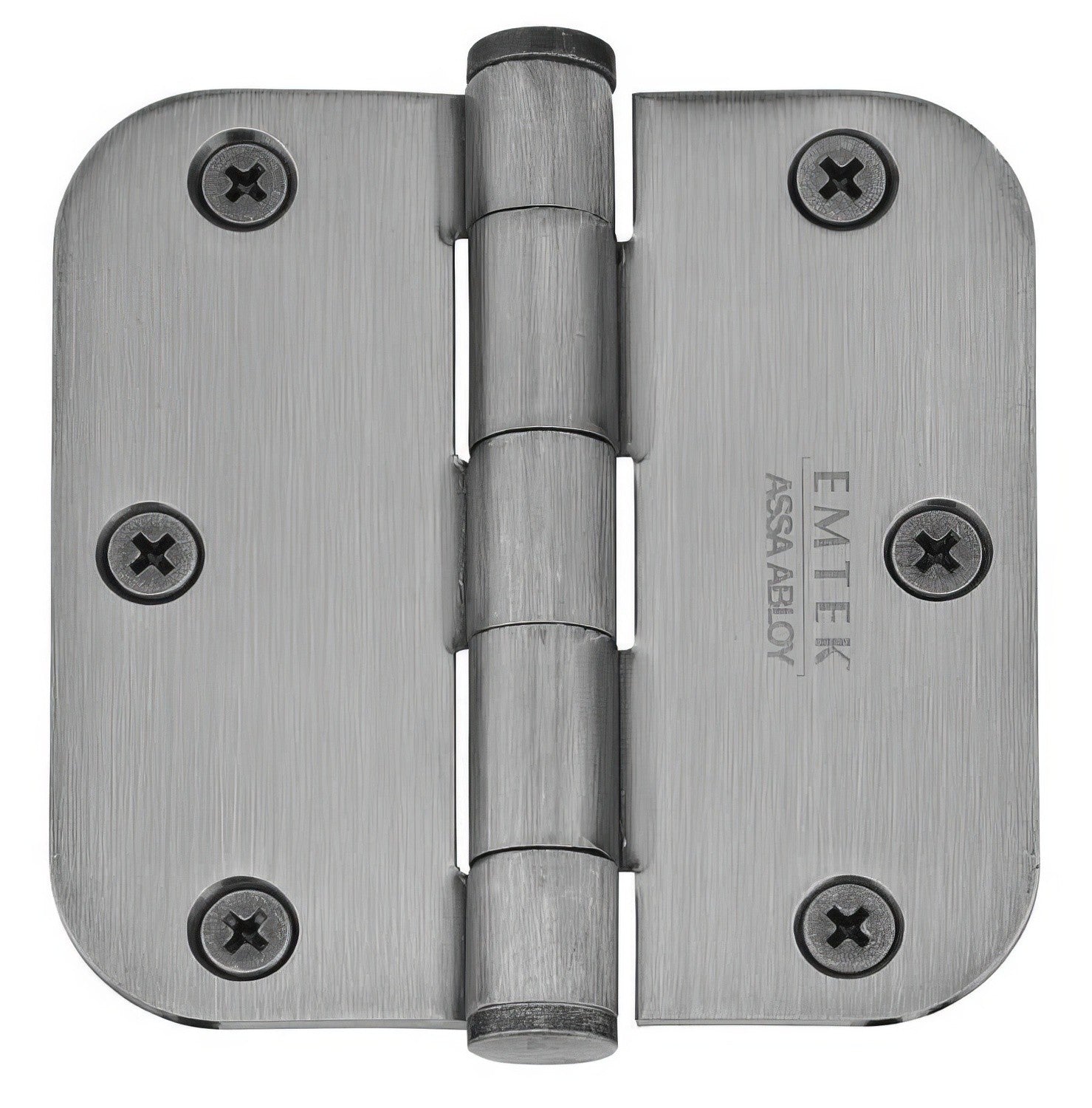

Emtek 92033US 3-1/2″ x 3-1/2″ Plain Bearing Mortise Hinge

The Emtek 92033US 3-1/2″ x 3-1/2″ Plain Bearing Mortise Hinge is a full-mortise door hinge for matching prepared door and frame mortises. It uses a plain-bearing knuckle configuration for standard swinging-door operation.

This product is sold as a pair. Construction is listed as Steel. The hinge leaves have 5/8″ radius corners. The hinge is identified for heavy duty applications. Confirm hinge size, corner pattern, door and frame preparation, quantity, and load requirements before ordering.

Specifications

• Model: 92033US
• Function: Plain Bearing Mortise Hinge
• Mount Type: Full Mortise
• Material: Steel
• Hinge Height: 3-1/2″
• Hinge Width: 3-1/2″
• Corner Style: 5/8″ Radius Corner
• Bearing Type: Plain Bearing
• Duty Rating: Heavy Duty
• Sold As: Pair
• Series: 3-1/2 Inch Hinges
