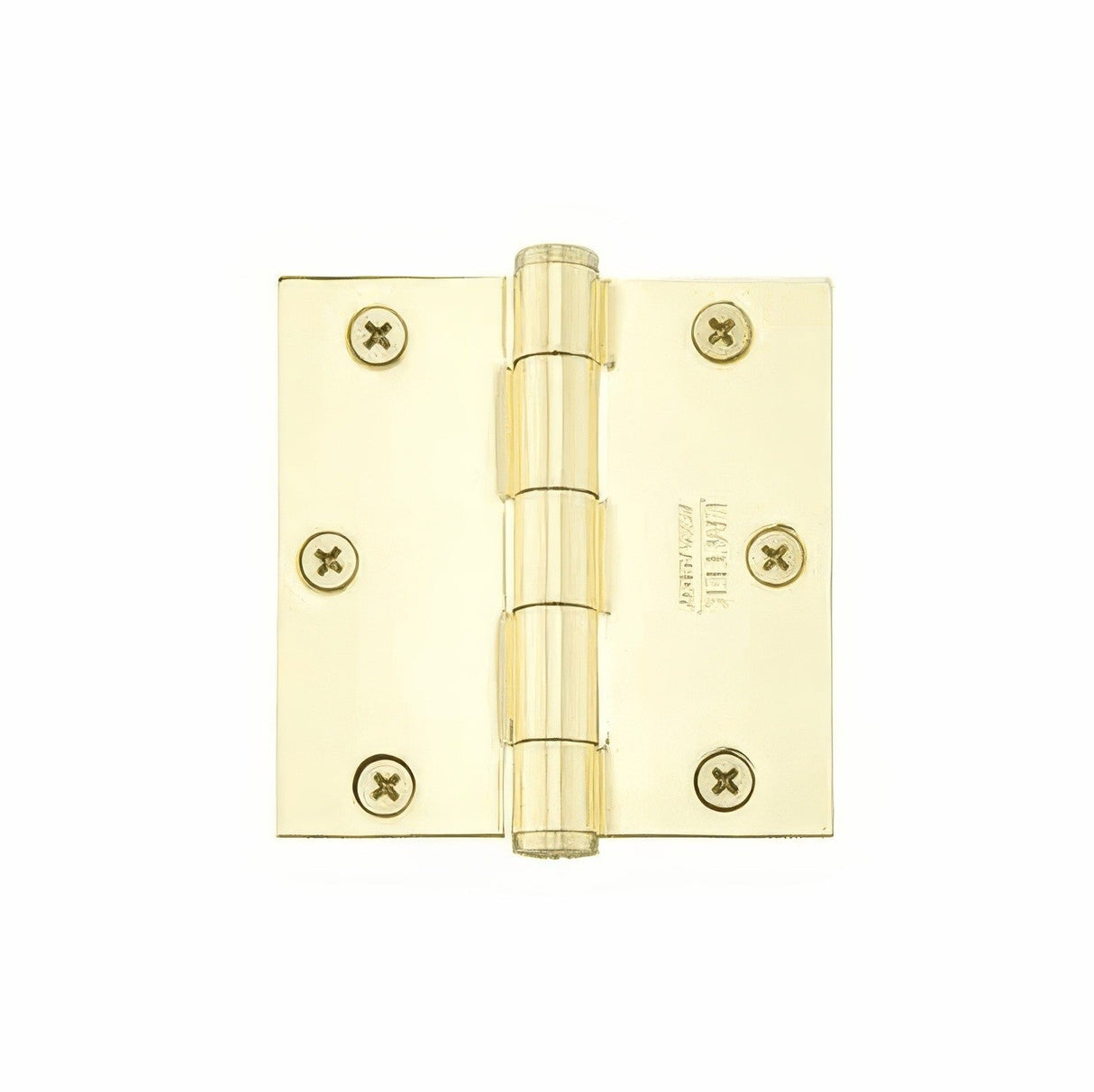

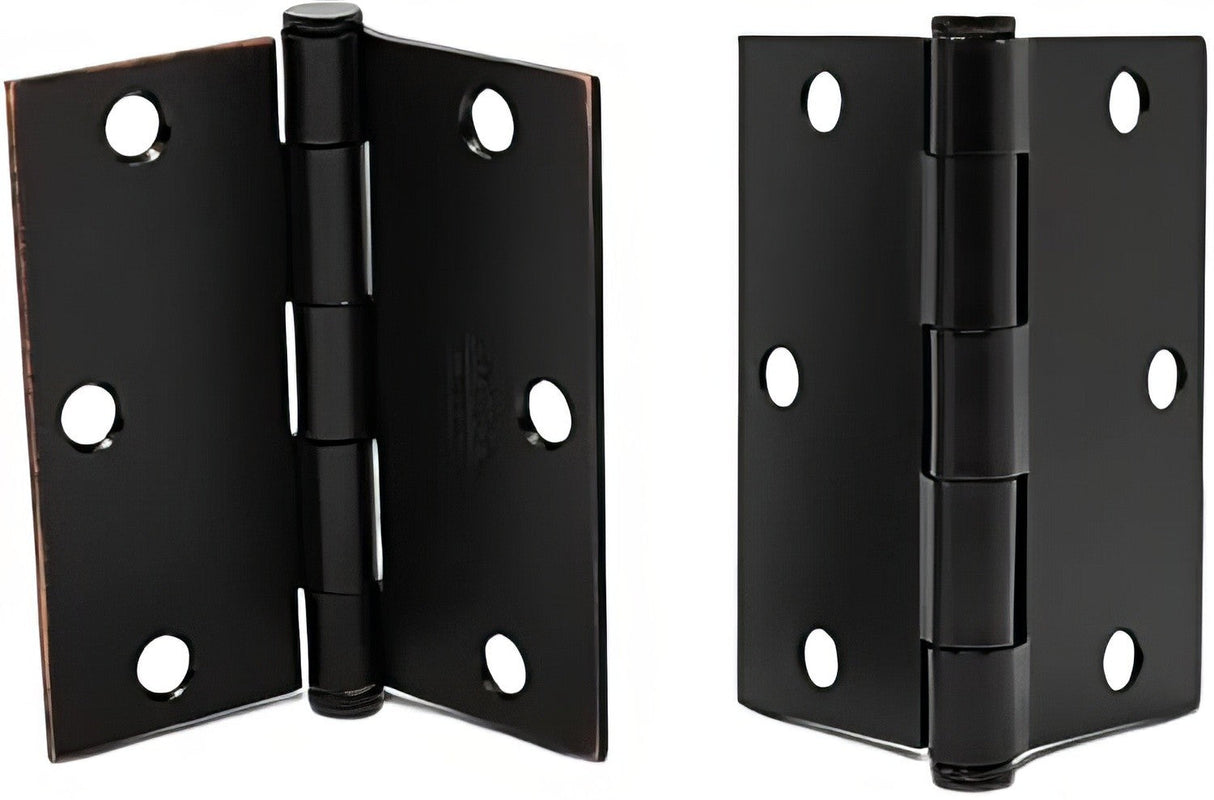

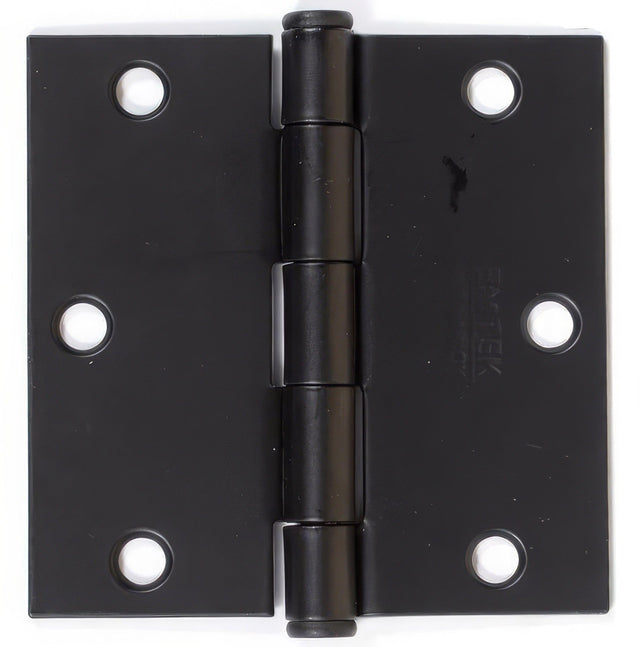

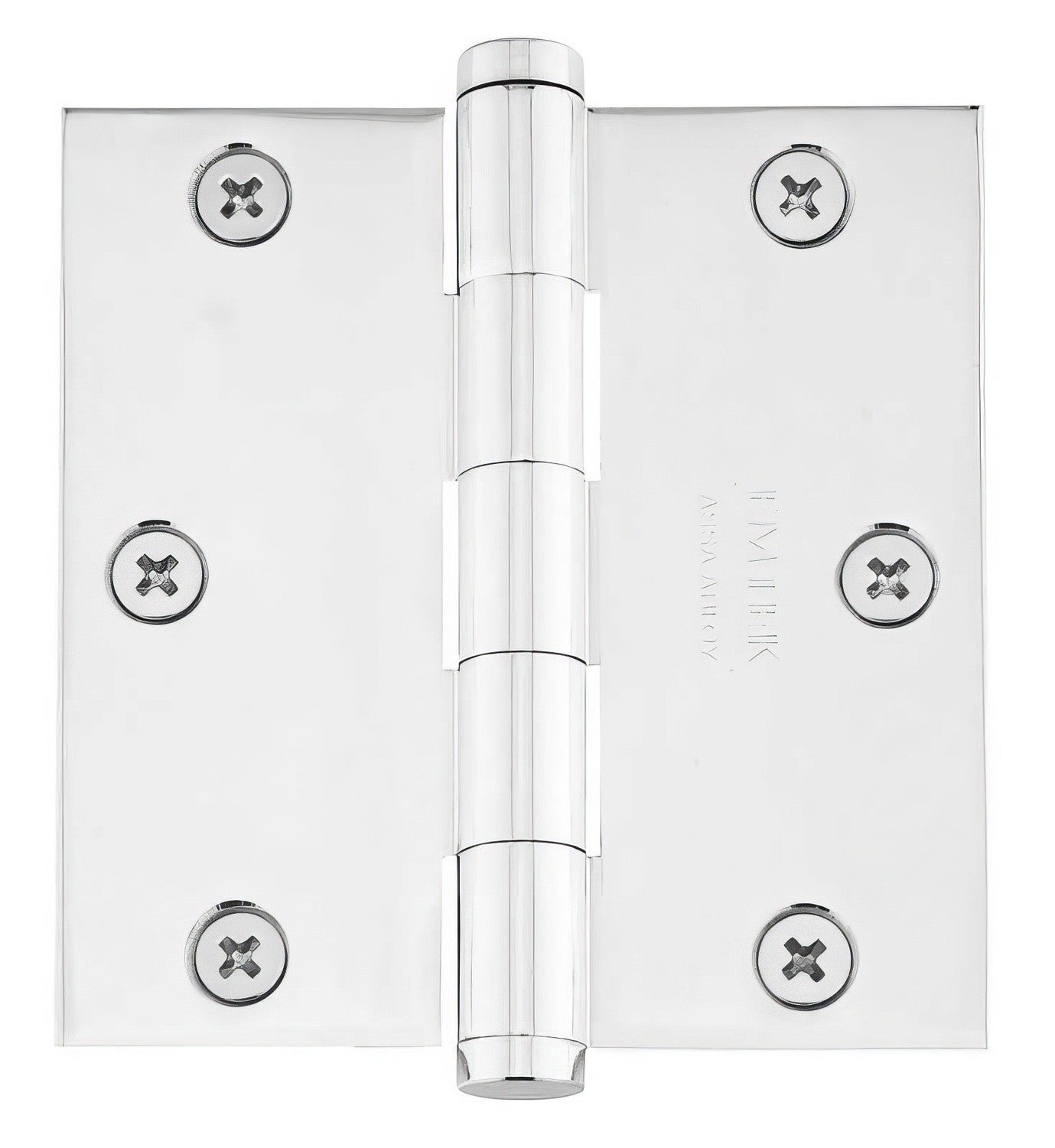

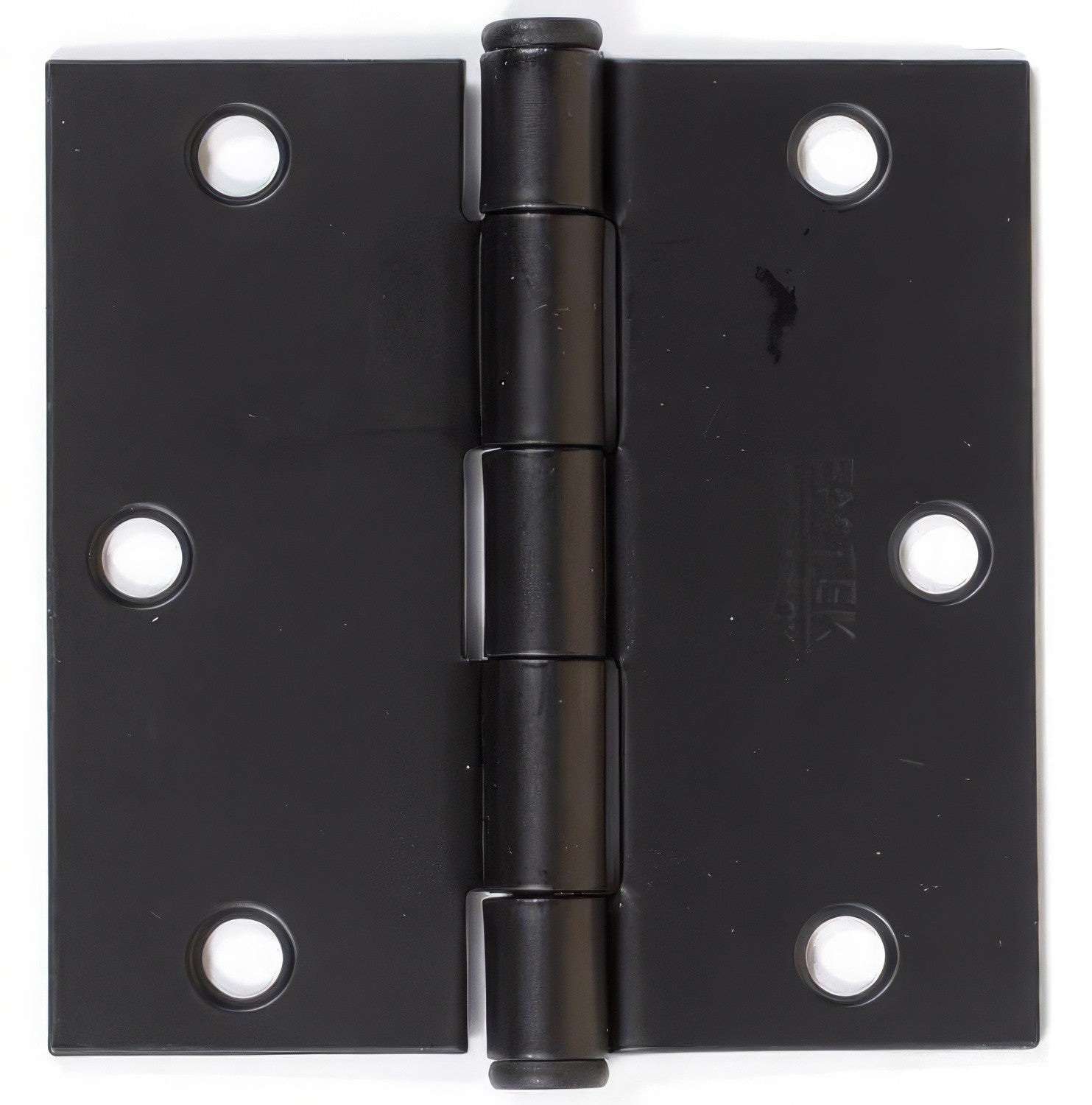

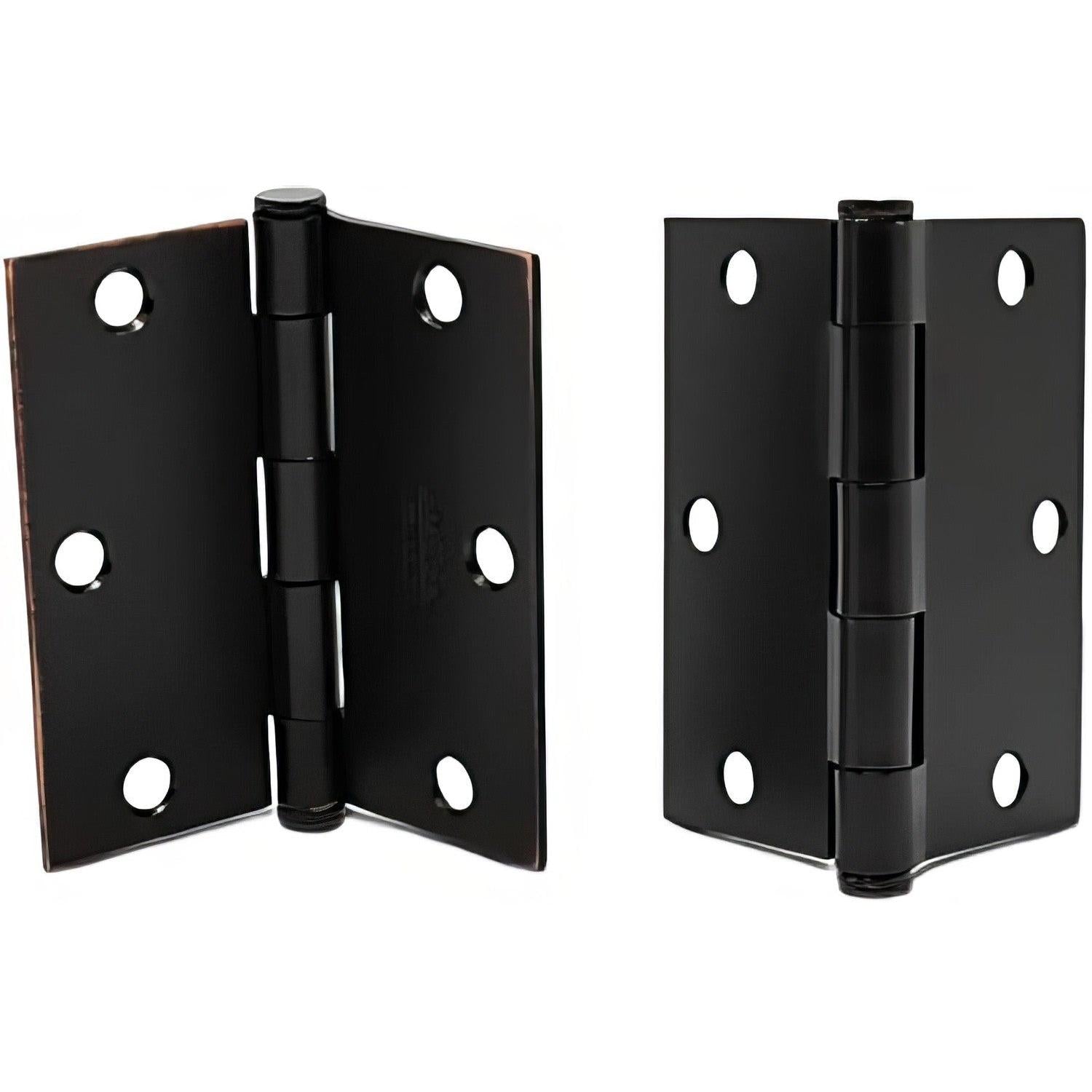

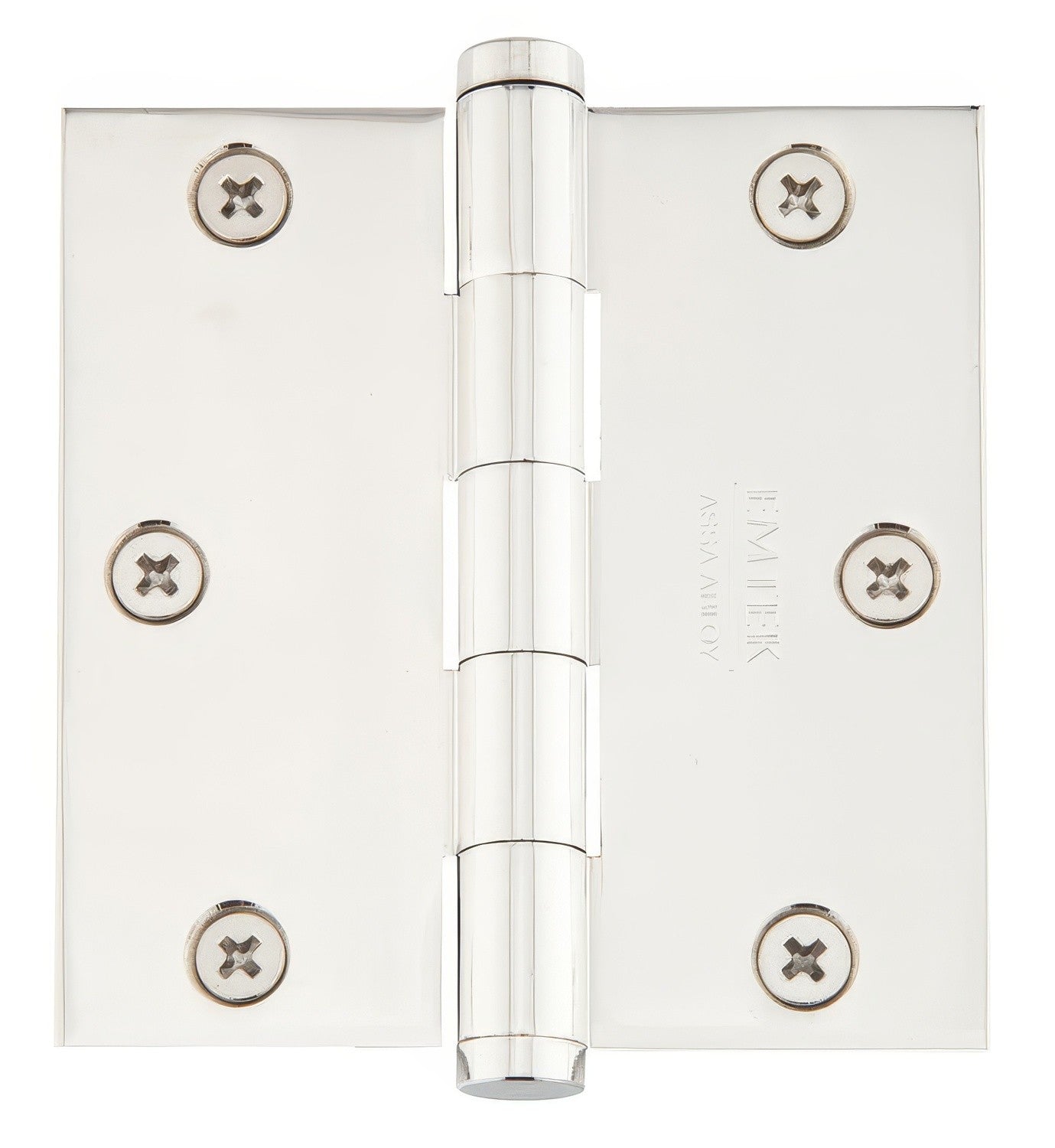

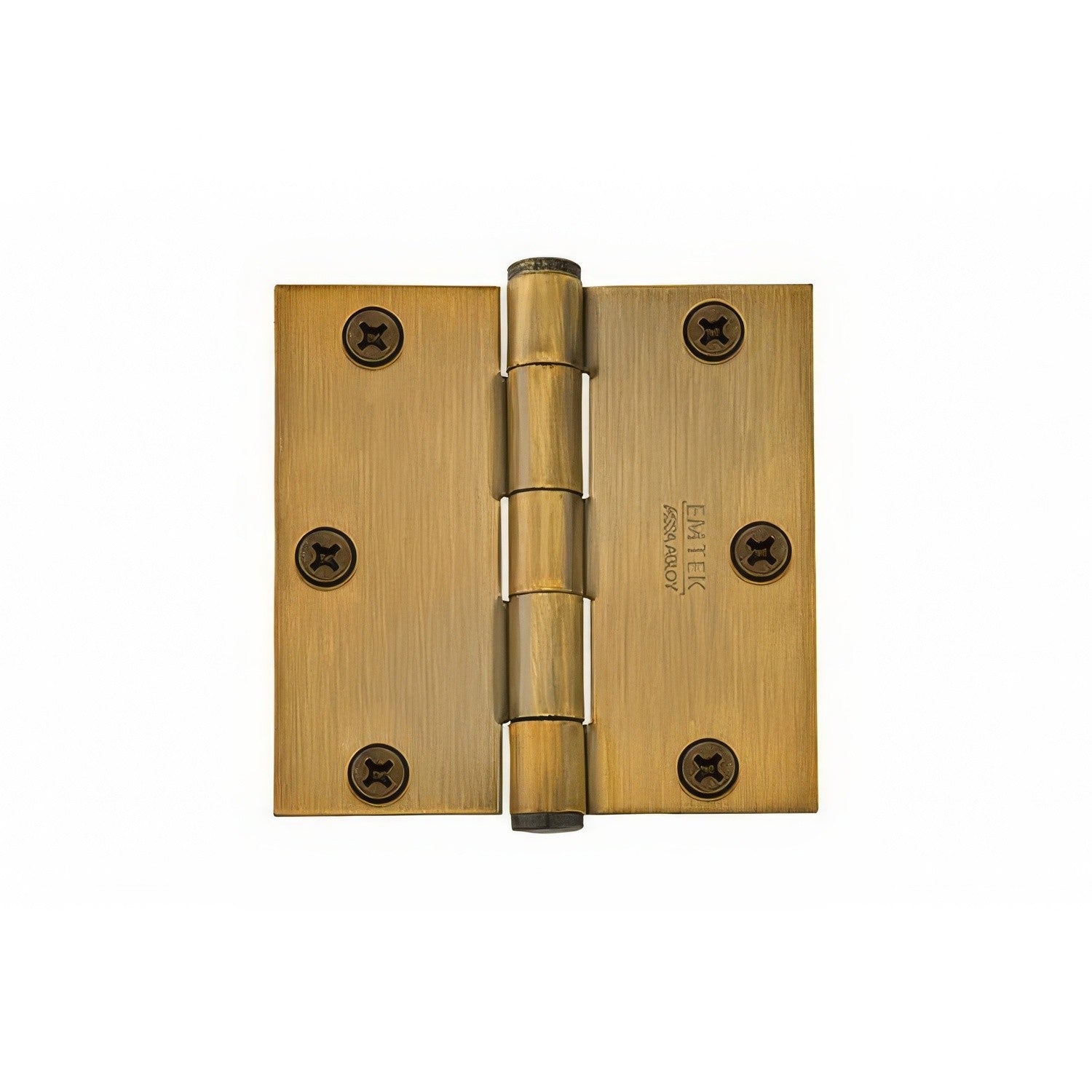

Emtek 91013US 3.5" x 3.5" Square Corner Plain Bearing Mortise Hinge - Pair

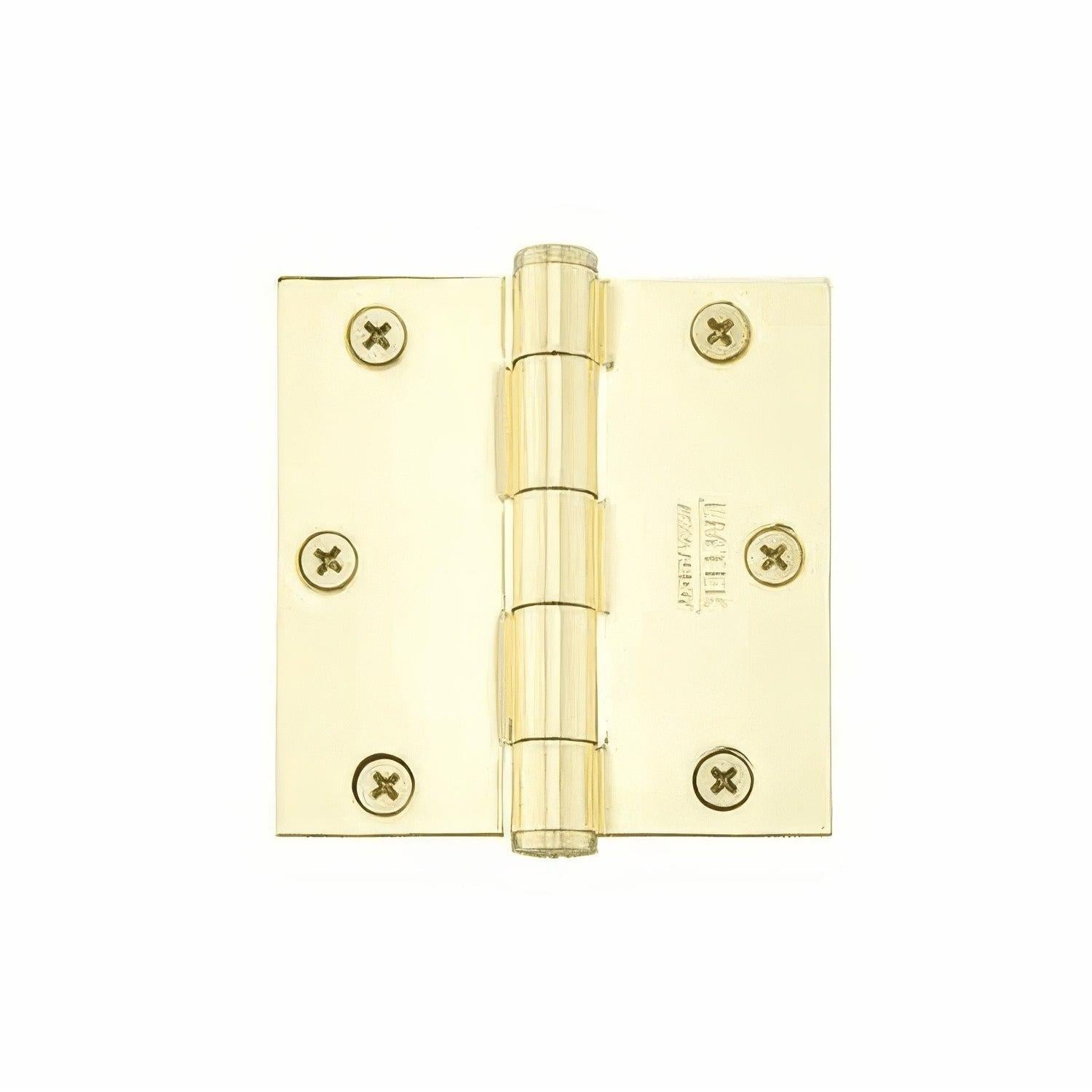

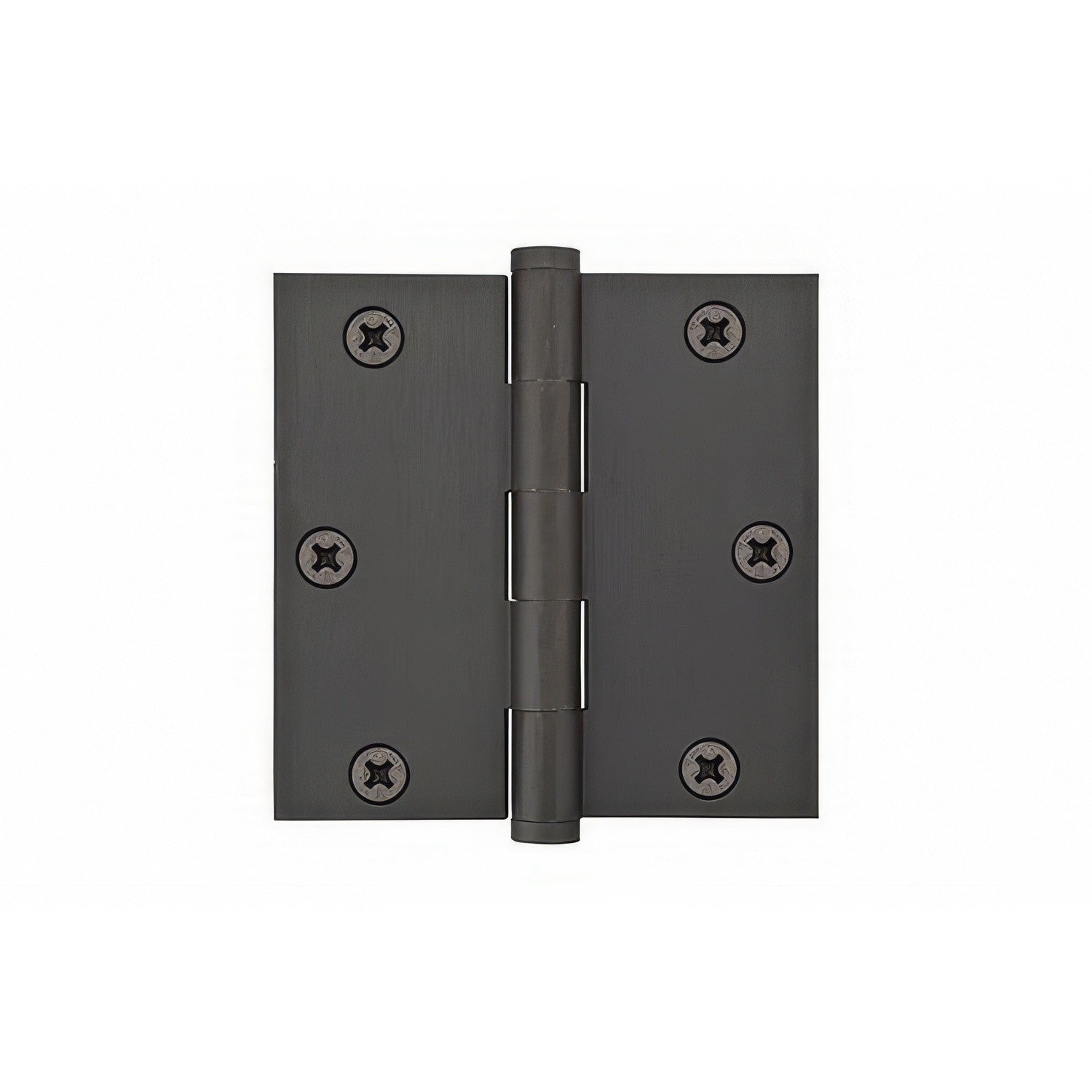

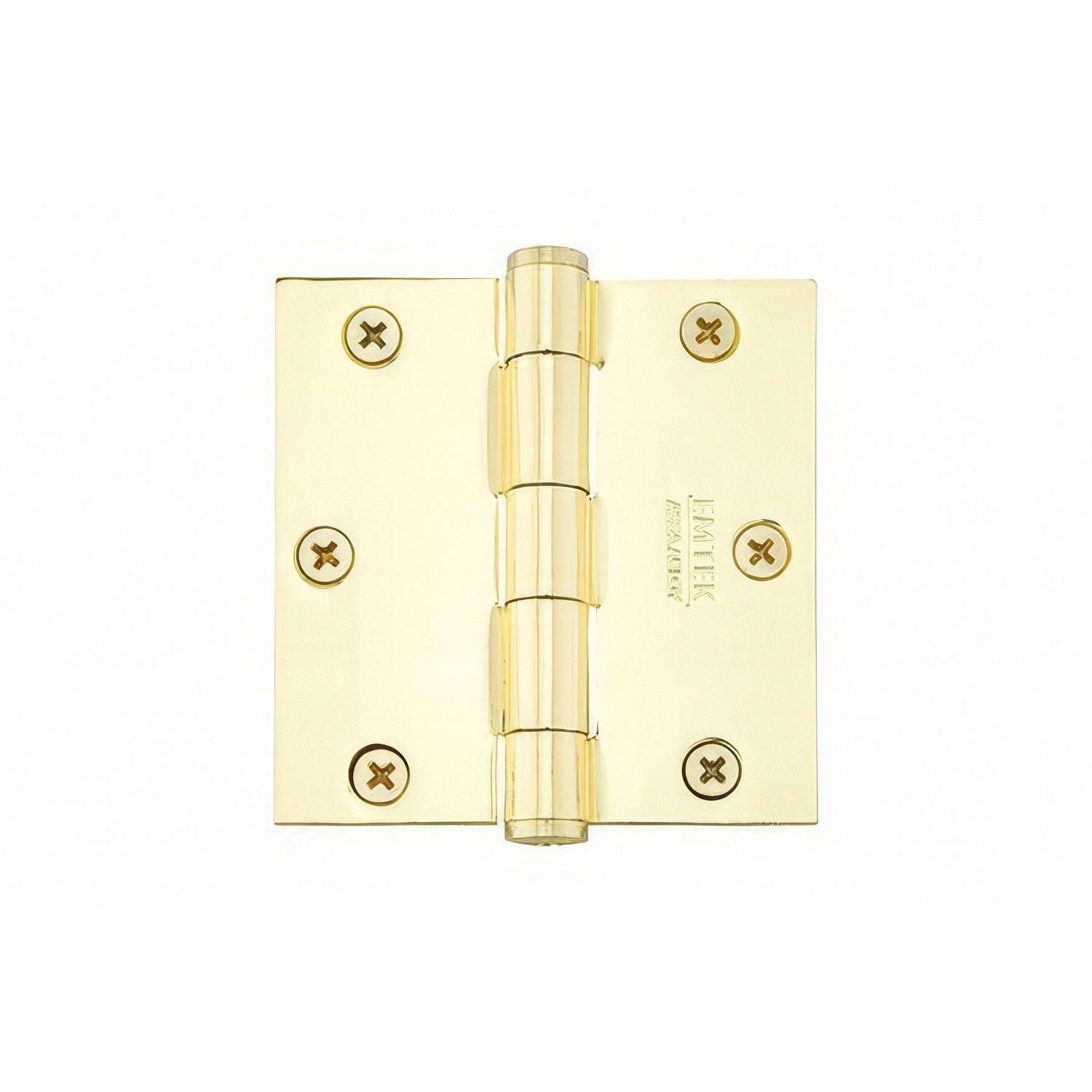

Emtek 91013US 3-1/2″ x 3-1/2″ Plain Bearing Mortise Hinge

The Emtek 91013US 3-1/2″ x 3-1/2″ Plain Bearing Mortise Hinge is a full-mortise door hinge for matching prepared door and frame mortises. It uses a plain-bearing knuckle configuration for standard swinging-door operation.

This product is sold as a pair. Construction is listed as Steel. The hinge leaves have square corners. Confirm hinge size, corner pattern, door and frame preparation, quantity, and load requirements before ordering.

Specifications

• Model: 91013US
• Function: Plain Bearing Mortise Hinge
• Mount Type: Full Mortise
• Material: Steel
• Hinge Height: 3-1/2″
• Hinge Width: 3-1/2″
• Corner Style: Square Corner
• Bearing Type: Plain Bearing
• Duty Rating: Standard Duty
• Sold As: Pair
• Series: 3-1/2 Inch Hinges

Additional Emtek Information

Emtek 91013 Specification Sheet

View Emtek Manufacturer Warranty

Shop All Emtek Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
