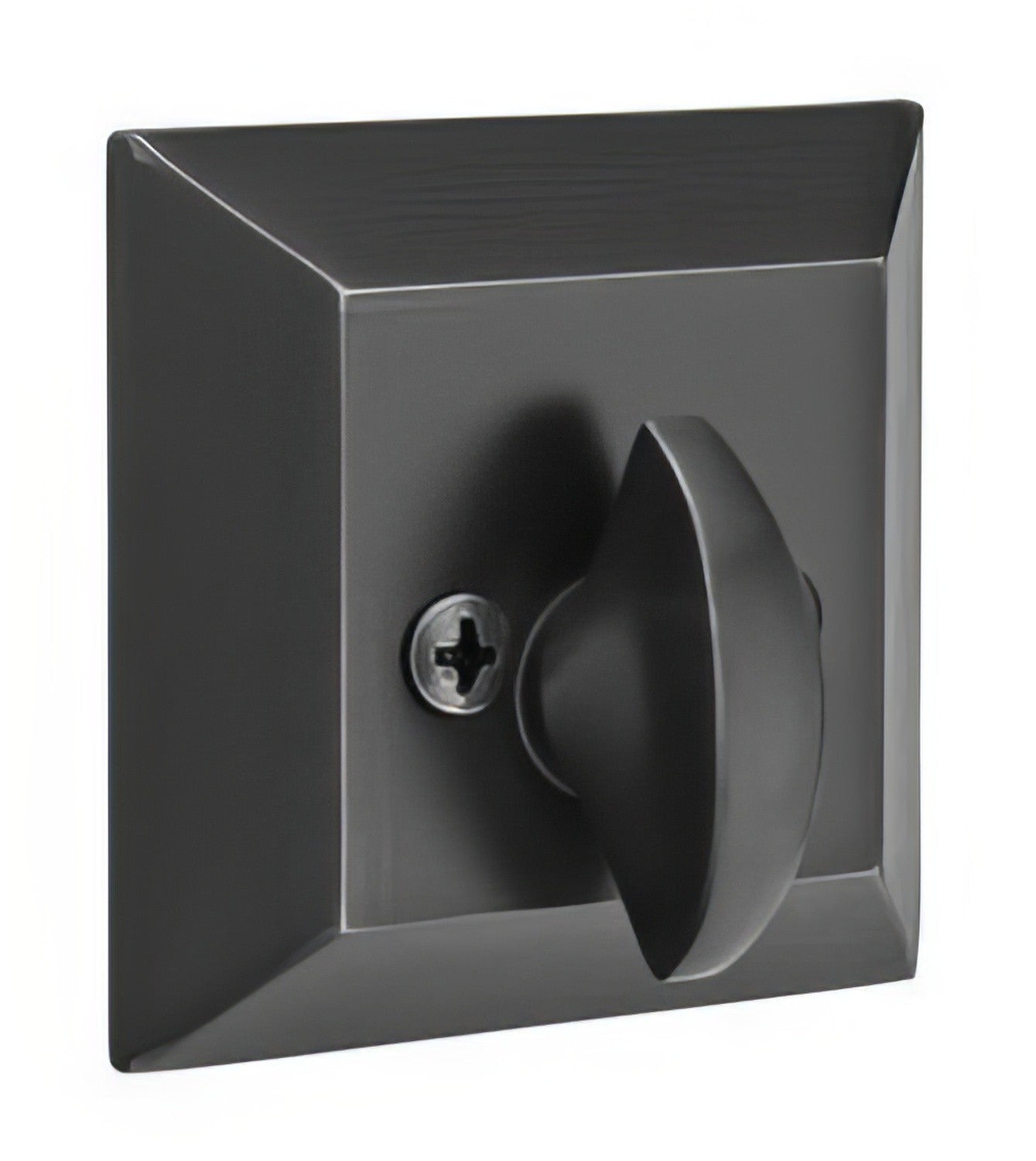

Emtek 8578US Quincy Single Sided Deadbolt
Quincy Single Sided Deadbolt
Emtek 8578US Quincy Single Sided Deadbolt - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Emtek 8578US Quincy Single Sided Deadbolt
The Emtek 8578US Quincy Single Sided Deadbolt is a one-sided deadbolt for entry-door security. Provides an interior-only deadbolt configuration without exterior keyed trim.
Construction is listed as Brass. The listed backset is 2-3/8″ to 2-3/4″. It fits the listed 1-5/8″ to 2-1/4″ door-thickness range. Review door preparation, dimensions, keyway, handing, and included components before ordering.
Specifications
- Model: 8578US
- Function: One-Sided Deadbolt
- Material: Brass
- Collection: Classic Brass
- Projection: 1-1/4″
- Width: 2-1/2″
- Height: 2-1/2″
- Backset: 2-3/8″ to 2-3/4″
- Door Thickness: 1-5/8″ to 2-1/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Handing: Left Hand / Right Hand / Reversible
- Latch Faceplate: Round Corner / Square Corner
Additional Emtek Information
8578 Specification Sheet
View Emtek Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Backset2-3/4", 2-3/8"
-
Collections
-
Configuration
-
HandingLeft Hand, Right Hand, Reversible
-
Door Thickness1-3/4" / 1-5/8" / 1-7/8" / 2" / 2-1/4" / 2-1/8"
-
Edge Bore
-
Latch Faceplate
-
Series
-
Cross Bore
-
Projection
-
Height
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 7 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|
| 8578US19 | Flat Black | $69.60 USD |
| 8578US7 | French Antique | $69.60 USD |
| 8578US10B | Oil Rubbed Bronze | $69.60 USD |
| 8578US15A | Pewter | $69.60 USD |
| 8578US3 | Polished Brass | $69.60 USD |
| 8578US26 | Polished Chrome | $69.60 USD |
| 8578US15 | Satin Nickel | $69.60 USD |
Description
Description
Emtek 8578US Quincy Single Sided Deadbolt
The Emtek 8578US Quincy Single Sided Deadbolt is a one-sided deadbolt for entry-door security. Provides an interior-only deadbolt configuration without exterior keyed trim.
Construction is listed as Brass. The listed backset is 2-3/8″ to 2-3/4″. It fits the listed 1-5/8″ to 2-1/4″ door-thickness range. Review door preparation, dimensions, keyway, handing, and included components before ordering.
Specifications
- Model: 8578US
- Function: One-Sided Deadbolt
- Material: Brass
- Collection: Classic Brass
- Projection: 1-1/4″
- Width: 2-1/2″
- Height: 2-1/2″
- Backset: 2-3/8″ to 2-3/4″
- Door Thickness: 1-5/8″ to 2-1/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Handing: Left Hand / Right Hand / Reversible
- Latch Faceplate: Round Corner / Square Corner
Additional Emtek Information
View Emtek Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
Backset2-3/4", 2-3/8"
-
Collections
-
Configuration
-
FinishFlat Black, French Antique, Oil Rubbed Bronze, Pewter, Polished Brass, Polished Chrome, Satin Nickel
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Material
-
Special Order
-
Door Thinkness1-3/4" / 1-5/8" / 1-7/8" / 2" / 2-1/4" / 2-1/8"
-
Edge Bore
-
Latch Faceplate
-
Series
-
Searies
-
Cross Bore
-
Projection
-
Height
-
Width
